RZB54L-ZEMSK (2004)
Toyota Coaster (China)
Production
Nov 2004
-
Jan 2007
Engine
3RZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0012-0701)RZB5#

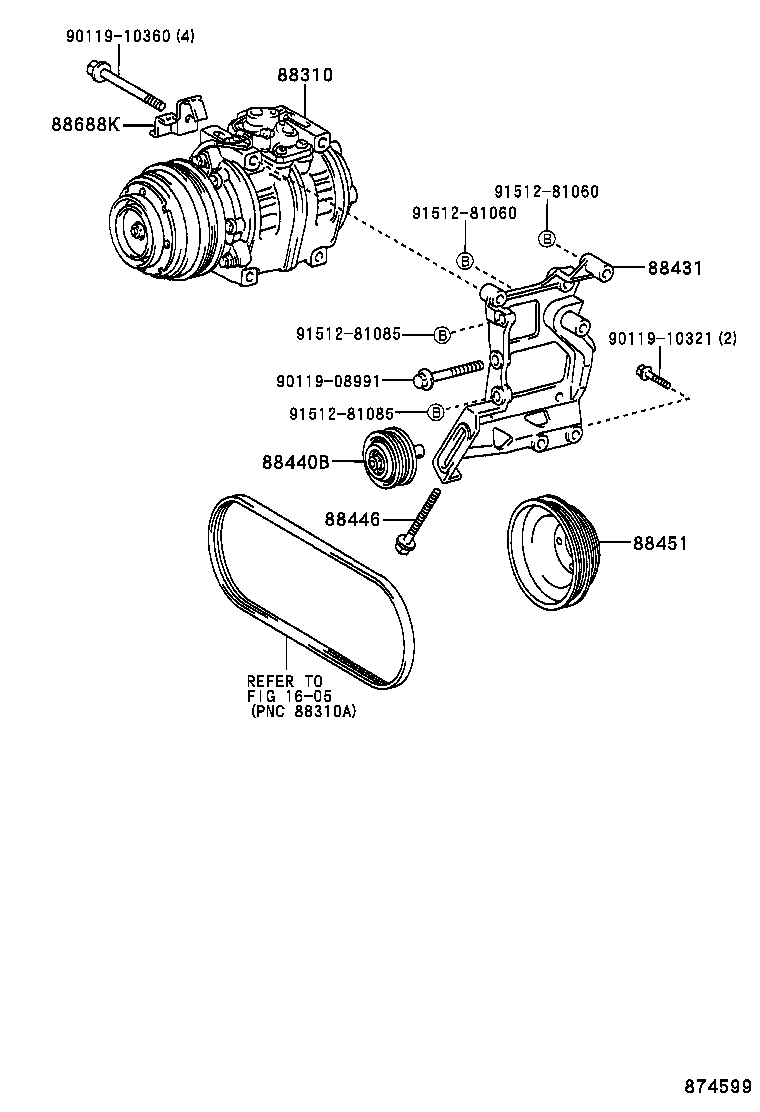

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310 - COMPRESSOR ASSY, W/PULLEY | ||||
| 88310-36890 |
RZB5# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-36640 |
RZB5# |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-36210 |
RZB5# |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-36020 |
RZB5# |
1 | ||
| 88451 - PULLEY, CRANKSHAFT | ||||
| 88451-36180 |
RZB5# |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-36800 |
RZB5# |
1 | ||
| Common parts | ||||
| 90119-08991 | ||||
| 90119-10321 | ||||
| 90119-10360 | ||||
| 91512-81060 | ||||
| 91512-81085 | ||||
| Linked diagrams | ||||
| 1605 | ||||
