RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

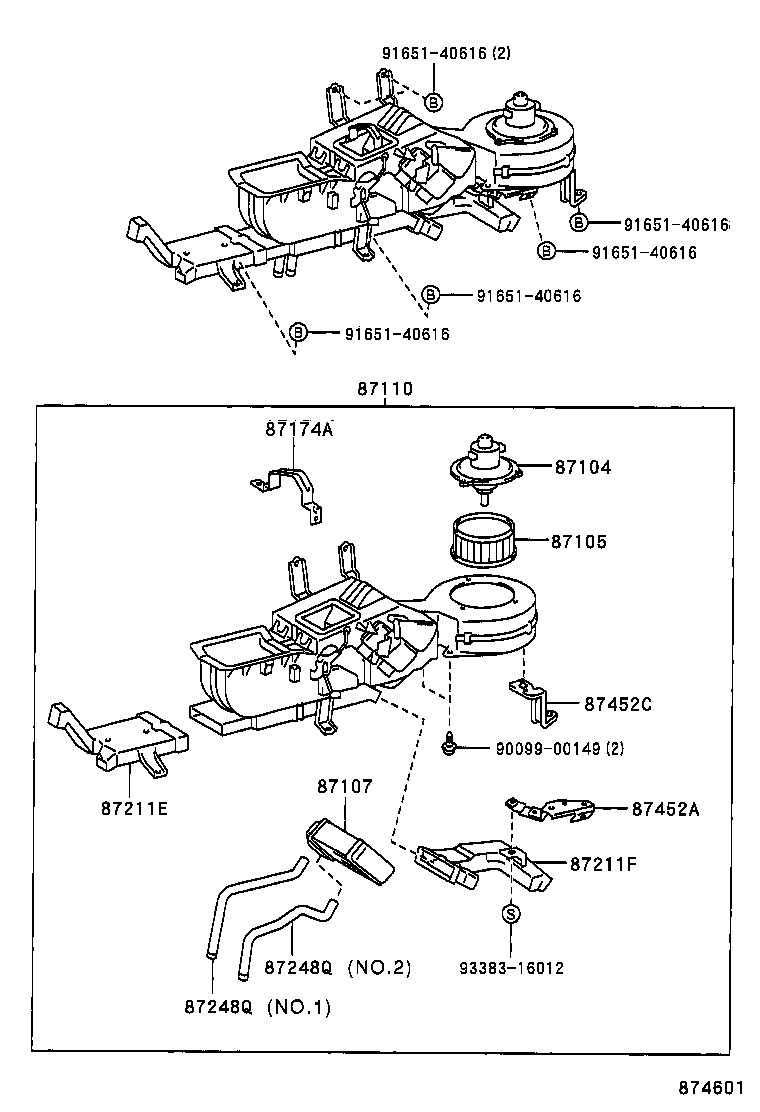

ILLUST NO. 1 OF 2(0012- )

Click highlighted areas on diagram

FRONT

diagram 87104 87105 87107 87110 87174A 87211E 87211F 87248Q 87248Q 87452A 87452C 9009900149 9165140616 9165140616 9165140616 9165140616 9165140616 9338316012
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-36340

RZB5#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-36100

BB5#,RZB5#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-36200

BB5#,RZB5#

 1
87110 - HEATER ASSY
87110-36570

RZB5#

 1
87174A - GUIDE, AIR HEATER
87174-36060

BB5#,RZB5#

 1
87211E - DUCT, AIR
87211-36120

BB5#,RZB5#

 1
87211F - DUCT, AIR
87211-36130

BB5#,RZB5#

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87248-36460

BB5#,RZB5#

NO.1

 1
87248-36470

BB5#,RZB5#

NO.2

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87248-36460

BB5#,RZB5#

NO.1

 1
87248-36470

BB5#,RZB5#

NO.2

 1
87452A - BRACKET, HEATER, FRONT
87452-36300

BB5#,RZB5#

 1
87452C - BRACKET, FRONT HEATER, NO.2
87452-36310

BB5#,RZB5#

 1
Common parts
90099-00149
91651-40616
93383-16012

ILLUST NO. 2 OF 2(0012- )

Click highlighted areas on diagram

REAR

diagram 87104R 87107R 87120 87120 87120 87138 87187A 87452B 9017906206 9017906206 9017906206 9017906206 9017906206 9017906206 9048026012 9048026012
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-36360

RZB5#

 2
87107R - UNIT SUB-ASSY, REAR HEATER
87107-36220

BB5#,RZB5#

 2
87120 - HEATER ASSY, REAR
87110-36640

RZB5#

 2
87120 - HEATER ASSY, REAR
87110-36640

RZB5#

 2
87120 - HEATER ASSY, REAR
87110-36640

RZB5#

 2
87138 - RESISTOR, HEATER BLOWER
87138-36270

RZB5#

 2
87187A - WIRE, BLOWER MOTOR LEAD
87187-36140

RZB5#

 2
87452B - BRACKET, HEATER, REAR
87452-36290

BB5#,RZB5#

 1
Common parts
90179-06206
90480-26012
