RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012- )

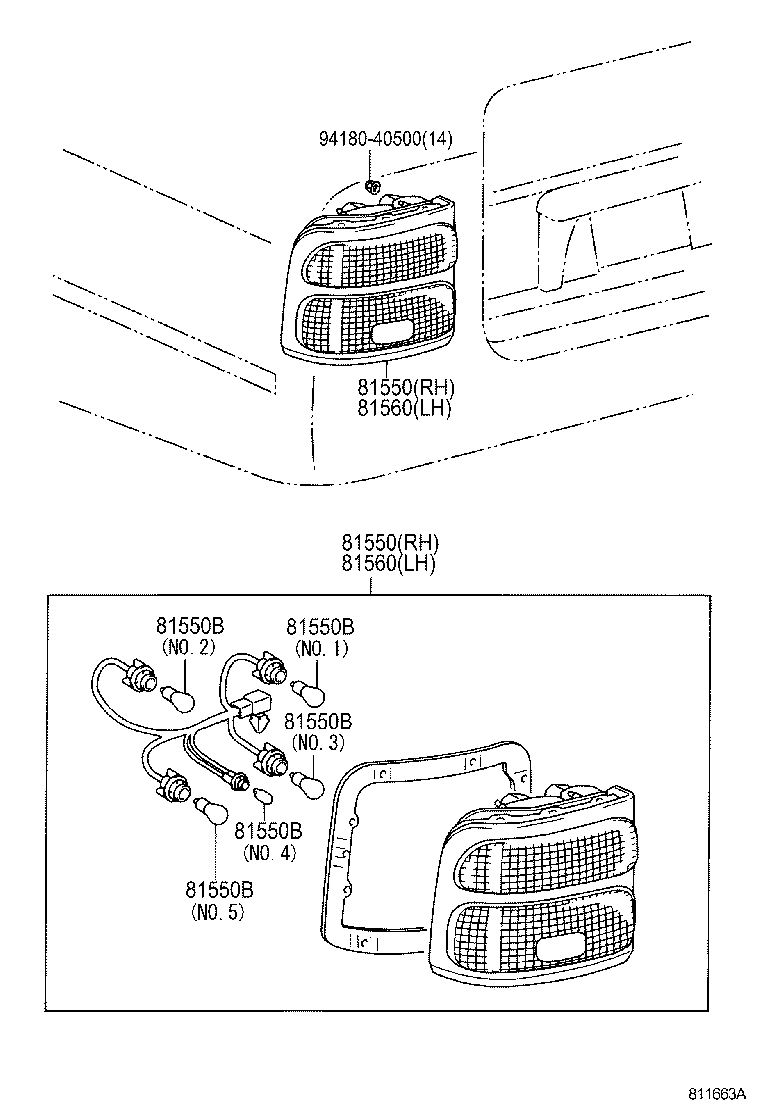

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550B 81550B 81560 81560 9418040500
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-36370

RZB54

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-36370

RZB54

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12050

RZB5#

12V 5W,NO.4

 2
99132-21210

RZB5#

12V 21/5W,NO.5

 2
99132-11210

RZB5#

12V 21W,NO.1 & NO.2 & NO.3

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12050

RZB5#

12V 5W,NO.4

 2
99132-21210

RZB5#

12V 21/5W,NO.5

 2
99132-11210

RZB5#

12V 21W,NO.1 & NO.2 & NO.3

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12050

RZB5#

12V 5W,NO.4

 2
99132-21210

RZB5#

12V 21/5W,NO.5

 2
99132-11210

RZB5#

12V 21W,NO.1 & NO.2 & NO.3

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12050

RZB5#

12V 5W,NO.4

 2
99132-21210

RZB5#

12V 21/5W,NO.5

 2
99132-11210

RZB5#

12V 21W,NO.1 & NO.2 & NO.3

 6
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-12050

RZB5#

12V 5W,NO.4

 2
99132-21210

RZB5#

12V 21/5W,NO.5

 2
99132-11210

RZB5#

12V 21W,NO.1 & NO.2 & NO.3

 6
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-36260

RZB54

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-36260

RZB54

 1
Common parts
94180-40500
