RZB54L-ZEMSK (2004)
Toyota Coaster (China)

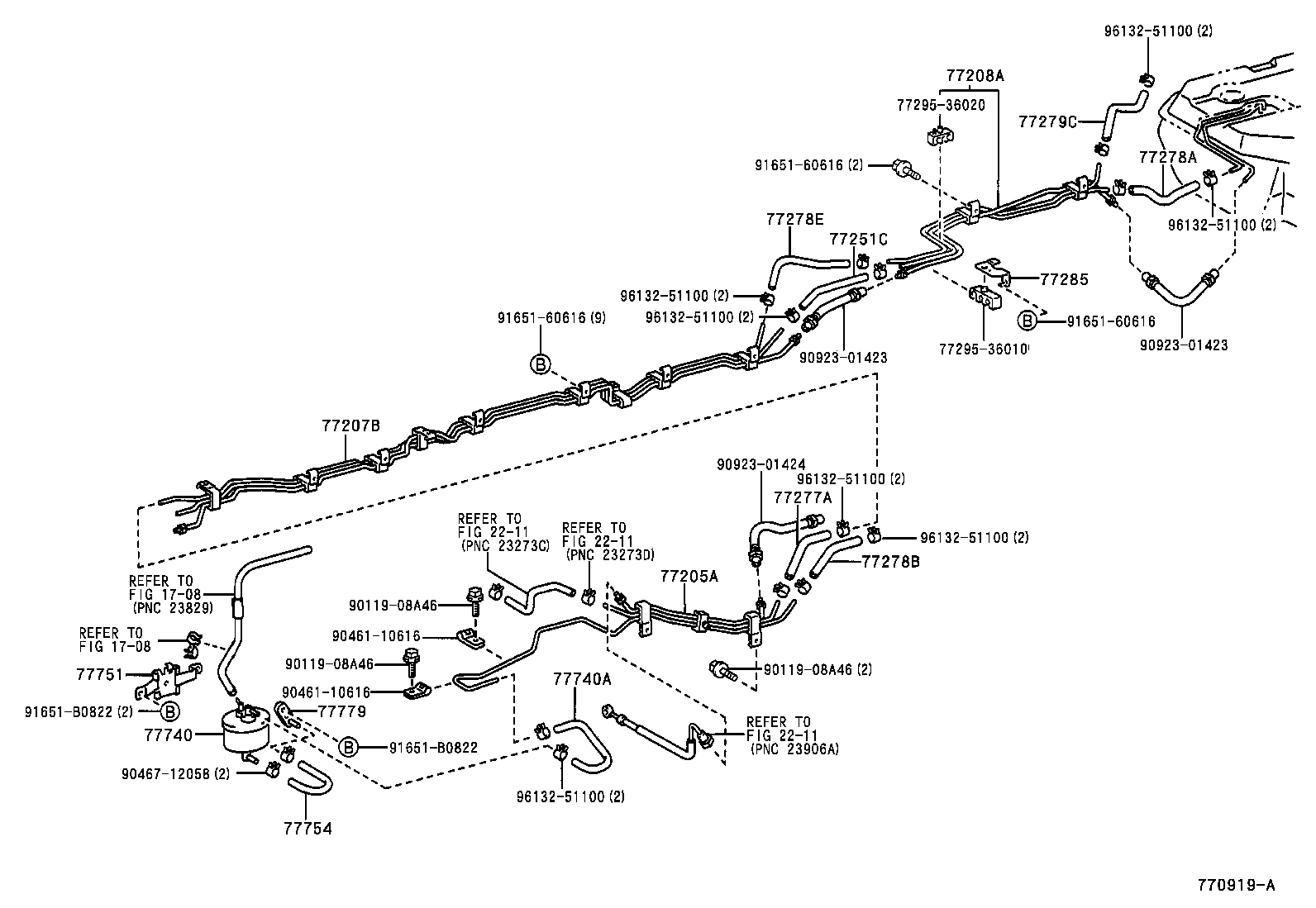

ILLUST NO. 2 OF 2(0012- )RZB54
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-3B190 |
RZB54 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36200 |
RZB5# |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36230 |
RZB5# |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95334-06022 |
RZB5# *H,L=220 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95334-06022 |
RZB5# *H,L=220 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95334-06015 |
RZB5# *H,L=150 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95334-06022 |
RZB5# *H,L=220 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06030 |
RZB5# |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06030 |
RZB5# |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36010 |
BB5#,RZB5# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-36050 |
RZB5# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95333-06030 |
RZB54 *H,L=280 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-36080 |
RZB54 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-36030 |
RZB54 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-36010 |
RZB5# |
1 | ||
| Common parts | ||||
| 77295-36010 | ||||
| 77295-36020 | ||||
| 90119-08A46 | ||||
| 90461-10616 | ||||
| 90467-12058 | ||||
| 90923-01423 | ||||
| 90923-01424 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(0012-0809)
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
BB5#,RZB5# |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
BB5#,RZB5# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-36020 |
BB5#,RZB5# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-36060 |
BB5#,RZB5# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB5#,RZB5# |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060E1 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B290 |
BB5#,RZB5# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BB5#,RZB5# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BB5#,RZB5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
BB5#,RZB5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
BB5#,RZB5# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
BB5#,RZB5# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
BB5#,RZB5# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB5#,RZB5# |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB5#,RZB5# |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36180 |
BB5#,RZB5# |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-36191 |
RZB5# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-36090 |
BB5#,RZB5# |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
BB5#,RZB5# |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
BB5#,RZB5# |
2 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB5#,RZB5# |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB5#,RZB5# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB5#,RZB5# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
BB5#,RZB5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
RZB5# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BB5#,RZB5# |
1 | ||
| 77316-52040 |
BB5#,RZB5#,TRB53,XZB53 JAPAN SOURCED PARTS |
1 | ||
| 77316-52020 |
BB5#,RZB5# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB5#,RZB5# |
1 | ||
| 77350-36011 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BB5#,RZB5# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
BB5#,RZB5# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
BB5#,RZB5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB5#,RZB5# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
BB5#,RZB5# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB5#,RZB5# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB5#,RZB5# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08047 |
BB5#,RZB5# |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-36030 |
BB5#,RZB5# |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB5#,RZB5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB5#,RZB5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB5#,RZB5# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB5#,RZB5# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
BB5#,RZB5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 77653-36010 |
BB5#,RZB5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 77653-36010 |
BB5#,RZB5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 77653-36010 |
BB5#,RZB5# |
4 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 77653-36010 |
BB5#,RZB5# |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36020 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36020 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB5#,RZB5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB5#,RZB5# |
2 | ||
| Common parts | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50278 | ||||
| 90159-60008 | ||||
| 90179-05011 | ||||
| 90179-05042 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-06099 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-09007 | ||||
| 90468-14004 | ||||
| 90480-14003 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-A0816 | ||||
| 91655-B1040 | ||||
| 93319-A4010 | ||||
| 93568-55014 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
