RZB54L-ZEMSK (2004)
Toyota Coaster (China)
(0601-0701)
REAR SEAT - NO.8(FIX SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033C - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71035-36010 |
BB5#,RZB5#..23S |
1 | ||
| 71034B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH | ||||
| 71036-36010 |
BB5#,RZB5#..23S |
1 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36340E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79081-36360E0 |
BB54,RZB54..23S W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79081-36400E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79081-36310E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79081-36380E0 |
BB54,RZB54..23S GREGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36190E0 |
BB54,RZB54 W(FIXED SEAT),GREIGE,TRIM4# |
1 | ||
| 79083-36210E0 |
BB54,RZB54..23S W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36180E0 |
BB54,RZB54 W(FIXED SEAT),GREGE,TRIM4# |
1 | ||
| 79084-36200E0 |
BB54,RZB54..23S W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
BB5#,RZB5# LH |
1 | ||
| 79085-36010 |
BB5#,RZB5# RH |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
BB5#,RZB5# LH |
1 | ||
| 79085-36010 |
BB5#,RZB5# RH |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36070 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79087-36050 |
BB5#,RZB5# |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36050 |
BB5#,RZB5# |
1 | ||
| 79088-36070 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36090E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36050 |
BB5#,RZB5# |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36050 |
BB5#,RZB5# |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36030E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
BB5#,RZB5# RH |
1 | ||
| 71309-36030 |
BB5#,RZB5# LH |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
BB5#,RZB5# RH |
1 | ||
| 71309-36030 |
BB5#,RZB5# LH |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36240E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79840-36270E0 |
BB54,RZB54..23S ***,W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79840-36241 |
BB54,RZB54..23S *** |
1 | ||
| 79840-36270 |
BB54,RZB54..23S |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36300E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79850-36320 |
BB54,RZB54..23S |
1 | ||
| 79850-36301 |
BB54,RZB54..23S *** |
1 | ||
| 79850-36320E0 |
BB54,RZB54..23S ***,W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36060 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79860-36030 |
BB5#,RZB5# |
1 | ||
| 79860-36050 |
BB5#,RZB5#..23S |
1 | ||
| 79860-36080 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79860-36070 |
BB5#,RZB5#..23S |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36070 |
BB5#,RZB5# |
4 | ||
| 71307-36010 |
BB5#,RZB5# |
1 | ||
| 79916 - BRACKET, SEAT LEG, NO.2 | ||||
| 71308-36040 |
BB5#,RZB5# |
1 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36030 |
BB5#,RZB5# |
1 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36030 |
BB5#,RZB5# |
1 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36020 |
BB5#,RZB5# |
1 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36020 |
BB5#,RZB5# |
1 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90109-08277 | ||||
| 90159-60589 | ||||
| 90179-08091 | ||||
| 90179-10033 | ||||
| 90468-16019 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61030 | ||||
| 91671-C0830 | ||||
| 93568-54516 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0411-0701)
REAR SEAT PATTERN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72508B - SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36060 |
BB54,RZB54 |
1 | ||
| 72508D - SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36040 |
BB54,RZB54..23S |
1 | ||
| 72508F - SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36040 |
BB54,RZB54..23S |
1 | ||
| 72508G - SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36040 |
BB54,RZB54..23S |
1 | ||
| 72508K - SHAFT SUB-SEAT, NO.2 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36040 |
BB54,RZB54..23S |
2 | ||
| 72508L - SHAFT SUB-SEAT, NO.3 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36040 |
BB54,RZB54..23S |
2 | ||
| 72508M - SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36040 |
BB54,RZB54..23S |
2 | ||
| 72508P - SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36040 |
BB54,RZB54..23S |
2 | ||
| 72508Q - SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36040 |
BB54,RZB54..23S |
2 | ||
| 79007 - FRAME, SEAT CUSHION SIDE, RH OUTER NO.1 | ||||
| 79007-36020 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 79007A - FRAME, SEAT CUSHION SIDE, RH OUTER NO.2 | ||||
| 79007-36020 |
BB5#,RZB5# |
1 | ||
| 79007C - FRAME, SEAT CUSHION SIDE, RH OUTER NO.4 | ||||
| 79007-36030 |
BB5#,RZB5#,TRB53,XZB53..CBU |
1 | ||
| 79007E - FRAME, SEAT CUSHION SIDE, RH OUTER NO.6 | ||||
| 79007-36030 |
BB5#,RZB5#;TRB53,XZB53..20S..CBU |
1 | ||
| 79007F - FRAME, SEAT CUSHION SIDE, RH OUTER NO.7 | ||||
| 79007-36030 |
BB5#,RZB5#,TRB53,XZB53..CBU |
1 | ||
| 79007J - FRAME, SEAT CUSHION SIDE, LH INNER NO.2 | ||||
| 79007-36030 |
BB5#,RZB5# |
1 | ||
| 79007K - FRAME, SEAT CUSHION SIDE, LH INNER NO.3 | ||||
| 79007-36030 |
BB5#,RZB5# |
1 | ||
| 79007L - FRAME, SEAT CUSHION SIDE, LH INNER NO.4 | ||||
| 79007-36030 |
BB5#,RZB5# |
1 | ||
| 79007N - FRAME, SEAT CUSHION SIDE, LH INNER NO.6 | ||||
| 79007-36030 |
BB5#,RZB5# |
1 | ||
| 79007P - FRAME, SEAT CUSHION SIDE, LH INNER NO.7 | ||||
| 79007-36030 |
BB5#,RZB5# |
1 | ||
| 79008 - FRAME, SEAT CUSHION SIDE, LH OUTER NO.2 | ||||
| 79008-36040 |
BB5#,RZB5# |
1 | ||
| 79008A - FRAME, SEAT CUSHION SIDE, LH OUTER NO.3 | ||||
| 79008-36040 |
BB5#,RZB5# |
1 | ||
| 79008B - FRAME, SEAT CUSHION SIDE, LH OUTER NO.4 | ||||
| 79008-36040 |
BB5#,RZB5# |
1 | ||
| 79008D - FRAME, SEAT CUSHION SIDE, LH OUTER NO.6 | ||||
| 79008-36040 |
BB5#,RZB5# |
1 | ||
| 79008E - FRAME, SEAT CUSHION SIDE, LH OUTER NO.7 | ||||
| 79008-36040 |
BB5#,RZB5# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36430E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79011-36370E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79013-36220E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79015-36130 |
BB54,RZB54 |
1 | ||
| 79015-36180 |
BB54,RZB54..23S;TRB53,XZB53..STD |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79017-36050 |
BB54,RZB54 |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36350E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79021-36440E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-36030E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79022-36100E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79013-36220E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-36070E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4#,OUTER |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-36050 |
BB54,RZB54..23S |
1 | ||
| 79025-36020 |
BB54,RZB54 |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79026-36040 |
BB54,RZB54..23S |
1 | ||
| 79026-36020 |
BB54,RZB54 |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36050 |
BB54,RZB54 |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36050 |
BB54,RZB54..23S INNER |
1 | ||
| 79028-36020 |
BB54,RZB54 |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79022-36030E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79022-36100E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4#,INNER |
1 | ||
| 79024-36070E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79026-36020 |
BB54,RZB54 |
1 | ||
| 79026-36040 |
BB54,RZB54..23S |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79017-36050 |
BB54,RZB54..23S INNER |
1 | ||
| 79028-36020 |
BB54,RZB54 |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36350E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79021-36430E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-36030E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79022-36100E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36220E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79024-36070E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4#,INNER |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79025-36020 |
BB54,RZB54 |
1 | ||
| 79025-36040 |
BB54,RZB54..23S |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79026-36020 |
BB54,RZB54 |
1 | ||
| 79026-36040 |
BB54,RZB54..23S |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36050 |
BB54,RZB54 |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79028-36020 |
BB54,RZB54 |
1 | ||
| 79017-36050 |
BB54,RZB54..23S INNER |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-36150E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79021-36430E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-36100E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79022-36030E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36220 |
BB54,RZB54 |
1 | ||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79024-36070E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4#,INNER |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79025-36040 |
BB54,RZB54..23S |
1 | ||
| 79035-36080 |
BB54,RZB54 |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79026-36020 |
BB54,RZB54 |
1 | ||
| 79026-36040 |
BB54,RZB54..23S |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36050 |
BB54,RZB54 |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79028-36020 |
BB54,RZB54 |
1 | ||
| 79017-36050 |
BB54,RZB54..23S INNER |
1 | ||

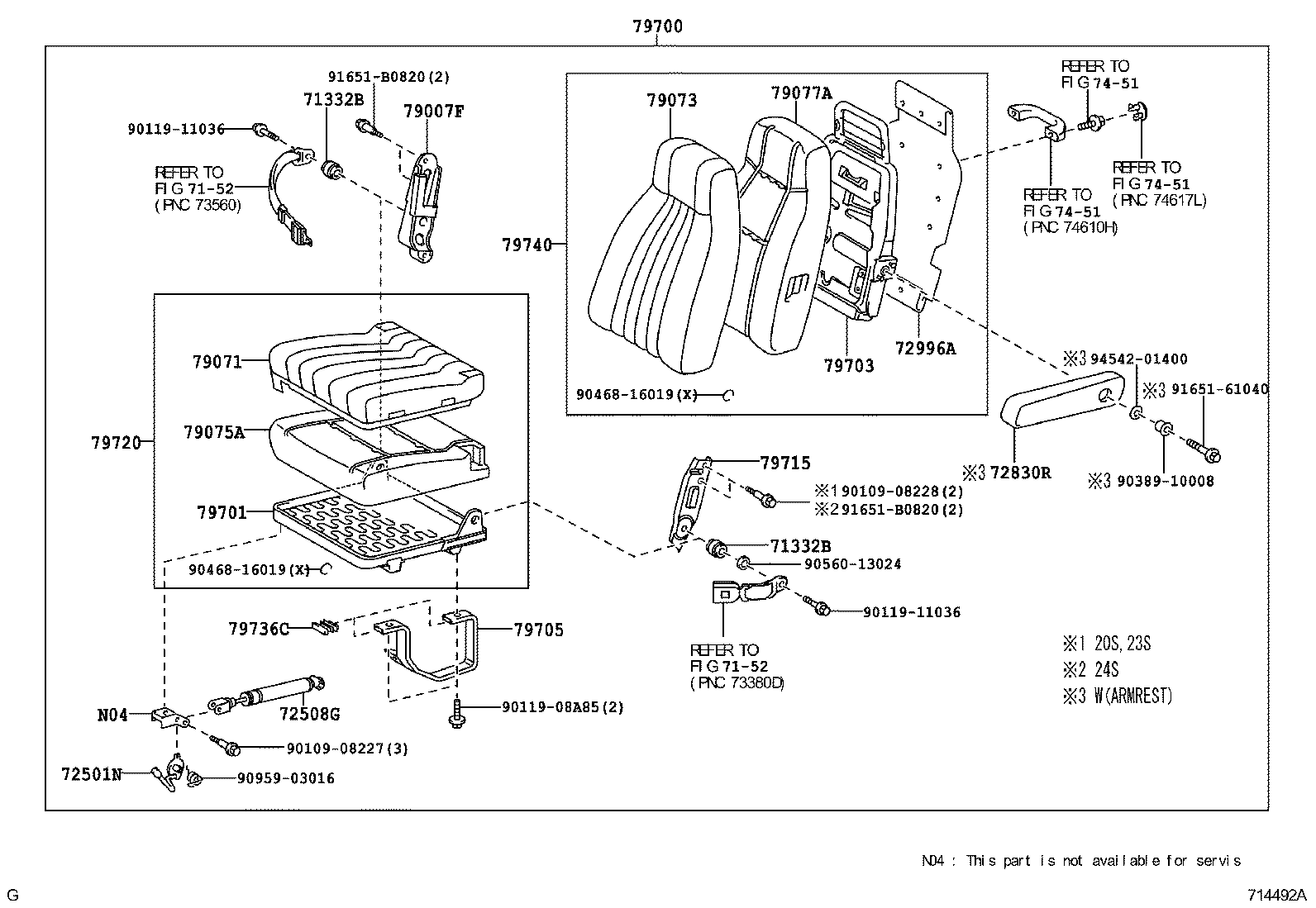

| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36430E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79021-36350E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-36030E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79022-36100E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79013-36220E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79024-36070E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4#,INNER |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79025-36020 |
BB54,RZB54 |
1 | ||
| 79025-36040 |
BB54,RZB54..23S |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79026-36040 |
BB54,RZB54..23S |
1 | ||
| 79026-36020 |
BB54,RZB54 |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36050 |
BB54,RZB54 |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36050 |
BB54,RZB54..23S INNER |
1 | ||
| 79028-36020 |
BB54,RZB54 |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79160-36030E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-36150 |
BB54,RZB54..23S |
1 | ||
| 79103-36110 |
BB54,RZB54 |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36070E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79115 - PLATE, NO.1 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36620E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79120-36470E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79120-36620 |
BB54,RZB54..23S *** |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79140-36370E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410 |
BB54,RZB54..23S *** |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79260-36050E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79270-36040E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36110 |
BB54,RZB54 |
1 | ||
| 79203-36060 |
BB54,RZB54..23S |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79104-36100 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S INNER |
1 | ||
| 79104-36110 |
BB54,RZB54..23S OUTER |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-36110E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36050E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79206-36070E0 |
BB5#,RZB5#..23S GREIGE,TRIM4# |
1 | ||
| 79215A - PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
BB5#,RZB5#,TRB53,XZB53..CBU |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-36210E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79220-36630 |
BB54,RZB54..23S *** |
1 | ||
| 79220-36630E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36290E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79230-36310 |
BB54,RZB54..23S *** |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79140-36370E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79240-36370 |
BB54,RZB54..23S *** |
1 | ||
| 79240-36370E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36550E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,OUTER |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| 79250-36220E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410 |
BB54,RZB54..23S ***,INNER |
1 | ||
| 79150-36550 |
BB54,RZB54..23S ***,OUTER |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79270-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79270-36040E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79104-36100 |
BB54,RZB54 |
1 | ||
| 79104-36110 |
BB54,RZB54..23S OUTER |
1 | ||
| 79103-36150 |
BB54,RZB54..23S INNER |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79606-36090E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79230-36290E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79230-36310 |
BB54,RZB54..23S *** |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79250-36220E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| 79150-36550 |
BB54,RZB54..23S OUTER |
1 | ||
| 79150-36550E0 |
BB54,RZB54..23S GREIGE,TRIM4#,OUTER |
1 | ||
| 79140-36410 |
BB54,RZB54..23S ***,INNER |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79360-36030E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79360-36050E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79270-36040E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79270-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36110 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S;TRB53,XZB53..STD..CBU |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36100 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S INNER |
1 | ||
| 79104-36110 |
BB54,RZB54..23S OUTER |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79305-36050E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79505-36070E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79306-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79206-36070E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79415A - PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
BB5#,RZB5#,TRB53,XZB53..CBU |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79420-36030E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79420-36060 |
BB54,RZB54..23S *** |
1 | ||
| 79420-36060E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79230-36290E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79230-36310 |
BB54,RZB54..23S *** |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-36370E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79140-36410 |
BB54,RZB54..23S *** |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36550E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,OUTER |
1 | ||
| 79250-36220E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| 79140-36410 |
BB54,RZB54..23S ***,INNER |
1 | ||
| 79150-36550 |
BB54,RZB54..23S ***,OUTER |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79360-36050E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79660-36040E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79270-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79270-36040E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79103-36110 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S;TRB53,XZB53..STD..CBU |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79104-36100 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S INNER |
1 | ||
| 79104-36110 |
BB54,RZB54..23S OUTER |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36110E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79644-36030E0 |
BB54,RZB54 GREIGE,TRIM4#,NO.2 |
1 | ||
| 79643-36050E0 |
BB54,RZB54 GREIGE,TRIM4#,NO.1 |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79606-36100E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79606-36040E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79615 - PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
BB5#,RZB5#;TRB53,XZB53..20S..CBU |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79420-36060E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79620-36120E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79420-36060 |
BB54,RZB54..23S *** |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79230-36290E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79140-36410 |
BB54,RZB54..23S *** |
1 | ||
| 79140-36370E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79250-36220E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| 79150-36550E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,OUTER |
1 | ||
| 79150-36550E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,OUTER |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79360-36050E0 |
BB5#,RZB5#..20S,23S GREIGE,TRIM4# |
1 | ||
| 79360-36030E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79270-36020E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79270-36040E0 |
BB5#,RZB5#..20S,23S GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79103-36110 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S;TRB53,XZB53..STD..CBU |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79103-36150 |
BB54,RZB54..23S INNER |
1 | ||
| 79104-36110 |
BB54,RZB54..23S OUTER |
1 | ||
| 79104-36100 |
BB54,RZB54 |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36060E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79306-36040E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79306-36020E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79715 - PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
BB5#,RZB5#..20S,23S;TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79420-36030E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79420-36060E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79420-36060 |
BB54,RZB54..23S *** |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79230-36290E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79230-36310E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36370E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79140-36410 |
BB54,RZB54..23S *** |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79250-36220E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79150-36550E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,OUTER |
1 | ||
| 79150-36550E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,OUTER |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4#,INNER |
1 | ||
| Common parts | ||||
| 91651-60835 | ||||
| 91651-60840 | ||||
| 91661-60835 | ||||
(0411-0701)
REAR SEAT(RH) - NO.1,2,4,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-36030 |
BB5#,RZB5# |
1 | ||
| 71332-36040 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-36030 |
BB5#,RZB5# |
1 | ||
| 71332-36040 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-36010 |
BB5#,RZB5# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-08A85 | ||||
| 90119-11036 | ||||
| 90179-05004 | ||||
| 90183-05043 | ||||
| 90206-16001 | ||||
| 90389-10008 | ||||
| 90467-08047 | ||||
| 90468-16019 | ||||
| 90540-10022 | ||||
| 90959-03016 | ||||
| 91631-60845 | ||||
| 91651-61028 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 91661-60825 | ||||
| 93240-56016 | ||||
| 93249-55016 | ||||
| 93269-55016 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0411-0701)
REAR SEAT(LH) - NO.2,3,4,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-36030 |
BB5#,RZB5# |
1 | ||
| 71332-36040 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-36030 |
BB54,RZB54 |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-36030 |
BB54,RZB54 |
1 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
BB5#,RZB5#,TRB53,XZB53..CBU |
2 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
BB5#,RZB5#,TRB53,XZB53..CBU |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-36010 |
BB5#,RZB5# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-36010 |
BB5#,RZB5# |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-11036 | ||||
| 90389-10008 | ||||
| 90468-16019 | ||||
| 90560-13024 | ||||
| 90959-03016 | ||||
| 91611-60630 | ||||
| 91651-60830 | ||||
| 91651-61020 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 93269-55016 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0411-0701)
REAR SEAT(LH) - NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-36030 |
BB5#,RZB5# |
1 | ||
| 71332-36040 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-36030 |
BB54,RZB54 |
1 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-36030 |
BB54,RZB54 |
1 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
BB5#,RZB5#,TRB53,XZB53..CBU |
2 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
BB5#,RZB5#,TRB53,XZB53..CBU |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
BB54,RZB54 |
2 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90119-11036 | ||||
| 90389-10008 | ||||
| 90468-16019 | ||||
| 90560-13024 | ||||
| 90959-03016 | ||||
| 91611-60630 | ||||
| 91651-60830 | ||||
| 91651-61020 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0411-0701)
REAR SEAT(RH) - NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-36030 |
BB5#,RZB5# |
1 | ||
| 71332-36040 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 71332-36030 |
BB5#,RZB5# |
1 | ||
| 71332-36040 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 72508G - SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36040 |
BB54,RZB54..23S |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-36010 |
BB5#,RZB5# |
2 | ||
| 79007F - FRAME, SEAT CUSHION SIDE, RH OUTER NO.7 | ||||
| 79007-36030 |
BB5#,RZB5#,TRB53,XZB53..CBU |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36430E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79021-36350E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36270E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79013-36220E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79025-36020 |
BB54,RZB54 |
1 | ||
| 79025-36040 |
BB54,RZB54..23S |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36050 |
BB54,RZB54 |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79360-36050E0 |
BB5#,RZB5#..20S,23S GREIGE,TRIM4# |
1 | ||
| 79360-36030E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79103-36110 |
BB54,RZB54 |
1 | ||
| 79103-36150 |
BB54,RZB54..23S;TRB53,XZB53..STD..CBU |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36060E0 |
BB54,RZB54 GREIGE,TRIM4# |
1 | ||
| 79715 - PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
BB5#,RZB5#..20S,23S;TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79420-36030E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79420-36060E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79420-36060 |
BB54,RZB54..23S *** |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36370E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79140-36410E0 |
BB54,RZB54..23S ***,GREIGE,TRIM4# |
1 | ||
| 79140-36410 |
BB54,RZB54..23S *** |
1 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-08A85 | ||||
| 90119-11036 | ||||
| 90389-10008 | ||||
| 90468-16019 | ||||
| 90560-13024 | ||||
| 90959-03016 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
(0601-0701)
REAR SEAT - NO.8(FOLD SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-36030 |
BB5#,RZB5#..20S,23S |
1 | ||
| 78904 - STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2 | ||||
| 78904-36030 |
BB5#,RZB5#..20S,23S |
1 | ||
| 78910A - LOCK ASSY, FOLD SEAT, RH | ||||
| 78910-36030 |
BB5#,RZB5# |
1 | ||
| 78920A - LOCK ASSY, FOLD SEAT, LH | ||||
| 78920-36030 |
BB5#,RZB5# |
1 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36340E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79081-36360E0 |
BB54,RZB54..23S W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79081-36400E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79081-36310E0 |
BB54,RZB54 GREGE,TRIM4# |
1 | ||
| 79081-36380E0 |
BB54,RZB54..23S GREGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36190E0 |
BB54,RZB54 W(FIXED SEAT),GREIGE,TRIM4# |
1 | ||
| 79083-36210E0 |
BB54,RZB54..23S W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36180E0 |
BB54,RZB54 W(FIXED SEAT),GREGE,TRIM4# |
1 | ||
| 79084-36200E0 |
BB54,RZB54..23S W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
BB5#,RZB5# LH |
1 | ||
| 79085-36010 |
BB5#,RZB5# RH |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
BB5#,RZB5# LH |
1 | ||
| 79085-36010 |
BB5#,RZB5# RH |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36070 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79087-36050 |
BB5#,RZB5# |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36050 |
BB5#,RZB5# |
1 | ||
| 79088-36070 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36090E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36050 |
BB5#,RZB5# |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36050 |
BB5#,RZB5# |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36030E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
BB5#,RZB5# RH |
1 | ||
| 71309-36030 |
BB5#,RZB5# LH |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
BB5#,RZB5# RH |
1 | ||
| 71309-36030 |
BB5#,RZB5# LH |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36470E1 |
BB54,RZB54..23S ***,SEAT = TYPE B-*104 & W(FIXED TYPE REAR SEAT ),GREIGE,TRIM4# |
1 | ||
| 79820-36530E0 |
BB54,RZB54..23S GREIGE,TRIM4# |
1 | ||
| 79820-36490E0 |
BB54,RZB54..23S ***,SEAT = TYPE B-*104 & W(FOLDING SEAT = NO.8 SEAT),GREIGE,TRIM4# |
1 | ||
| 79820-36530 |
BB54,RZB54..23S |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36240E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79840-36270E0 |
BB54,RZB54..23S ***,W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79840-36241 |
BB54,RZB54..23S *** |
1 | ||
| 79840-36270 |
BB54,RZB54..23S |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36300E0 |
BB54,RZB54 ***,GREGE,TRIM4# |
1 | ||
| 79850-36320 |
BB54,RZB54..23S |
1 | ||
| 79850-36301 |
BB54,RZB54..23S *** |
1 | ||
| 79850-36320E0 |
BB54,RZB54..23S ***,W(FOLDING SEAT),GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36060 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79860-36030 |
BB5#,RZB5# |
1 | ||
| 79860-36050 |
BB5#,RZB5#..23S |
1 | ||
| 79860-36080 |
BB5#,RZB5# W(FOLDING SEAT) |
1 | ||
| 79860-36070 |
BB5#,RZB5#..23S |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36070 |
BB5#,RZB5# |
4 | ||
| 71307-36010 |
BB5#,RZB5# |
1 | ||
| 79916 - BRACKET, SEAT LEG, NO.2 | ||||
| 71308-36040 |
BB5#,RZB5# |
1 | ||
| Common parts | ||||
| 72969-60010 | ||||
| 82711-12120 | ||||
| 90109-08277 | ||||
| 90119-10493 | ||||
| 90119-11036 | ||||
| 90159-60035 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90168-40043 | ||||
| 90179-08091 | ||||
| 90205-07002 | ||||
| 90206-12003 | ||||
| 90206-15002 | ||||
| 90387-10070 | ||||
| 90389-10031 | ||||
| 90468-16019 | ||||
| 90506-08035 | ||||
| 91631-60825 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61022 | ||||
| 91651-61030 | ||||
| 91671-C0830 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
