RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012- )

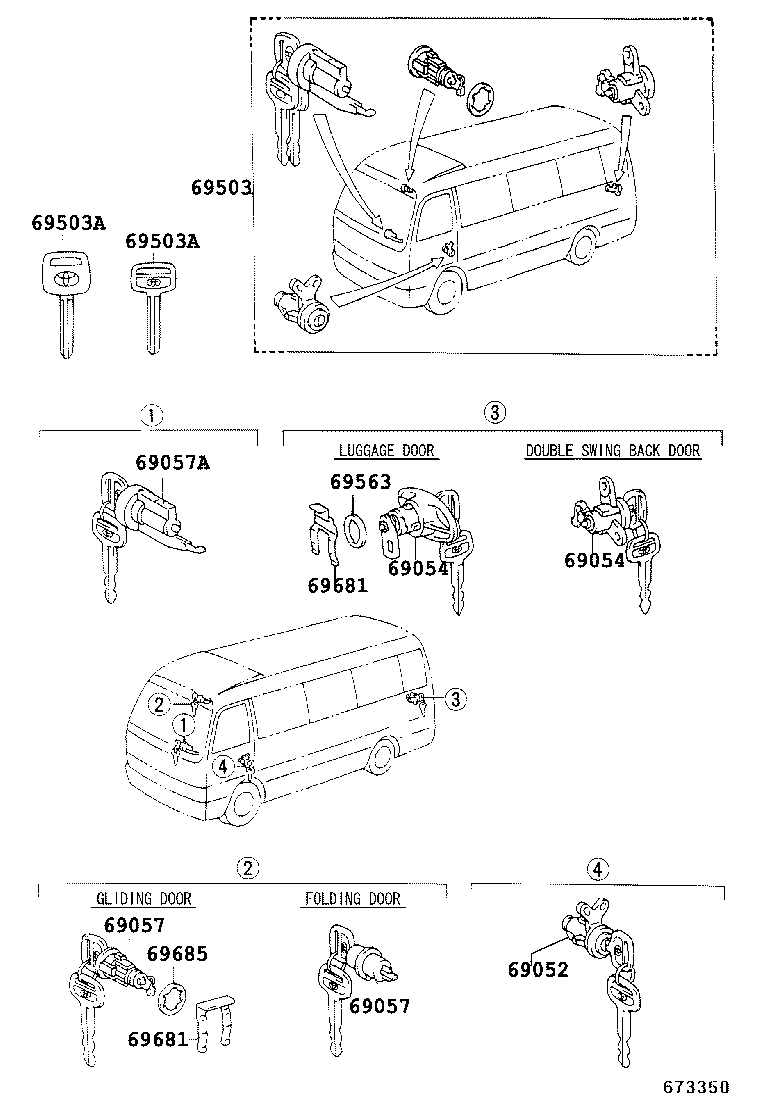

Click highlighted areas on diagram

diagram 69052 69054 69054 69057 69057 69057A 69503 69503A 69503A 69563 69681 69681 69685
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-36030

BB5#,RZB5#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-36011

BB5#,RZB5#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-36011

BB5#,RZB5#

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
69053-36010

BB54,RZB54

 1
69057 - CYLINDER & KEY SET, CENTER DOOR LOCK
69053-36010

BB54,RZB54

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-36011

BB5#,RZB5#

 1
69503 - CYLINDER SET, LOCK
69005-36122

BB54,RZB54

 1
69503A - KEY, BLANK
90999-00186

BB5#,RZB5#

MASTER KEY

 2
90999-00185

BB5#,RZB5#

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00186

BB5#,RZB5#

MASTER KEY

 2
90999-00185

BB5#,RZB5#

MASTER KEY,W(*68)

 1
69563 - PAD, BACK DOOR LOCK CYLINDER
69685-36010

BB5#,RZB5#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69561-33010

BB5#,RZB5#

LUGGAGE DOOR

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69561-33010

BB5#,RZB5#

LUGGAGE DOOR

 1
