RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0012- )

Click highlighted areas on diagram

DOOR TRIM

diagram 62314E 63319F 67602 6777112050 6777112050
Part # Description Qty Price
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-36051E2

BB5#,RZB5#

GREIGE,TRIM4#

 1
67620-36050E0

BB5#,RZB5#

GREGE,TRIM4#

 1
Common parts
67771-12050

ILLUST NO. 1 OF 3(0012- )

Click highlighted areas on diagram

DOOR PANEL

diagram 61295 62045A 62049 62229D 62229D 62269E 62269E 62325B 62327A 62356B 62356B 62357D 62375F 62384F 62385A 62386A 62421D 62746G 62777X 62792G 62792G 62793H 62793H 62910N 62910N 67001A 67002 67832 67834 67862 67864B 67868C 67868L 68102 68129A 68217 68218A 68610 68617 69272D 9011906557 9016440050 9016440050 9017906128 9018906018 9033335002 9046805116 9095001639 9095001886 9354024010 9354024010 9354056025
Part # Description Qty Price
61295 - BRACKET, FRONT DOOR CHECK ARM
61295-36010

BB5#,RZB5#

 1
62045A - FRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH
62045-36050

BB54,RZB54

 1
62049 - FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH
62049-36030

BB54,RZB54

 1
62269E - FILM, FRONT DOOR WINDOW FRAME, RH
62269-90K01

BB5#,RZB5#

 5
62269E - FILM, FRONT DOOR WINDOW FRAME, RH
62269-90K01

BB5#,RZB5#

 5
62325B - GLASS, FRONT DOOR WINDOW, FRONT LH
62325-36060

BB5#,RZB5#

*TT,T=5.0,GREEN

 1
62327A - GLASS, FRONT DOOR WINDOW, REAR LH
62327-36060

BB5#,RZB5#

*TT,T=5.0,GREEN

 1
62356B - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER
62255-36010

BB5#,RZB5#

 2
62356B - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER
62255-36010

BB5#,RZB5#

 2
62357D - WEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR
62357-36011

BB5#,RZB5#

 1
62375F - CLIP, FRONT DOOR WINDOW
62375-36020A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62384F - CAP,FRONT DOOR WINDOW
62384-36010A1

BB5#,RZB5#

IVORY,TRIM4#

 1
62421D - RUN, FRONT DOOR WINDOW, LH
62421-36020

BB5#,RZB5#

 1
62746G - PACKING, QUARTER WINDOW
62746-36010

BB5#,RZB5#

 1
62777X - CAP, FRONT DOOR WINDOW CENTER SASH, LH
62777-36012

BB5#,RZB5#

 1
62792G - PACKING, SIDE WINDOW LOCK
62792-95A00

BB5#,RZB5#

 2
62792G - PACKING, SIDE WINDOW LOCK
62792-95A00

BB5#,RZB5#

 2
62793H - RETAINER, SIDE WINDOW LOCK
62793-95J00

BB5#,RZB5#

 2
62793H - RETAINER, SIDE WINDOW LOCK
62793-95J00

BB5#,RZB5#

 2
62910N - LOCK ASSY, SIDE WINDOW
62910-95702

BB5#,RZB5#

 2
62910N - LOCK ASSY, SIDE WINDOW
62910-95702

BB5#,RZB5#

 2
67001A - CUSHION, FRONT DOOR PANEL
67887-36010

BB5#,RZB5#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-36060

BB54,RZB54

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-36010

BB5#,RZB5#

 1
67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67833-36010

BB5#,RZB5#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-36010

BB5#,RZB5#

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67863-36020

BB5#,RZB5#

 1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

BB5#,RZB5#

 22
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150

BB5#,RZB5#

 13
68610 - CHECK ASSY, FRONT DOOR
68610-36010

BB5#,RZB5#

 1
68617 - PIN, FRONT DOOR CHECK
68617-50010

BB5#,RZB5#

 1
69272D - HANDLE, FRONT DOOR INSIDE, LH
69271-36010E0

BB5#,RZB5#

GREIGE,TRIM4#

 1
Common parts
90119-06557
90164-40050
90179-06128
90189-06018
90333-35002
90468-05116
90950-01639
90950-01886
93540-24010
93540-56025

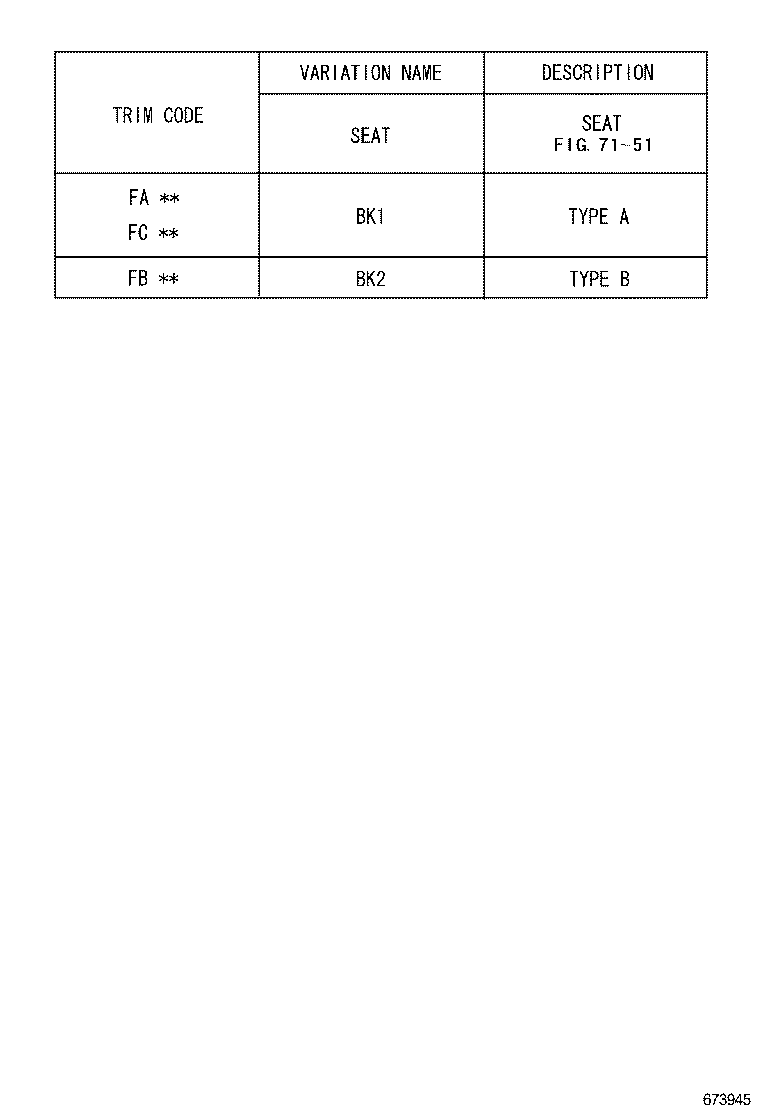

ILLUST NO. 3 OF 3(0411- )

Click highlighted areas on diagram

TRIM CODE

diagram
Part # Description Qty Price
