RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012-0701)BB54,RZB54

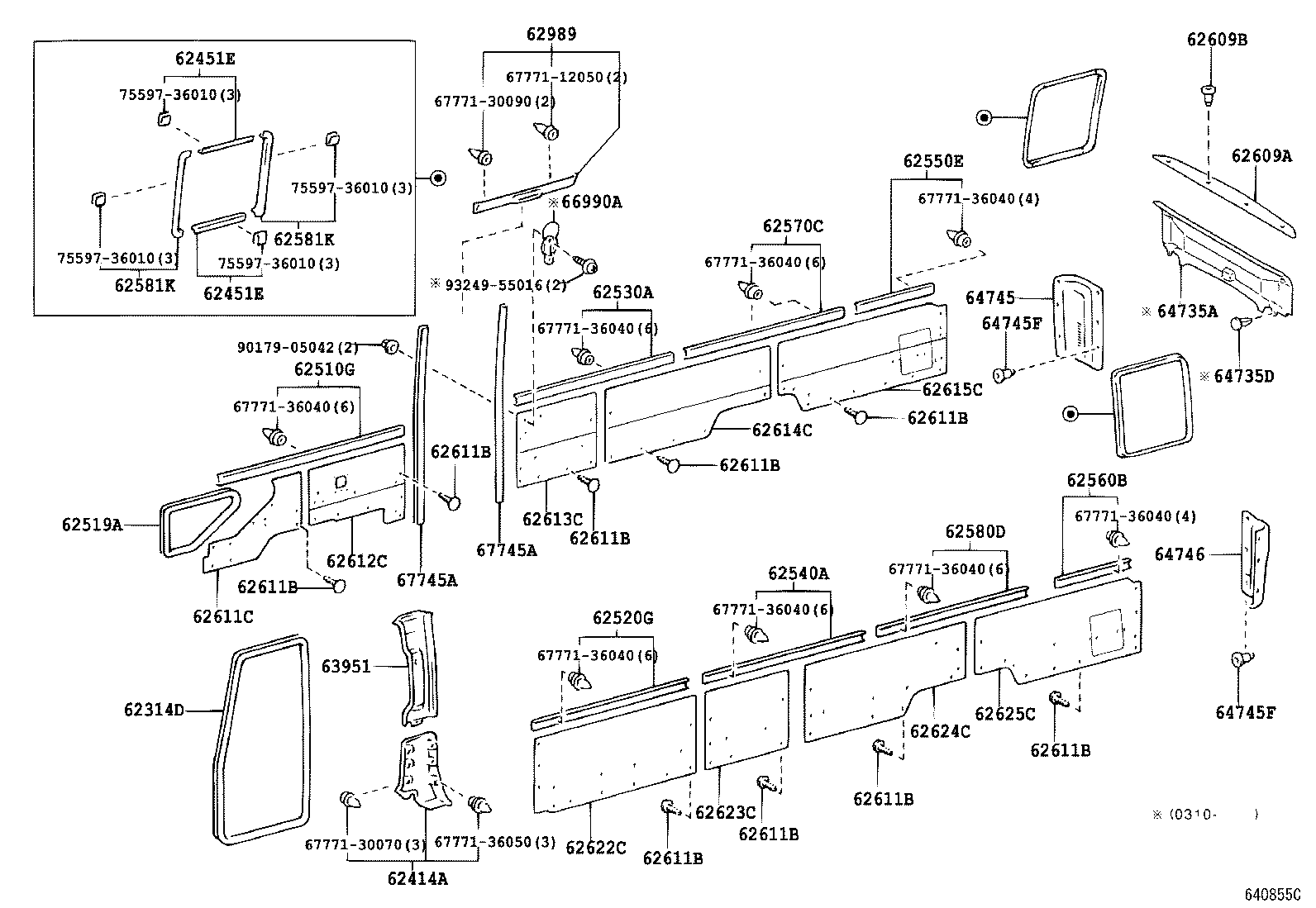

Click highlighted areas on diagram

diagram 62314D 62414A 62451E 62451E 62510G 62519A 62520G 62530A 62540A 62550E 62560B 62570C 62580D 62581K 62581K 62609A 62609B 62611B 62611B 62611B 62611B 62611B 62611B 62611B 62611B 62611B 62611C 62612C 62613C 62614C 62615C 62622C 62623C 62624C 62625C 62989 63951 64735A 64735D 64745 64745F 64745F 64746 66990A 67745A 67745A 6777112050 6777130070 6777130090 6777136040 6777136040 6777136040 6777136040 6777136040 6777136040 6777136040 6777136040 6777136050 7559736010 7559736010 7559736010 7559736010 9017905042 9324955016
Part # Description Qty Price
62314D - TRIM, FRONT DOOR OPENING, LH
62313-36020A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-36010A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62414-36011A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62451E - GARNISH, ROOF SIDE RAIL, REAR
62451-36060A1

BB5#,RZB5#

IVORY,TRIM4#

 4
62451E - GARNISH, ROOF SIDE RAIL, REAR
62451-36060A1

BB5#,RZB5#

IVORY,TRIM4#

 4
62510G - TRIM ASSY, SIDE NO.1, RH
62510-36400E0

BB54,RZB54

GREIGE,TRIM4#

 1
62510-36401E0

BB54,RZB54

GREIGE,TRIM4#

 1
62519A - TRIM, SIDE LOWER WINDOW
62519-36020A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62520G - TRIM ASSY, SIDE NO.1, LH
62520-36510E0

BB54,RZB54

GREIGE,TRIM4#

 1
62520-36511E0

BB54,RZB54

GREIGE,TRIM4#

 1
62530A - TRIM ASSY, SIDE NO.2, RH
62530-36330E0

BB54,RZB54

GREIGE,TRIM4#

 1
62530-36331E0

BB54,RZB54

GREIGE,TRIM4#

 1
62540A - TRIM ASSY, SIDE NO.2, LH
62570-36110E0

BB54,RZB54

GREIGE,TRIM4#

 1
62570-36111E0

BB54,RZB54

GREIGE,TRIM4#

 1
62550E - TRIM ASSY, SIDE NO.3, RH
62550-36151E0

BB54,RZB54

GREIGE,TRIM4#

 1
62550-36150E0

BB54,RZB54

GREIGE,TRIM4#

 1
62560B - TRIM ASSY, SIDE, NO.3 LH
62560-36150E0

BB54,RZB54

GREIGE,TRIM4#

 1
62560-36151E0

BB54,RZB54

GREIGE,TRIM4#

 1
62570C - TRIM ASSY, SIDE NO.4
62570-36110E0

BB54,RZB54

GREIGE,TRIM4#

 1
62570-36111E0

BB54,RZB54

GREIGE,TRIM4#

 1
62580D - TRIM ASSY, SIDE NO.4 LH
62570-36110E0

BB54,RZB54

GREIGE,TRIM4#

 1
62570-36111E0

BB54,RZB54

GREIGE,TRIM4#

 1
62581K - GARNISH, REAR WINDOW SIDE
62581-36010A1

BB5#,RZB5#

IVORY,TRIM4#

 4
62581K - GARNISH, REAR WINDOW SIDE
62581-36010A1

BB5#,RZB5#

IVORY,TRIM4#

 4
62609A - BOARD SUB-ASSY, LUGGAGE PARTITION
62691-36030A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62609B - CLIP (FOR LUGGAGE PARTITION BOARD)
90467-08104A1

BB5#,RZB5#

IVORY,TRIM4#

 4
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611B - CLIP (FOR SIDE TRIM BOARD)
90467-08104A1

BB54,RZB54

IVORY,TRIM4#

 1
62611C - BOARD, SIDE TRIM NO.1, RH
62611-36031A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62611-36030A0

BB5#,RZB5#

IVORY,TRIM4#

 1
62612C - BOARD, SIDE TRIM NO.2, RH
62612-36430A0

BB54,RZB54

IVORY,TRIM4#

 1
62612-36431A0

BB54,RZB54

IVORY,TRIM4#

 1
62612-36432A0

BB54,RZB54

IVORY,TRIM4#

 1
62613C - BOARD, SIDE TRIM NO.3, RH
62613-36140A0

BB54,RZB54

IVORY,TRIM4#

 1
62613-36200A0

BB54,RZB54

IVORY,TRIM4#

 1
62613-36201A0

BB54,RZB54

IVORY,TRIM4#

 1
62614C - BOARD, SIDE TRIM NO.4, RH
62614-36190A0

BB54,RZB54

IVORY,TRIM4#

 1
62614-36251A0

BB54,RZB54

IVORY,TRIM4#

 1
62614-36250A0

BB54,RZB54

IVORY,TRIM4#

 1
62615C - BOARD, SIDE TRIM NO.5, RH
62615-36370A0

BB54,RZB54

IVORY,TRIM4#

 1
62615-36510A0

BB54,RZB54..23S

IVORY,TRIM4#

 1
62615-36560A0

BB54,RZB54..23S

IVORY,TRIM4#

 1
62615-36561A0

BB54,RZB54..23S

IVORY,TRIM4#

 1
62615-36580A0

BB54,RZB54

W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#

 1
62615-36520A0

BB54,RZB54

W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#

 1
62615-36581A0

BB54,RZB54

W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#

 1
62622C - BOARD, SIDE TRIM NO.2, LH
62622-36420A0

BB54,RZB54

IVORY,TRIM4#

 1
62622-36350A0

BB54,RZB54

IVORY,TRIM4#

 1
62622-36421A0

BB54,RZB54

IVORY,TRIM4#

 1
62623C - BOARD, SIDE TRIM NO.3, LH
62623-36230A0

BB54,RZB54

IVORY,TRIM4#

 1
62623-36231A0

BB54,RZB54

IVORY,TRIM4#

 1
62623-36170A0

BB54,RZB54

IVORY,TRIM4#

 1
62624C - BOARD, SIDE TRIM NO.4, LH
62624-36260A0

BB54,RZB54

IVORY,TRIM4#

 1
62624-36200A0

BB54,RZB54

IVORY,TRIM4#

 1
62624-36261A0

BB54,RZB54

IVORY,TRIM4#

 1
62625C - BOARD, SIDE TRIM NO.5, LH
62625-36380A0

BB54,RZB54

IVORY,TRIM4#

 1
62625-36560A0

BB54,RZB54..23S

IVORY,TRIM4#

 1
62625-36580A0

BB54,RZB54

W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#

 1
62625-36520A0

BB54,RZB54

W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#

 1
62625-36561A0

BB54,RZB54..23S

IVORY,TRIM4#

 1
62625-36510A0

BB54,RZB54..23S

IVORY,TRIM4#

 1
62625-36581A0

BB54,RZB54

W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#

 1
62989 - COVER, CENTER DOOR LOCK
62989-36011A1

BB54,RZB54

IVORY,TRIM4#

 1
63951 - COVER, COOLER PIPE
63951-36211A0

BB5#,RZB5#

IVORY,TRIM4#

 1
63951-36200A0

BB5#,RZB5#

IVORY,TRIM4#

 1
64735A - GARNISH, CENTER BACK RAIL INNER
64735-36040A0

BB5#,RZB5#

IVORY,TRIM4#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-36040A0

BB5#,RZB5#

IVORY,TRIM4#

 1
64745F - RETAINER, DOOR TRIM
67771-36030A0

BB5#,RZB5#

IVORY,TRIM4#

 14
64745F - RETAINER, DOOR TRIM
67771-36030A0

BB5#,RZB5#

IVORY,TRIM4#

 14
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-36040A0

BB5#,RZB5#

IVORY,TRIM4#

 1
67745A - MOULDING, CENTER DOOR TRIM
67745-36070A0

BB54,RZB54

IVORY,TRIM4#

 2
67745A - MOULDING, CENTER DOOR TRIM
67745-36070A0

BB54,RZB54

IVORY,TRIM4#

 2
Common parts
67771-12050
67771-30070
67771-30090
67771-36040
67771-36050
75597-36010
90179-05042
93249-55016
