RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012- )

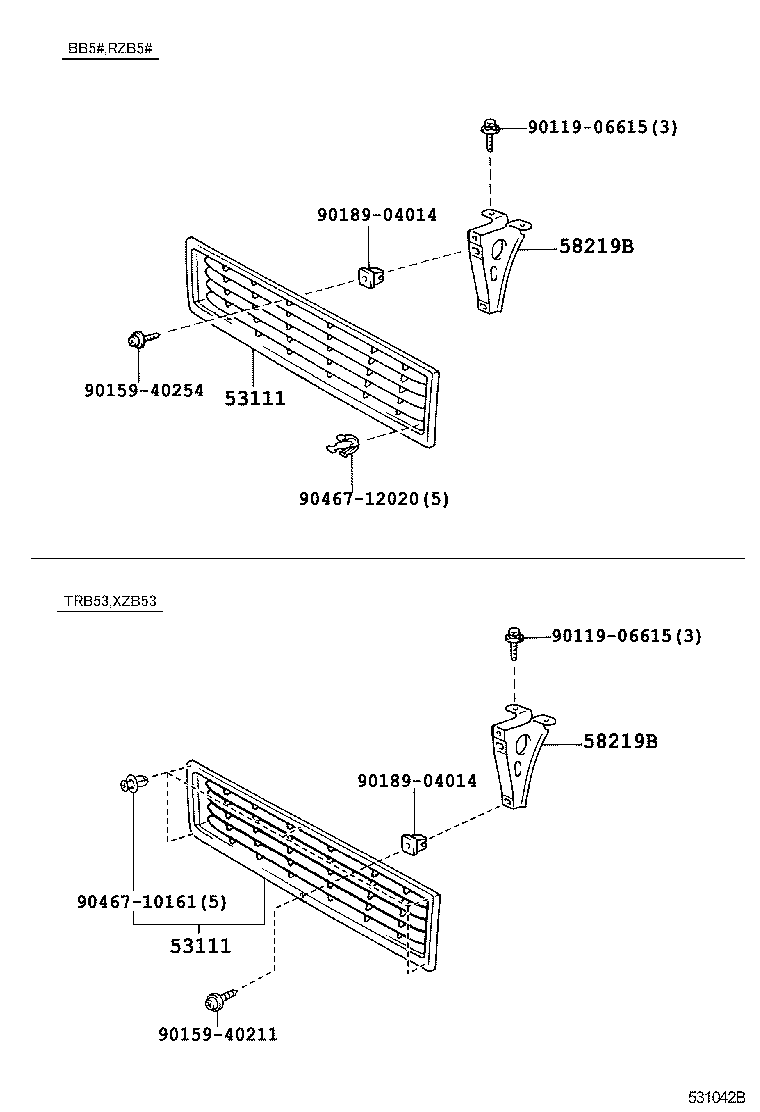

Click highlighted areas on diagram

diagram 53111 53111 58219B 58219B 9011906615 9011906615 9015940211 9015940254 9018904014 9018904014 9046710161 9046712020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-36020

BB54,RZB54

 1
53111 - GRILLE, RADIATOR
53111-36020

BB54,RZB54

 1
58219B - BRACKET, FRONT FLOOR TO GRILLE
58219-36010

BB5#,RZB5#

 1
58219B - BRACKET, FRONT FLOOR TO GRILLE
58219-36010

BB5#,RZB5#

 1
Common parts
90119-06615
90159-40211
90159-40254
90189-04014
90467-10161
90467-12020
