RZB54L-ZEMSK (2004)
Toyota Coaster (China)
Production
Nov 2004
-
Jan 2007
Engine
3RZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0012-0701)BB54,RZB54

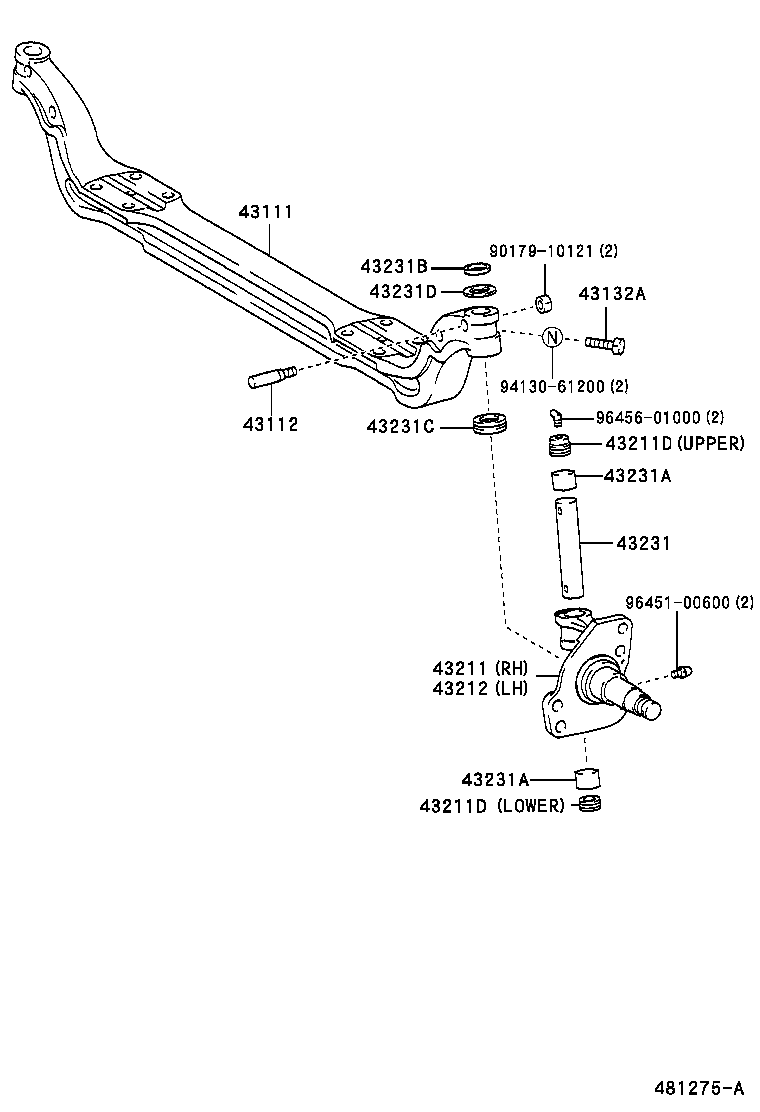

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-36130 |
BB54,RZB54 |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36040 |
BB54,RZB54 |
2 | ||
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-12001 |
BB54,RZB54 |
4 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-36120 |
BB54,RZB54 |
1 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
BB54,RZB54 LOWER |
2 | ||
| 90345-33004 |
BB54,RZB54 UPPER |
2 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
BB54,RZB54 LOWER |
2 | ||
| 90345-33004 |
BB54,RZB54 UPPER |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-36110 |
BB54,RZB54 |
1 | ||
| 43231 - PIN, STEERING KNUCKLE KING | ||||
| 43231-36050 |
BB54,RZB54 |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73086 |
BB54,RZB54 |
4 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73086 |
BB54,RZB54 |
4 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 90312-28003 |
BB54,RZB54 |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-28001 |
BB54,RZB54 |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90564-28002 |
BB54,RZB54 T=2.0 |
1 | ||
| 90564-28003 |
BB54,RZB54 T=2.1 |
1 | ||
| 90564-28001 |
BB54,RZB54 T=1.9 |
1 | ||
| 90564-28005 |
BB54,RZB54 T=2.3 |
1 | ||
| 90564-28006 |
BB54,RZB54 T=2.4 |
1 | ||
| 90564-28004 |
BB54,RZB54 T=2.2 |
1 | ||
| Common parts | ||||
| 90179-10121 | ||||
| 94130-61200 | ||||
| 96451-00600 | ||||
| 96456-01000 | ||||
