RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

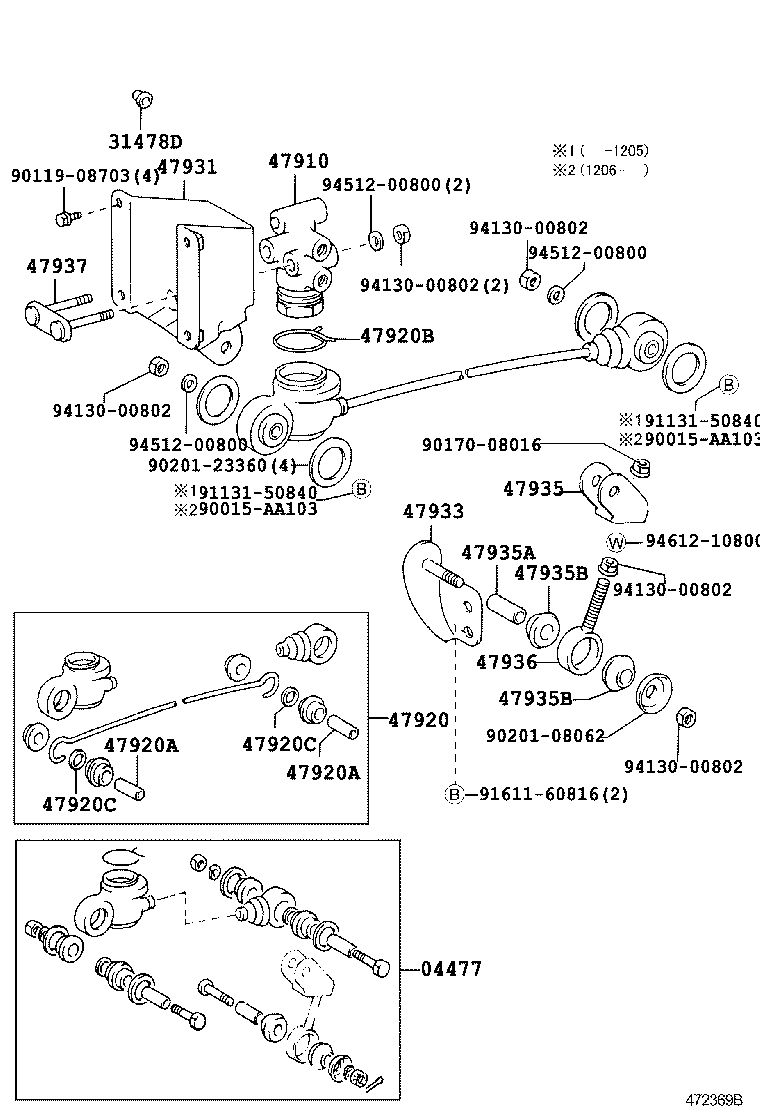

ILLUST NO. 4 OF 4(0012- )

Click highlighted areas on diagram

diagram 04477 31478D 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47936 47937 90015AA103 90015AA103 9011908703 9017008016 9020108062 9020123360 9113150840 9113150840 9161160816 9413000802 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

BB5#,RZB5#

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

BB5#,RZB5#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-36191

BB5#,RZB5#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-36170

BB5#,RZB5#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BB5#,RZB5#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

BB5#,RZB5#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

BB5#,RZB5#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BB5#,RZB5#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

BB5#,RZB5#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-36120

BB5#,RZB5#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36061

BB5#,RZB5#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030

BB5#,RZB5#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

BB5#,RZB5#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
47924-35010

BB5#,RZB5#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
47924-35010

BB5#,RZB5#

 2
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-60030

BB5#,RZB5#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

BB5#,RZB5#

 1
Common parts
90015-AA103
90119-08703
90170-08016
90201-08062
90201-23360
91131-50840
91611-60816
94130-00802
94512-00800
94612-10800
