RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012- )RZB54

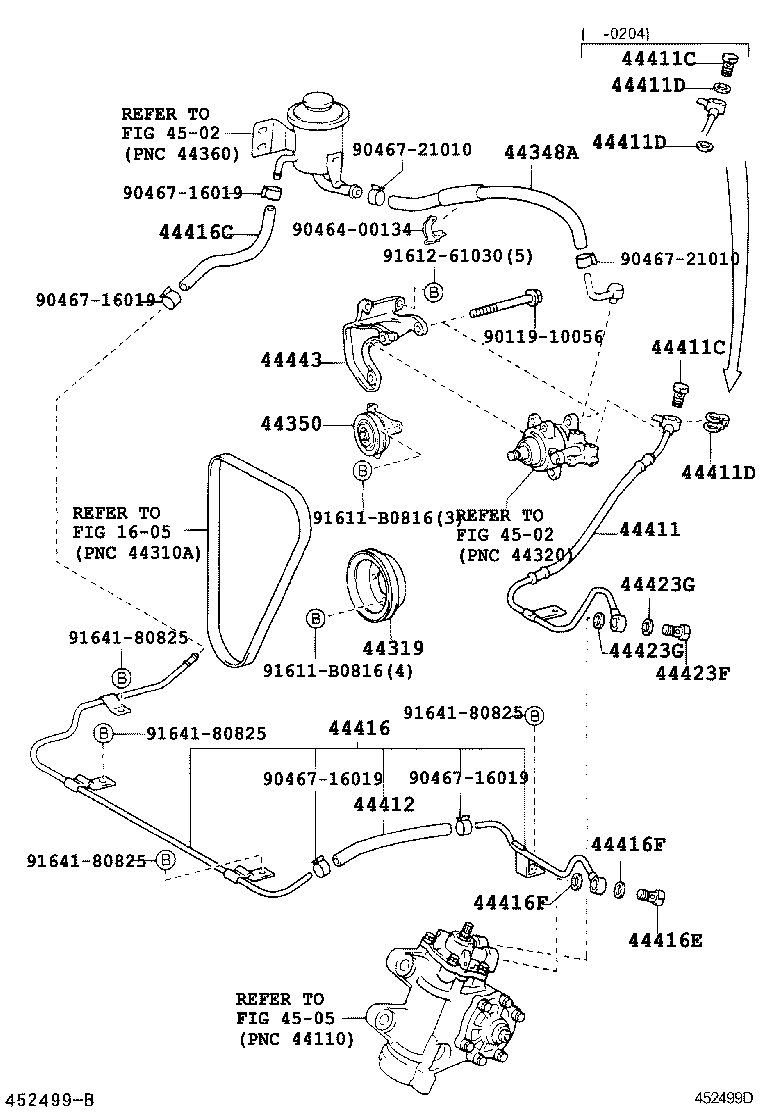

Click highlighted areas on diagram

diagram 1605 44319 44348A 44350 44411 44411C 44411C 44411D 44411D 44411D 44412 44416 44416C 44416E 44416F 44416F 44423F 44423G 44423G 44443 4502 4502 4505 9011910056 9046400134 9046716019 9046716019 9046716019 9046716019 9046721010 9046721010 91611B0816 91611B0816 9161261030 9164180825 9164180825 9164180825 9164180825
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-34010

RZB5#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36330

RZB54

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-34010

RZB5#

 1
44411 - HOSE, PRESSURE FEED
44411-36530

RZB54

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90904-01001

RZB5#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90904-01001

RZB5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB5#,RZB5#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB5#,RZB5#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB5#,RZB5#

 2
44412 - HOSE, RETURN
44428-36010

BB53,RZB54

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36340

RZB54

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18139

RZB5#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB5#,RZB5#

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB5#,RZB5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB5#,RZB5#

 2
44423F - BOLT, UNION
90401-14003

BB5#,RZB5#

 1
44423G - GASKET, UNION BOLT
90430-14235

BB5#,RZB5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB5#,RZB5#

 2
44443 - BRACKET, PUMP
44443-36050

RZB5#

 1
Common parts
90119-10056
90464-00134
90467-16019
90467-21010
91611-B0816
91612-61030
91641-80825
Linked diagrams
1605
4502
4505
