RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

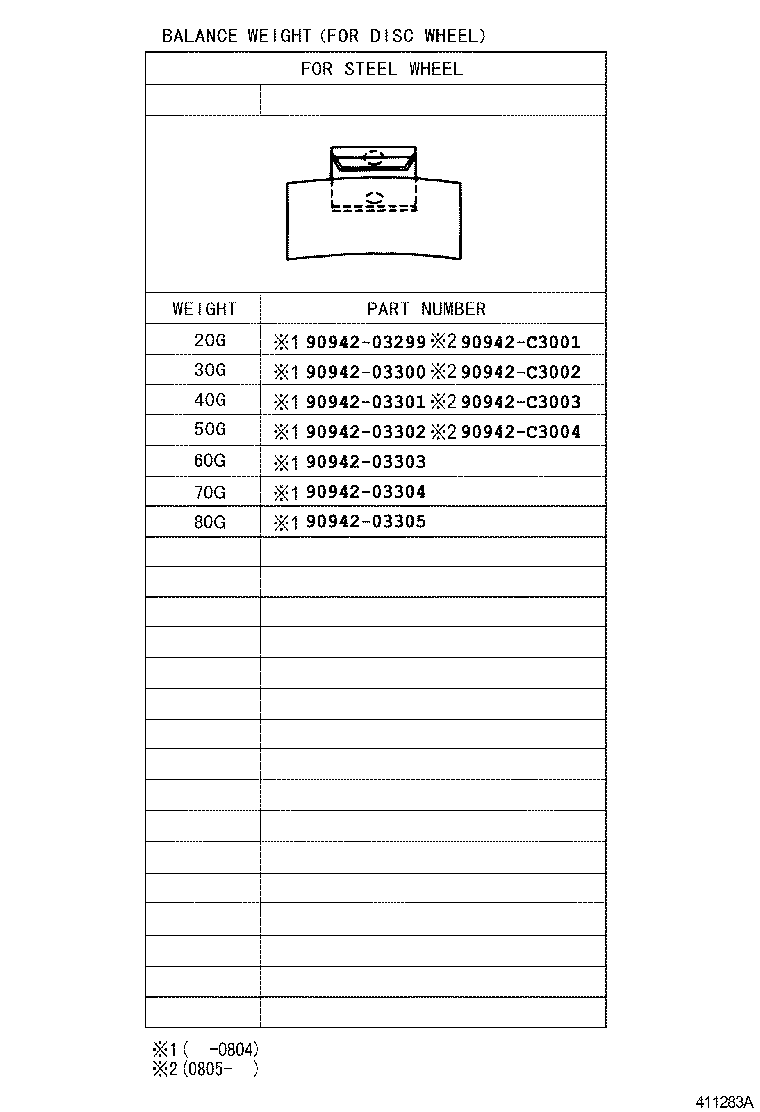

ILLUST NO. 2 OF 2(0012- )

Click highlighted areas on diagram

diagram 9094203299 9094203300 9094203301 9094203302 9094203303 9094203304 9094203305 90942C3001 90942C3002 90942C3003 90942C3004
Part # Description Qty Price
Common parts
90942-03299
90942-03300
90942-03301
90942-03302
90942-03303
90942-03304
90942-03305
90942-C3001
90942-C3002
90942-C3003
90942-C3004

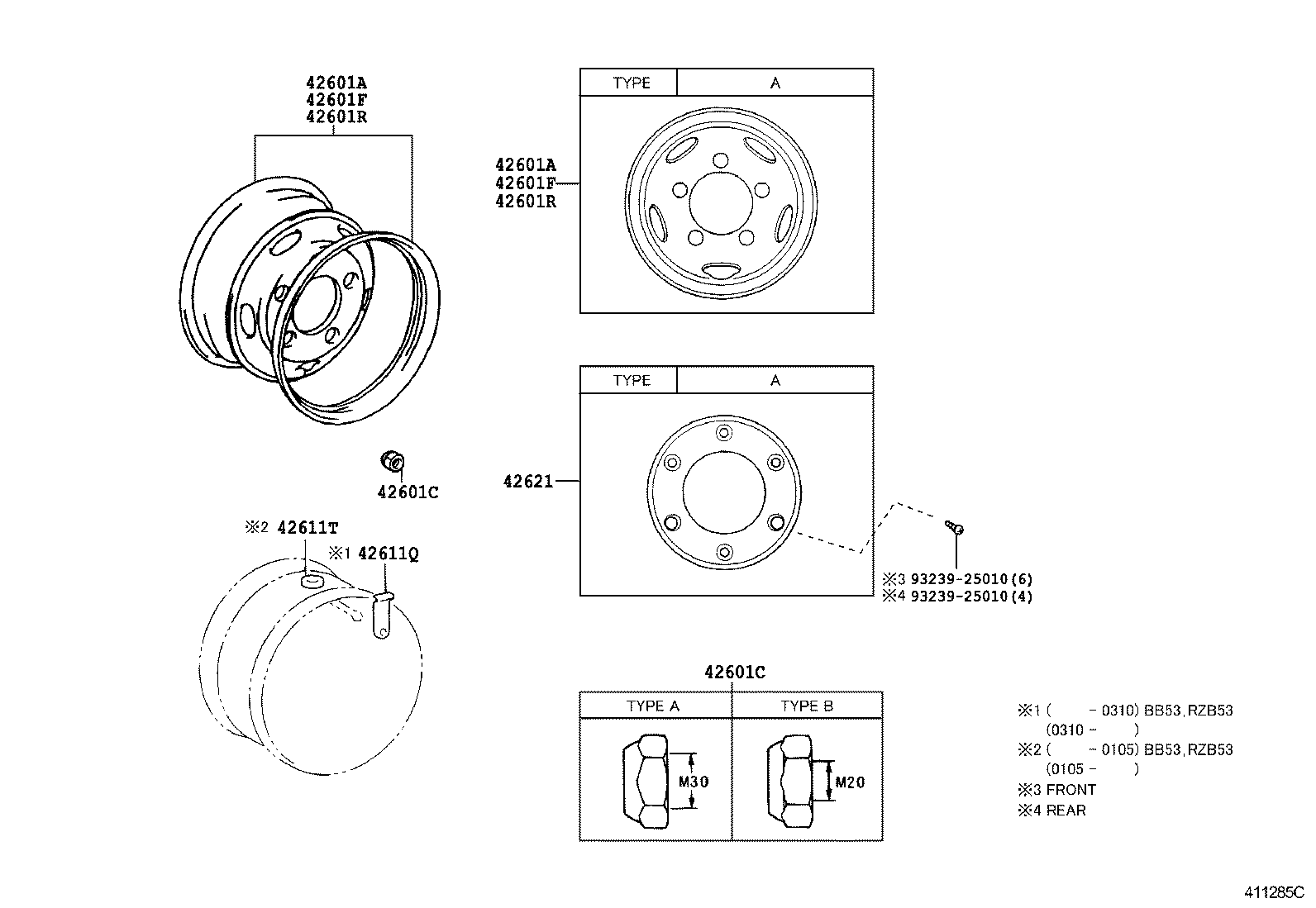

ILLUST NO. 1 OF 2(0012- )

Click highlighted areas on diagram

diagram 42601A 42601A 42601C 42601C 42601F 42601F 42601R 42601R 42611Q 42611T 42621 9323925010 9323925010
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42610-36490

BB5#,RZB5#

16X5.50F,TYPE A:REFER ILLUST.

 1
42601A - WHEEL, DISC (FOR SPARE)
42610-36490

BB5#,RZB5#

16X5.50F,TYPE A:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01108

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION,LH

 5
90942-01107

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION,RH

 5
42633-55030

BB5#,RZB5#

TYPE A:REFER TO ILLUSTRATION,RH

 5
42634-55030

BB5#,RZB5#

TYPE A:REFER TO ILLUSTRATION,LH

 5
42601C - NUT, HUB (FOR AXLE)
90942-01108

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION,LH

 5
90942-01107

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION,RH

 5
42633-55030

BB5#,RZB5#

TYPE A:REFER TO ILLUSTRATION,RH

 5
42634-55030

BB5#,RZB5#

TYPE A:REFER TO ILLUSTRATION,LH

 5
42601F - WHEEL, DISC (FOR FRONT)
42610-36490

BB5#,RZB5#

16X5.50F,TYPE A:REFER ILLUST.

 2
42601F - WHEEL, DISC (FOR FRONT)
42610-36490

BB5#,RZB5#

16X5.50F,TYPE A:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42610-36490

BB5#,RZB5#

16X5.50F,TYPE A:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42610-36490

BB5#,RZB5#

16X5.50F,TYPE A:REFER ILLUST.

 2
42621 - CAP, WHEEL
42621-36170

BB5#,RZB5#

TYPE A:REFER TO ILLUSTRATION,REAR

 2
42621-36160

BB5#,RZB5#

TYPE A:REFER TO ILLUSTRATION,FRONT

 2
Common parts
93239-25010
