RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0012-0701)3RZFE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233 23233B 23233B 23249 7751
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-46090

3RZFE..RZB5#

 1
23220P - PUMP ASSY, FUEL
23221-13010

3RZFE..RZB5#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

3RZFE..RZB5#

 1
23233 - HOSE, FUEL PUMP
23239-11010

3RZFE..RZB5#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

3RZFE..RZB5#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

3RZFE..RZB5#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

3RZFE..RZB5#

 1
Linked diagrams
7751

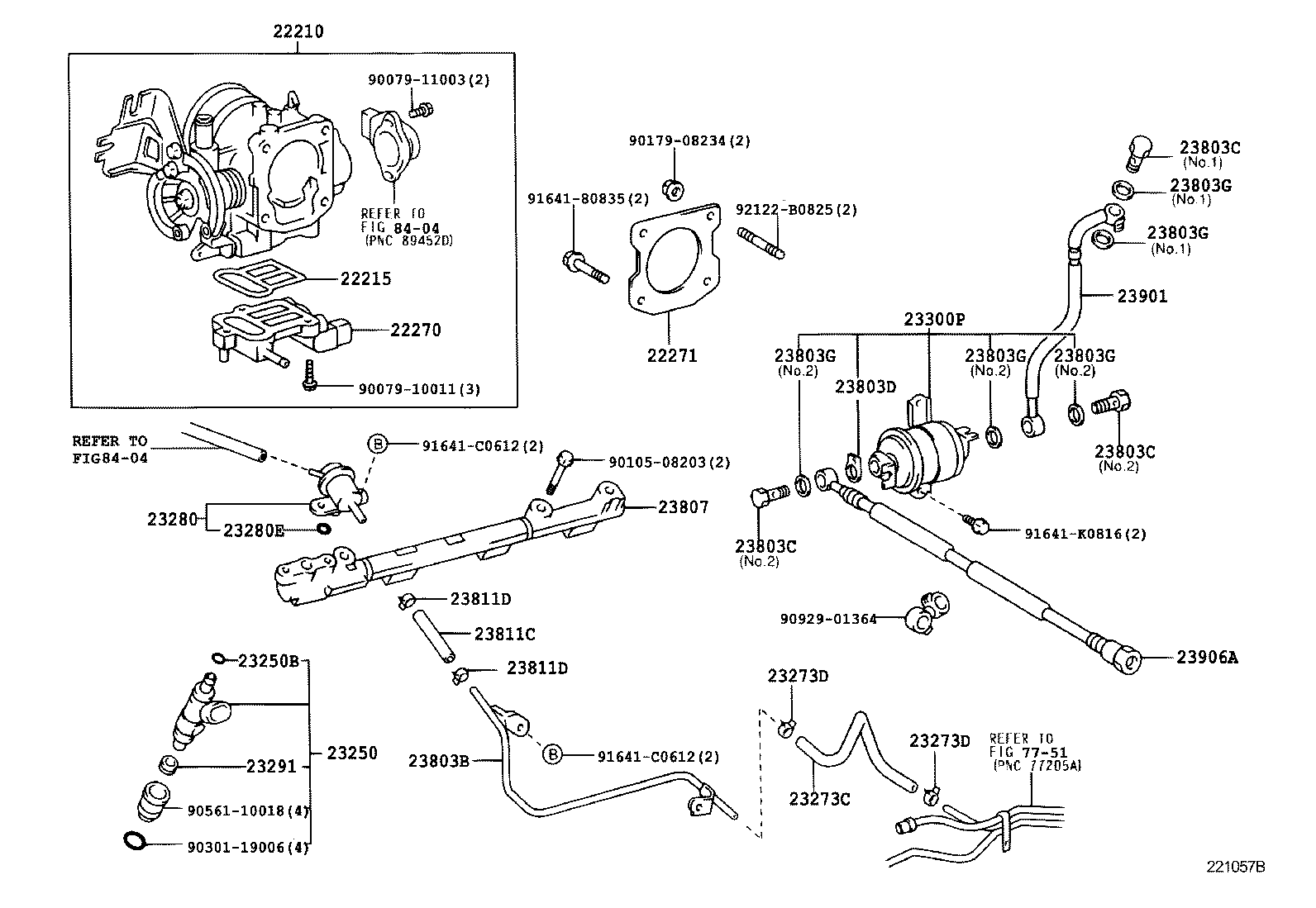

ILLUST NO. 1 OF 2(0012-0701)3RZFE

Click highlighted areas on diagram

diagram 22210 22215 22270 22271 23250 23250B 23273C 23273D 23273D 23280 23280E 23291 23300P 23803B 23803C 23803C 23803C 23803D 23803G 23803G 23803G 23803G 23803G 23807 23811C 23811D 23811D 23901 23906A 7751 8404 8404 9007910011 9007911003 9010508203 9017908234 9030119006 9056110018 9092901364 9164180835 91641C0612 91641C0612 91641K0816 92122B0825
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-75260

3RZFE..RZB5#

 1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680

3RZFE..RZB5#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-75050

3RZFE..RZB5#

 1
22271 - GASKET, THROTTLE BODY
22271-75020

3RZFE..RZB5#

 1
23250 - INJECTOR ASSY, FUEL
23209-79145

3RZFE..RZB5#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

3RZFE..RZB5#

 4
90301-07024

3RZFE..RZB5#

 4
23273C - HOSE, FUEL, NO.2
23273-75150

3RZFE..RZB54

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96132-41100

3RZFE..RZB5#

 2
23273D - CLIP(FOR FUEL HOSE NO.2)
96132-41100

3RZFE..RZB5#

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75020

3RZFE..RZB5#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

3RZFE..RZB5#

 1
90301-07037

3RZFE..RZB5#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

3RZFE..RZB5#

 4
23300P - FILTER, FUEL(FOR EFI)
23300-79525

3RZFE..RZB5#

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-75020

3RZFE..RZB5#

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-12033

3RZFE..RZB5#

NO.1

 1
90401-12097

3RZFE..RZB5#

NO.2

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-12033

3RZFE..RZB5#

NO.1

 1
90401-12097

3RZFE..RZB5#

NO.2

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-12033

3RZFE..RZB5#

NO.1

 1
90401-12097

3RZFE..RZB5#

NO.2

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

3RZFE..RZB5#

 1
23803G - GASKET(FOR FUEL HOSE)
90430-12026

3RZFE..RZB5#

NO.2

 3
23279-74010

3RZFE..RZB5#

NO.1

 2
23803G - GASKET(FOR FUEL HOSE)
90430-12026

3RZFE..RZB5#

NO.2

 3
23279-74010

3RZFE..RZB5#

NO.1

 2
23803G - GASKET(FOR FUEL HOSE)
90430-12026

3RZFE..RZB5#

NO.2

 3
23279-74010

3RZFE..RZB5#

NO.1

 2
23803G - GASKET(FOR FUEL HOSE)
90430-12026

3RZFE..RZB5#

NO.2

 3
23279-74010

3RZFE..RZB5#

NO.1

 2
23803G - GASKET(FOR FUEL HOSE)
90430-12026

3RZFE..RZB5#

NO.2

 3
23279-74010

3RZFE..RZB5#

NO.1

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75021

3RZFE..RZB5#

 1
23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
90445-12290

3RZFE..RZB5#

*H,L=120

 1
23811D - CLIP, HOSE(FOR FUEL HOSE)
96135-41100

3RZFE..RZB5#

 2
23811D - CLIP, HOSE(FOR FUEL HOSE)
96135-41100

3RZFE..RZB5#

 2
23901 - TUBE SUB-ASSY, FUEL
23901-75050

3RZFE..RZB5#

 1
23906A - HOSE SUB-ASSY, FUEL
23906-75030

3RZFE..RZB54

 1
Common parts
90079-10011
90079-11003
90105-08203
90179-08234
90301-19006
90561-10018
90929-01364
91641-80835
91641-C0612
91641-K0816
92122-B0825
Linked diagrams
7751
8404
