RZB54L-ZEMSK (2004)
Toyota Coaster (China)
Production
Nov 2004
-
Jan 2007
Engine
3RZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0012-0701)3RZFE

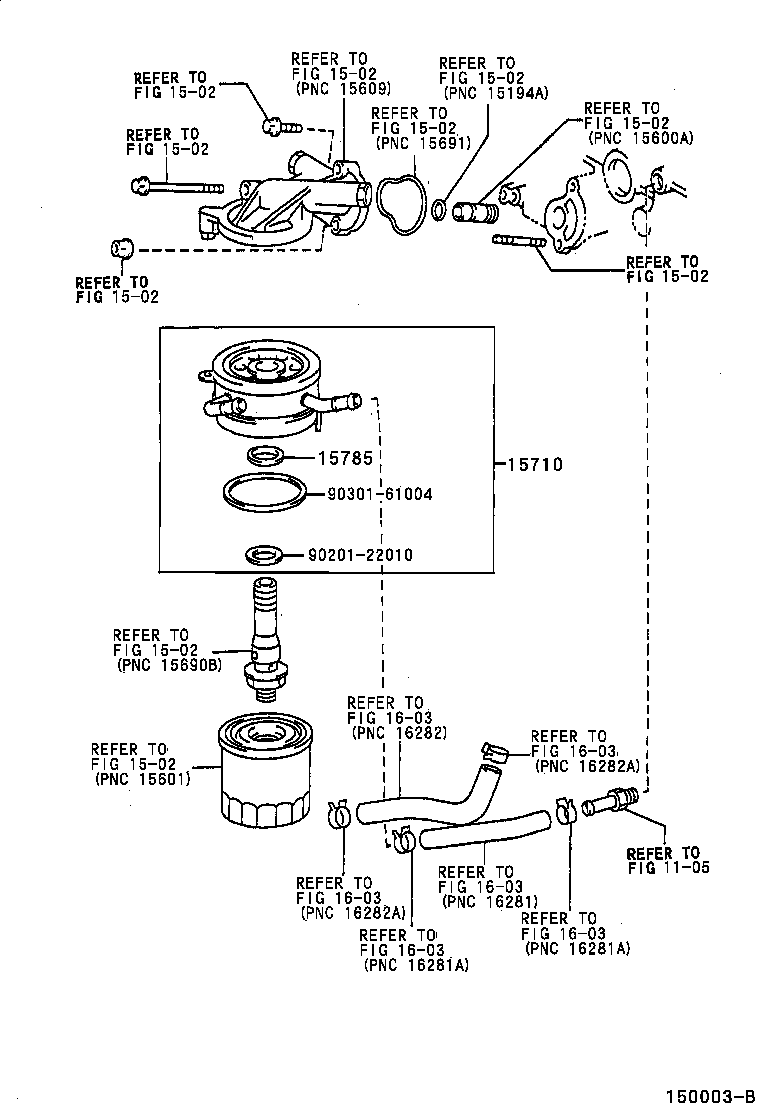

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-75011 |
3RZFE..RZB5# |
1 | ||
| 15785 - GASKET, OIL COOLER | ||||
| 15785-35010 |
3RZFE..RZB5# |
1 | ||
| Common parts | ||||
| 90201-22010 | ||||
| 90301-61004 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1502 | ||||
| 1603 | ||||
