RZB54L-ZEMSK (2004)

Toyota Coaster (China)

Production Nov 2004 - Jan 2007
Engine 3RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012-0701)3RZFE

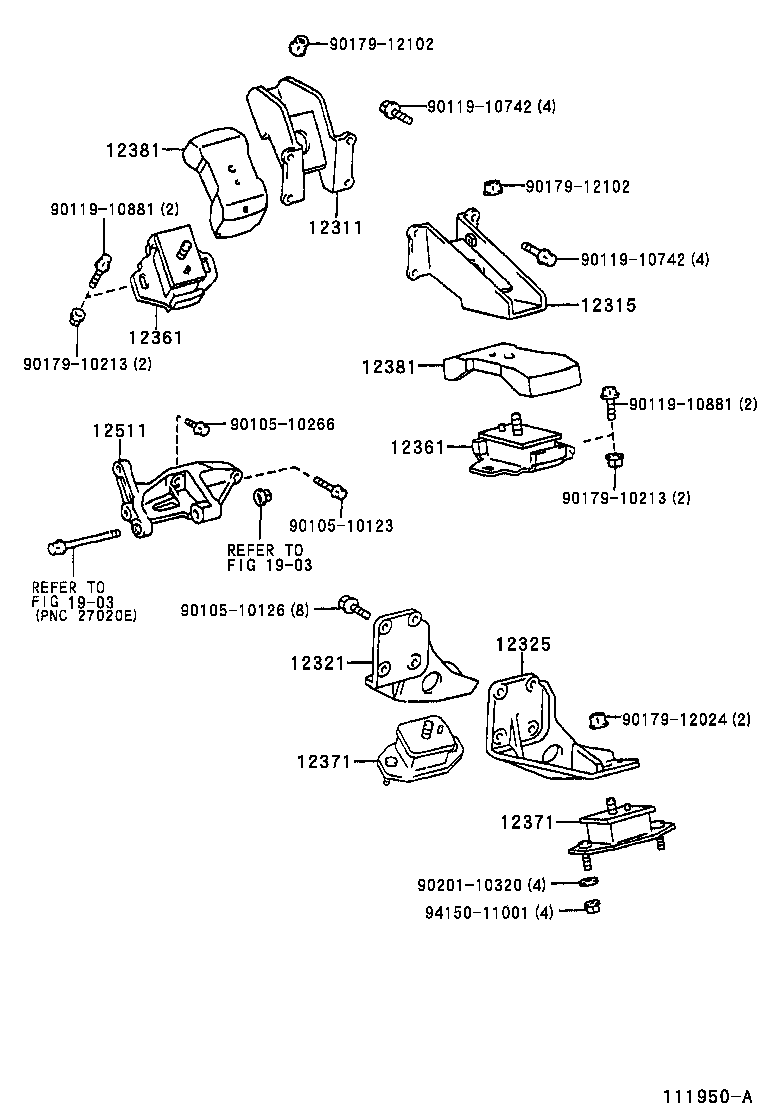

Click highlighted areas on diagram

diagram 12311 12315 12321 12325 12361 12361 12371 12371 12381 12381 12511 1903 1903 9010510123 9010510126 9010510266 9011910742 9011910742 9011910881 9011910881 9017910213 9017910213 9017912024 9017912102 9017912102 9020110320 9415011001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75030

3RZFE..RZB5#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75030

3RZFE..RZB5#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-75020

3RZFE..RZB5#

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-75020

3RZFE..RZB5#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75060

3RZFE..RZB5#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75060

3RZFE..RZB5#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-58070

3RZFE..RZB5#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-58070

3RZFE..RZB5#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-75060

3RZFE..RZB5#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-75060

3RZFE..RZB5#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-75041

3RZFE..RZB5#

 1
Common parts
90105-10123
90105-10126
90105-10266
90119-10742
90119-10881
90179-10213
90179-12024
90179-12102
90201-10320
94150-11001
Linked diagrams
1903
