RZB53L-ZCMEK (2000)
Toyota Coaster (China)
Production
Dec 2000
-
Jan 2007
Engine
3RZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0012- )RZB53

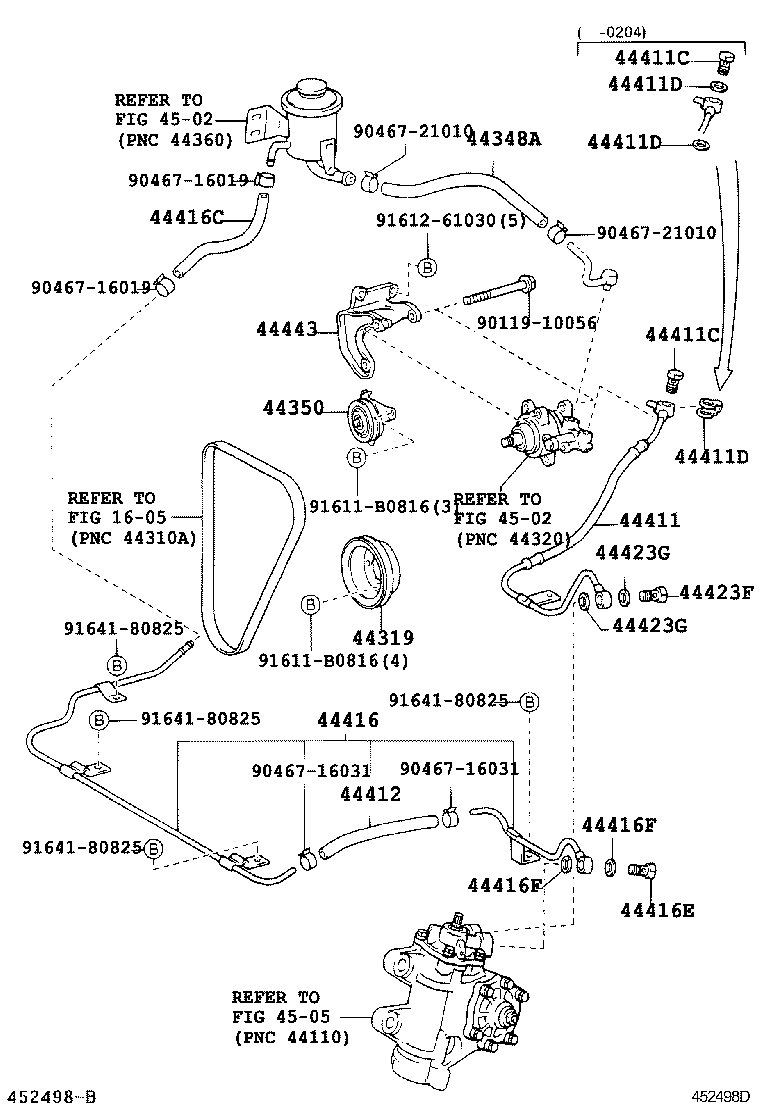

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-34010 |
RZB5#..20S,23S,24S |
1 | ||
| 44319-34010 |
RZB5# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36170 |
RZB53 |
1 | ||
| 44348-36170 |
RZB53 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-34010 |
RZB5# |
1 | ||
| 44350-34010 |
RZB5#..20S,23S,24S |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36471 |
RZB53 |
1 | ||
| 44411-36471 |
RZB53 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90904-01001 |
RZB5# |
1 | ||
| 90904-01001 |
RZB5# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90904-01001 |
RZB5# |
1 | ||
| 90904-01001 |
RZB5# |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB5#,RZB5# |
2 | ||
| 44327-30030 |
BB5#,RZB5# |
1 | ||
| 44327-30030 |
BB5#,RZB5#,XZB53 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB5#,RZB5# |
2 | ||
| 44327-30030 |
BB5#,RZB5# |
1 | ||
| 44327-30030 |
BB5#,RZB5#,XZB53 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BB5#,RZB5# |
2 | ||
| 44327-30030 |
BB5#,RZB5# |
1 | ||
| 44327-30030 |
BB5#,RZB5#,XZB53 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18137 |
RZB53 |
1 | ||
| 90445-18137 |
BB53,RZB53,TRB53,XZB53 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36381 |
RZB53 |
1 | ||
| 44416-36381 |
RZB53,TRB53 |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18139 |
RZB5#,TRB53 |
1 | ||
| 90445-18139 |
RZB5# |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BB5#,RZB5# |
1 | ||
| 90401-14003 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB5#,RZB5# |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BB5#,RZB5# |
2 | ||
| 44423F - BOLT, UNION | ||||
| 90401-14003 |
BB5#,RZB5# |
1 | ||
| 90401-14003 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB5#,RZB5# |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-14235 |
BB5#,RZB5# |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-36050 |
RZB5#..20S,23S,24S |
1 | ||
| 44443-36050 |
RZB5# |
1 | ||
| Common parts | ||||
| 90119-10056 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 91611-B0816 | ||||
| 91612-61030 | ||||
| 91641-80825 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
