Toyota Coaster (china) GRB53 MOULDING

GRB53L-ZEMNK (2013)

Toyota Coaster (China)

Production Jan 2013 - Sep 9999

Engine 6GRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1301- )

Click highlighted areas on diagram

FRONT MOULDING

Part #	Description	Period	Qty
62955F - RETAINER, QUARTER VENT LOUVER
62955-50010	GRB53	01/2018 - 12/2999	8
62955-50010	GRB53,TRB53	07/2015 - 01/2018	8
62955-50010	GRB53,TRB53,XZB53	01/2013 - 07/2015	8
62955F - RETAINER, QUARTER VENT LOUVER
62955-50010	GRB53	01/2018 - 12/2999	8
62955-50010	GRB53,TRB53	07/2015 - 01/2018	8
62955-50010	GRB53,TRB53,XZB53	01/2013 - 07/2015	8
75392A - RETAINER, OUTSIDE MOULDING, NO.1
90467-08204	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
90467-08204	GRB53,TRB53	07/2015 - 01/2018	2
90467-08204	GRB53	01/2018 - 12/2999	2
75392A - RETAINER, OUTSIDE MOULDING, NO.1
90467-08204	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
90467-08204	GRB53,TRB53	07/2015 - 01/2018	2
90467-08204	GRB53	01/2018 - 12/2999	2
75770 - MOULDING ASSY, HOOD, FRONT
75770-0S010	GRB53,XZB53..EX,LX PLATED	01/2013 - 07/2015	1
75770-0S010	GRB53..EX,LX PLATED	01/2018 - 12/2999	1
75770-0S010	GRB53..EX,LX PLATED	07/2015 - 01/2018	1
75868B - CLIP, ROCKER PANEL MOULDING, NO.2
75868-60020	GRB53,TRB53	07/2015 - 01/2018	1
75868-60020	GRB53	01/2018 - 12/2999	1
75868-60020	GRB53,TRB53,XZB53	01/2013 - 07/2015	1

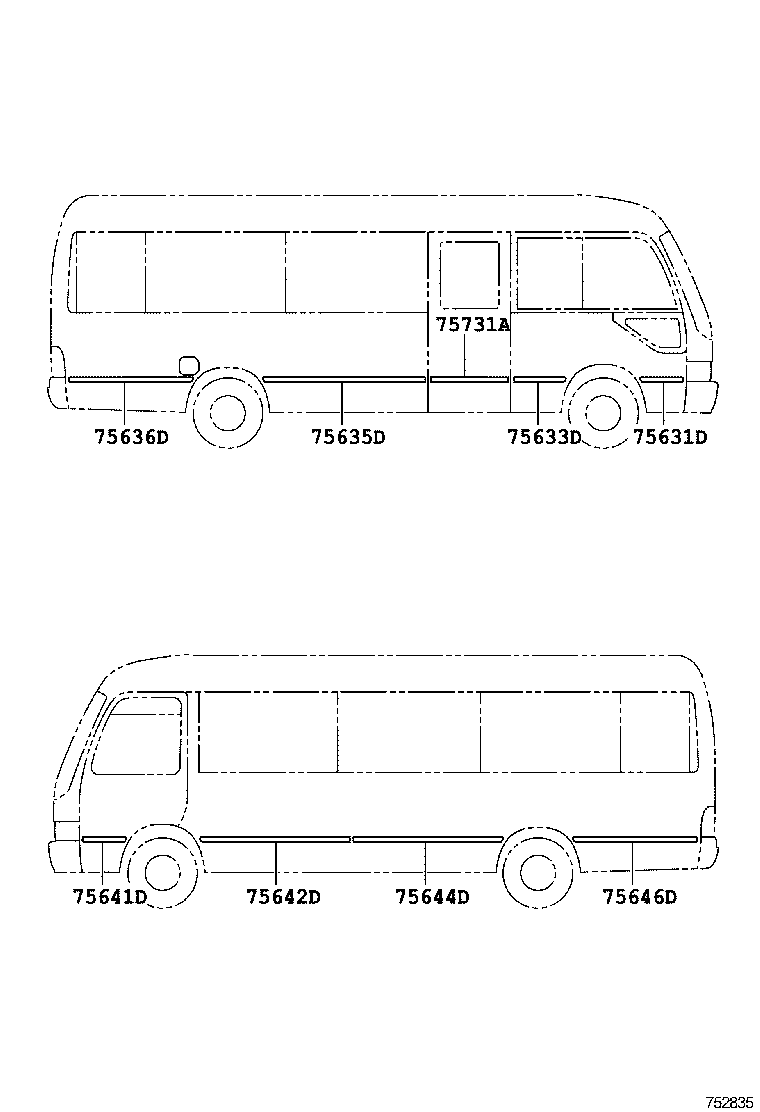

ILLUST NO. 2 OF 3(1301- )EX,LX

Click highlighted areas on diagram

SIDE MOULDING

Part #	Description	Period	Qty
75631D - MOULDING, SIDE PANEL, LOWER NO.1 RH
75071-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75071-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75071-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75071-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75071-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75071-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75071-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75071-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75071-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75071-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75071-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75071-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75633D - MOULDING, SIDE PANEL, LOWER NO.3 RH
75073-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75073-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75073-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75073-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75073-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75073-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75073-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75073-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75073-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75073-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75073-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75073-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75635D - MOULDING, SIDE PANEL, LOWER NO.5 RH
75075-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75075-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75075-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75075-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75075-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75075-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75075-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75075-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75075-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75075-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75075-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75075-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75636D - MOULDING, SIDE PANEL, LOWER NO.6 RH
75077-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75077-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75077-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75077-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75077-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75077-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75077-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75077-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75077-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75077-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75077-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75077-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75641D - MOULDING, SIDE PANEL, LOWER NO.1 LH
75072-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75072-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75072-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75072-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75072-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75072-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75072-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75072-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75072-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75072-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75072-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75072-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75642D - MOULDING, SIDE PANEL, LOWER NO.2 LH
75074-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75074-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75074-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75074-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75074-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75074-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75074-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75074-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75074-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75074-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75074-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75074-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75644D - MOULDING, SIDE PANEL, LOWER NO.4 LH
75076-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75076-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75076-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75076-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75076-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75076-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75076-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75076-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75076-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75076-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75076-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75076-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75646D - MOULDING, SIDE PANEL, LOWER NO.6 LH
75078-0S010K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75078-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75078-0S010H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75078-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75078-0S010A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75078-0S010A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75078-0S010H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75078-0S010K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75078-0S010H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75078-0S010K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1
75078-0S010E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75078-0S010E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75073-0S020E0	GRB53,XZB53..EX,LX BEIGE ME.,4R4	01/2013 - 07/2015	1
75073-0S020A0	GRB53,XZB53..EX,LX WHITE,058 ,2FU	01/2013 - 07/2015	1
75073-0S020H0	GRB53..EX,LX TURQUOISE,2HL	07/2015 - 01/2018	1
75073-0S020H0	GRB53,XZB53..EX,LX TURQUOISE,2HL	01/2013 - 07/2015	1
75073-0S020H0	GRB53..EX,LX TURQUOISE,2HL	01/2018 - 12/2999	1
75073-0S020E0	GRB53..EX,LX BEIGE ME.,4R4	07/2015 - 01/2018	1
75073-0S020E0	GRB53..EX,LX BEIGE ME.,4R4	01/2018 - 12/2999	1
75073-0S020A0	GRB53..EX,LX WHITE,058 ,2FU	07/2015 - 01/2018	1
75073-0S020K0	GRB53,XZB53..EX,LX LAVENDER,2DT	01/2013 - 07/2015	1
75073-0S020K0	GRB53..EX,LX LAVENDER,2DT	07/2015 - 01/2018	1
75073-0S020A0	GRB53..EX,LX WHITE,058 ,2FU	01/2018 - 12/2999	1
75073-0S020K0	GRB53..EX,LX LAVENDER,2DT	01/2018 - 12/2999	1

ILLUST NO. 3 OF 3(1507- )

Click highlighted areas on diagram

WINDSHIELD MOULDING

Part #	Description	Period	Qty
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-0S010	GRB53,TRB53	07/2015 - 01/2018	1
75533-0S010	GRB53	01/2018 - 12/2999	1
