Toyota Coaster (china) GRB53 WINDSHIELD WASHER

GRB53L-ZCMSK (2013)

Toyota Coaster (China)

Production Jan 2013 - Sep 9999

Engine 6GRFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1301-1801)

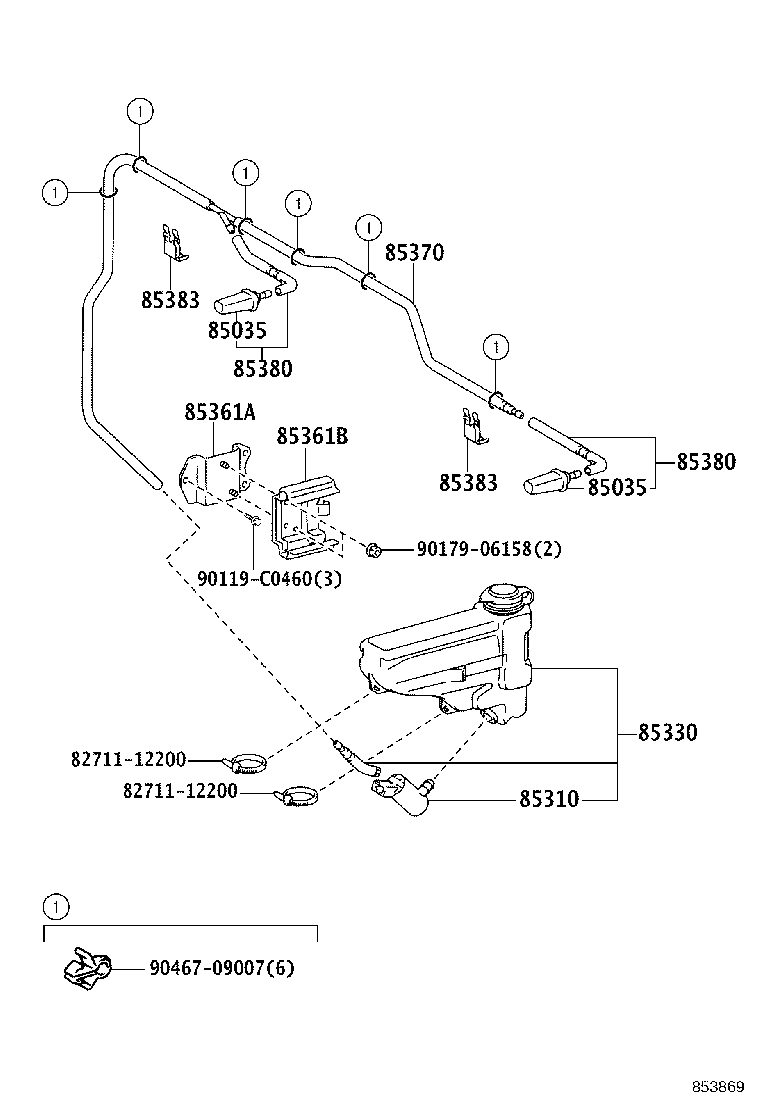

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-36020	GRB53,TRB53	07/2015 - 01/2018	2
85381-36020	GRB53	01/2018 - 12/2999	2
85381-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-36020	GRB53,TRB53	07/2015 - 01/2018	2
85381-36020	GRB53	01/2018 - 12/2999	2
85381-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-36170	GRB53	01/2018 - 12/2999	1
85330-36170	GRB53,TRB53	07/2015 - 01/2018	1
85330-36170	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85330 - JAR ASSY, WINDSHIELD WASHER
85310-0S010	GRB53,TRB53	07/2015 - 01/2018	1
85310-0S010	GRB53	01/2018 - 12/2999	1
85310-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-0S010	GRB53,TRB53	07/2015 - 01/2018	1
85361-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85361-0S010	GRB53	01/2018 - 12/2999	1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-95A02	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85361-95A02	GRB53	01/2018 - 12/2999	1
85361-95A02	GRB53,TRB53	07/2015 - 01/2018	1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85370-0S010	GRB53	01/2018 - 12/2999	1
85370-0S010	GRB53,TRB53	07/2015 - 01/2018	1
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0S010	GRB53	01/2018 - 12/2999	2
85380-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85380-0S010	GRB53,TRB53	07/2015 - 01/2018	2
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0S010	GRB53	01/2018 - 12/2999	2
85380-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85380-0S010	GRB53,TRB53	07/2015 - 01/2018	2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-36020	GRB53,TRB53	07/2015 - 01/2018	2
85383-36020	GRB53	01/2018 - 12/2999	2
85383-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-36020	GRB53,TRB53	07/2015 - 01/2018	2
85383-36020	GRB53	01/2018 - 12/2999	2
85383-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
Common parts
82711-12200
90179-06158
90467-09007
91651-60616

(1801- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-36020	GRB53,TRB53	07/2015 - 01/2018	2
85381-36020	GRB53	01/2018 - 12/2999	2
85381-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-36020	GRB53,TRB53	07/2015 - 01/2018	2
85381-36020	GRB53	01/2018 - 12/2999	2
85381-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-36170	GRB53	01/2018 - 12/2999	1
85330-36170	GRB53,TRB53	07/2015 - 01/2018	1
85330-36170	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85330 - JAR ASSY, WINDSHIELD WASHER
85310-0S010	GRB53,TRB53	07/2015 - 01/2018	1
85310-0S010	GRB53	01/2018 - 12/2999	1
85310-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-0S010	GRB53,TRB53	07/2015 - 01/2018	1
85361-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85361-0S010	GRB53	01/2018 - 12/2999	1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-95A02	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85361-95A02	GRB53	01/2018 - 12/2999	1
85361-95A02	GRB53,TRB53	07/2015 - 01/2018	1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	1
85370-0S010	GRB53	01/2018 - 12/2999	1
85370-0S010	GRB53,TRB53	07/2015 - 01/2018	1
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0S010	GRB53	01/2018 - 12/2999	2
85380-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85380-0S010	GRB53,TRB53	07/2015 - 01/2018	2
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-0S010	GRB53	01/2018 - 12/2999	2
85380-0S010	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85380-0S010	GRB53,TRB53	07/2015 - 01/2018	2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-36020	GRB53,TRB53	07/2015 - 01/2018	2
85383-36020	GRB53	01/2018 - 12/2999	2
85383-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-36020	GRB53,TRB53	07/2015 - 01/2018	2
85383-36020	GRB53	01/2018 - 12/2999	2
85383-36020	GRB53,TRB53,XZB53	01/2013 - 07/2015	2
Common parts
82711-12200
90119-C0460
90179-06158
90467-09007
