GRB53L-ZCMSK (2013)
Toyota Coaster (China)
(1301-1507)

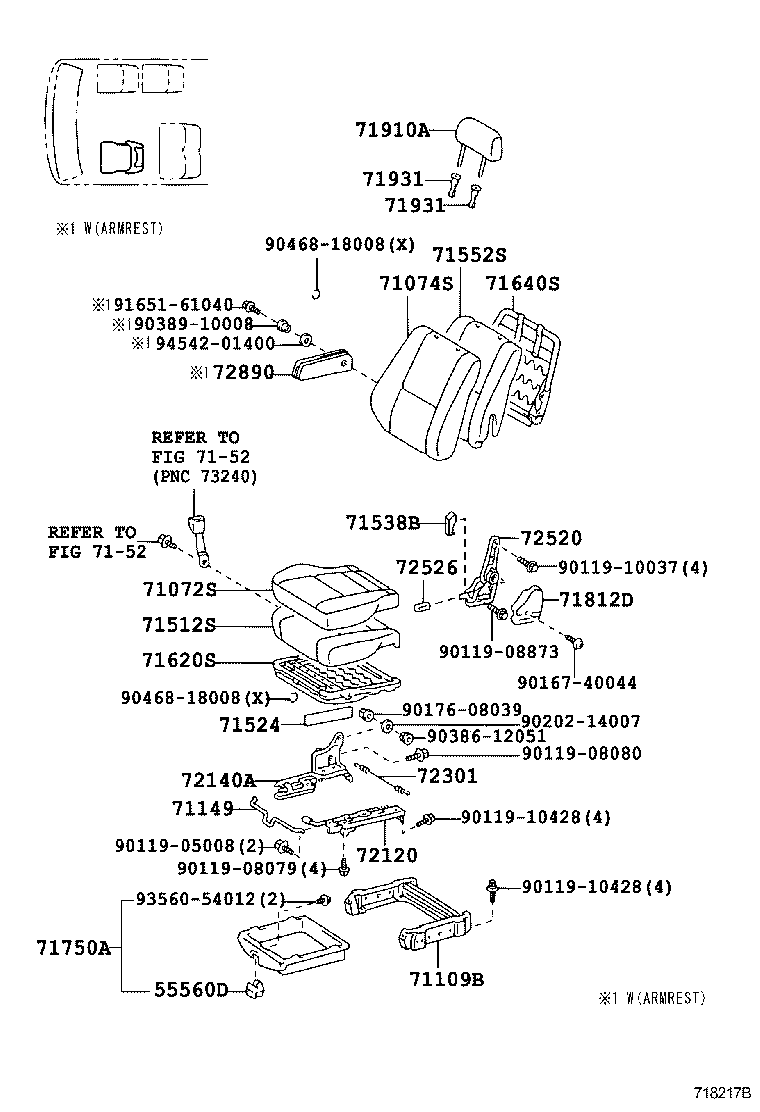

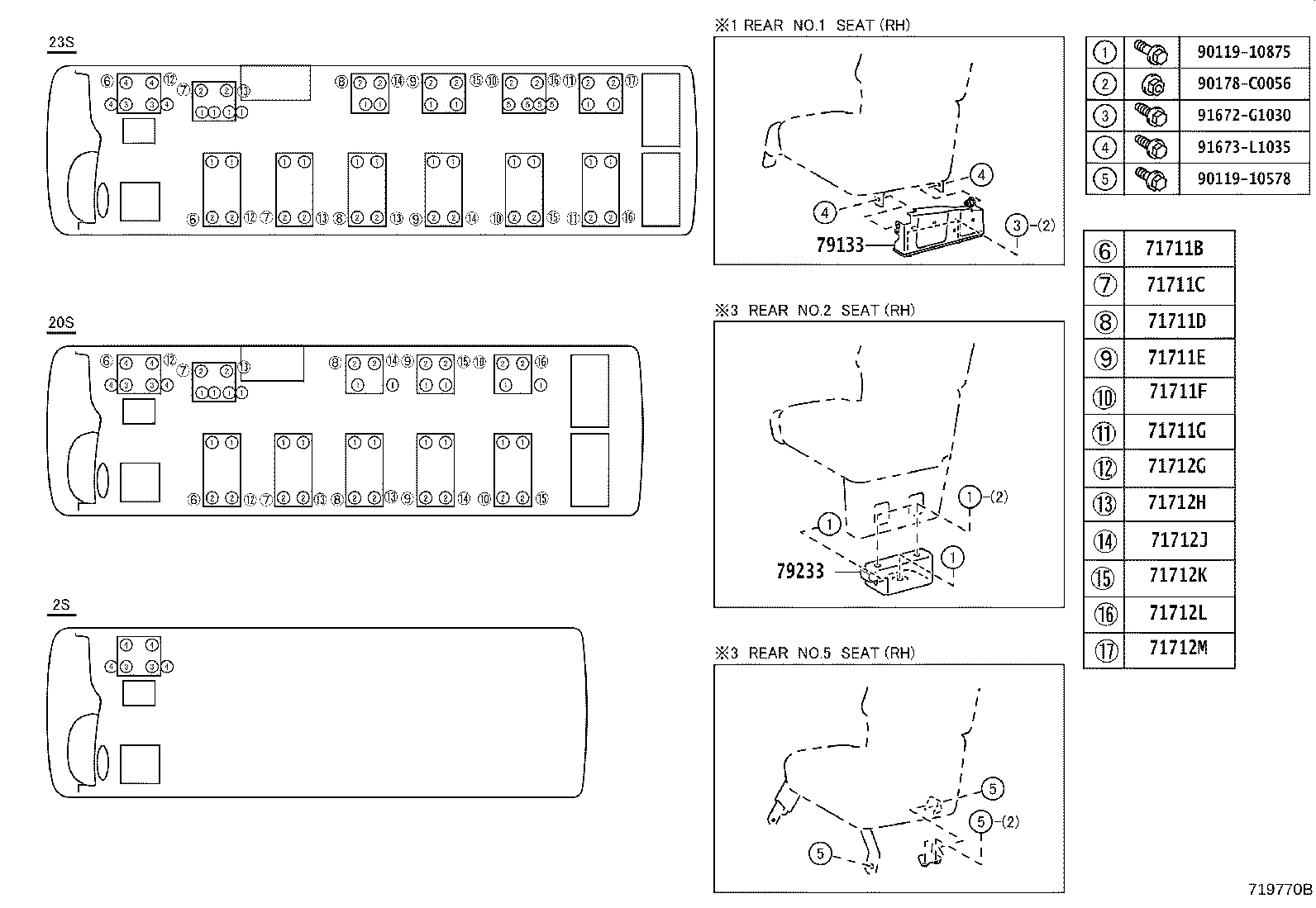

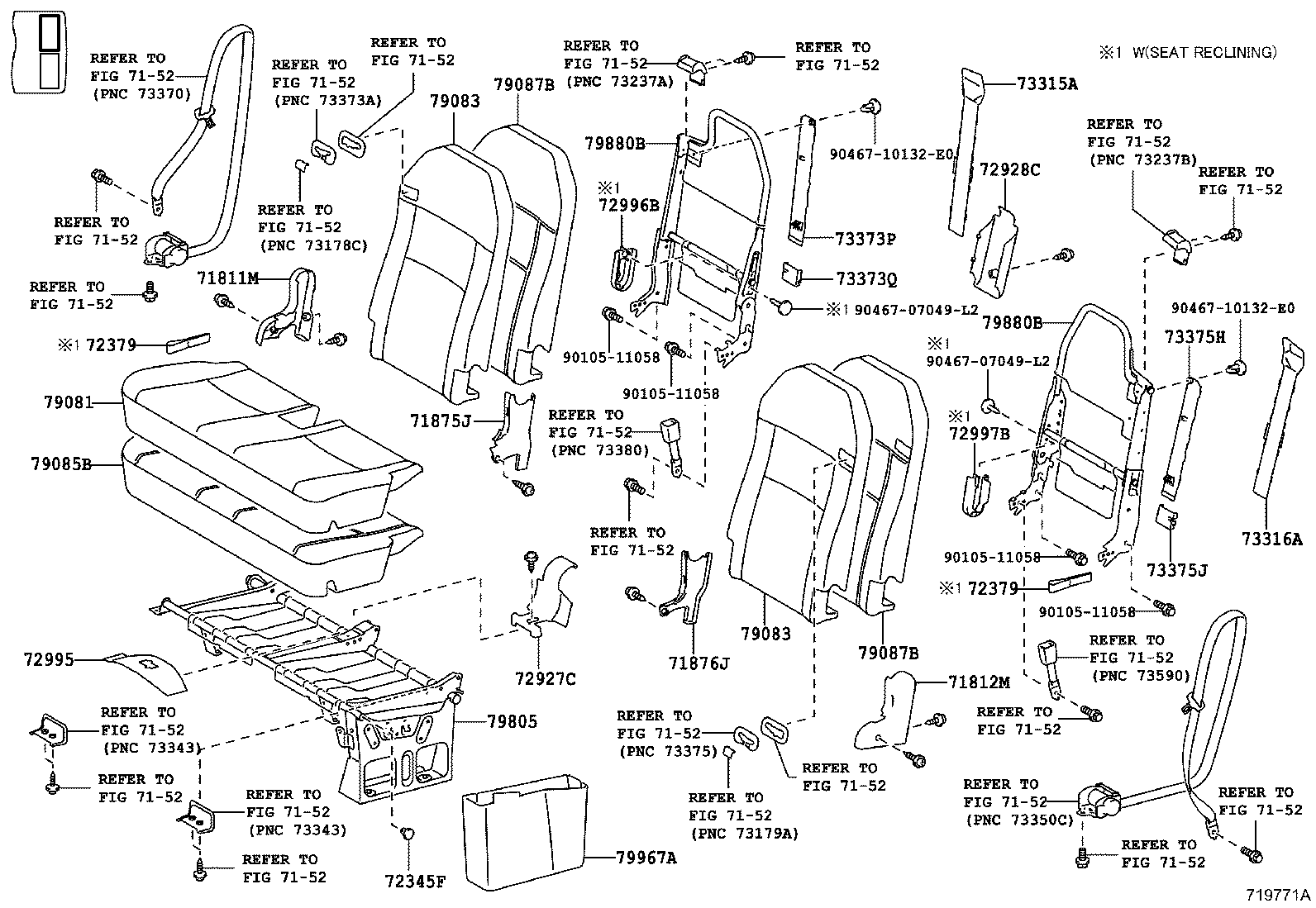

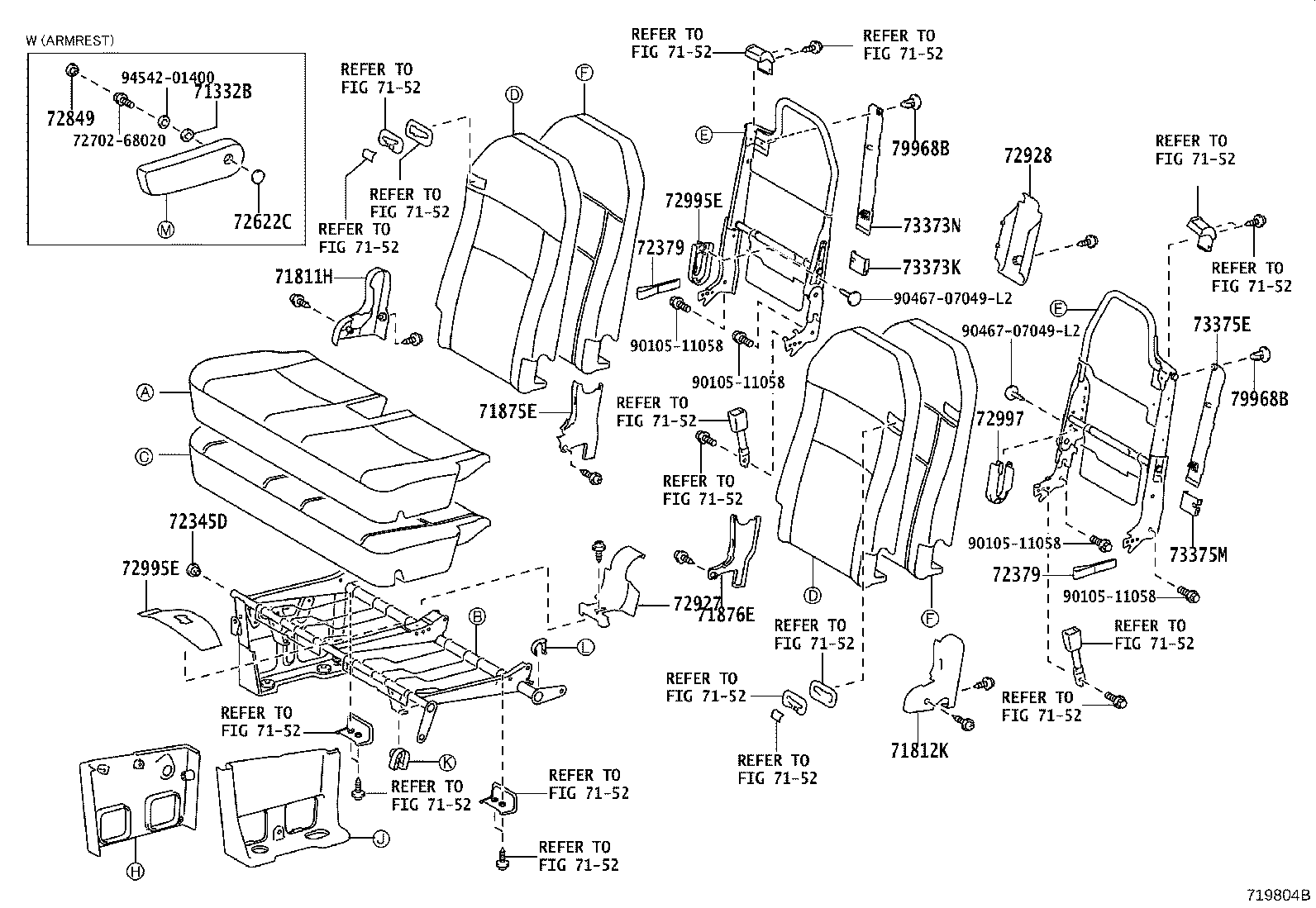

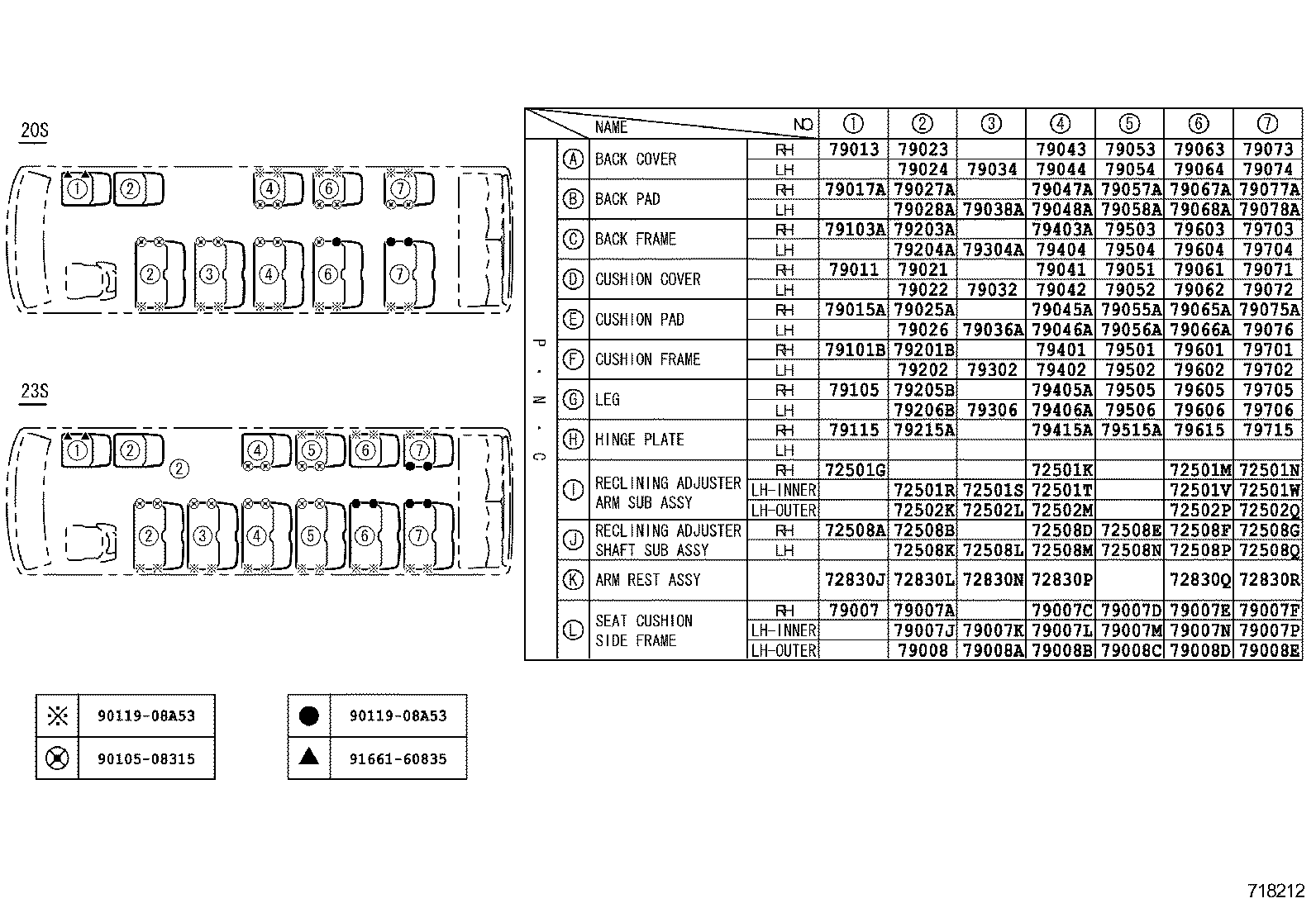

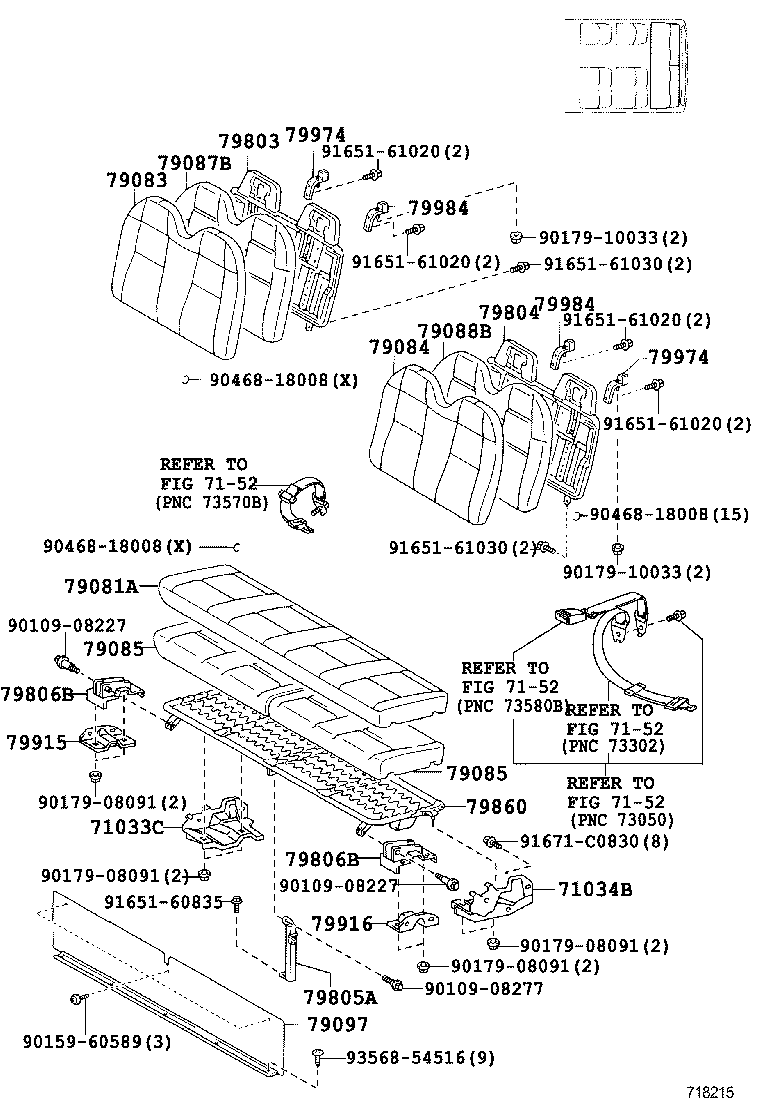

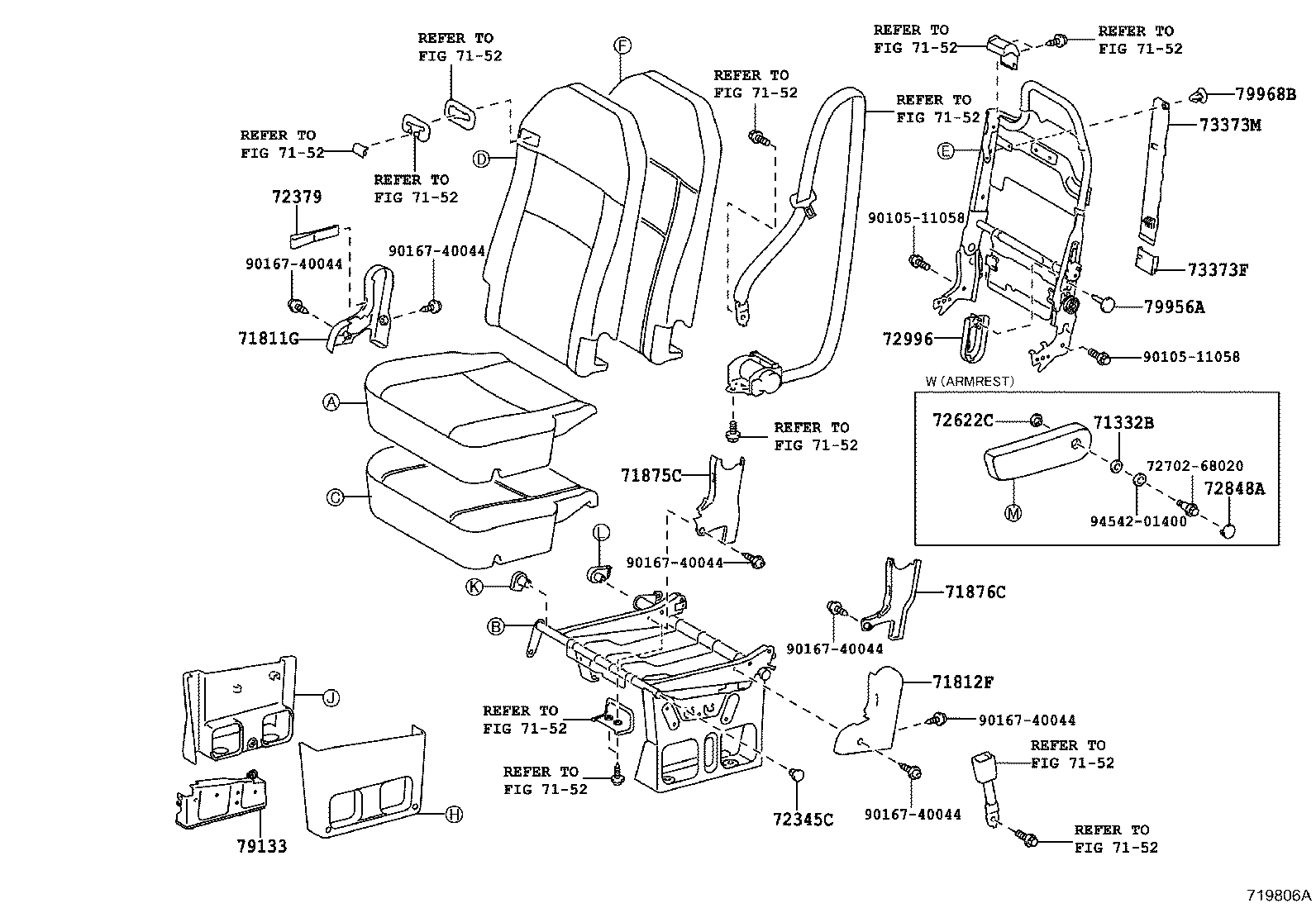

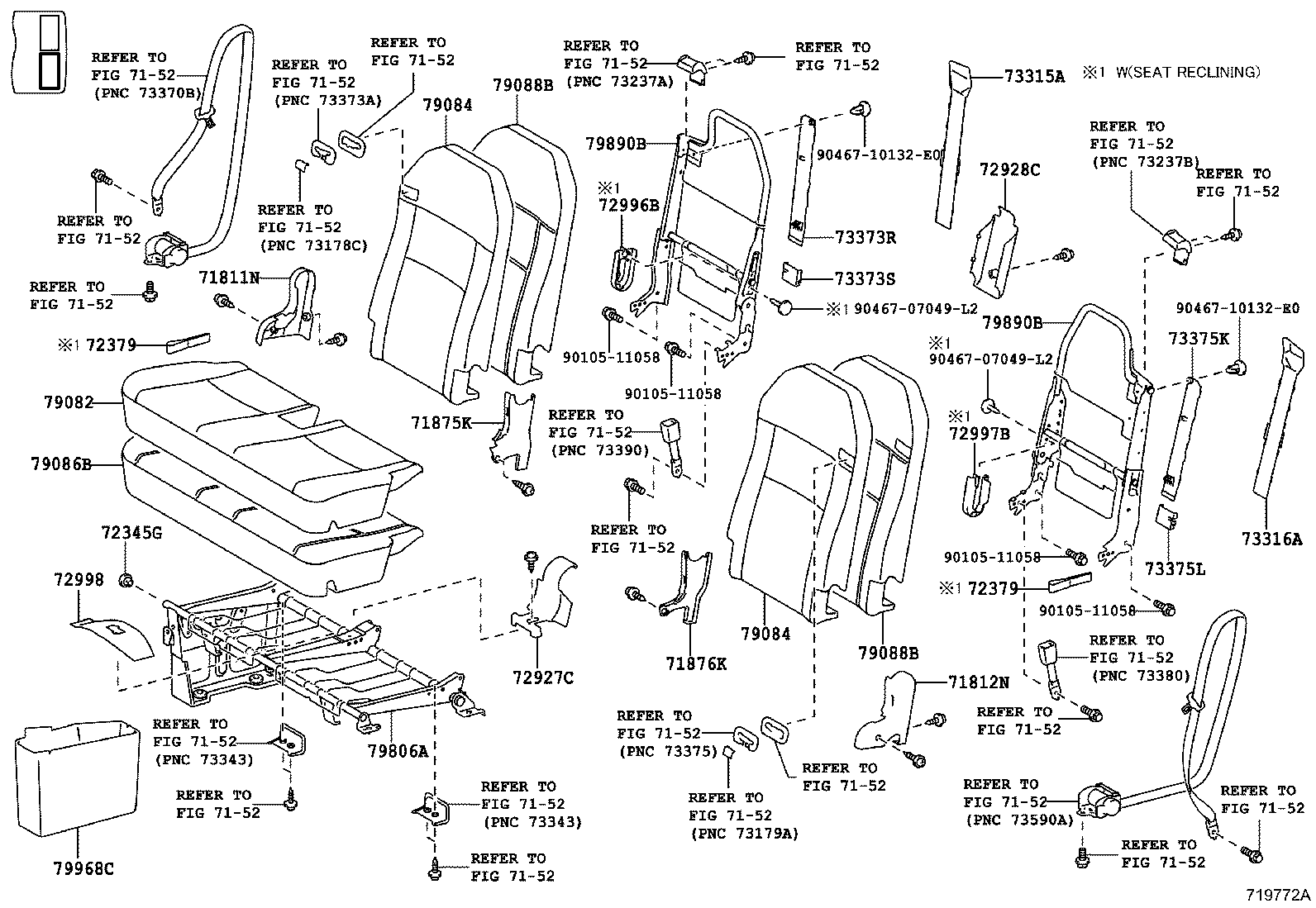

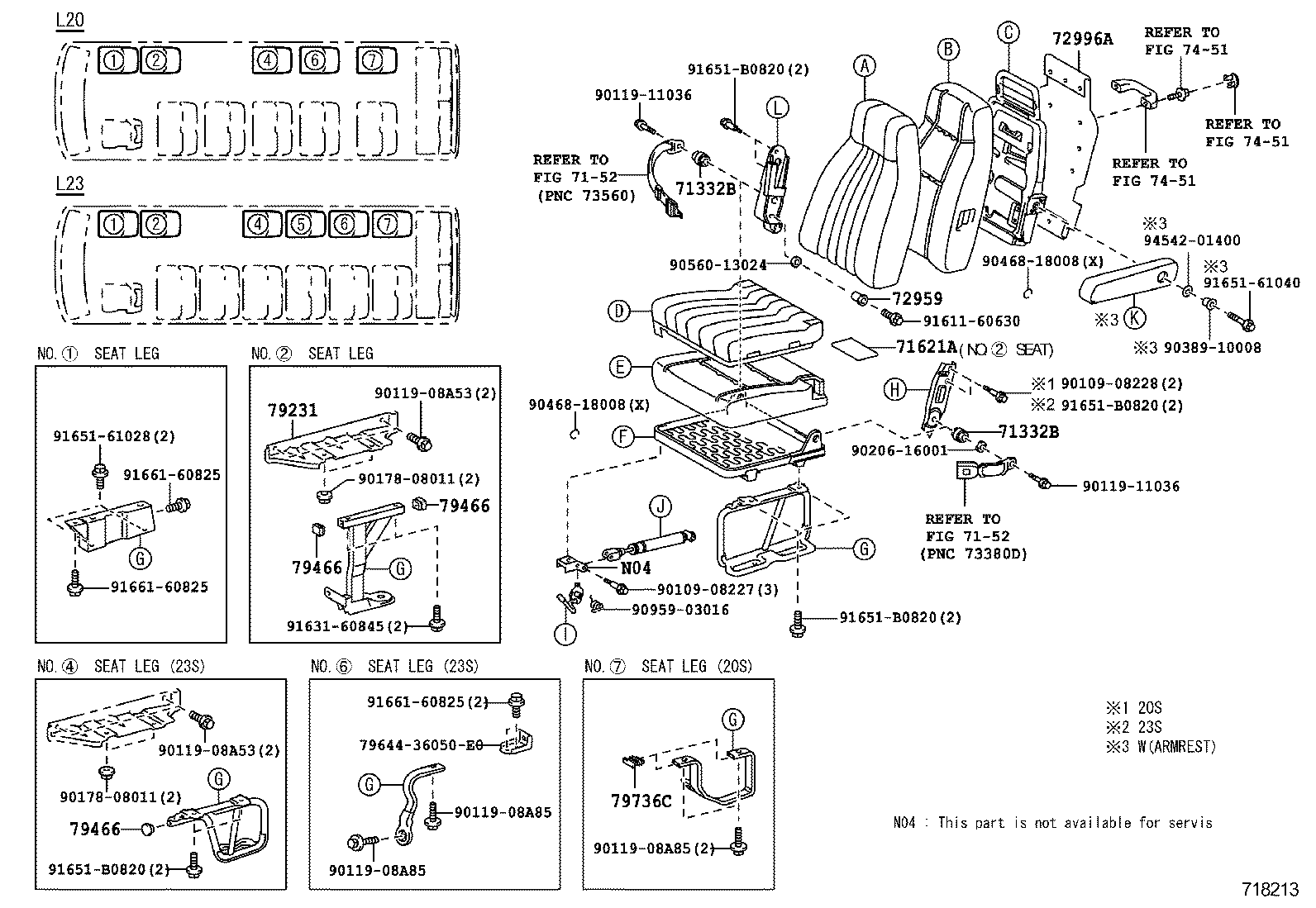

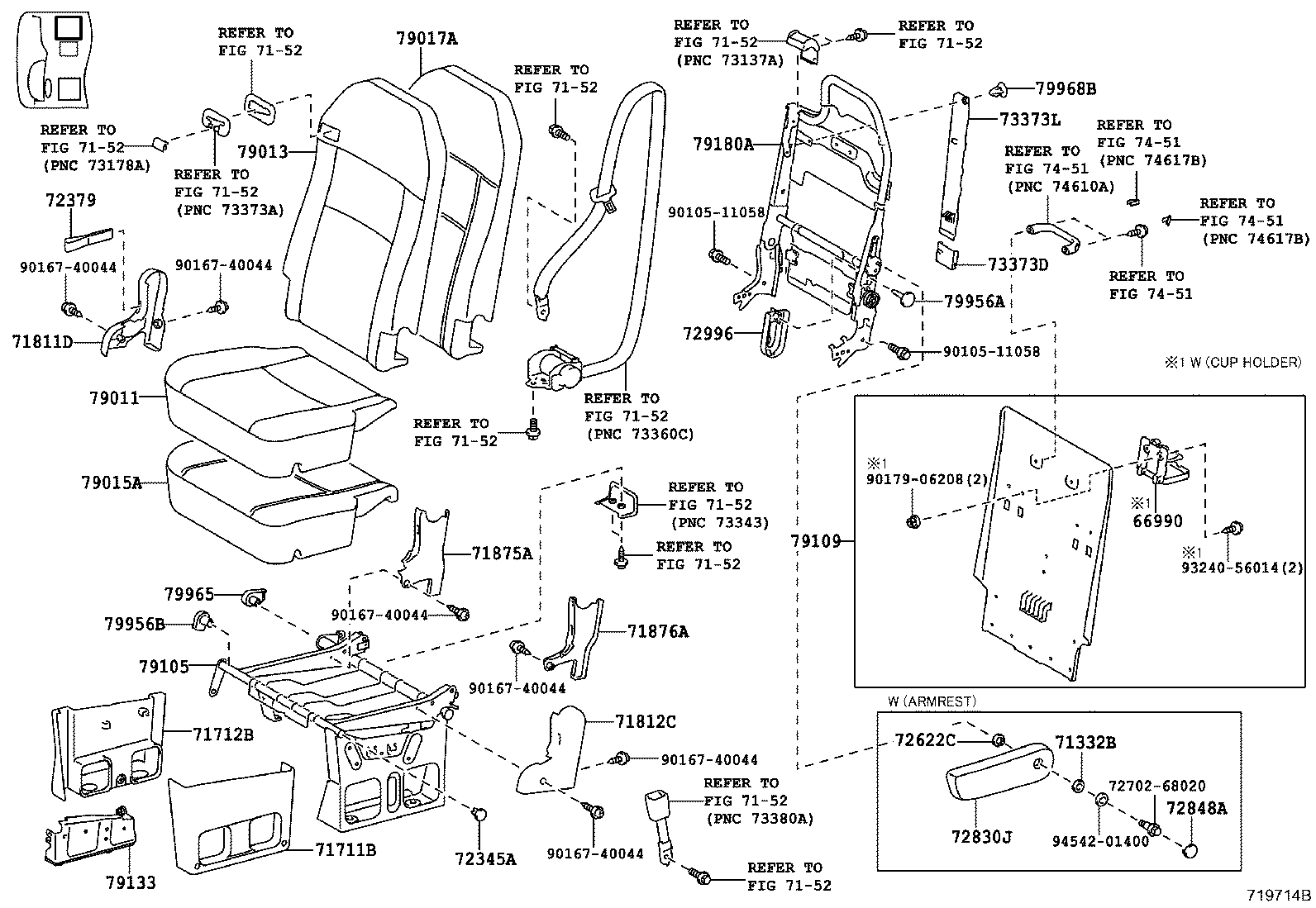

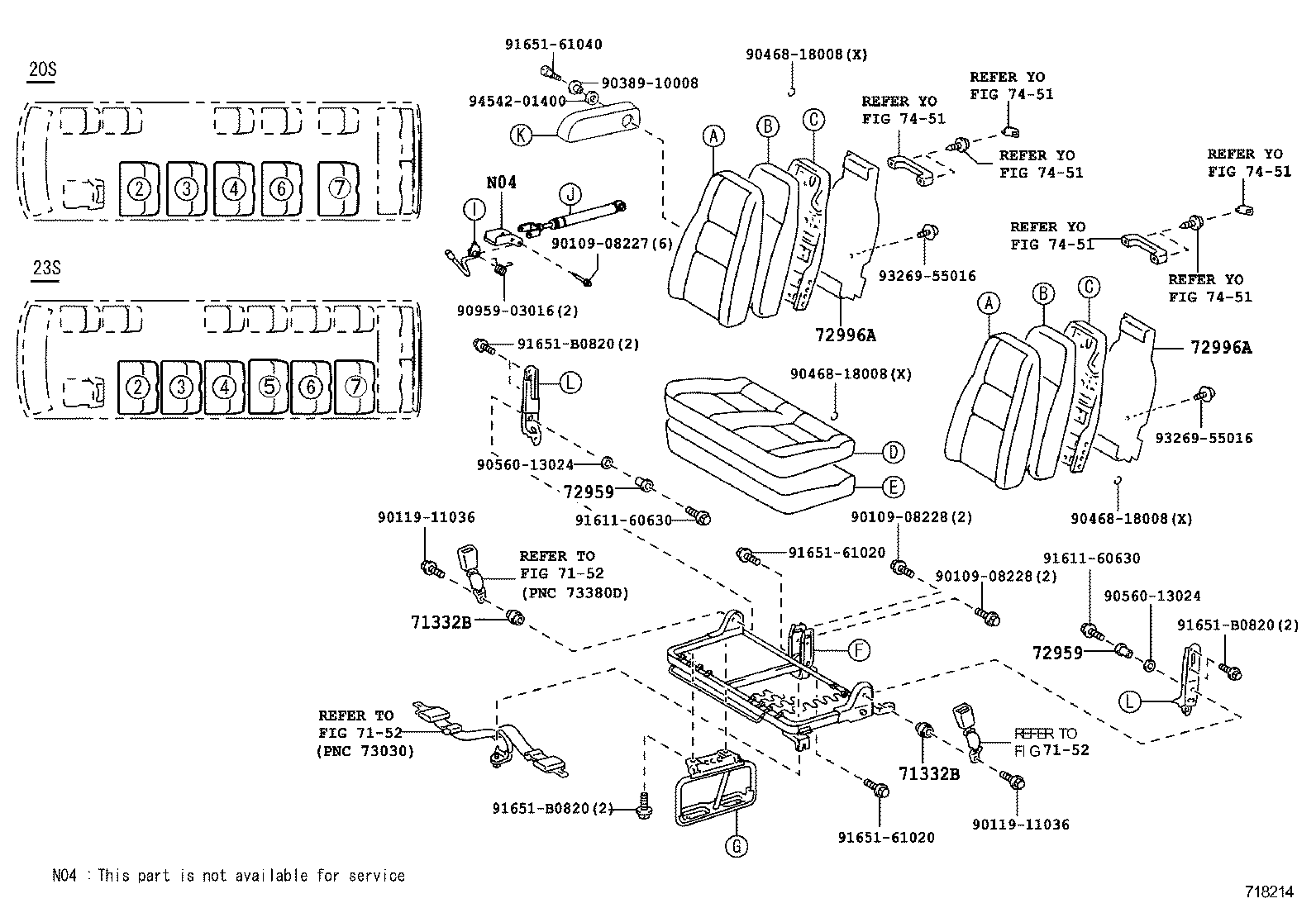

REAR SEAT PATTERN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72501G - ARM SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 72501K - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501M - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501N - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501R - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72501-36160E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501S - ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72501-36160E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501T - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72501-36160E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501V - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72501-36160E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72501W - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72501-36160E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72502K - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36070E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72502L - ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36070E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72502M - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36070E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72502P - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36070E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72502Q - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36070E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72508A - SHAFT SUB-ASSY, NO.1 RECLINING ADJUSTING, RH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53 |
1 | ||
| 72508B - SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36060 |
GRB53,TRB53,XZB53..STD..CBU |
1 | ||
| 72508D - SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 72508F - SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 72508G - SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 72508K - SHAFT SUB-SEAT, NO.2 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
2 | ||
| 72508L - SHAFT SUB-SEAT, NO.3 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
2 | ||
| 72508M - SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
2 | ||
| 72508P - SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
2 | ||
| 72508Q - SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36031 |
GRB53,TRB53,XZB53..20S..CBU |
2 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 72830L - ARMREST ASSY, REAR NO.2 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830N - ARMREST ASSY, NO.3 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830P - ARMREST ASSY, NO.4 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79007 - FRAME, SEAT CUSHION SIDE, RH OUTER NO.1 | ||||
| 79007-36020 |
GRB53,TRB53,XZB53 |
1 | ||
| 79007A - FRAME, SEAT CUSHION SIDE, RH OUTER NO.2 | ||||
| 79007-36020 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007C - FRAME, SEAT CUSHION SIDE, RH OUTER NO.4 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007E - FRAME, SEAT CUSHION SIDE, RH OUTER NO.6 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79007F - FRAME, SEAT CUSHION SIDE, RH OUTER NO.7 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007J - FRAME, SEAT CUSHION SIDE, LH INNER NO.2 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007K - FRAME, SEAT CUSHION SIDE, LH INNER NO.3 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007L - FRAME, SEAT CUSHION SIDE, LH INNER NO.4 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007N - FRAME, SEAT CUSHION SIDE, LH INNER NO.6 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79007P - FRAME, SEAT CUSHION SIDE, LH INNER NO.7 | ||||
| 79007-36030 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79008 - FRAME, SEAT CUSHION SIDE, LH OUTER NO.2 | ||||
| 79008-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79008A - FRAME, SEAT CUSHION SIDE, LH OUTER NO.3 | ||||
| 79008-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79008B - FRAME, SEAT CUSHION SIDE, LH OUTER NO.4 | ||||
| 79008-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79008D - FRAME, SEAT CUSHION SIDE, LH OUTER NO.6 | ||||
| 79008-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79008E - FRAME, SEAT CUSHION SIDE, LH OUTER NO.7 | ||||
| 79008-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36460A1 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 79011-0S020A1 |
GRB53,TRB53..20S..STD IVORY,TRIM4# |
1 | ||
| 79011-0S020A1 |
GRB53,TRB53..20S..STD IVORY,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0S010A1 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79135-0S010 |
GRB53,TRB53..20S |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S |
1 | ||
| 79015-36180 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 79017-0S010 |
GRB53,TRB53,XZB53..LX,STD |
1 | ||
| 79175-0S030 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..LX,STD |
1 | ||
| 79175-0S050 |
GRB53,TRB53..LX,STD |
1 | ||

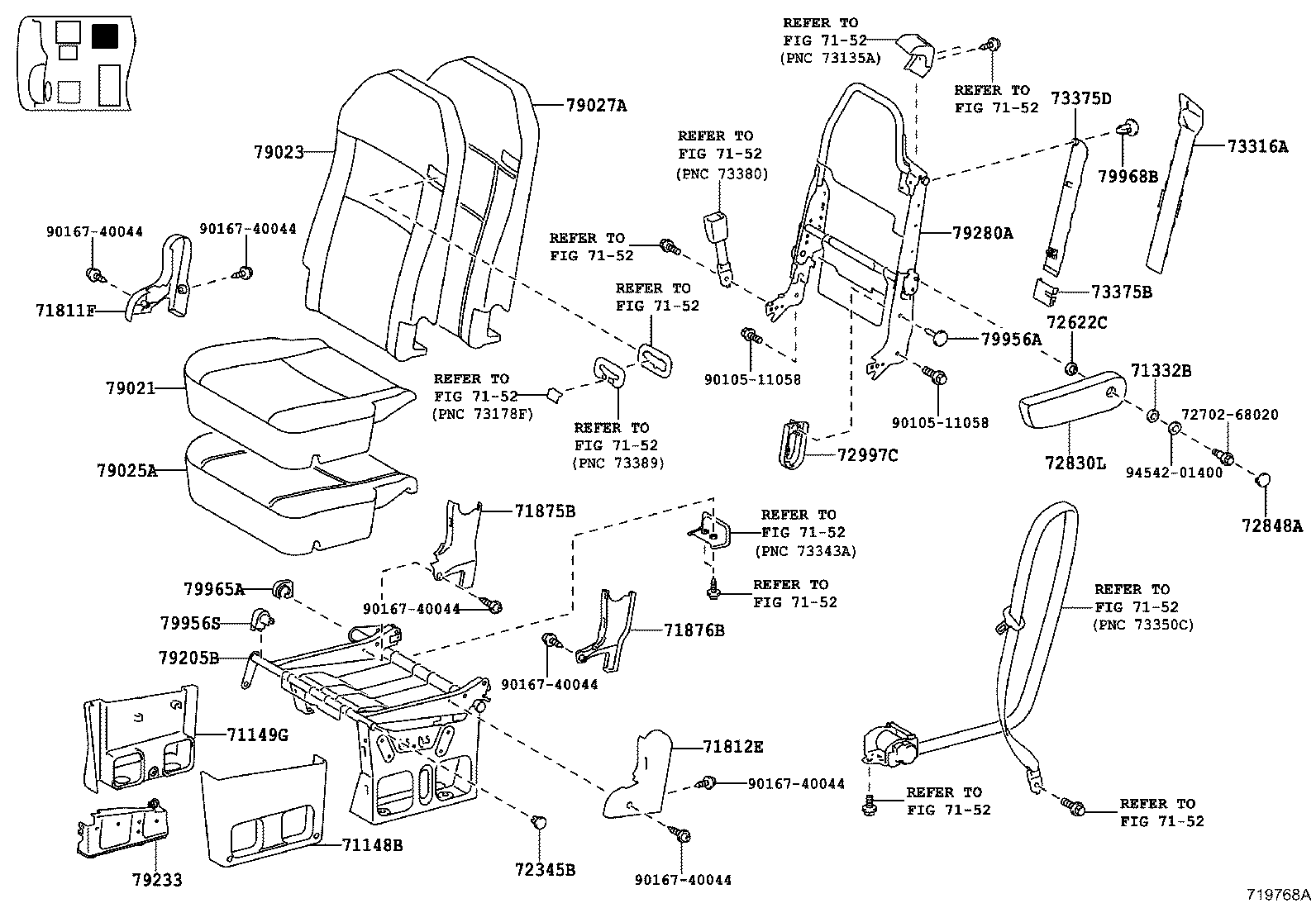

| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36460A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S060A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S060A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79014-0S070A0 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79014-0S070A0 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-36050 |
GRB53,TRB53,XZB53..STD..CBU |
1 | ||
| 79135-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79185-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79185-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79185-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79185-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79185-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79185-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79185-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79185-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-36200A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36071 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S240A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S100A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79055A - PAD SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S080 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79056A - PAD SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79136-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79057A - PAD SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79058A - PAD SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-36200A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36071 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79031-36200A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36071 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79160-36040E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-0S010 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36110E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 79105-0S020 |
GRB53,TRB53 |
1 | ||
| 79105-0S020 |
GRB53,TRB53 |
1 | ||
| 79115 - PLATE, NO.1 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
GRB53,TRB53,XZB53 |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-0S010E0 |
GRB53,TRB53,XZB53..CBU GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-0S050E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-36060 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79104-36110 |
GRB53,TRB53,XZB53..STD..CBU OUTER |
1 | ||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU INNER |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79105-0S030 |
GRB53,TRB53..CBU |
1 | ||
| 79205-36130E0 |
GRB53,TRB53,XZB53..CBU GREIGE,TRIM4# |
1 | ||
| 79105-0S030 |
GRB53,TRB53..CBU |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-36100E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79106-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79215A - PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79270-0S050E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU INNER |
1 | ||
| 79104-36110 |
GRB53,TRB53,XZB53..STD..CBU OUTER |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79206-36090E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79106-0S040 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S040 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79360-0S050E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79270-0S050E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU INNER |
1 | ||
| 79104-36110 |
GRB53,TRB53,XZB53..STD..CBU OUTER |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79105-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79305-36080E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79105-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79106-36100E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79106-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79415A - PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79505 - LEG SUB-ASSY, NO.5 SEAT, RH | ||||
| 79105-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79105-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79506 - LEG SUB-ASSY, NO.5 SEAT, LH | ||||
| 79106-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79360-0S050E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79270-0S050E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU INNER |
1 | ||
| 79104-36110 |
GRB53,TRB53,XZB53..STD..CBU OUTER |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36130E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79406-36030E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79615 - PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79760-0S010E0 |
GRB53,TRB53,XZB53..20S..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79270-0S050E0 |
GRB53,TRB53,XZB53..20S..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36110 |
GRB53,TRB53,XZB53..STD..CBU OUTER |
1 | ||
| 79103-36150 |
GRB53,TRB53,XZB53..STD..CBU INNER |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79705-36040E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79606-36120E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79715 - PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79125-36060 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| Common parts | ||||
| 90105-08315 | ||||
| 90119-08A53 | ||||
| 91661-60835 | ||||
(1301-1507)
REAR SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-36010 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0S010 |
GRB53,TRB53,XZB53 REAR NO.1 SEAT,RH |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72996-36010 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 79231 - LEG, NO.2 SEAT, OUTER FRONT | ||||
| 79231-36070E0 |
GRB53,TRB53,XZB53..CBU GREIGE,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 79736C - COVER, NO.7 SEAT LEG, RH | ||||
| 79236-36010 |
GRB53,TRB53,XZB53..20S..CBU |
2 | ||
| Common parts | ||||
| 79644-36050E0 | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-08A53 | ||||
| 90119-08A85 | ||||
| 90119-11036 | ||||
| 90178-08011 | ||||
| 90206-16001 | ||||
| 90389-10008 | ||||
| 90468-18008 | ||||
| 90560-13024 | ||||
| 90959-03016 | ||||
| 91611-60630 | ||||
| 91631-60845 | ||||
| 91651-61028 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 91661-60825 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
(1301-1507)
REAR SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 72959 - SPACER, REAR SEAT TURN SIDE | ||||
| 72959-36010 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0S010 |
GRB53,TRB53,XZB53 REAR NO.1 SEAT,RH |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72996-36010 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0S010 |
GRB53,TRB53,XZB53 REAR NO.1 SEAT,RH |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72996-36010 |
GRB53,TRB53,XZB53..CBU |
2 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-11036 | ||||
| 90389-10008 | ||||
| 90468-18008 | ||||
| 90560-13024 | ||||
| 90959-03016 | ||||
| 91611-60630 | ||||
| 91651-61020 | ||||
| 91651-61040 | ||||
| 91651-B0820 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
(1301-1507)
REAR SEAT-NO.8(FIX SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033C - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71035-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 71035-36010 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 71034B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH | ||||
| 71036-36010 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 71036-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36420A1 |
GRB53,TRB53,XZB53..STD..CBU LAST-ROW SEAT-FOLD TYPE,IVORY,TRIM4# |
1 | ||
| 79081-36440A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36230A1 |
GRB53,TRB53,XZB53..STD..CBU LAST-ROW SEAT-FOLD TYPE,IVORY,TRIM4# |
1 | ||
| 79083-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LH |
1 | ||
| 79085-36010 |
GRB53,TRB53,XZB53..(LX,STD)..CBU RH |
1 | ||
| 79085-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,LH |
1 | ||
| 79085-36040 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,RH |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LH |
1 | ||
| 79085-36010 |
GRB53,TRB53,XZB53..(LX,STD)..CBU RH |
1 | ||
| 79085-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,LH |
1 | ||
| 79085-36040 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,RH |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79087-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79088-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79088-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-0S020E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 79097-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79097-0S010E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36060 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79803-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79804-36060 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36070E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 79805-36060E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU GREIGE,TRIM4# |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
GRB53,TRB53,XZB53..CBU RH |
1 | ||
| 71309-36030 |
GRB53,TRB53,XZB53..CBU LH |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
GRB53,TRB53,XZB53..CBU RH |
1 | ||
| 71309-36030 |
GRB53,TRB53,XZB53..CBU LH |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79860-36080 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 71307-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 71307-36010 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79916 - BRACKET, SEAT LEG, NO.2 | ||||
| 71308-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 71308-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36020 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36020 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90109-08277 | ||||
| 90159-60589 | ||||
| 90179-08091 | ||||
| 90179-10033 | ||||
| 90468-18008 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61030 | ||||
| 91671-C0830 | ||||
| 93568-54516 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1301-1507)
REAT SEAT-NO.8(FOLDING SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-0S010E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0S010E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 78904 - STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2 | ||||
| 78904-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-36020 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 78910A - LOCK ASSY, FOLD SEAT, RH | ||||
| 78910-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 78920A - LOCK ASSY, FOLD SEAT, LH | ||||
| 78920-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 78930 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 | ||||
| 78930-36020 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-36020E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-36020E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78960-36030E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-36010E1 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
2 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-36010E1 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
2 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36420A1 |
GRB53,TRB53,XZB53..STD..CBU LAST-ROW SEAT-FOLD TYPE,IVORY,TRIM4# |
1 | ||
| 79081-36440A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36230A1 |
GRB53,TRB53,XZB53..STD..CBU LAST-ROW SEAT-FOLD TYPE,IVORY,TRIM4# |
1 | ||
| 79083-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LH |
1 | ||
| 79085-36010 |
GRB53,TRB53,XZB53..(LX,STD)..CBU RH |
1 | ||
| 79085-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,LH |
1 | ||
| 79085-36040 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,RH |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36030 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LH |
1 | ||
| 79085-36010 |
GRB53,TRB53,XZB53..(LX,STD)..CBU RH |
1 | ||
| 79085-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,LH |
1 | ||
| 79085-36040 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,RH |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79087-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79088-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79088-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-0S020E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 79097-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79097-0S010E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36060 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79803-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79804-36060 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36070E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 79805-36060E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU GREIGE,TRIM4# |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
GRB53,TRB53,XZB53..CBU RH |
1 | ||
| 71309-36030 |
GRB53,TRB53,XZB53..CBU LH |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 71308-36030 |
GRB53,TRB53,XZB53..CBU RH |
1 | ||
| 71309-36030 |
GRB53,TRB53,XZB53..CBU LH |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79860-36080 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79885 - HINGE, FOLD SEAT BACK SET, RH | ||||
| 79885-36020E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 79886 - HINGE, FOLD SEAT BACK SET, LH | ||||
| 79886-36020E0 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE,GREIGE,TRIM4# |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 71307-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 71307-36010 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| 79916 - BRACKET, SEAT LEG, NO.2 | ||||
| 71308-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 71308-36040 |
GRB53,TRB53,XZB53..CBU |
1 | ||
| Common parts | ||||
| 72969-60010 | ||||
| 82711-12120 | ||||
| 90109-08277 | ||||
| 90119-10493 | ||||
| 90119-11036 | ||||
| 90159-60035 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90168-40043 | ||||
| 90179-08091 | ||||
| 90205-07002 | ||||
| 90206-12003 | ||||
| 90206-15002 | ||||
| 90387-10070 | ||||
| 90389-10031 | ||||
| 90468-18008 | ||||
| 90506-08035 | ||||
| 91631-60825 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61022 | ||||
| 91651-61030 | ||||
| 91671-C0830 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1301- )
DRIVERS SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 72250-36010E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 72250-36010E0 |
GRB53 GREIGE,TRIM4# |
1 | ||
| 72250-36010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0S010A0 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 71072-0S030A0 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 71072-0S060A0 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-36140A1 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 71074-0S030A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 71074-0S030A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 71074-0S010A0 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 71074-0S010A0 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-0S010E0 |
GRB53 GREIGE,TRIM4# |
1 | ||
| 71109-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71109-0S010E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 71149 - WIRE, FRONT SEAT CUSHION CONNECTING | ||||
| 71149-0S010 |
GRB53,TRB53 |
1 | ||
| 71149-0S010 |
GRB53,TRB53,XZB53 |
1 | ||
| 71149-0S010 |
GRB53,TRB53 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-0S010 |
GRB53,TRB53,XZB53 |
1 | ||
| 71502-0S010 |
GRB53,TRB53 |
1 | ||
| 71502-0S020 |
GRB53,TRB53 |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-0S010 |
GRB53,TRB53 |
2 | ||
| 71524-0S010 |
GRB53,TRB53 |
2 | ||
| 71524-0S010 |
GRB53,TRB53,XZB53 |
2 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0S010 |
GRB53,TRB53 |
1 | ||
| 71538-0S010 |
GRB53,TRB53,XZB53 |
1 | ||
| 71538-0S010 |
GRB53,TRB53 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-36030 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 71552-36020 |
GRB53,TRB53..STD |
1 | ||
| 71552-36020 |
GRB53,TRB53..STD |
1 | ||
| 71552-36030 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 71552-36020 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-36030 |
GRB53,TRB53 |
1 | ||
| 71620-36030 |
GRB53,TRB53,XZB53 |
1 | ||
| 71620-36030 |
GRB53,TRB53 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0S020 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 71640-0S020 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 71640-0S010 |
GRB53,TRB53..STD |
1 | ||
| 71640-0S010 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 71640-0S010 |
GRB53,TRB53..STD |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-36030E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71750-36030E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 71750-36030E0 |
GRB53 GREIGE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0S020E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71812-0S020E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 71812-0S020E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0S010E0 |
GRB53,TRB53,XZB53..STD GREIGE,TRIM4# |
1 | ||
| 71910-0S030E0 |
GRB53,TRB53..STD GREIGE,TRIM4# |
1 | ||
| 71910-0S030E0 |
GRB53,TRB53..STD GREIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050E2 |
GRB53,TRB53,XZB53 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71930-28040E2 |
GRB53,TRB53,XZB53 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71930-28040E2 |
GRB53,TRB53 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-28050E2 |
GRB53,TRB53 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71930-28040E2 |
GRB53,TRB53 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-28050E2 |
GRB53,TRB53 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050E2 |
GRB53,TRB53,XZB53 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71930-28040E2 |
GRB53,TRB53,XZB53 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71930-28040E2 |
GRB53,TRB53 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-28050E2 |
GRB53,TRB53 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71930-28040E2 |
GRB53,TRB53 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-28050E2 |
GRB53,TRB53 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-36010 |
GRB53,TRB53,XZB53 |
1 | ||
| 72120-36010 |
GRB53,TRB53 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-36011 |
GRB53,TRB53,XZB53 |
1 | ||
| 72140-36011 |
GRB53,TRB53 |
1 | ||
| 72140-36011 |
GRB53,TRB53 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-0S010 |
GRB53,TRB53 |
1 | ||
| 72301-0S010 |
GRB53,TRB53,XZB53 |
1 | ||
| 72301-0S010 |
GRB53,TRB53 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-0S010 |
GRB53,TRB53,XZB53 |
1 | ||
| 72520-0S010 |
GRB53,TRB53 |
1 | ||
| 72520-0S010 |
GRB53,TRB53 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-60030E2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72525-60030E2 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72830-0S040A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 72830-0S040A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-05008 | ||||
| 90119-08079 | ||||
| 90119-08080 | ||||
| 90119-08873 | ||||
| 90119-10037 | ||||
| 90119-10428 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90202-14007 | ||||
| 90386-12051 | ||||
| 90389-10008 | ||||
| 90468-18008 | ||||
| 91651-61040 | ||||
| 93560-54012 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1507- )
REAR NO.1 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71711B - COVER, SIDE SEAT CUSHION, FRONT NO.1 | ||||
| 71711-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71711-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71711-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71711-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71712B - COVER, REAR SIDE SEAT CUSHION, RH | ||||
| 71712-0S010E0 |
GRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71811-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0S070E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71812-0S070E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71875-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0S030E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 71876-0S030E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-36010 |
GRB53,TRB53 |
1 | ||
| 72345-36010 |
GRB53,TRB53 |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0S020E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 73373D - COVER, REAR SEAT SHOULDER BELT HOLE, RH | ||||
| 73373-36020 |
GRB53,TRB53 |
1 | ||
| 73373-36020 |
GRB53,TRB53 |
1 | ||
| 73373L - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-0S020 |
GRB53,TRB53 |
1 | ||
| 73373-0S020 |
GRB53,TRB53 |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36460A1 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 79011-0S020A1 |
GRB53,TRB53..20S..STD IVORY,TRIM4# |
1 | ||
| 79011-0S020A1 |
GRB53,TRB53..20S..STD IVORY,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0S010A1 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79135-0S010 |
GRB53,TRB53..20S |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S |
1 | ||
| 79015-36180 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 79017-0S010 |
GRB53,TRB53,XZB53..LX,STD |
1 | ||
| 79175-0S030 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..LX,STD |
1 | ||
| 79175-0S050 |
GRB53,TRB53..LX,STD |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36110E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 79105-0S020 |
GRB53,TRB53 |
1 | ||
| 79105-0S020 |
GRB53,TRB53 |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD GREIGE,TRIM4# |
1 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD GREIGE,TRIM4# |
1 | ||
| 79133 - LEG, NO.1 SEAT, INNER | ||||
| 79133-0S010 |
GRB53,TRB53 |
1 | ||
| 79133-0S010 |
GRB53,TRB53 |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 79180-0S030 |
GRB53,TRB53..LX,STD |
1 | ||
| 79180-0S030 |
GRB53,TRB53..LX,STD |
1 | ||
| 79180-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-07049L2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-07049L2 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-07049L2 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-07049L2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 79956-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 79965-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 79968B - CLIP | ||||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 90179-06208 | ||||
| 93240-56014 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
(1507- )
REAR NO.2 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71148B - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149G - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71811-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0S090E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71812-0S090E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71875-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71876-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72830L - ARMREST ASSY, REAR NO.2 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72997C - COVER, REAR NO.2 SEAT BACK, LH | ||||
| 72997-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72997-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 73316A - COVER, RR SEAT BELT, INNER LH | ||||
| 73316-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73316-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73375B - COVER, REAR SEAT SHOULDER BELT HOLE, LH | ||||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375D - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36460A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S060A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S060A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79014-0S070A0 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79014-0S070A0 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79014-0S080A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-36050 |
GRB53,TRB53,XZB53..STD..CBU |
1 | ||
| 79135-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79185-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79185-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79185-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79185-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79185-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79185-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79185-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79185-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79105-0S030 |
GRB53,TRB53..CBU |
1 | ||
| 79205-36130E0 |
GRB53,TRB53,XZB53..CBU GREIGE,TRIM4# |
1 | ||
| 79105-0S030 |
GRB53,TRB53..CBU |
1 | ||
| 79233 - LEG, NO.2 SEAT, INNER | ||||
| 79233-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 79233-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 79280A - SPRING ASSY, NO.2 SEAT BACK, RH | ||||
| 79190-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79190-0S020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79190-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79190-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79190-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79190-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79190-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79190-0S020 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-07049L2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-07049L2 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-07049L2 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-07049L2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 79956S - COVER, REAR SEAT LEG SIDE | ||||
| 79956-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79965A - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0S070E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S070E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79968B - CLIP | ||||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1507- )
FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71711B - COVER, SIDE SEAT CUSHION, FRONT NO.1 | ||||
| 71711-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71711-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71711-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71711-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71711C - COVER, SIDE SEAT CUSHION, FRONT NO.2 | ||||
| 71711-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71711-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71711-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71711-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71711D - COVER, SIDE SEAT CUSHION, FRONT NO.3 | ||||
| 71711-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71711-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71711E - COVER, SIDE SEAT CUSHION, FRONT NO.4 | ||||
| 71711-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71711-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71711F - COVER, SIDE SEAT CUSHION, FRONT NO.5 | ||||
| 71711-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71711-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71712G - COVER, SIDE SEAT CUSHION, REAR NO.1 | ||||
| 71712-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71712-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71712-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71712-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71712H - COVER, SIDE SEAT CUSHION, REAR NO.2 | ||||
| 71712-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT |
1 | ||
| 71712-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71712-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4#,LH SEAT |
1 | ||
| 71712-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71712J - COVER, SIDE SEAT CUSHION, REAR NO.3 | ||||
| 71712-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71712-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71712K - COVER, SIDE SEAT CUSHION, REAR NO.4 | ||||
| 71712-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71712-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71712L - COVER, SIDE SEAT CUSHION, REAR NO.5 | ||||
| 71712-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 71712-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4#,RH SEAT,LH SEAT |
1 | ||
| 79133 - LEG, NO.1 SEAT, INNER | ||||
| 79133-0S010 |
GRB53,TRB53 |
1 | ||
| 79133-0S010 |
GRB53,TRB53 |
1 | ||
| 79233 - LEG, NO.2 SEAT, INNER | ||||
| 79233-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 79233-0S010 |
GRB53,TRB53..CBU |
1 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 90119-10875 | ||||
| 90178-C0056 | ||||
| 91672-G1030 | ||||
| 91673-L1035 | ||||
(1507- )
REAR NO.8 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811M - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71811-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71812M - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0S080E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71812-0S080E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71875-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0S040E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71876-0S040E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72345F - PIPE, RECLINING CONNECTING, RH | ||||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72927C - COVER, REAR SEAT CUSHION UNDER RH | ||||
| 72927-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72927-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72928C - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72928-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72996B - COVER, REAR SEAT BACK, INNER RH | ||||
| 72996-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72997B - COVER, REAR SEAT BACK | ||||
| 72997-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72997-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 73315A - COVER, RR SEAT BELT, INNER RH | ||||
| 73315-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73315-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73316A - COVER, RR SEAT BELT, INNER LH | ||||
| 73316-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73316-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73373P - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73373Q - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375H - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375J - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 79081 - COVER SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79011-0S100A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S100A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36230A1 |
GRB53,TRB53,XZB53..STD..CBU LAST-ROW SEAT-FOLD TYPE,IVORY,TRIM4# |
1 | ||
| 79083-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36230A1 |
GRB53,TRB53,XZB53..STD..CBU LAST-ROW SEAT-FOLD TYPE,IVORY,TRIM4# |
1 | ||
| 79083-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79136-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79087-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79087-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79805 - LEG SUB-ASSY, NO.8 SEAT, RH | ||||
| 79105-0S070 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79105-0S070 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79880B - SPRING ASSY, NO.8 SEAT BACK, RH | ||||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79880B - SPRING ASSY, NO.8 SEAT BACK, RH | ||||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79967A - COVER, REAR SEAT LEG SIDE, NO.7 | ||||
| 79236-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79236-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90467-07049L2 | ||||
| 90467-10132E0 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1507- )
REAR NO.8 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811N - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-0S050E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71811-0S050E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71812N - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0S050E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71812-0S050E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71875K - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0S040E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71875-0S040E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71876-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72345G - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72927C - COVER, REAR SEAT CUSHION UNDER RH | ||||
| 72927-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72927-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72928C - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72928-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72996B - COVER, REAR SEAT BACK, INNER RH | ||||
| 72996-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72997B - COVER, REAR SEAT BACK | ||||
| 72997-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72997-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 73315A - COVER, RR SEAT BELT, INNER RH | ||||
| 73315-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73315-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73316A - COVER, RR SEAT BELT, INNER LH | ||||
| 73316-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73316-0S010 |
GRB53,TRB53..CBU |
1 | ||
| 73373R - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73373S - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375K - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375L - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 79082 - COVER SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79012-0S060A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S060A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36250A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S050A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S090A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79136-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79088-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79088-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79088-36070 |
GRB53,TRB53,XZB53..(LX,STD)..CBU LAST-ROW SEAT-FOLD TYPE |
1 | ||
| 79088-36050 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79106-0S070 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S070 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79890B - SPRING ASSY, NO.8 SEAT BACK, LH | ||||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79890B - SPRING ASSY, NO.8 SEAT BACK, LH | ||||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..20S..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..20S..CBU LH |
1 | ||
| 79968C - COVER, REAR SEAT LEG SIDE, NO.8 | ||||
| 79246-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79246-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90467-07049L2 | ||||
| 90467-10132E0 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 3(1507- )
REAR NO.1 - NO.6 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71811-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71812-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71875-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71876-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72345D - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72927-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72928-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995E - COVER, REAR SEAT CUSHION | ||||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995E - COVER, REAR SEAT CUSHION | ||||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72995-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72997-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 73373K - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73373N - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375E - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73375M - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73375-36020 |
GRB53,TRB53..CBU |
1 | ||
| 79968B - CLIP | ||||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 79968B - CLIP | ||||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 90105-11058 | ||||
| 90467-07049L2 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(1507- )
REAR NO.1 - NO.6 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71148C - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S010E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71148D - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148E - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71148G - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148H - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148J - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148K - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148L - COVER, REAR SEAT LEG, OUTER | ||||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71148-0S040E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149H - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S020E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71149J - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S020E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149K - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 71149M - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149N - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149P - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149Q - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149R - COVER, REAR SEAT LEG, INNER | ||||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71149-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72830K - ARMREST ASSY, NO.5 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830N - ARMREST ASSY, NO.3 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830P - ARMREST ASSY, NO.4 SEAT, RH | ||||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72830-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840A - ARMREST ASSY, REAR NO.2 SEAT, LH | ||||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840C - ARMREST ASSY, NO.5 SEAT, LH | ||||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840D - ARMREST ASSY, REAR SEAT, LH | ||||
| 72840-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840E - ARMREST ASSY, NO.4 SEAT, LH | ||||
| 72840-0S020A0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 72840-0S020A0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79026A - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79031-36200A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36071 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79051 - COVER SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79011-0S180A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79011-0S240A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-0S020A1 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79012-0S100A0 |
GRB53,TRB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79053 - COVER SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S100A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79054 - COVER SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,RH |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4#,RH |
1 | ||
| 79014-0S030A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4#,LH |
1 | ||
| 79055A - PAD SUB-ASSY, NO.5 SEAT CUSHION, RH | ||||
| 79135-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79135-0S080 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79056A - PAD SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79136-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79136-0S010 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79057A - PAD SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S030 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79175-0S030 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79058A - PAD SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79185-0S020 |
GRB53,TRB53..CBU LH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S040 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79175-0S050 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79175-0S040 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-36200A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79022-36190A1 |
GRB53,TRB53,XZB53..20S..STD..CBU IVORY,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-36310A1 |
GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4# |
2 | ||
| 79013-0S110A1 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S070A1 |
GRB53,TRB53..STD..CBU IVORY,TRIM4# |
1 | ||
| 79013-0S110A1 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 79013-0S110A1 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,IVORY,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36071 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79036-36051 |
GRB53,TRB53,XZB53..20S..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36160 |
GRB53,TRB53,XZB53..(LX,STD)..CBU |
2 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 79106-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79106-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-36100E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79106-0S030 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 79290A - SPRING ASSY, NO.2 SEAT BACK, LH | ||||
| 79180-0S020 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79105-0S040 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79105-0S040 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79206-36090E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79106-0S040 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S040 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
1 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79309D - BOARD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 79380A - SPRING ASSY, NO.3 SEAT BACK, RH | ||||
| 79180-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79180-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79180-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79390A - SPRING ASSY, NO.3 SEAT BACK, LH | ||||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79105-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79305-36080E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79105-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79106-36100E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79106-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S050 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79409 - BOARD SUB-ASSY, NO.4 SEAT BACK | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
1 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79409B - BOARD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 79480A - SPRING ASSY, NO.4 SEAT BACK, RH | ||||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79180-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79180-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79180-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79490A - SPRING ASSY, NO.4 SEAT BACK, LH | ||||
| 79180-0S020 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79505 - LEG SUB-ASSY, NO.5 SEAT, RH | ||||
| 79105-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79105-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79506 - LEG SUB-ASSY, NO.5 SEAT, LH | ||||
| 79106-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79106-0S060 |
GRB53,TRB53..20S..CBU |
1 | ||
| 79509 - BOARD SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
1 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79509A - BOARD SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 71087-0S050E0 |
GRB53,TRB53..STD..CBU GREIGE,TRIM4# |
2 | ||
| 79580A - SPRING ASSY, NO.5 SEAT BACK, RH | ||||
| 79180-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79180-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79180-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 79180-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU |
1 | ||
| 79590A - SPRING ASSY, NO.5 SEAT BACK, LH | ||||
| 79180-0S020 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,RH |
1 | ||
| 79180-0S030 |
GRB53,TRB53..(LX,STD)..CBU RH |
1 | ||
| 79190-0S010 |
GRB53,TRB53..CBU LH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79180-0S020 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),RH |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36130E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79406-36030E0 |
GRB53,TRB53,XZB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965B - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965C - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79967 - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79967C - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79967D - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79967F - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S060E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S060E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79967G - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S060E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S060E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79967H - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79967J - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S050E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79967K - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79956-0S050E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79956-0S050E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79968 - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79965-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S030E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79968F - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79965-0S090E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S090E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 79968G - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79965-0S040E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S040E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79968H - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79965-0S060E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S060E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79968J - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79965-0S060E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S060E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79968K - COVER, REAR SEAT LEG SIDE, NO.5 | ||||
| 79965-0S060E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| 79965-0S060E0 |
GRB53,TRB53..20S..CBU GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-06208 | ||||
| 93240-56014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 2 OF 3(1507- )
REAR NO.3 - NO.6 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71332B - SPACER, REAR SEAT BACK HINGE | ||||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 71332-36040 |
GRB53,TRB53,XZB53 |
2 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72821-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 71811G - SHIELD, REAR SEAT CUSHION, RH | ||||
| 71811-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71811-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71812F - SHIELD, REAR SEAT CUSHION, LH | ||||
| 71812-0S070E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71812-0S070E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71875-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 71876-0S030E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
1 | ||
| 72345C - PIPE,RECLINING CONNECTING, RH | ||||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72345-36010 |
GRB53,TRB53..CBU |
1 | ||
| 72379 - BELT, SEAT RECLINING HANDLE | ||||
| 72379-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
2 | ||
| 72379-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-0S010 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR) |
1 | ||
| 72622-0S010 |
GRB53..LX;GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST) |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD BUSINESS & TOUR BUS SPEC&WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72848-0S010E0 |
GRB53,TRB53..20S..STD..CBU BUSINESS & TOUR BUS SPEC,GREIGE,TRIM4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0S020E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 72996-0S020E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-36020 |
GRB53,TRB53..CBU |
1 | ||
| 73373M - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 73373-0S020 |
GRB53,TRB53..CBU |
1 | ||
| 79133 - LEG, NO.1 SEAT, INNER | ||||
| 79133-0S010 |
GRB53,TRB53 |
1 | ||
| 79133-0S010 |
GRB53,TRB53 |
1 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-07049L2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-07049L2 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-07049L2 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-07049L2 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 79968B - CLIP | ||||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..CBU GREIGE,TRIM4# |
2 | ||
| 90467-10132E0 |
GRB53,TRB53..20S..STD..CBU REAR ARMREST-WITHOUT(REAR NO.8 SEAT ARMREST),GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
