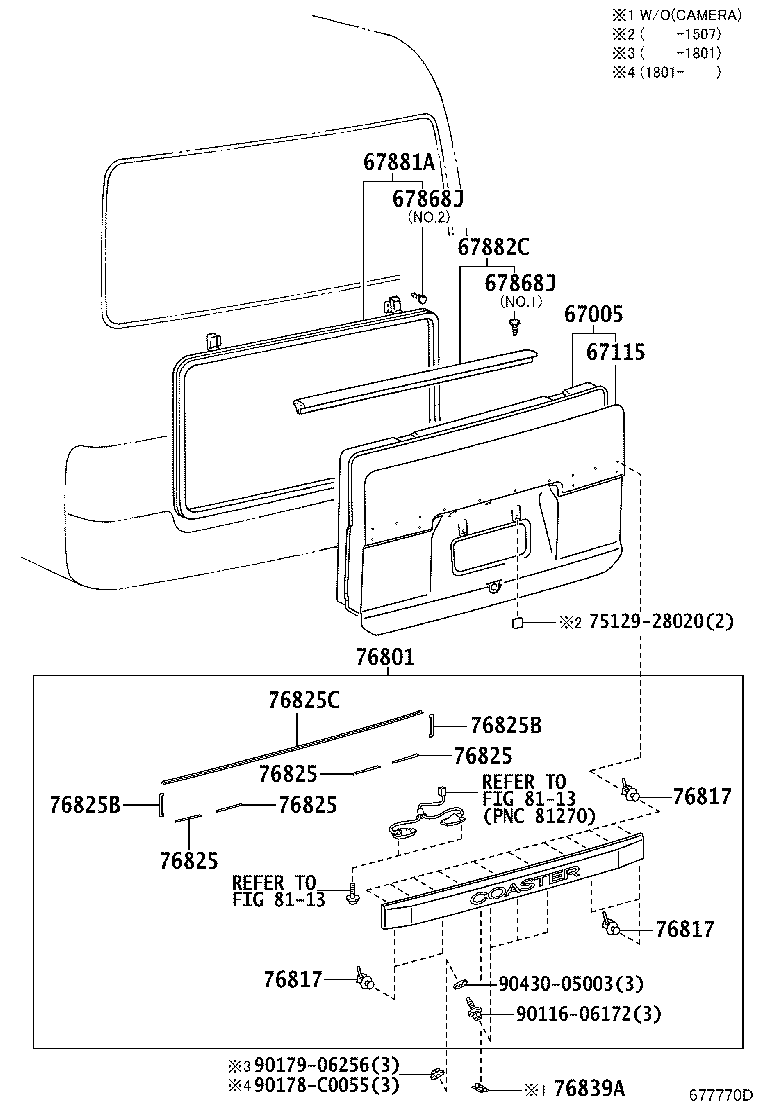

Toyota Coaster (china) GRB53 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
67005 - PANEL SUB-ASSY, BACK DOOR
67008-0S031	GRB53,TRB53,XZB53..CBU	11/2014 - 07/2015	1
67008-0S031	GRB53,TRB53..CBU	07/2015 - 01/2018	1
67008-0S031	GRB53..CBU	01/2018 - 12/2999	1
67008-0S030	GRB53,TRB53,XZB53..CBU	01/2013 - 10/2014	1
67115 - PANEL, BACK DOOR, OUTER
67115-0S030	GRB53,TRB53,XZB53..CBU	01/2013 - 10/2014	1
67115-0S031	GRB53,TRB53,XZB53..CBU	11/2014 - 07/2015	1
67115-0S031	GRB53..CBU	01/2018 - 12/2999	1
67115-0S031	GRB53,TRB53..CBU	07/2015 - 01/2018	1
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150	GRB53,TRB53,XZB53..CBU NO.1	01/2013 - 07/2015	9
67868-30040	GRB53,TRB53,XZB53..CBU NO.2	01/2013 - 07/2015	2
67868-30040	GRB53,TRB53..CBU NO.2	01/2018 - 12/2999	2
67867-12150	GRB53,TRB53..CBU NO.1	07/2015 - 01/2018	9
67868-30040	GRB53,TRB53..CBU NO.2	07/2015 - 01/2018	2
67867-12150	GRB53,TRB53..CBU NO.1	01/2018 - 12/2999	9
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150	GRB53,TRB53,XZB53..CBU NO.1	01/2013 - 07/2015	9
67868-30040	GRB53,TRB53,XZB53..CBU NO.2	01/2013 - 07/2015	2
67868-30040	GRB53,TRB53..CBU NO.2	01/2018 - 12/2999	2
67867-12150	GRB53,TRB53..CBU NO.1	07/2015 - 01/2018	9
67868-30040	GRB53,TRB53..CBU NO.2	07/2015 - 01/2018	2
67867-12150	GRB53,TRB53..CBU NO.1	01/2018 - 12/2999	9
67881A - WEATHERSTRIP, BACK DOOR
67881-36040	GRB53,TRB53..CBU	07/2015 - 01/2018	1
67881-36040	GRB53,TRB53..CBU	01/2018 - 06/2021	1
67881-36040	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	1
67882C - WEATHERSTRIP, BACK DOOR, NO.2
67882-36030	GRB53,TRB53..CBU	01/2018 - 12/2999	1
67882-36030	GRB53,TRB53..CBU	07/2015 - 01/2018	1
67882-36030	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0S010	GRB53,TRB53,XZB53..STD..CBU PAINT REQ.	01/2013 - 07/2015	1
76801-0S010	GRB53..STD..CBU	01/2018 - 12/2999	1
76801-0S010	GRB53,TRB53..STD..CBU PAINT REQ.	07/2015 - 01/2018	1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020	GRB53..CBU	01/2018 - 12/2999	14
76817-44020	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	14
76817-44020	GRB53,TRB53..CBU	07/2015 - 01/2018	14
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020	GRB53..CBU	01/2018 - 12/2999	14
76817-44020	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	14
76817-44020	GRB53,TRB53..CBU	07/2015 - 01/2018	14
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020	GRB53..CBU	01/2018 - 12/2999	14
76817-44020	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	14
76817-44020	GRB53,TRB53..CBU	07/2015 - 01/2018	14
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
75828-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	4
75828-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	4
75828-0S010	GRB53..CBU	01/2018 - 12/2999	4
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
75828-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	4
75828-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	4
75828-0S010	GRB53..CBU	01/2018 - 12/2999	4
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
75828-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	4
75828-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	4
75828-0S010	GRB53..CBU	01/2018 - 12/2999	4
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
75828-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	4
75828-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	4
75828-0S010	GRB53..CBU	01/2018 - 12/2999	4
76825B - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76821-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	2
76821-0S010	GRB53..CBU	01/2018 - 12/2999	2
76821-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	2
76825B - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76821-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	2
76821-0S010	GRB53..CBU	01/2018 - 12/2999	2
76821-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	2
76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	1
76825-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	1
76825-0S010	GRB53..CBU	01/2018 - 12/2999	1
76839A - COVER, BACK DOOR GARNISH
76839-0S010	GRB53,TRB53,XZB53..CBU	01/2013 - 07/2015	1
76839-0S010	GRB53,TRB53..CBU	07/2015 - 01/2018	1
76839-0S010	GRB53..CBU	01/2018 - 12/2999	1
Common parts
75129-28020
90116-06172
90178-C0055
90179-06256
90430-05003
Linked diagrams
8113

GRB53L-ZCMSK (2013)

ILLUST NO. 1 OF 2(1301- )CBU

ILLUST NO. 2 OF 2(1301- )CBU

Part Price Details

Part #	Description	Period	Qty

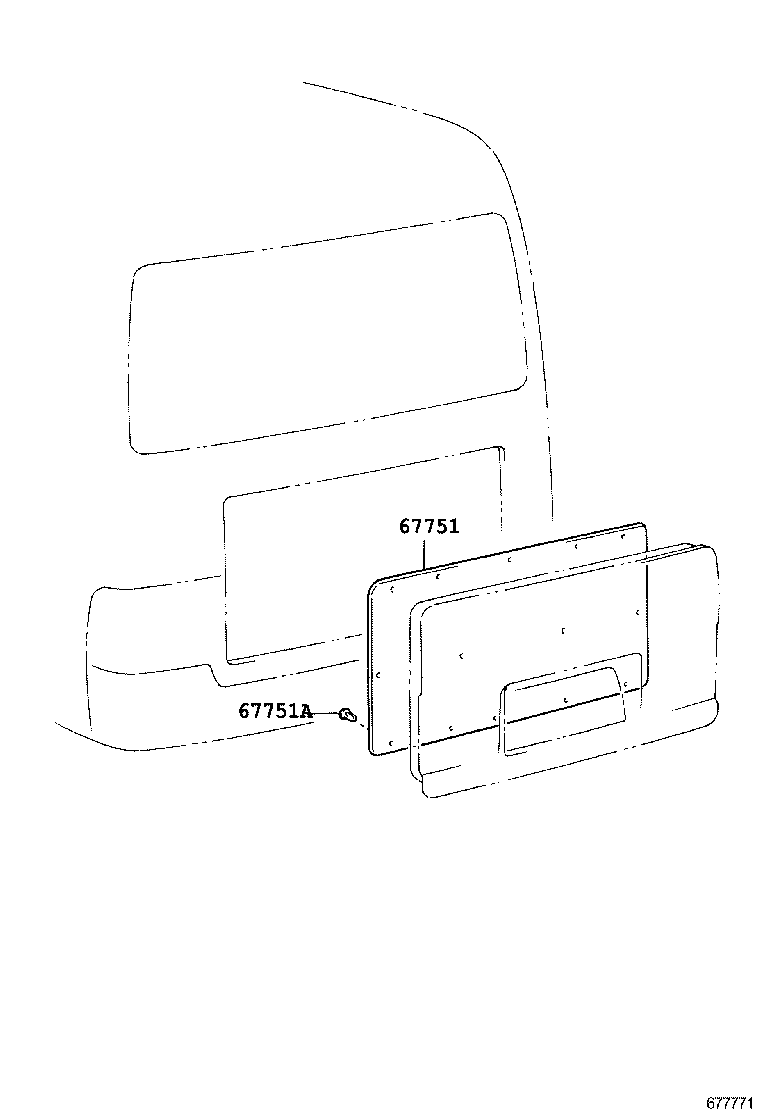

67751 - BOARD, BACK DOOR TRIM
67751-0S010A0	GRB53,TRB53..STD..CBU IVORY,TRIM4#	07/2015 - 01/2018	1
67751-0S010A0	GRB53,TRB53,XZB53..STD..CBU IVORY,TRIM4#	01/2013 - 07/2015	1
67751-0S010A0	GRB53,TRB53..STD..CBU IVORY,TRIM4#	01/2018 - 06/2021	1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10016A0	GRB53,TRB53..CBU IVORY,TRIM4#	07/2015 - 01/2018	15
90467-10016A0	GRB53,TRB53..CBU IVORY,TRIM4#	01/2018 - 12/2999	15
90467-10016A0	GRB53,TRB53,XZB53..CBU IVORY,TRIM4#	01/2013 - 07/2015	15
