GRB53L-ZCMSK (2013)
Toyota Coaster (China)
(1301-1801)GRB53 ; (1301-1801)TRB53..20S ; (1301-1801)XZB53..EX,LX ; (1507-1801)GRB

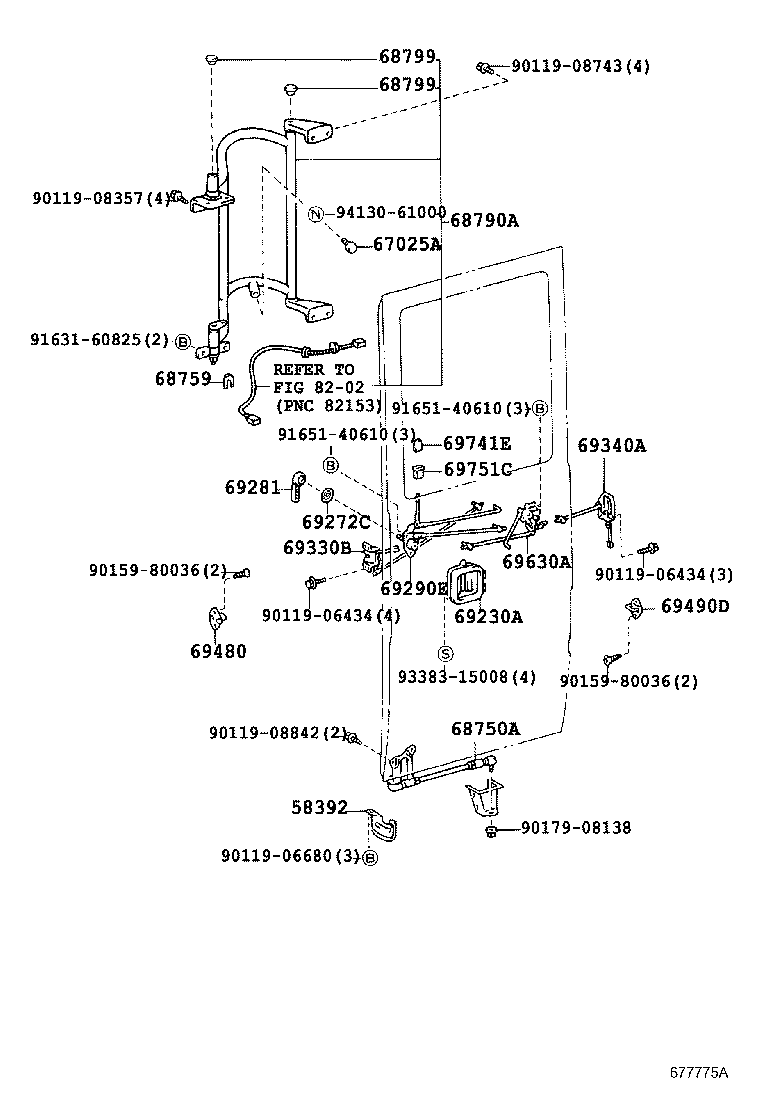

GLIDE DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58392 - MUDGUARD, GLIDE DOOR LINK, FRONT | ||||
| 58392-90B02 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 58392-90B02 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 67025A - STOPPER SUB-ASSY, SLIDE DOOR, FRONT | ||||
| 67025-36010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 67025-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 68750A - LINK ASSY, GLIDE DOOR | ||||
| 68750-36020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 68750-36020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 68759 - SPACER, GLIDE DOOR ARM | ||||
| 68759-90B01 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 68759-90B01 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 68790A - ARM ASSY, GLIDE DOOR | ||||
| 68790-36060A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 68790-36090A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 68799 - CAP, GLIDE DOOR ARM | ||||
| 68799-36010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
2 | ||
| 68799-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
2 | ||
| 68799 - CAP, GLIDE DOOR ARM | ||||
| 68799-36010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
2 | ||
| 68799-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
2 | ||
| 69230A - HANDLE ASSY, GLIDE DOOR OUTSIDE | ||||
| 69230-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69272C - PLATE, GLIDE DOOR INSIDE HANDLE | ||||
| 69272-30010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69281 - HANDLE, GLIDE DOOR INSIDE | ||||
| 69281-36010A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 69290E - BASE ASSY, GLIDE DOOR INSIDE HANDLE | ||||
| 69290-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69330B - LOCK ASSY, GLIDE DOOR, FRONT | ||||
| 69330-36020 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69330-36040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 69340A - LOCK ASSY, GLIDE DOOR, REAR | ||||
| 69340-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69340-36030 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 69480 - PLATE ASSY, GLIDE DOOR LOCK STRIKER, FRONT | ||||
| 69480-36020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 69480-36011 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69490D - PLATE ASSY, GLIDE DOOR LOCK STRIKER, REAR | ||||
| 69490-36011 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69490-36020 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 69630A - CONTROL ASSY, GLIDE DOOR LOCK REMOTE | ||||
| 69630-36010 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR) |
1 | ||
| 69630-36040 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 69741E - KNOB, DOOR LOCK CONTROL | ||||
| 69741-90K00A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 69751C - HOLDER, DOOR LOCK CONTROL KNOB(FOR GLIDE DOOR) | ||||
| 69079-90K00A0 |
GRB53..20S..STD WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06434 | ||||
| 90119-06680 | ||||
| 90119-08357 | ||||
| 90119-08743 | ||||
| 90119-08842 | ||||
| 90159-80036 | ||||
| 90179-08138 | ||||
| 91631-60825 | ||||
| 91651-40610 | ||||
| 93383-15008 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

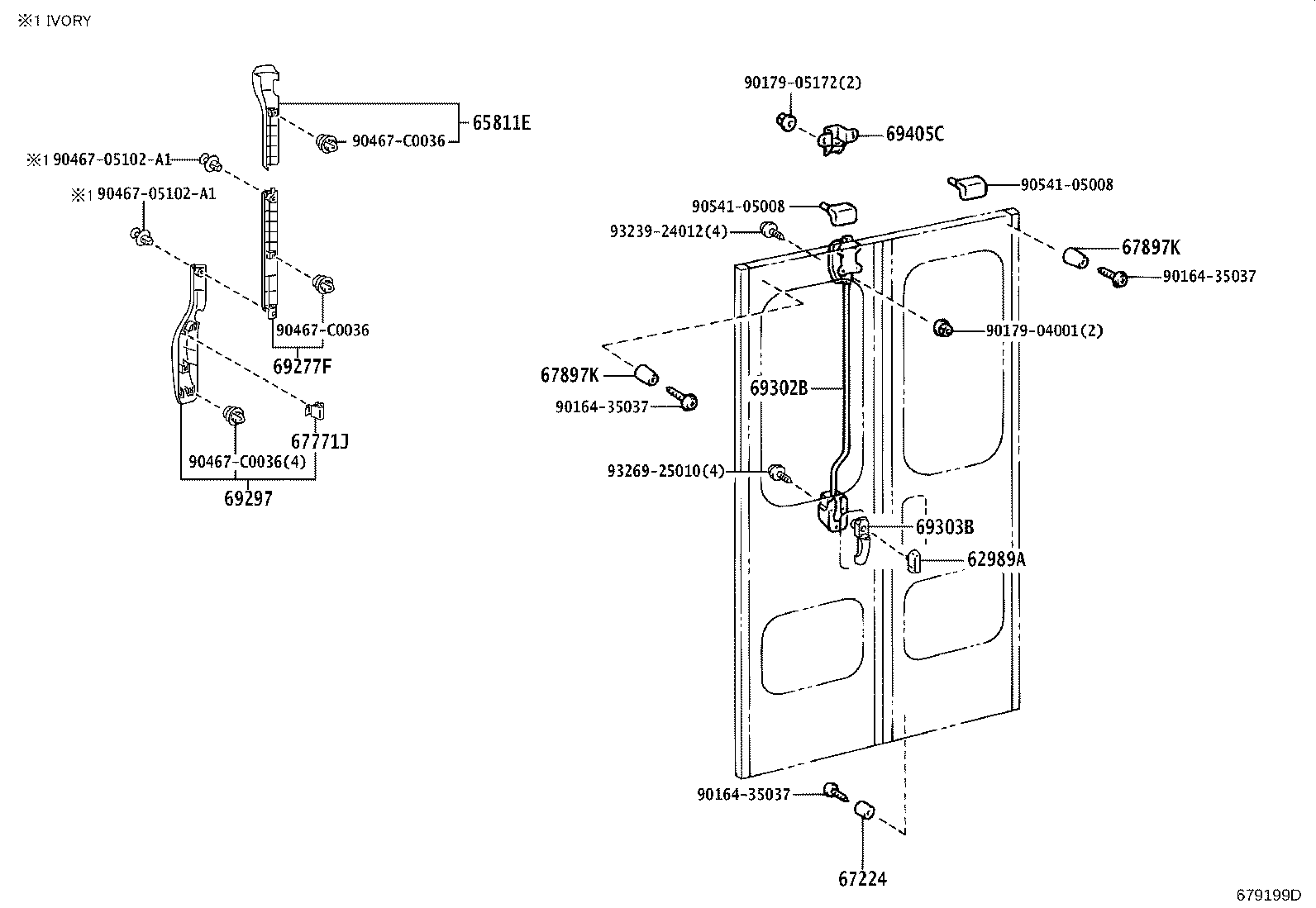

(1301-1801)STD
FOLDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67224 - GUM, DOOR CUSHION, NO.2 | ||||
| 67224-90500 |
GRB53..STD |
1 | ||
| 67224-90500 |
GRB53,TRB53..STD |
1 | ||
| 67224-90500 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 67224-90500 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 67224-90500 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 67255 - STOPPER, CENTER INSIDE LOCK | ||||
| 67255-36011 |
GRB53,TRB53..STD |
1 | ||
| 67255-36011 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE | ||||
| 69302-36021A0 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 69302-36021A0 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 69302-36021A0 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 69302-36070A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 69302-36070A0 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 69302-36070A0 |
GRB53..STD IVORY,TRIM4# |
1 | ||
| 69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE | ||||
| 69303-36010 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 69303-36010 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 69303-36021 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 69303-36021 |
GRB53..STD |
1 | ||
| 69303-36010 |
GRB53,TRB53..STD |
1 | ||
| 69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK | ||||
| 69405-90B00 |
GRB53,TRB53..STD |
1 | ||
| 69405-90B00 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 69405-90B00 |
GRB53..STD |
1 | ||
| 69405-90B00 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 69405-90B00 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| Common parts | ||||
| 90164-35037 | ||||
| 90179-04001 | ||||
| 90179-05172 | ||||
| 90179-06266 | ||||
| 90541-03010 | ||||
| 90541-05008 | ||||
| 91631-40614 | ||||
| 93239-24012 | ||||
| 93269-25010 | ||||
(1801- )STD
FOLDING DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62989A - COVER, CENTER DOOR LOCK | ||||
| 62989-0S010 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 62989-0S010 |
GRB53..STD |
1 | ||
| 65811E - COVER, TOP | ||||
| 65811-0S010A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 65811-0S010A0 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 65811-0S010A0 |
GRB53..STD IVORY,TRIM4# |
1 | ||
| 67224 - GUM, DOOR CUSHION, NO.2 | ||||
| 67224-90500 |
GRB53..STD |
1 | ||
| 67224-90500 |
GRB53,TRB53..STD |
1 | ||
| 67224-90500 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 67224-90500 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 67224-90500 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 67771J - RETAINER, DOOR TRIM | ||||
| 67771-58010 |
GRB53..STD |
1 | ||
| 67771-58010 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 67771-58010 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR) |
1 | ||
| 67897K - CUSHION, REAR DOOR | ||||
| 67897-0S020 |
GRB53..STD |
2 | ||
| 67897-0S020 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
2 | ||
| 67897K - CUSHION, REAR DOOR | ||||
| 67897-0S020 |
GRB53..STD |
2 | ||
| 67897-0S020 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
2 | ||
| 69277F - BEZEL, DOOR INSIDE HANDLE, NO.1 RH | ||||
| 69277-0S010A0 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 69277-0S010A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 69277-0S010A0 |
GRB53..STD IVORY,TRIM4# |
1 | ||
| 69297 - BEZEL, DOOR INSIDE HANDLE, NO.2 RH | ||||
| 69297-0S010A0 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 69297-0S010A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 69297-0S010A0 |
GRB53..STD IVORY,TRIM4# |
1 | ||
| 69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE | ||||
| 69302-36021A0 |
GRB53,TRB53,XZB53..STD IVORY,TRIM4# |
1 | ||
| 69302-36021A0 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 69302-36021A0 |
GRB53,TRB53..STD IVORY,TRIM4# |
1 | ||
| 69302-36070A0 |
GRB53..20S..STD..CBU WITH(AUTO GLIDE DOOR),IVORY,TRIM4# |
1 | ||
| 69302-36070A0 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM,IVORY,TRIM4# |
1 | ||
| 69302-36070A0 |
GRB53..STD IVORY,TRIM4# |
1 | ||
| 69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE | ||||
| 69303-36010 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 69303-36010 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 69303-36021 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 69303-36021 |
GRB53..STD |
1 | ||
| 69303-36010 |
GRB53,TRB53..STD |
1 | ||
| 69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK | ||||
| 69405-90B00 |
GRB53,TRB53..STD |
1 | ||
| 69405-90B00 |
GRB53,TRB53,XZB53..STD |
1 | ||
| 69405-90B00 |
GRB53..STD |
1 | ||
| 69405-90B00 |
GRB53,TRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| 69405-90B00 |
GRB53..STD..CBU NEW REGULATION&NEW REGUL BY SFTM |
1 | ||
| Common parts | ||||
| 90164-35037 | ||||
| 90179-04001 | ||||
| 90179-05172 | ||||
| 90467-05102A1 | ||||
| 90467-C0036 | ||||
| 90541-05008 | ||||
| 93239-24012 | ||||
| 93269-25010 | ||||
