GRB53L-ZCMSK (2013)
Toyota Coaster (China)

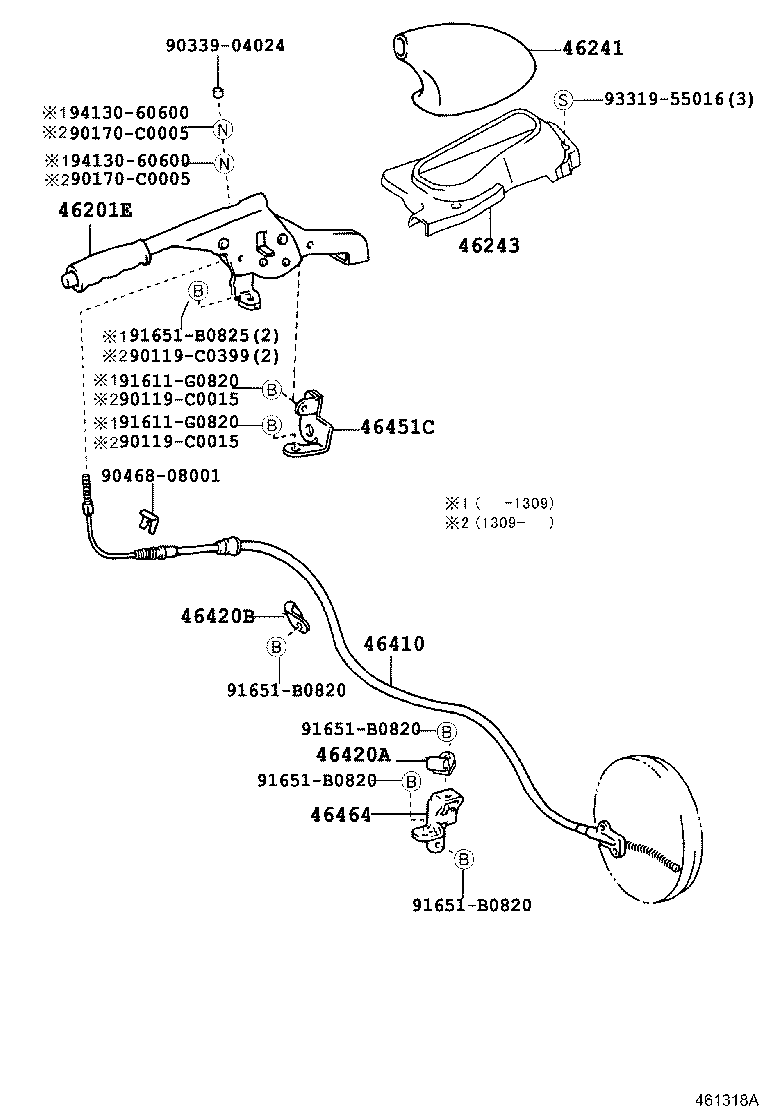

ILLUST NO. 1 OF 2(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46210-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 46210-0S010E0 |
GRB53 GREIGE,TRIM4# |
1 | ||
| 46210-0S010E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 46241-0S010E0 |
GRB53 GREIGE,TRIM4# |
1 | ||
| 46241-0S010E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-0S010E0 |
GRB53,TRB53,XZB53 GREIGE,TRIM4# |
1 | ||
| 46243-0S010E0 |
GRB53 GREIGE,TRIM4# |
1 | ||
| 46243-0S010E0 |
GRB53,TRB53 GREIGE,TRIM4# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0S010 |
GRB53 |
1 | ||
| 46410-0S010 |
GRB53 |
1 | ||
| 46410-0S010 |
GRB53 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01839 |
GRB53,TRB53,XZB53 |
1 | ||
| 90949-01839 |
GRB53,TRB53 |
1 | ||
| 90949-01839 |
GRB53 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01842 |
GRB53,TRB53,XZB53 |
1 | ||
| 90949-01842 |
GRB53 |
1 | ||
| 90949-01842 |
GRB53,TRB53 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-36060 |
GRB53,TRB53,XZB53 |
1 | ||
| 46451-36060 |
GRB53,TRB53 |
1 | ||
| 46451-36060 |
GRB53 |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-36030 |
GRB53,TRB53,XZB53 |
1 | ||
| 46464-36030 |
GRB53,TRB53 |
1 | ||
| 46464-36030 |
GRB53 |
1 | ||
| Common parts | ||||
| 90119-C0015 | ||||
| 90119-C0399 | ||||
| 90170-C0005 | ||||
| 90339-04024 | ||||
| 90468-08001 | ||||
| 91611-G0820 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 93319-55016 | ||||
| 94130-60600 | ||||

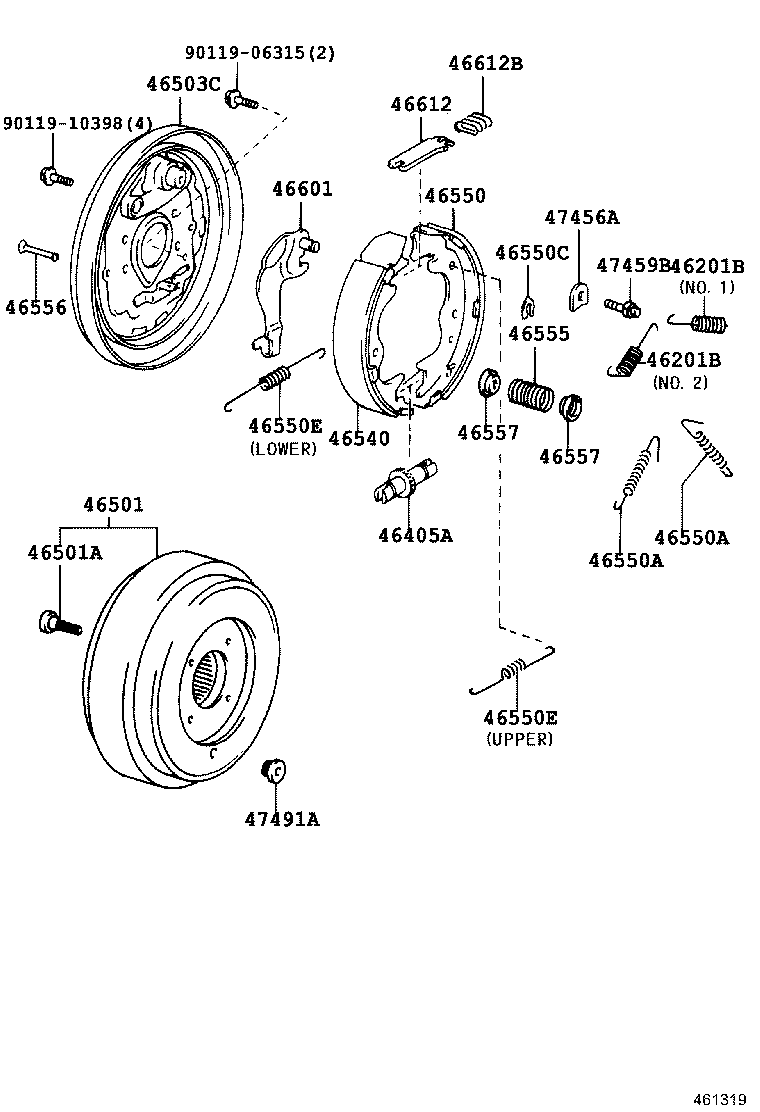

ILLUST NO. 2 OF 2(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
GRB53,TRB53,XZB53 NO.2 |
1 | ||
| 90507-20021 |
GRB53,TRB53 NO.2 |
1 | ||
| 90507-20020 |
GRB53,TRB53 NO.1 |
1 | ||
| 90507-20021 |
GRB53 NO.2 |
1 | ||
| 90507-20020 |
GRB53,TRB53,XZB53 NO.1 |
1 | ||
| 90507-20020 |
GRB53 NO.1 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
GRB53,TRB53,XZB53 NO.2 |
1 | ||
| 90507-20021 |
GRB53,TRB53 NO.2 |
1 | ||
| 90507-20020 |
GRB53,TRB53 NO.1 |
1 | ||
| 90507-20021 |
GRB53 NO.2 |
1 | ||
| 90507-20020 |
GRB53,TRB53,XZB53 NO.1 |
1 | ||
| 90507-20020 |
GRB53 NO.1 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
GRB53,TRB53 |
1 | ||
| 47405-36010 |
GRB53 |
1 | ||
| 47405-36010 |
GRB53,TRB53,XZB53 |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-0S010 |
GRB53,TRB53,XZB53 |
1 | ||
| 46501-0S010 |
GRB53,TRB53 |
1 | ||
| 46501-0S010 |
GRB53 |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
GRB53,TRB53,XZB53 |
4 | ||
| 90114-11124 |
GRB53,TRB53 |
4 | ||
| 90114-11124 |
GRB53 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36071 |
GRB53,TRB53,XZB53 |
1 | ||
| 46503-36071 |
GRB53,TRB53 |
1 | ||
| 46503-36071 |
GRB53 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37040 |
GRB53,TRB53,XZB53 |
1 | ||
| 46540-37040 |
GRB53 |
1 | ||
| 46540-37040 |
GRB53,TRB53 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
GRB53 |
1 | ||
| 46550-37040 |
GRB53,TRB53,XZB53 |
1 | ||
| 46550-37040 |
GRB53,TRB53 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
GRB53,TRB53,XZB53 |
2 | ||
| 90905-06020 |
GRB53,TRB53 |
2 | ||
| 90905-06020 |
GRB53 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
GRB53,TRB53,XZB53 |
2 | ||
| 90905-06020 |
GRB53,TRB53 |
2 | ||
| 90905-06020 |
GRB53 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
GRB53,TRB53,XZB53 |
1 | ||
| 90213-06003 |
GRB53 |
1 | ||
| 90213-06003 |
GRB53,TRB53 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
GRB53,TRB53 LOWER |
1 | ||
| 90506-14054 |
GRB53,TRB53 LOWER |
1 | ||
| 90506-14054 |
GRB53 LOWER |
1 | ||
| 90905-06090 |
GRB53,TRB53,XZB53 UPPER |
1 | ||
| 90905-06090 |
GRB53,TRB53 UPPER |
1 | ||
| 90905-06090 |
GRB53 UPPER |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
GRB53,TRB53 LOWER |
1 | ||
| 90506-14054 |
GRB53,TRB53 LOWER |
1 | ||
| 90506-14054 |
GRB53 LOWER |
1 | ||
| 90905-06090 |
GRB53,TRB53,XZB53 UPPER |
1 | ||
| 90905-06090 |
GRB53,TRB53 UPPER |
1 | ||
| 90905-06090 |
GRB53 UPPER |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
GRB53 |
2 | ||
| 90501-16108 |
GRB53,TRB53 |
2 | ||
| 90501-16108 |
GRB53,TRB53,XZB53 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
GRB53,TRB53,XZB53 |
2 | ||
| 47447-20030 |
GRB53,TRB53 |
2 | ||
| 47447-20030 |
GRB53 |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
GRB53,TRB53,XZB53 |
4 | ||
| 47449-20011 |
GRB53,TRB53 |
4 | ||
| 47449-20011 |
GRB53 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
GRB53,TRB53,XZB53 |
4 | ||
| 47449-20011 |
GRB53,TRB53 |
4 | ||
| 47449-20011 |
GRB53 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36080 |
GRB53,TRB53 |
1 | ||
| 46601-36080 |
GRB53,TRB53,XZB53 |
1 | ||
| 46601-36080 |
GRB53 |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36081 |
GRB53,TRB53 |
1 | ||
| 46612-36081 |
GRB53,TRB53,XZB53 |
1 | ||
| 46612-36081 |
GRB53 |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
GRB53,TRB53,XZB53 |
1 | ||
| 90504-10010 |
GRB53 |
1 | ||
| 90504-10010 |
GRB53,TRB53 |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-36010 |
GRB53 |
1 | ||
| 47456-36010 |
GRB53,TRB53,XZB53 |
1 | ||
| 47456-36010 |
GRB53,TRB53 |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GRB53,TRB53 |
1 | ||
| 47459-30010 |
GRB53 |
1 | ||
| 47459-30010 |
GRB53,TRB53,XZB53 |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
GRB53,TRB53,XZB53 |
1 | ||
| 47491-22020 |
GRB53 |
1 | ||
| 47491-22020 |
GRB53,TRB53 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-10398 | ||||
