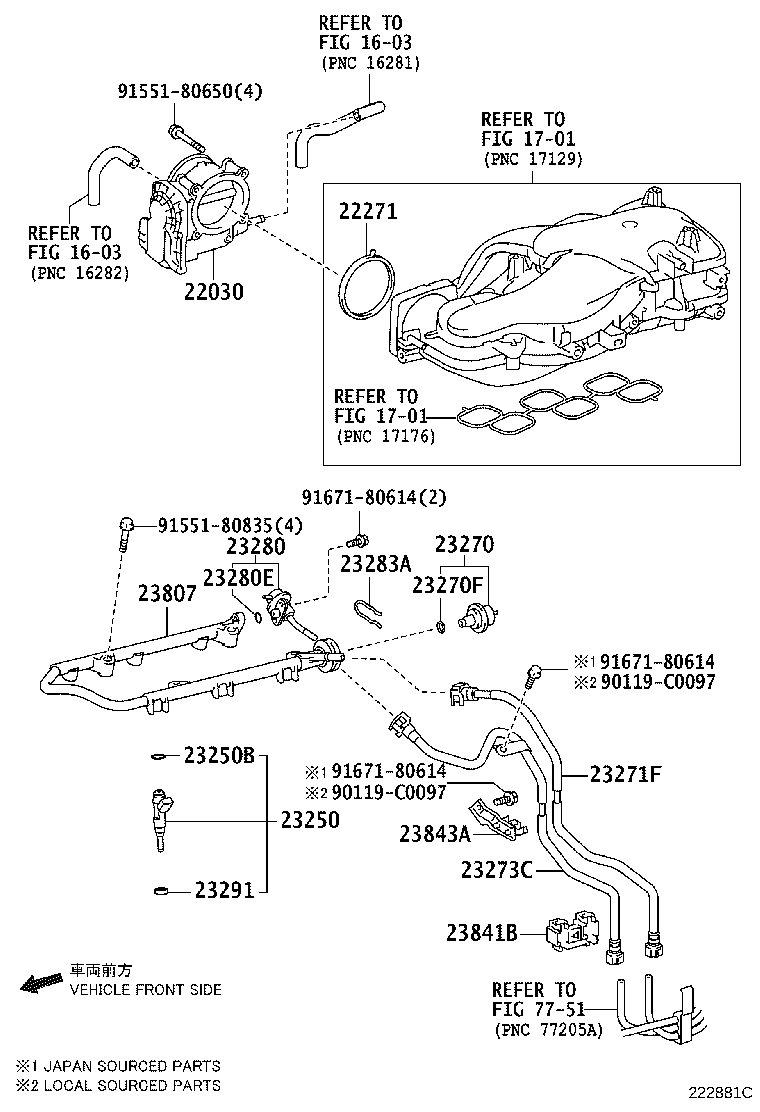

Toyota Coaster (china) GRB53 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-31060	6GRFE..GRB53	01/2013 - 07/2015	1
22030-31060	6GRFE..GRB53	01/2018 - 12/2999	1
22030-31060	6GRFE..GRB53	07/2015 - 01/2018	1
22271 - GASKET, THROTTLE BODY
22271-31040	6GRFE..GRB53	07/2015 - 01/2018	1
22271-31040	6GRFE..GRB53	01/2018 - 12/2999	1
22271-31040	6GRFE..GRB53	01/2013 - 07/2015	1
23250 - INJECTOR ASSY, FUEL
23209-39215	6GRFE..GRB53	01/2013 - 07/2015	6
23209-39215	6GRFE..GRB53	07/2015 - 01/2018	6
23209-39215	6GRFE..GRB53	01/2018 - 12/2999	6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033	6GRFE..GRB53	01/2013 - 07/2015	6
90301-07033	6GRFE..GRB53	01/2018 - 12/2999	6
90301-07033	6GRFE..GRB53	07/2015 - 01/2018	6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-31140	6GRFE..GRB53	07/2015 - 01/2018	1
23270-31140	6GRFE..GRB53	01/2018 - 12/2999	1
23270-31140	6GRFE..GRB53	01/2013 - 07/2015	1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07033	6GRFE..GRB53	07/2015 - 01/2018	1
90301-07033	6GRFE..GRB53	01/2013 - 07/2015	1
90301-07033	6GRFE..GRB53	01/2018 - 12/2999	1
23271F - HOSE, FUEL
23271-31090	6GRFE..GRB53	07/2015 - 01/2018	1
23271-31090	6GRFE..GRB53	01/2013 - 07/2015	1
23271-31090	6GRFE..GRB53	01/2018 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-31100	6GRFE..GRB53	01/2013 - 07/2015	1
23273-31100	6GRFE..GRB53	01/2018 - 12/2999	1
23273-31100	6GRFE..GRB53	07/2015 - 01/2018	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-31051	6GRFE..GRB53	01/2018 - 12/2999	1
23280-31051	6GRFE..GRB53	01/2013 - 07/2015	1
23280-31051	6GRFE..GRB53	07/2015 - 01/2018	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07034	6GRFE..GRB53	07/2015 - 12/2017	1
90301-07034	6GRFE..GRB53	01/2013 - 05/2015	1
90301-07034	6GRFE..GRB53	01/2018 - 12/2999	1
23283A - HOLDER, FUEL PRESSURE REGULATOR
23283-31010	6GRFE..GRB53	01/2013 - 07/2015	1
23283-31010	6GRFE..GRB53	07/2015 - 01/2018	1
23283-31010	6GRFE..GRB53	01/2018 - 12/2999	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010	6GRFE..GRB53	01/2013 - 07/2015	6
23291-23010	6GRFE..GRB53	07/2015 - 01/2018	6
23291-23010	6GRFE..GRB53	01/2018 - 12/2999	6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-31120	6GRFE..GRB53	01/2013 - 07/2015	1
23807-31120	6GRFE..GRB53	07/2015 - 01/2018	1
23807-31120	6GRFE..GRB53	01/2018 - 12/2999	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0P080	6GRFE..GRB53	07/2015 - 01/2018	1
23841-0P080	6GRFE..GRB53	01/2018 - 12/2999	1
23841-0P080	6GRFE..GRB53	01/2013 - 07/2015	1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-31010	6GRFE..GRB53	01/2013 - 07/2015	1
23847-31010	6GRFE..GRB53	01/2018 - 12/2999	1
23847-31010	6GRFE..GRB53	07/2015 - 01/2018	1
Common parts
90119-C0097
91551-80650
91551-80835
91671-80614
Linked diagrams
1603
1701
7751

GRB53L-ZCMSK (2013)

(1301- )6GRFE
