GRB53L-ZCMSK (2013)
Toyota Coaster (China)
Production
Jan 2013
-
Sep 9999
Engine
6GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1301- )6GRFE

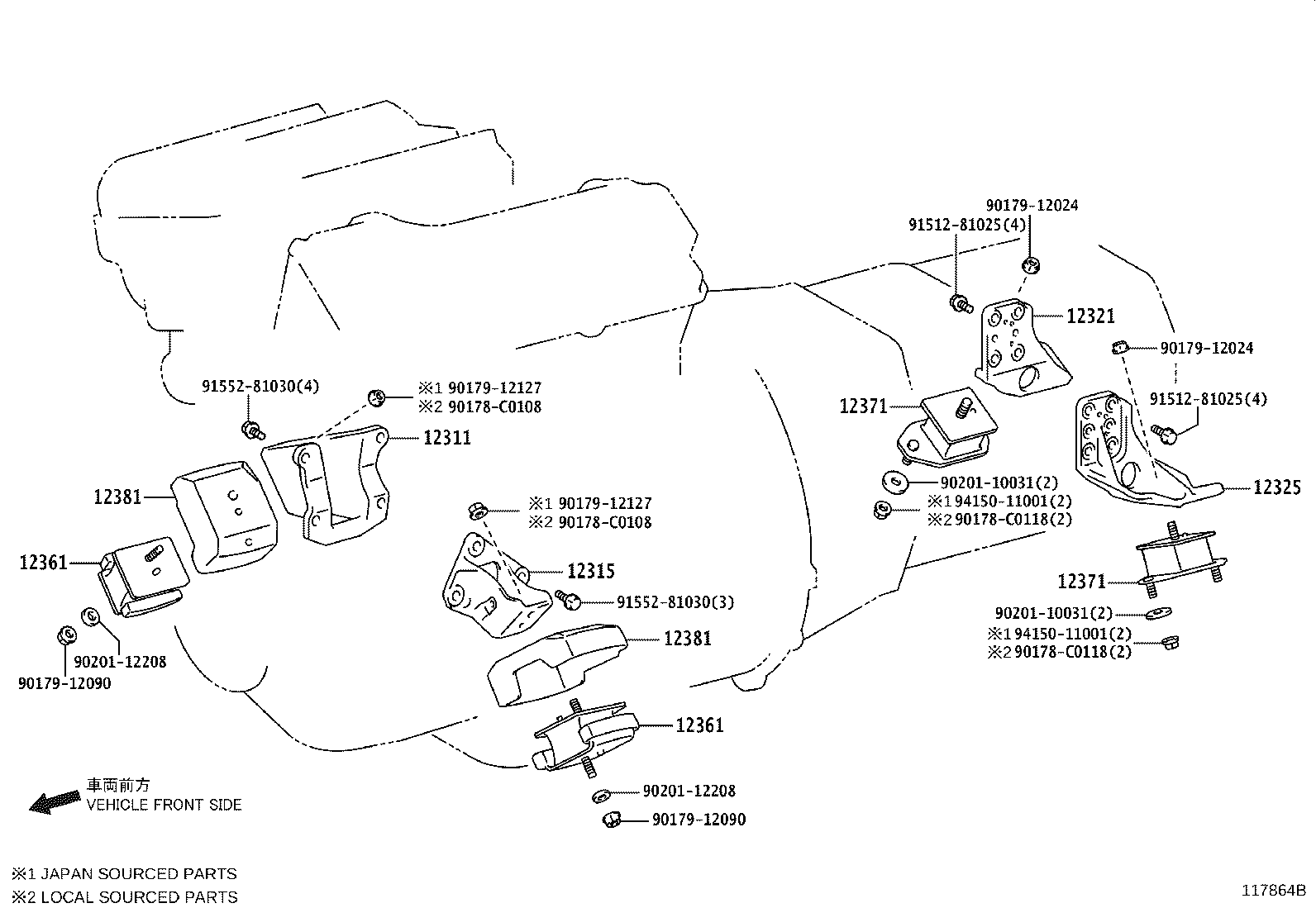

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-31170 |
6GRFE..GRB53 |
1 | ||
| 12311-31170 |
6GRFE..GRB53 |
1 | ||
| 12311-31170 |
6GRFE..GRB53 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31150 |
6GRFE..GRB53 |
1 | ||
| 12315-31150 |
6GRFE..GRB53 |
1 | ||
| 12315-31150 |
6GRFE..GRB53 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-31160 |
6GRFE..GRB53 |
1 | ||
| 12321-31160 |
6GRFE..GRB53 |
1 | ||
| 12321-31160 |
6GRFE..GRB53 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-31050 |
6GRFE..GRB53 |
1 | ||
| 12325-31050 |
6GRFE..GRB53 |
1 | ||
| 12325-31050 |
6GRFE..GRB53 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31370 |
6GRFE..GRB53 |
4 | ||
| 12361-31370 |
6GRFE..GRB53 |
4 | ||
| 12361-31370 |
6GRFE..GRB53 |
4 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-31370 |
6GRFE..GRB53 |
4 | ||
| 12361-31370 |
6GRFE..GRB53 |
4 | ||
| 12361-31370 |
6GRFE..GRB53 |
4 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-0P190 |
6GRFE..GRB53 |
2 | ||
| 12371-0P190 |
6GRFE..GRB53 |
2 | ||
| 12371-0P190 |
6GRFE..GRB53 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-0P190 |
6GRFE..GRB53 |
2 | ||
| 12371-0P190 |
6GRFE..GRB53 |
2 | ||
| 12371-0P190 |
6GRFE..GRB53 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-31070 |
6GRFE..GRB53 |
4 | ||
| 12381-31070 |
6GRFE..GRB53 |
4 | ||
| 12381-31070 |
6GRFE..GRB53 |
4 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-31070 |
6GRFE..GRB53 |
4 | ||
| 12381-31070 |
6GRFE..GRB53 |
4 | ||
| 12381-31070 |
6GRFE..GRB53 |
4 | ||
| Common parts | ||||
| 90178-C0108 | ||||
| 90178-C0118 | ||||
| 90179-12024 | ||||
| 90179-12090 | ||||
| 90179-12127 | ||||
| 90201-10031 | ||||
| 90201-12208 | ||||
| 91512-81025 | ||||
| 91552-81030 | ||||
| 94150-11001 | ||||
