GRB53L-ZCMEK (2013)

Toyota Coaster (China)

Production Jan 2013 - Sep 9999
Engine 6GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )TRB53 ; (1301- )GRB53,XZB53..CBU

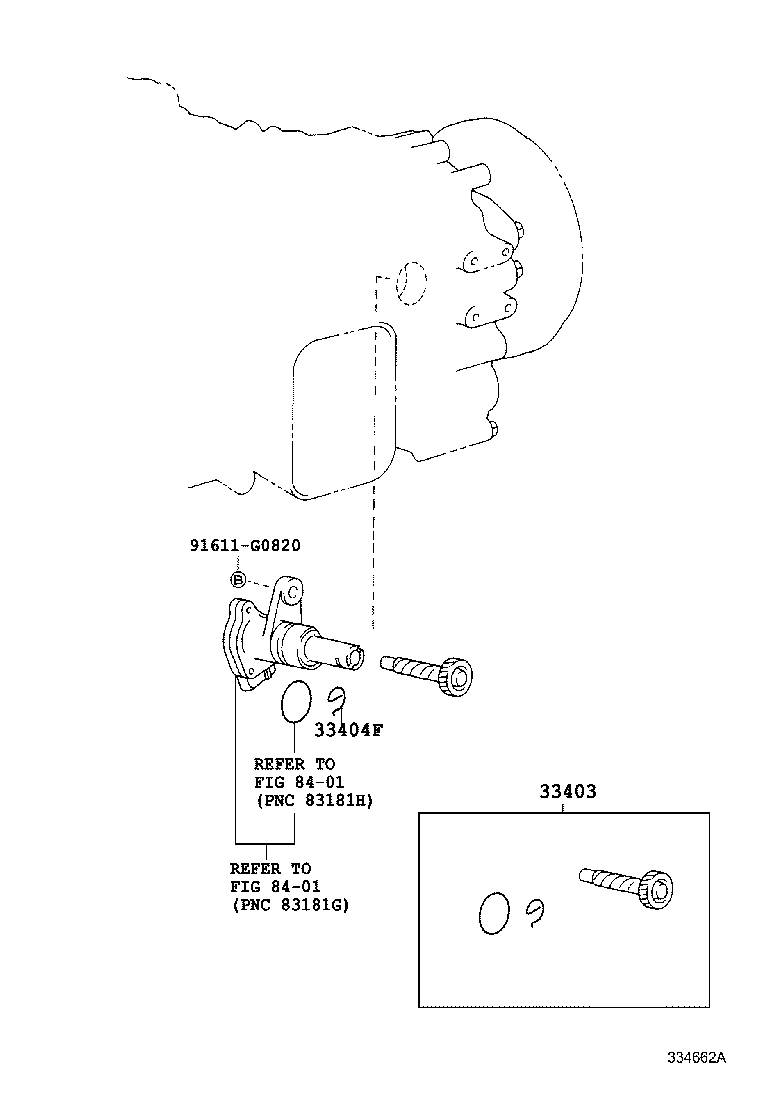

Click highlighted areas on diagram

diagram 33403 33404F 8401 8401 91611G0820
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-80027

GRB53

N=21,MARK 21:6

 1
33482-80027

GRB53..CBU

N=21,MARK 21:6

 1
33482-80027

GRB53..CBU

N=21,MARK 21:6

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

TRB53;GRB53..CBU

 1
90468-12005

GRB53..CBU

 1
90468-12005

GRB53,TRB53,XZB53

 1
Common parts
91611-G0820
Linked diagrams
8401
