BB54L-ZRMSU (2000)

Toyota Coaster (China)

Production Dec 2000 - Oct 2003
Engine 15BF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012-0310) ; (0701-1108)

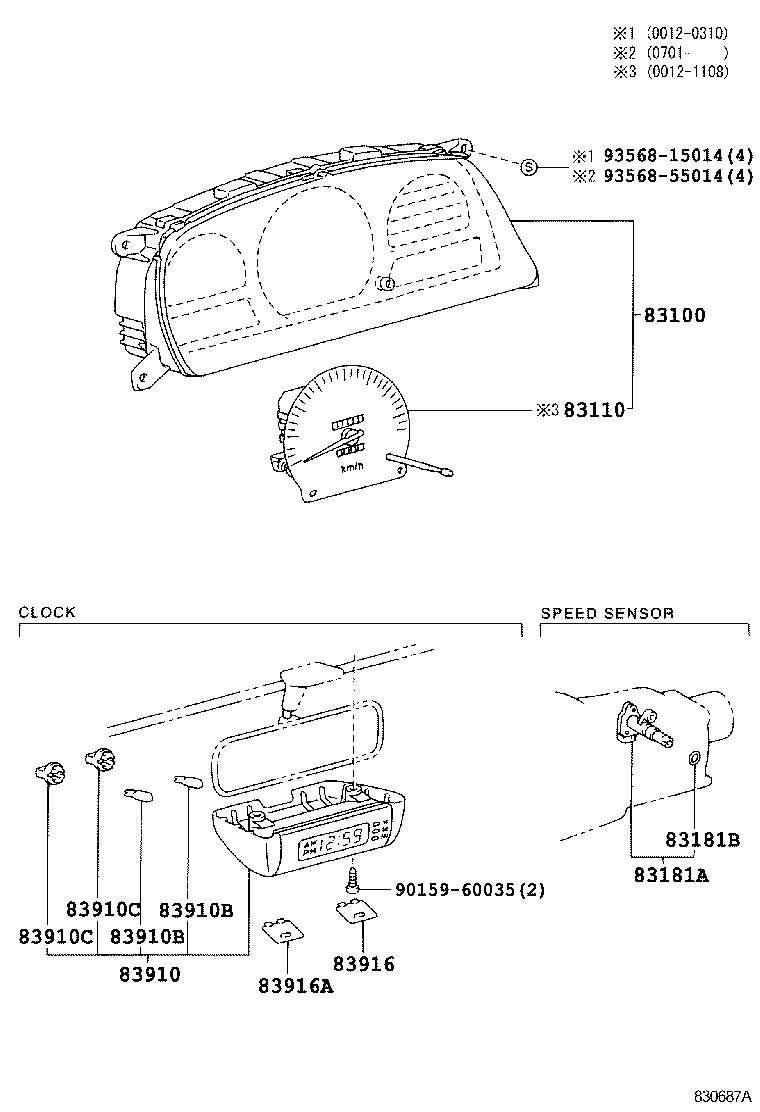

Click highlighted areas on diagram

diagram 83100 83110 83181A 83181B 83910 83910B 83910B 83910C 83910C 83916 83916A 9015960035 9356815014 9356855014
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-36550

BB5#

 1
83110 - SPEEDOMETER ASSY
83220-36090

BB5#,RZB5#

 1
83181A - SENSOR, SPEEDOMETER
83181-36010

BB5#,RZB5#

 1
83181B - RING, O (FOR SPEEDOMETER SENSOR)
90301-18004

BB5#,RZB5#

 1
83910 - CLOCK ASSY
83910-36040A0

BB5#

IVORY,TRIM4#

 1
83910B - BULB, CLOCK INDICATOR
84999-50290

BB5#

24V 3W

 2
83910B - BULB, CLOCK INDICATOR
84999-50290

BB5#

24V 3W

 2
83910C - SOCKET SUB-ASSY, CLOCK BULB
90072-01005

BB5#

 2
83910C - SOCKET SUB-ASSY, CLOCK BULB
90072-01005

BB5#

 2
83916 - CLIP, CLOCK, NO.1
83916-36010A0

BB5#,RZB5#

IVORY,TRIM4#

 1
83916A - CLIP, CLOCK, NO.2
83916-36020A0

BB5#,RZB5#

IVORY,TRIM4#

 1
Common parts
90159-60035
93568-15014
93568-55014
