BB54L-ZRMSU (2000)

Toyota Coaster (China)

Production Dec 2000 - Oct 2003
Engine 15BF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(0012-0310)

Click highlighted areas on diagram

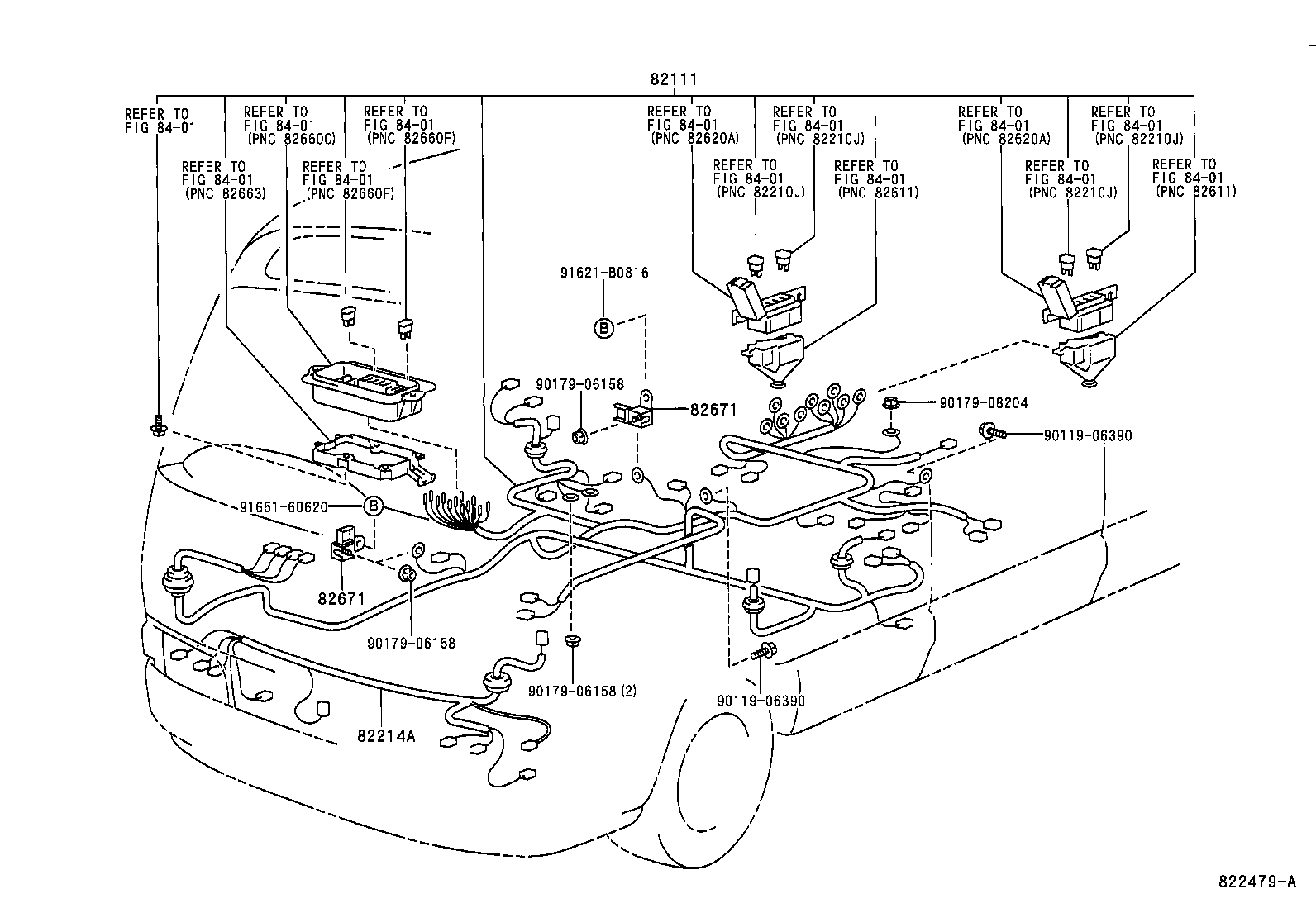

ENGINE ROOM

diagram 82111 82214A 82671 82671 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906390 9011906390 9017906158 9017906158 9017906158 9017908204 91621B0816 9165160620
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-36140

BB54

 1
82115-36151

BB54

W(FOLDING DOOR AUTO)

 1
82115-36150

BB54

W(FOLDING DOOR AUTO)

 1
82115-36141

BB54

 1
82214A - WIRE, LAMP
82214-36180

BB54

 1
82671 - BLOCK, JUNCTION
82671-28010

BB5#

 2
82671 - BLOCK, JUNCTION
82671-28010

BB5#

 2
Common parts
90119-06390
90179-06158
90179-08204
91621-B0816
91651-60620
Linked diagrams
8401

ILLUST NO. 2 OF 8(0012-0310)BB5#

Click highlighted areas on diagram

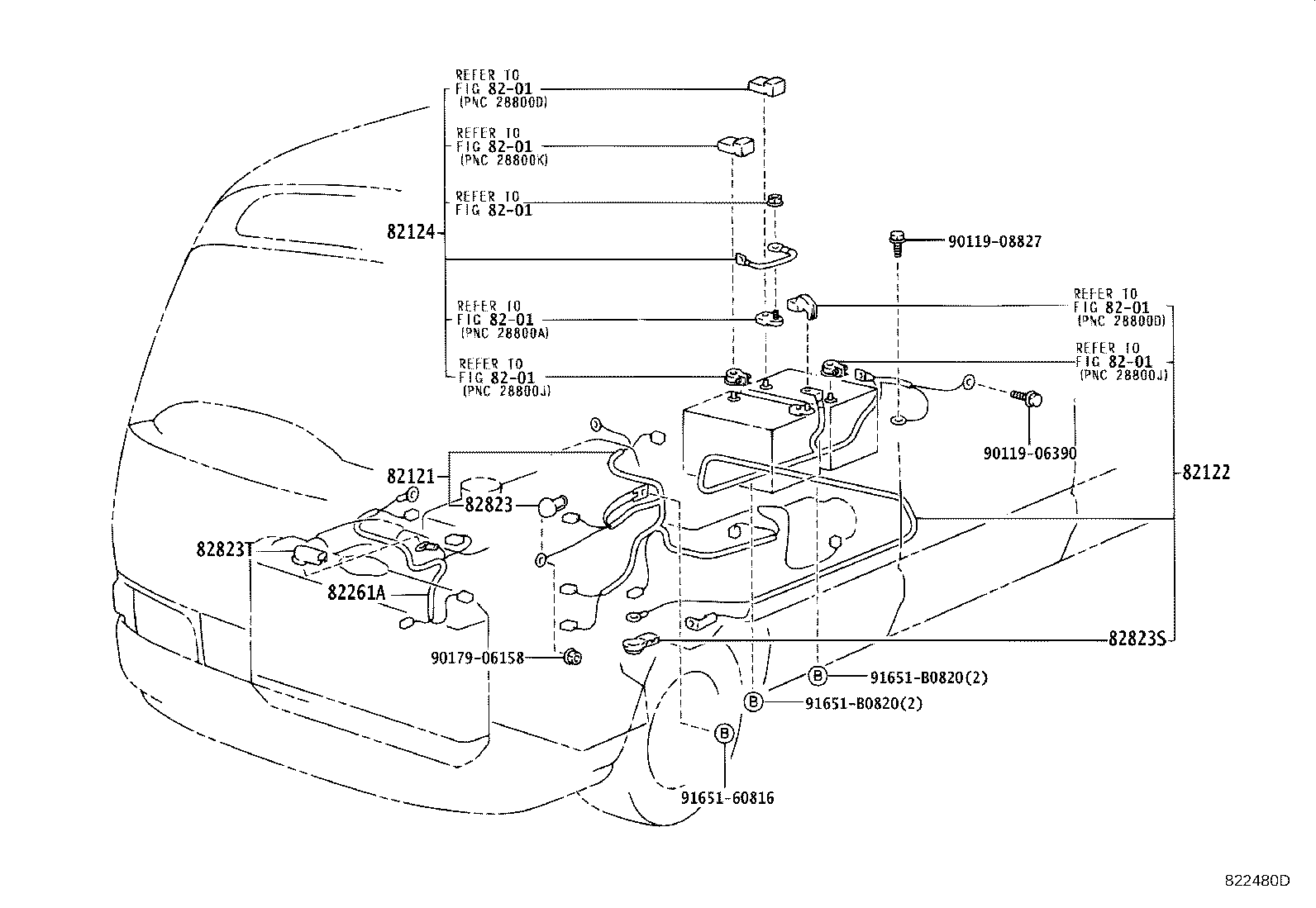

ENGINE

diagram 8201 8201 8201 8201 8201 8201 8201 82121 82122 82124 82261A 82823 82823S 82823T 9011906390 9011908827 9017906158 9165160816 91651B0820 91651B0820
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-36260

BB54

 1
82122 - WIRE, ENGINE, NO.2
82122-36110

BB54

 1
82124 - WIRE, ENGINE, NO.4
82124-36011

BB5#

 1
82261A - WIRE, ALTERNATOR
82261-36130

BB5#

 1
82823S - CAP, STARTER TERMINAL
82823-30100

BB5#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

BB5#,RZB5#

 1
Common parts
90119-06390
90119-08827
90179-06158
91651-60816
91651-B0820
Linked diagrams
8201

ILLUST NO. 3 OF 8(0012-0701)

Click highlighted areas on diagram

COWL & INSTRUMENT PANEL

diagram 82131 82141 82142 82345 82345 82345 82666A 82666B 82671J 82671J 8271236070 82824 82824H 8401 8401 8401 8401 8401 85996A 85996C 9011906005 9011906005 9011906048 9015950372 9165140616 9165140616 9165140616
Part # Description Qty Price
82131 - WIRE, COWL
82131-36660

BB54

W(FOLDING DOOR AUTO)

 1
82131-36650

BB54

 1
82141 - WIRE, INSTRUMENT PANEL
82141-36160

BB54

 1
82141-36170

BB5#

W(FOLDING DOOR AUTO)

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-36170

BB5#

 1
82345 - DIODE
82345-32020

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION

 1
82345-12050

BB5#

TYPE A:REFER TO ILLUSTRATION

 3
82345 - DIODE
82345-32020

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION

 1
82345-12050

BB5#

TYPE A:REFER TO ILLUSTRATION

 3
82345 - DIODE
82345-32020

BB5#,RZB5#

TYPE B:REFER TO ILLUSTRATION

 1
82345-12050

BB5#

TYPE A:REFER TO ILLUSTRATION

 3
82666A - HOLDER, CONNECTOR NO.2
82666-36010

BB5#,RZB5#

 1
82666B - HOLDER, CONNECTOR NO.3
82666-36020

BB5#,RZB5#

 1
82671J - BLOCK, JUNCTION, NO.2
82671-30350

BB5#,RZB5#

 2
82671J - BLOCK, JUNCTION, NO.2
82671-30350

BB5#,RZB5#

 2
85996A - BRACKET, RELAY, NO.2
85996-36010

BB5#,RZB5#

 1
85996C - BRACKET, RELAY
85999-36100

BB5#,RZB5#

 1
Common parts
82712-36070
90119-06005
90119-06048
90159-50372
91651-40616
Linked diagrams
8401

ILLUST NO. 4 OF 8(0012-0701)

Click highlighted areas on diagram

FLOOR & BACK DOOR

diagram 82159 82161 82162 82164 82184 82186 82187 82214B 82281 9011906005 9011906005 9011906053 9356014012
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-36320

BB54

 1
82161-36330

BB54

COLD SPEC

 1
82162 - WIRE, FLOOR, NO.2
82162-36040

BB5#

 1
82184 - WIRE, BACK DOOR, NO.1
82184-36010

BB5#,RZB5#

 1
82281 - WIRE, GAGE
82281-36021

BB5#,RZB5#

 1
Common parts
90119-06005
90119-06053
93560-14012

ILLUST NO. 5 OF 8(0012-0701)

Click highlighted areas on diagram

DOOR & ROOF

diagram 82153 82154 82171 82172 82174 8281936020 8281936020 8281936020 8281936020 8281990B00 8281990B00 8281990B00 8281990B00 9011906005 9046708043 9048025010 9048040507 9098010789
Part # Description Qty Price
82171 - WIRE, ROOF, NO.1
82171-36120

BB5#,RZB5#

 1
82172 - WIRE, ROOF, NO.2
82172-36190

BB54,RZB54

 1
82174 - WIRE, ROOF, NO.4
82174-36020

BB5#

 1
Common parts
82819-36020
82819-90B00
90119-06005
90467-08043
90480-25010
90480-40507
90980-10789

ILLUST NO. 6 OF 8(0012-0701)

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271122270 8271126070 8271160150 8271195015 8271195J12 8271526240 8271526380 8271526390 8271528360 8271534160 8271534240 8271535600 8271536030 8271536040 8271536050 8271536050 8271536060 8271536080 8271536110 8271536140 8271537160 8271537240 8271560040 8272935040 9017906161 9046110275 9046315003 9151261014 9151261014 91621B0816 91621J0814 91621J0814 91621J0814 91621J0814 91641C0612 91641C0612 91641C0814 9165160616 9165160616 9165160616 9165160616 9165160816 9165160816
Part # Description Qty Price
Common parts
82711-22270
82711-26070
82711-60150
82711-95015
82711-95J12
82715-26240
82715-26380
82715-26390
82715-28360
82715-34160
82715-34240
82715-35600
82715-36030
82715-36040
82715-36050
82715-36060
82715-36080
82715-36110
82715-36140
82715-37160
82715-37240
82715-60040
82729-35040
90179-06161
90461-10275
90463-15003
91512-61014
91621-B0816
91621-J0814
91641-C0612
91641-C0814
91651-60616
91651-60816

ILLUST NO. 6 OF 8(0012-0701)

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271112200 8271122270 8271536010 8271536050 8271536060 8271536070 8271536110 8271536120 8271536150 8271560170 8281990B02 9046312008 9165160612 9165160616 9165160616 9165160620 91651B0820 91651B0820 91651B0820
Part # Description Qty Price
Common parts
82711-12200
82711-22270
82715-36010
82715-36050
82715-36060
82715-36070
82715-36110
82715-36120
82715-36150
82715-60170
82819-90B02
90463-12008
91651-60612
91651-60616
91651-60620
91651-B0820
