BB54L-ZRMSU (2000)
Toyota Coaster (China)
Production
Dec 2000
-
Oct 2003
Engine
15BF
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

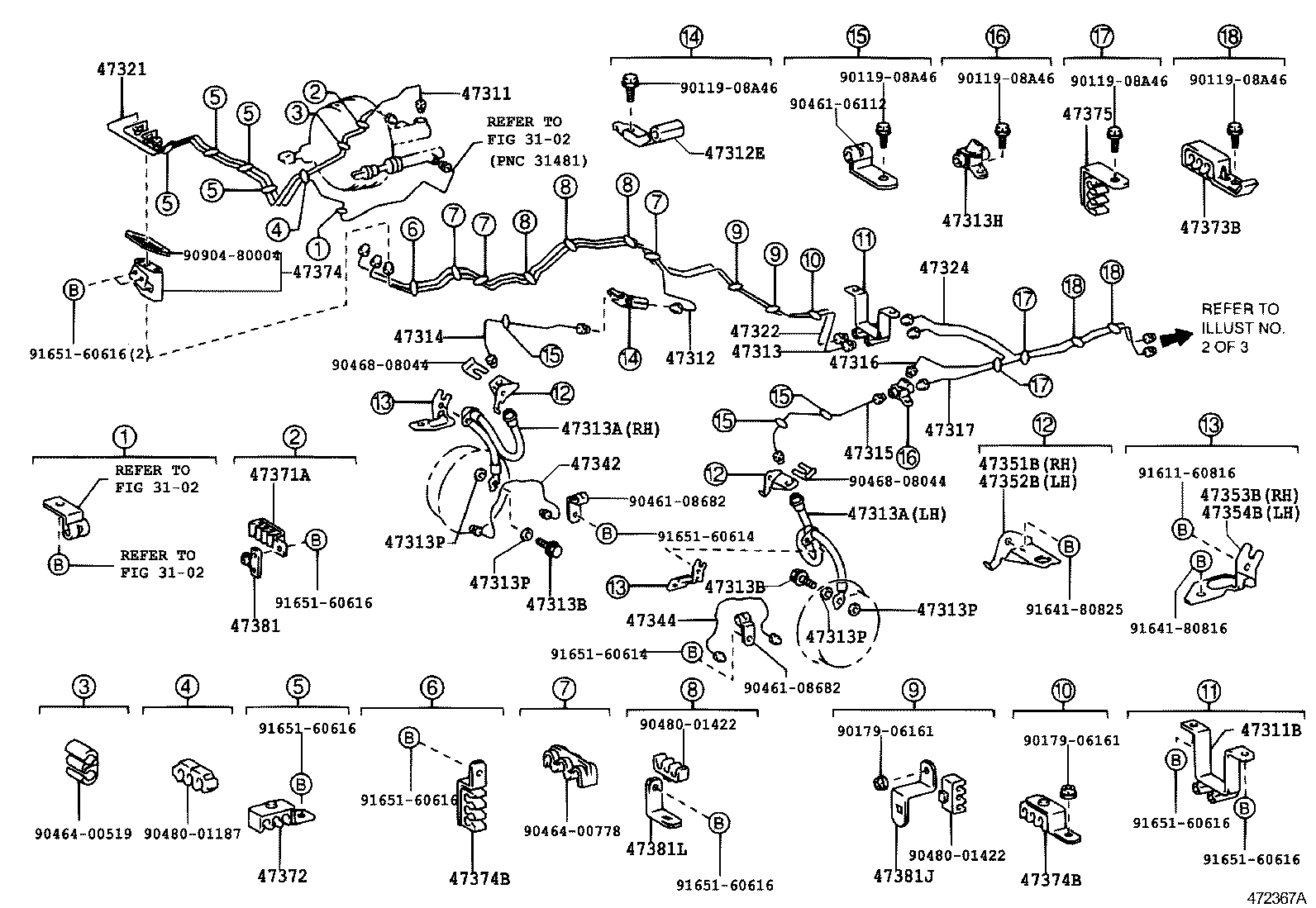

ILLUST NO. 1 OF 4(0012-0310)BB54,RZB54
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36590 |
BB5#,RZB5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
BB5#,RZB5# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36321 |
BB54,RZB54 |
1 | ||
| 47312-36322 |
BB54,RZB54 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10210 |
BB5#,RZB5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36340 |
BB5#,RZB5# |
1 | ||
| 47313-36341 |
BB5#,RZB5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-36010 |
BB54,RZB54 RH |
1 | ||
| 47340-36010 |
BB54,RZB54 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 47330-36010 |
BB54,RZB54 RH |
1 | ||
| 47340-36010 |
BB54,RZB54 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BB54,RZB54 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BB54,RZB54 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10270 |
BB5#,RZB5# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB5#,RZB5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB5#,RZB5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB5#,RZB5# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
BB5#,RZB5# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36391 |
BB54,RZB54 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36280 |
BB54,RZB54 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-36310 |
BB5#,RZB5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36190 |
BB5#,RZB5# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36420 |
BB5#,RZB5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36441 |
BB5#,RZB5# |
1 | ||
| 47322-36440 |
BB5#,RZB5# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36380 |
BB5#,RZB5# |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37040 |
BB54,RZB54 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-37020 |
BB54,RZB54 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36220 |
BB54,RZB54 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36210 |
BB54,RZB54 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36240 |
BB54,RZB54 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36130 |
BB54,RZB54 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-35040 |
BB5#,RZB5# |
1 | ||
| 47373-36040 |
BB5#,RZB5# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-36100 |
BB5#,RZB5# |
4 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01536 |
BB5#,RZB5# |
2 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36080 |
BB5#,RZB5# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-35130 |
BB5#,RZB5# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-35130 |
BB5#,RZB5# |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-36060 |
BB5#,RZB5# |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
BB5#,RZB5# |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 47381-36180 |
BB5#,RZB5# |
2 | ||
| 47381L - BRACKET, BRAKE TUBE CLAMP, NO.3 | ||||
| 47381-36160 |
BB5#,RZB5# |
3 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-06112 | ||||
| 90461-08682 | ||||
| 90464-00519 | ||||
| 90464-00778 | ||||
| 90468-08044 | ||||
| 90480-01187 | ||||
| 90480-01422 | ||||
| 90904-80004 | ||||
| 91611-60816 | ||||
| 91641-80816 | ||||
| 91641-80825 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3102 | ||||

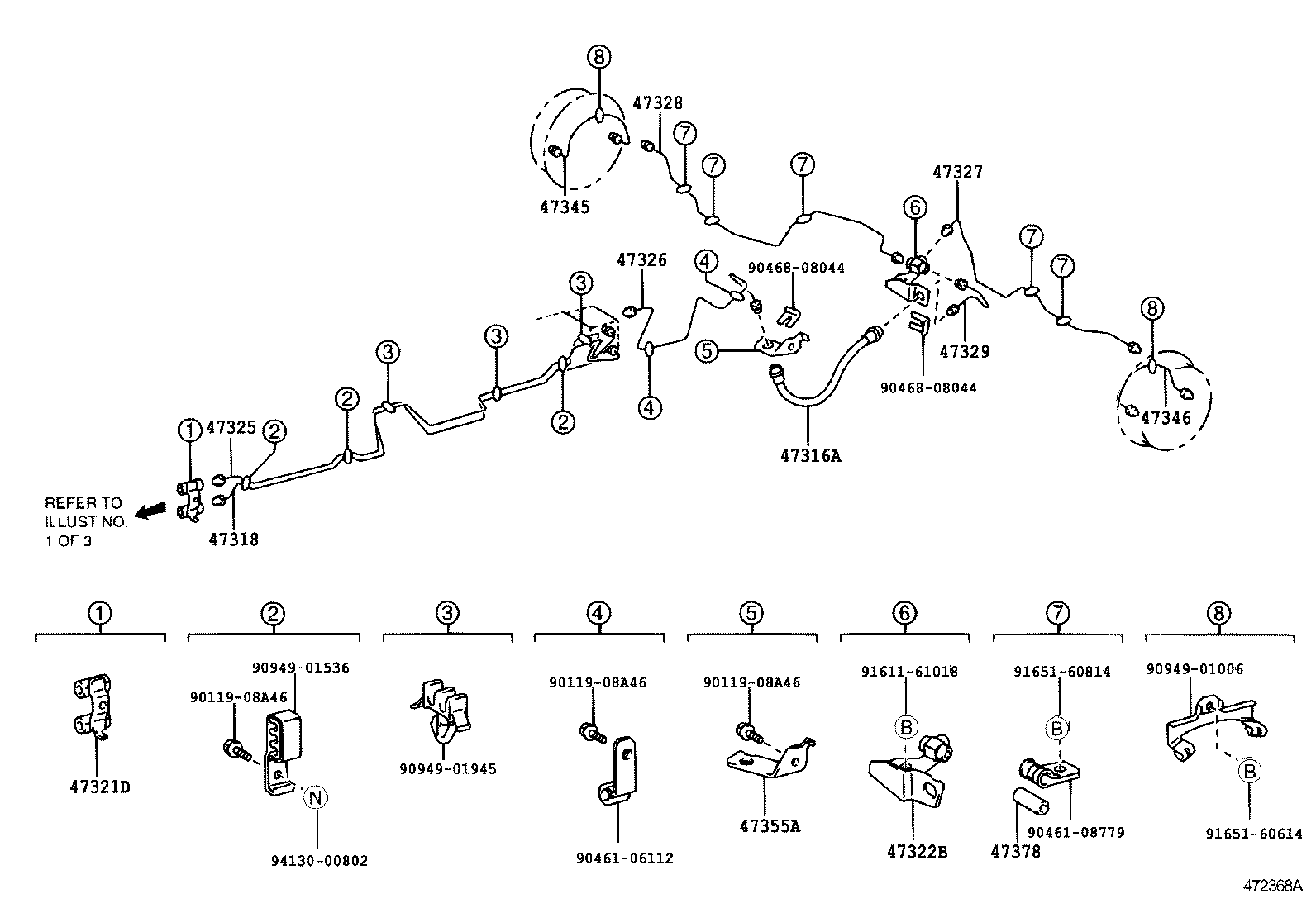

ILLUST NO. 2 OF 4(0012-0310)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02C20 |
BB5#,RZB5# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36370 |
BB5#,RZB5# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10232 |
BB5#,RZB5# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13520 |
BB5#,RZB5# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36590 |
BB5#,RZB5# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36240 |
BB5#,RZB5# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36330 |
BB5#,RZB5# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36370 |
BB5#,RZB5# |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36230 |
BB5#,RZB5# |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
BB5#,RZB5# |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
BB5#,RZB5# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-36040 |
BB5#,RZB5# |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-36010 |
BB5#,RZB5# |
5 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-06112 | ||||
| 90461-08779 | ||||
| 90468-08044 | ||||
| 90949-01006 | ||||
| 90949-01536 | ||||
| 90949-01945 | ||||
| 91611-61018 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 94130-00802 | ||||
ILLUST NO. 4 OF 4(0012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
BB5#,RZB5# |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
BB5#,RZB5# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-36191 |
BB5#,RZB5# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-36170 |
BB5#,RZB5# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BB5#,RZB5# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BB5#,RZB5# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BB5#,RZB5# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BB5#,RZB5# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BB5#,RZB5# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-36120 |
BB5#,RZB5# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36061 |
BB5#,RZB5# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
BB5#,RZB5# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BB5#,RZB5# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 47924-35010 |
BB5#,RZB5# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 47924-35010 |
BB5#,RZB5# |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-60030 |
BB5#,RZB5# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BB5#,RZB5# |
1 | ||
| Common parts | ||||
| 90015-AA103 | ||||
| 90119-08703 | ||||
| 90170-08016 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
