BB54L-ZRMSU (2000)

Toyota Coaster (China)

Production Dec 2000 - Oct 2003
Engine 15BF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012-0310)15BF

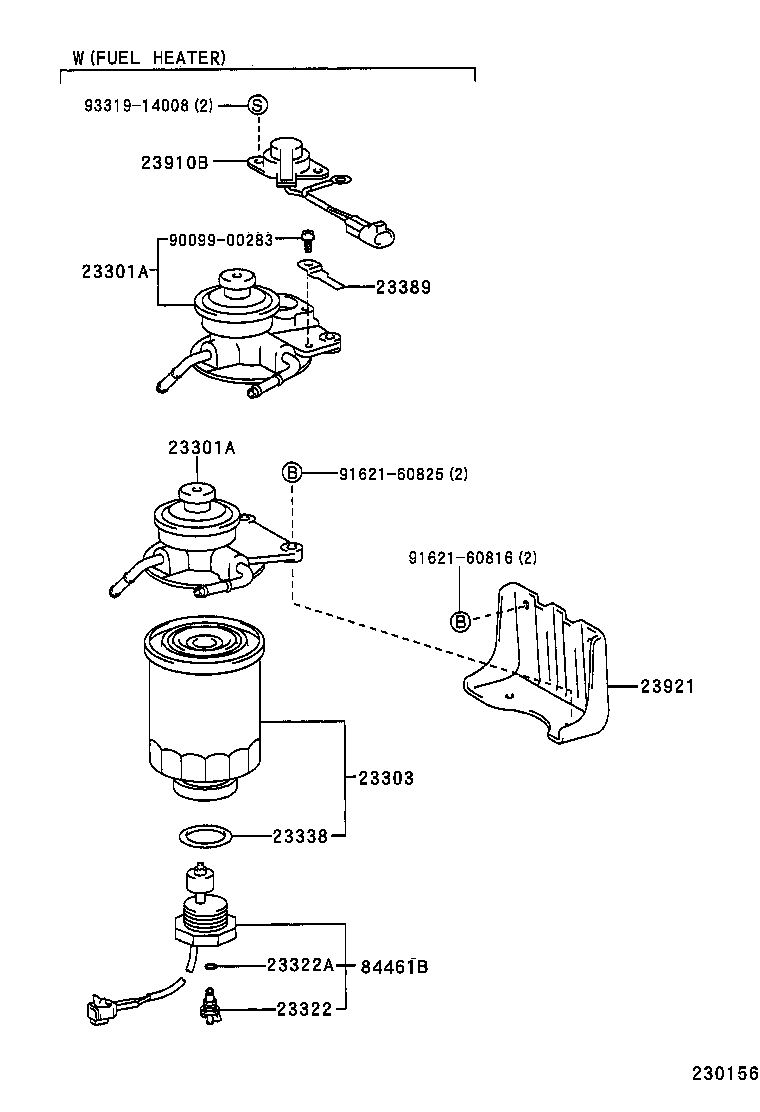

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 23389 23910B 23921 84461B 9009900283 9162160816 9162160825 9331914008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-58310

15BF..BB5#

 1
23380-58330

15BF..BB5#

W(FUEL HEATER)

 1
23301A - CAP ASSY, FUEL FILTER
23380-58310

15BF..BB5#

 1
23380-58330

15BF..BB5#

W(FUEL HEATER)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64480

15BF..BB5#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

15BF..BB5#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BF..BB5#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

15BF..BB5#

 1
23389 - CLAMP, FUEL FILTER
23389-17380

15BF..BB5#

 1
23910B - HEATER ASSY, FUEL
23910-17070

15BF..BB5#

 1
23921 - SUPPORT, FUEL FILTER
23921-17040

15BF..BB5#

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

BB5#

 1
Common parts
90099-00283
91621-60816
91621-60825
93319-14008
