BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0310-0701)BB53

Click highlighted areas on diagram

FRONT

diagram 8712 8712 8712436490 8712436550 8712436560 87208 87208A 87240 87245B 87245L 87245L 87245L 87245L 87245L 87251D 87251E 87255A 87255C 9017906206 9017906206 9017906206 9017906206 9046721010 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 91651B0820 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-3B060

BB5#

 1
87208-36850

BB5#

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36820

BB5#,RZB5#,TRB53,XZB53

 1
87208-36830

BB53

 1
87208-36860

BB5#

COLD SPEC

 1
87240 - VALVE ASSY, HEATER WATER
87240-36140

BB5#,RZB5#,TRB53,XZB53

 1
87240-36140

BB5#,RZB5#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-3E080

BB53

 1
87245-3E070

BB53

 1
87245-3E080

BB53

COLD SPEC

 1
87245L - HOSE, HEATER WATER, L
87245-3E370

BB53

NO.6

 1
87245-3E150

BB5#,RZB5#

 2
87245-3E380

BB53

NO.7

 1
87245L - HOSE, HEATER WATER, L
87245-3E370

BB53

NO.6

 1
87245-3E150

BB5#,RZB5#

 2
87245-3E380

BB53

NO.7

 1
87245L - HOSE, HEATER WATER, L
87245-3E370

BB53

NO.6

 1
87245-3E150

BB5#,RZB5#

 2
87245-3E380

BB53

NO.7

 1
87245L - HOSE, HEATER WATER, L
87245-3E370

BB53

NO.6

 1
87245-3E150

BB5#,RZB5#

 2
87245-3E380

BB53

NO.7

 1
87245L - HOSE, HEATER WATER, L
87245-3E370

BB53

NO.6

 1
87245-3E150

BB5#,RZB5#

 2
87245-3E380

BB53

NO.7

 1
87251D - JOINT, WATER, NO.1
87251-36240

BB5#

 2
87251-36240

BB5#..20S,23S,24S

 1
87251E - JOINT, WATER, NO.2
87251-36250

BB5#

 1
87251-36251

BB5#..20S,23S,24S

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-3E030

BB5#

 1
87245-3E030

BB5#..20S,23S,24S

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-3E010

BB5#,RZB5#

 1
87245-3E010

BB5#,RZB5#,TRB53,XZB53

 1
Common parts
87124-36490
87124-36550
87124-36560
90179-06206
90467-21010
90467-23009
91651-60616
91651-B0820
96134-42100
Linked diagrams
8712

ILLUST NO. 3 OF 3(0310-0701)BB53 ; (0701- )XZB53

Click highlighted areas on diagram

HEATER WATER PUMP

diagram 87208E 87245X 87245X 87260 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 9331915012 9331915012 9331915012 9331915012 9611210360 9611210360 9611210360 9611210360
Part # Description Qty Price
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36790

BB53

 1
87208-3B080

BB53

 1
87245X - HOSE, HEATER WATER
87245-3E390

BB5#..20S,23S,24S

NO.1

 1
87245-3E400

BB5#..20S,23S,24S

NO.2

 1
87245X - HOSE, HEATER WATER
87245-3E390

BB5#..20S,23S,24S

NO.1

 1
87245-3E400

BB5#..20S,23S,24S

NO.2

 1
87260 - PUMP ASSY, HEATER
87260-36040

BB5#

 1
87260-36070

BB5#..20S,23S,24S

 1
Common parts
91651-B0820
93319-15012
96112-10360

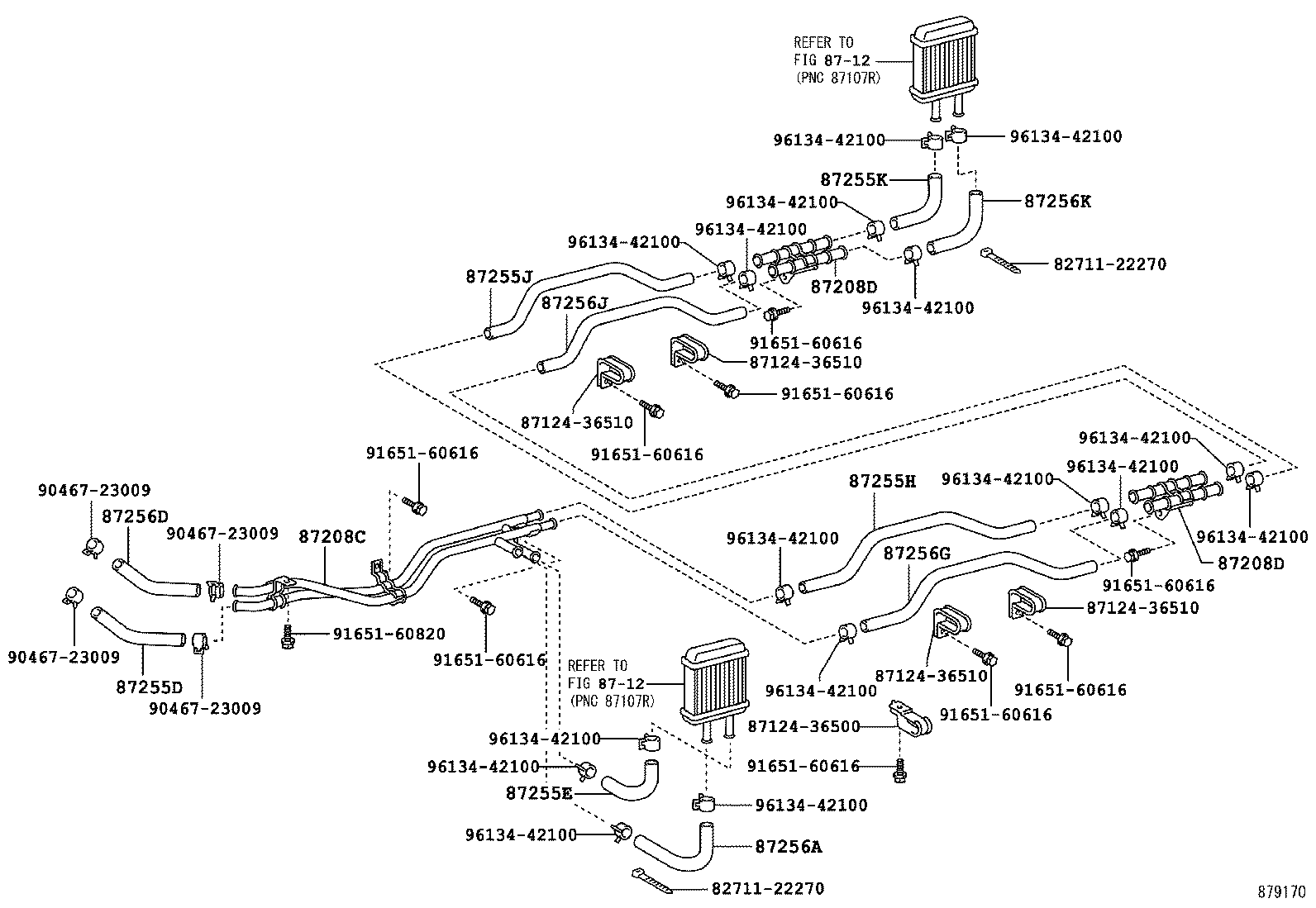

ILLUST NO. 2 OF 3(0310-0701)20S,23S,24S ; (0701- )20S

Click highlighted areas on diagram

REAR

diagram 8271122270 8271122270 8712 8712 8712436500 8712436510 8712436510 8712436510 8712436510 87208C 87208D 87208D 87255D 87255E 87255H 87255J 87255K 87256A 87256D 87256G 87256J 87256K 9046723009 9046723009 9046723009 9046723009 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160616 9165160820 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-36810

BB5#,RZB5#;TRB53,XZB53..20S

 1
87208-36810

BB5#,RZB5#

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-36840

BB5#,RZB5#,TRB53,XZB53

 2
87208-36840

BB5#,RZB5#

 2
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-36840

BB5#,RZB5#,TRB53,XZB53

 2
87208-36840

BB5#,RZB5#

 2
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3C780

BB5#,RZB5#

 1
87245-3C780

BB5#,RZB5#,TRB53,XZB53

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3C810

BB53,RZB53

 1
87245-3C810

TRB53,XZB53..20S;BB5#,RZB5#..20S,23S,24S

 1
87255H - HOSE, HEATER WATER INLET, H
99556-31000

BB5#,RZB5#,TRB53,XZB53

 1
99556-31000

BB5#,RZB5#

 1
87255J - HOSE, HEATER WATER INLET, J
99556-31000

BB5#,RZB5#

*H,L=720

 1
99556-31000

BB5#,RZB5#,TRB53,XZB53

*H,L=720

 1
87255K - HOSE, REAR HEATER WATER INLET, K
87245-3E230

TRB53,XZB53..20S;BB5#,RZB5#..20S,23S,24S

 1
87245-3E230

BB53,RZB53

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3C820

BB53,RZB53

 1
87245-3C820

TRB53,XZB53..20S;BB5#,RZB5#..20S,23S,24S

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-3C780

BB5#,RZB5#,TRB53,XZB53

 1
87245-3C780

BB5#,RZB5#

 1
87256G - HOSE, REAR HEATER WATER OUTLET, G
99556-31000

BB5#,RZB5#

*H,L=980

 1
99556-31000

BB5#,RZB5#;TRB53,XZB53..20S

*H,L=980

 1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000

BB5#,RZB5#,TRB53,XZB53

*H,L=720

 1
99556-31000

BB5#,RZB5#

*H,L=720

 1
87256K - HOSE, REAR HEATER WATER OUTLET, K
87245-3E240

BB53,RZB53

 1
87245-3E240

TRB53,XZB53..20S;BB5#,RZB5#..20S,23S,24S

 1
Common parts
82711-22270
87124-36500
87124-36510
90467-23009
91651-60616
91651-60820
96134-42100
Linked diagrams
8712
