BB53L-ZCMEW (2003)
Toyota Coaster (China)
ILLUST NO. 2 OF 4(0012-1108)
FRONT AIR DUCT & DAMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-36020 |
BB5#,RZB5# |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-36010 |
BB5#,RZB5# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-36020 |
BB5#,RZB5# |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-36020 |
BB5#,RZB5# |
1 | ||
| 87114-36020 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-36290 |
BB5# |
1 | ||
| 87138-36300 |
BB5# |
1 | ||
| 87138-36290 |
BB5# W(REAR HEATER) |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-36140 |
BB5# W(REAR HEATER) |
1 | ||
| 87210-36080 |
BB5# |
1 | ||
| 87210-36140 |
BB5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-36090 |
BB5#,RZB5# |
1 | ||
| 85999-36090 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 88630K - RELAY ASSY | ||||
| 88630-36190 |
BB5# |
1 | ||
| 88630-36190 |
BB5#..20S,23S,24S |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-36170 |
BB5# |
1 | ||
| 88650-36170 |
BB5# |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90183-05103 | ||||
| 91651-40616 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 4(0012- )
ROOF AIR DUCT & DAMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-36090 |
BB5# |
1 | ||
| 87106-36080 |
BB5# |
1 | ||
| 88430A - DUCT ASSY, AIR, NO.1 | ||||
| 88430-36310 |
BB5#,RZB5# |
1 | ||
| 88430-36310 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 88430B - DUCT ASSY, AIR, NO.2 | ||||
| 88430-36320 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 88430-36320 |
BB5#,RZB5# |
1 | ||
| 88430C - DUCT ASSY, AIR, NO.3 | ||||
| 88430-36270 |
BB5# |
1 | ||
| 88430-36270 |
BB5# |
1 | ||
| 88430D - DUCT ASSY, AIR, NO.4 | ||||
| 88430-36280 |
BB5# |
1 | ||
| 88430-36280 |
BB5# |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36020 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 88568-36020 |
BB5#,RZB5# |
2 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36020 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 88568-36020 |
BB5#,RZB5# |
2 | ||
| 88580 - DAMPER ASSY, AIR | ||||
| 88580-36040 |
BB5# |
1 | ||
| 88580-36040 |
BB5# |
1 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36140 |
BB5# |
3 | ||
| 88635-36140 |
BB5# |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36140 |
BB5# |
3 | ||
| 88635-36140 |
BB5# |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36140 |
BB5# |
3 | ||
| 88635-36140 |
BB5# |
3 | ||
| Common parts | ||||
| 88569-36370 | ||||
| 91621-40614 | ||||
| 93313-15016 | ||||

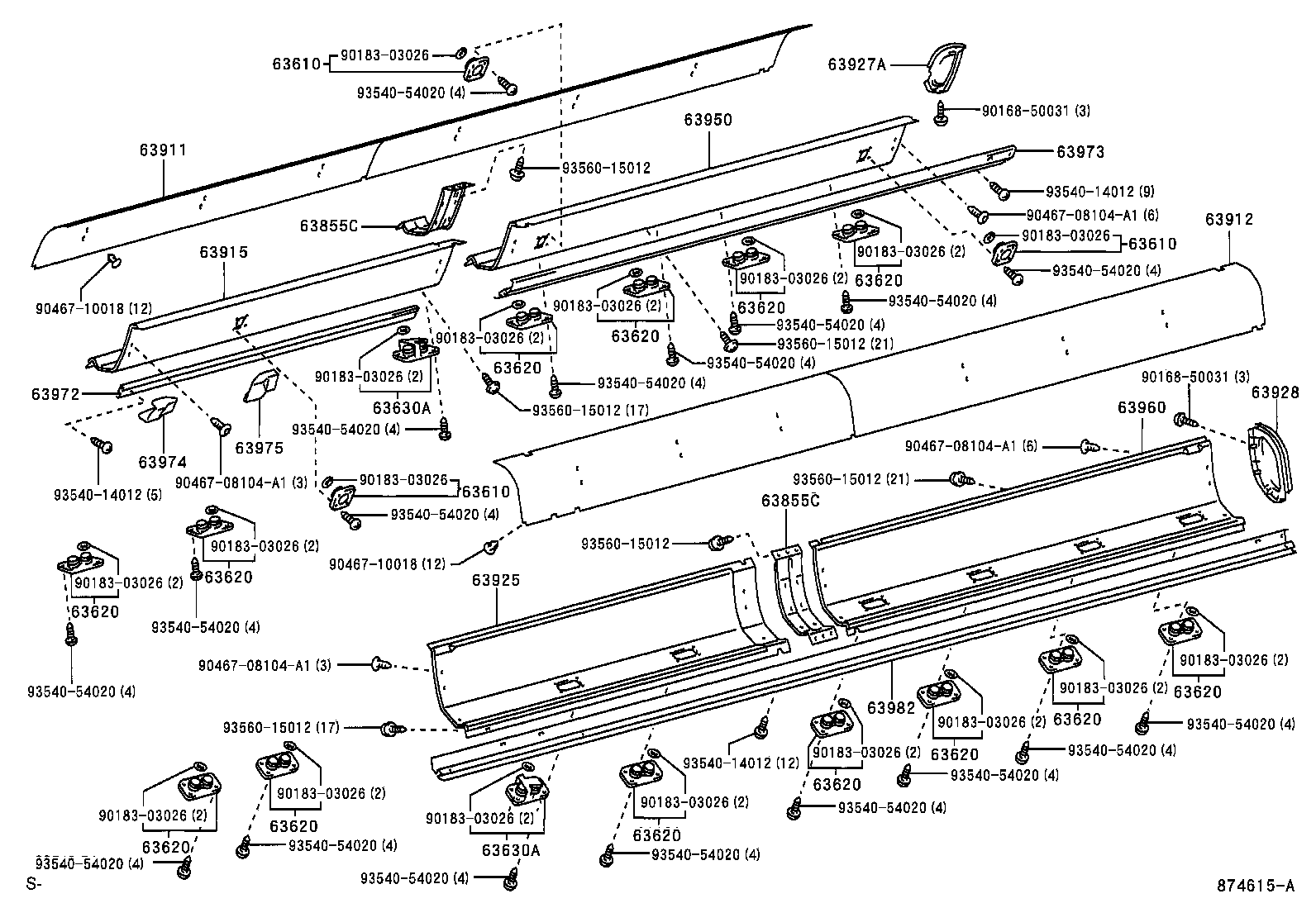

ILLUST NO. 4 OF 4(0310- )
ROOF AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00A1 |
BB5#,RZB5# IVORY,TRIM4# |
3 | ||
| 63610-90B00A1 |
BB5#,RZB5# IVORY,TRIM4# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00A1 |
BB5#,RZB5# IVORY,TRIM4# |
3 | ||
| 63610-90B00A1 |
BB5#,RZB5# IVORY,TRIM4# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00A1 |
BB5#,RZB5# IVORY,TRIM4# |
3 | ||
| 63610-90B00A1 |
BB5#,RZB5# IVORY,TRIM4# |
3 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63640-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
13 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
2 | ||
| 63630-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
2 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
2 | ||
| 63630-36010A1 |
BB5#,RZB5# IVORY,TRIM4# |
2 | ||
| 63855C - RETAINER, ROOF VENTILATOR DUCT | ||||
| 63855-36020 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 63855-36020 |
BB5#,RZB5# |
2 | ||
| 63855C - RETAINER, ROOF VENTILATOR DUCT | ||||
| 63855-36020 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 63855-36020 |
BB5#,RZB5# |
2 | ||
| 63911 - DUCT, COOLER, OUTER RH | ||||
| 63911-36050 |
BB5#,RZB5# |
1 | ||
| 63911-36050 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 63912 - DUCT, COOLER, OUTER LH | ||||
| 63911-36050 |
BB5#,RZB5# |
1 | ||
| 63911-36050 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63930-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63940-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63927A - COVER, COOLER DUCT END, NO.1 | ||||
| 63927-36030 |
BB5#,RZB5# |
1 | ||
| 63927-36030 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 63928 - COVER, COOLER DUCT END, NO.2 | ||||
| 63928-36030 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 63928-36030 |
BB5#,RZB5# |
1 | ||
| 63950 - DUCT ASSY, COOLER, INNER NO.2 RH | ||||
| 63950-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63960 - DUCT ASSY, COOLER, INNER NO.2 LH | ||||
| 63960-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63972 - MOULDING, COOLER DUCT SIDE, NO.1 RH | ||||
| 63972-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63972-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63973 - MOULDING, COOLER DUCT SIDE, NO.2 RH | ||||
| 63973-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63973-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63974 - MOULDING, COOLER DUCT SIDE, NO.3 RH | ||||
| 63974-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63975 - MOULDING, COOLER DUCT SIDE, NO.4 RH | ||||
| 63975-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63982 - MOULDING, COOLER DUCT SIDE, NO.1 LH | ||||
| 63982-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| 63982-36010A0 |
BB5#,RZB5# IVORY,TRIM4# |
1 | ||
| Common parts | ||||
| 90168-50031 | ||||
| 90183-03026 | ||||
| 90467-08104A1 | ||||
| 90467-10018 | ||||
| 93540-14012 | ||||
| 93540-54020 | ||||
| 93560-15012 | ||||
ILLUST NO. 1 OF 4(0310-0701)
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-36020 |
BB5#,RZB5# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-36030 |
BB5#,RZB5# W(REAR HEATER) |
8 | ||
| 55905-36030 |
BB5#,RZB5#,TRB53,XZB53 |
8 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-36080 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 55906-36080 |
BB5#,RZB5# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-36080 |
BB53,RZB53 |
1 | ||
| 55907-36080 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 55907F - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-36111 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 55907-36110 |
BB5#,RZB5# |
1 | ||
| 55907-36110 |
BB5#,RZB5# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-36040 |
BB5#,RZB5# |
1 | ||
| 55908-36040 |
BB5#,RZB5# |
1 | ||
| 55908-36070 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-36151 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 55910-36151 |
BB5#,RZB5# W(REAR HEATER) |
1 | ||
| 87190 - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-36010 |
BB5# |
1 | ||
| 87190-36010 |
BB5#..20S,23S,24S |
1 | ||
| Common parts | ||||
| 90179-06206 | ||||
| 90461-10722 | ||||
| 90464-00298 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
