BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0701)BB5#

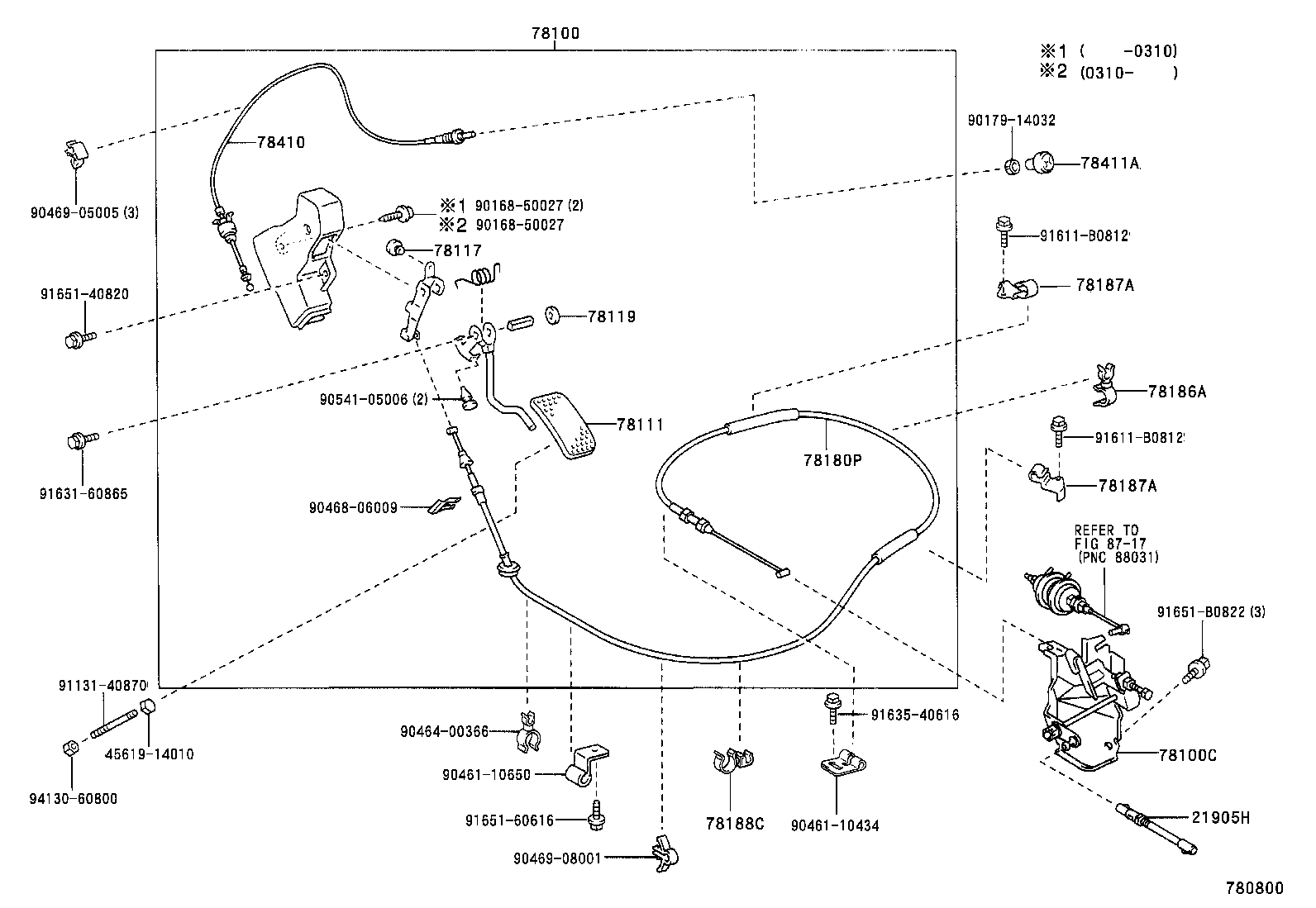

Click highlighted areas on diagram

diagram 21905H 4561914010 78100 78100C 78111 78117 78119 78180P 78186A 78187A 78187A 78188C 78410 78411A 8717 9016850027 9016850027 9017914032 9046110434 9046110650 9046400366 9046806009 9046905005 9046908001 9054105006 9113140870 91611B0812 91611B0812 9163160865 9163540616 9165140820 9165160616 91651B0822 9413060800
Part # Description Qty Price
21905H - ROD SUB-ASSY, ACCELERATOR CONNECTING
21905-58061

15BF..BB5#

 1
21905-58090

15BFT..BB5#..20S,23S,24S

 1
78100 - LINK ASSY, ACCELERATOR
78100-36250

BB53

 1
78100-36290

BB53

 1
78100C - LINK ASSY, ACCELERATOR, NO.2
78100-37680

BB5#

 1
78100-36160

BB5#..20S,23S,24S

 1
78111 - PEDAL, ACCELERATOR
78111-95110

BB5#,RZB5#,TRB53,XZB53

 1
78111-95110

BB5#,RZB5#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

BB5#,RZB5#

 1
90541-06036

BB5#,RZB5#

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00

BB5#,RZB5#

 1
78119-95J00

BB5#,RZB5#..20S,23S,24S

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-36250

BB53

 1
78180-36290

BB53

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-36030

BB5#..20S,23S,24S

 1
78187A - CLAMP, ACCELERATOR CONTROL CABLE, NO.4
78187-36030

BB5#

 1
78187-36030

BB5#..20S,23S,24S

 2
78187A - CLAMP, ACCELERATOR CONTROL CABLE, NO.4
78187-36030

BB5#

 1
78187-36030

BB5#..20S,23S,24S

 2
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-36030

BB5#..20S,23S,24S

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-36300

BB5#..20S,23S,24S

 1
78410-36300

BB5#

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78402-60030

BB5#

 1
78402-60030

BB5#..20S,23S,24S

 1
Common parts
45619-14010
90168-50027
90179-14032
90461-10434
90461-10650
90464-00366
90468-06009
90469-05005
90469-08001
90541-05006
91131-40870
91611-B0812
91631-60865
91635-40616
91651-40820
91651-60616
91651-B0822
94130-60800
Linked diagrams
8717
