BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0012-0809)

Click highlighted areas on diagram

FUEL TANK

diagram 77011 77011 77017B 77023 77026A 77035 77037 77051 77100 77100A 77100B 77135 77169A 77169A 77178 77178 77179A 77179A 77201 77203A 77213B 77219 77219 77259A 77259A 77259C 77290 77293A 77310A 77316 77350 77366 77377 77380 77391 77420 77611 77611 77611A 77613A 77651A 77651A 77651A 77652A 77652A 77653A 77653A 77653A 77653A 77655 77655 77681A 77681A 77701T 8401 8401 9015950217 9015950219 9015950219 9015950219 9015950219 9015950278 9015960008 9015960008 9017905011 9017905042 9017910074 9018305094 9018906099 9018906099 9046022002 9046046005 9046709007 9046814004 9048014003 9165160616 9165161025 91651A0816 91655B1040 93319A4010 93319A4010 9356855014 9613251100
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12130

BB5#,RZB5#

 1
77011-12130

BB5#,RZB5#

 1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12130

BB5#,RZB5#

 1
77011-12130

BB5#,RZB5#

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36450

BB5#

 1
77017-36450

BB5#..20S,23S,24S

 1
77017-36451

BB5#

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-36010

BB5#

 1
77023-36010

BB5#..20S,23S,24S

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-36020

BB5#,RZB5#,TRB53,XZB53

 1
77026-36020

BB5#,RZB5#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-36060

BB5#,RZB5#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050

BB5#,RZB5#,TRB53,XZB53

 1
77037-12050

BB5#,RZB5#

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-30060E1

BB5#,RZB5#

GREIGE,TRIM4#

 1
77100 - TANK ASSY, FUEL
77001-3B290

BB5#,RZB5#

 1
77001-3B290

BB5#,RZB5#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BB5#,RZB5#

 1
90105-12116

BB5#,RZB5#,TRB53,XZB53

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB5#,RZB5#

 1
90430-12245

BB5#,RZB5#,TRB53,XZB53

 1
77135 - BRACKET, CHECK VALVE
77135-36040

BB5#..20S,23S,24S

 1
77135-36040

BB5#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-32010

BB5#,RZB5#

 1
77169-32010

BB5#,RZB5#,TRB53,XZB53

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-32010

BB5#,RZB5#

 1
77169-32010

BB5#,RZB5#,TRB53,XZB53

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

BB5#,RZB5#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

BB5#,RZB5#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

BB5#,RZB5#

 2
77179-26010

BB5#,RZB5#,TRB53,XZB53

 2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

BB5#,RZB5#

 2
77179-26010

BB5#,RZB5#,TRB53,XZB53

 2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-36180

BB5#,RZB5#

 1
77201-36180

BB5#,RZB5#,TRB53,XZB53

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-36090

BB5#,RZB5#,XZB53

 1
77213-36090

BB5#,RZB5#

 1
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030

BB5#,RZB5#

 2
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030

BB5#,RZB5#

 2
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-36070

BB5#,RZB5#

 1
77259-36070

BB5#,RZB5#,XZB53

 1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-36070

BB5#,RZB5#

 1
77259-36070

BB5#,RZB5#,XZB53

 1
77259C - HOSE, FUEL
77259-36090

BB5#..20S,23S,24S

 1
77259-36090

BB5#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12060

BB5#,RZB5#,TRB53,XZB53

 1
77291-12060

BB5#,RZB5#

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-12030

BB5#,RZB5#

 1
77293-12030

BB5#,RZB5#,TRB53,XZB53

 1
77310A - CAP ASSY, FUEL TANK
77310-12150

BB5#

 1
77310-12150

BB5#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

BB5#,RZB5#

 1
77316-16010

BB5#,RZB5#

 1
77316-52040

BB5#,RZB5#,TRB53,XZB53

JAPAN SOURCED PARTS

 1
77316-52020

BB5#,RZB5#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-36010

BB5#,RZB5#

 1
77350-36010

BB5#,RZB5#

 1
77350-36011

BB5#,RZB5#,TRB53,XZB53

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-36010

BB5#,RZB5#,TRB53,XZB53

 1
77360-36010

BB5#,RZB5#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030

BB5#,RZB5#,TRB53,XZB53

 1
77377-20030

BB5#,RZB5#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

BB5#,RZB5#

 1
77380-26010

BB5#,RZB5#,TRB53,XZB53

 1
77391 - RING, FUEL INLET BOX
77391-14020

BB5#,RZB5#,TRB53,XZB53

 1
77391-14020

BB5#,RZB5#

 1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010

BB5#,RZB5#

 1
77420-26010

BB5#,RZB5#,TRB53,XZB53

 1
77611 - BAND, FUEL TANK
77601-36120

BB5#,RZB5#,TRB53,XZB53

 2
77601-36120

BB5#,RZB5#

 2
77611 - BAND, FUEL TANK
77601-36120

BB5#,RZB5#,TRB53,XZB53

 2
77601-36120

BB5#,RZB5#

 2
77611A - PIN (FOR FUEL TANK BAND)
90240-08047

BB5#,RZB5#,TRB53,XZB53

 2
90240-08047

BB5#,RZB5#

 2
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-36030

BB5#,RZB5#,TRB53,XZB53

 2
77613-36030

BB5#,RZB5#

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36130

BB5#,RZB5#,TRB53,XZB53

 3
77651-36130

BB5#,RZB5#

 3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130

BB5#,RZB5#,TRB53,XZB53

 3
77651-36130

BB5#,RZB5#

 3
77651A - CUSHION, FUEL TANK, NO.1
77651-36130

BB5#,RZB5#,TRB53,XZB53

 3
77651-36130

BB5#,RZB5#

 3
77652A - CUSHION, FUEL TANK, NO.2
77652-36010

BB5#,RZB5#

 2
77652-36010

BB5#,RZB5#,TRB53,XZB53

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-36010

BB5#,RZB5#

 2
77652-36010

BB5#,RZB5#,TRB53,XZB53

 2
77653A - CUSHION, FUEL TANK, NO.3
77653-36010

BB5#,RZB5#,TRB53,XZB53

 2
77653-36010

BB5#,RZB5#

 4
77653-36010

BB5#,RZB5#

 4
77653A - CUSHION, FUEL TANK, NO.3
77653-36010

BB5#,RZB5#,TRB53,XZB53

 2
77653-36010

BB5#,RZB5#

 4
77653-36010

BB5#,RZB5#

 4
77653A - CUSHION, FUEL TANK, NO.3
77653-36010

BB5#,RZB5#,TRB53,XZB53

 2
77653-36010

BB5#,RZB5#

 4
77653-36010

BB5#,RZB5#

 4
77653A - CUSHION, FUEL TANK, NO.3
77653-36010

BB5#,RZB5#,TRB53,XZB53

 2
77653-36010

BB5#,RZB5#

 4
77653-36010

BB5#,RZB5#

 4
77655 - CUSHION, FUEL TANK, NO.3
77653-36020

BB5#,RZB5#,TRB53,XZB53

 2
77655 - CUSHION, FUEL TANK, NO.3
77653-36020

BB5#,RZB5#,TRB53,XZB53

 2
77681A - SEAT, FUEL TANK BAND
77681-36050

BB5#,RZB5#,TRB53,XZB53

 2
77681-36050

BB5#,RZB5#

 2
77681A - SEAT, FUEL TANK BAND
77681-36050

BB5#,RZB5#,TRB53,XZB53

 2
77681-36050

BB5#,RZB5#

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

BB5#

 1
90917-10020

BB5#..20S,23S,24S

 1
Common parts
90159-50217
90159-50219
90159-50278
90159-60008
90179-05011
90179-05042
90179-10074
90183-05094
90189-06099
90460-22002
90460-46005
90467-09007
90468-14004
90480-14003
91651-60616
91651-61025
91651-A0816
91655-B1040
93319-A4010
93568-55014
96132-51100
Linked diagrams
8401

ILLUST NO. 2 OF 2(0310-0407)BB5#

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 2202 2202 2202 2202 2202 77205A 77207B 77208A 77251C 77251C 77251D 77251D 77254D 77278E 77279C 77285 9046715012 9046715012 9046715012 9046715012 9048001552 9048001552 9048001552 9048001552 9094901481 9165160616 9165160616 9165160616 9165160616 9613251100 9613251100 9613251100
Part # Description Qty Price
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-3B200

BB53

 1
77205-3B230

BB53

 1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36250

BB5#

 1
77207-36220

BB5#

 1
77207-36270

BB5#

 1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36240

BB5#

 1
77208-36240

BB5#

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95332-10018

BB5#

*H,L=180

 1
77259-36130

BB53

NO.2

 1
95332-10018

BB5#

*H,L=180,NO.1

 1
95332-10030

BB5#

*H,L=240,NO.1

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95332-10018

BB5#

*H,L=180

 1
77259-36130

BB53

NO.2

 1
95332-10018

BB5#

*H,L=180,NO.1

 1
95332-10030

BB5#

*H,L=240,NO.1

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-10030

BB5#..20S,23S,24S

*H,L=260,NO.2

 1
95333-06030

BB5#..20S,23S,24S

*H,L=220,NO.1

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-10030

BB5#..20S,23S,24S

*H,L=260,NO.2

 1
95333-06030

BB5#..20S,23S,24S

*H,L=220,NO.1

 1
77254D - HOSE, FUEL
95332-10018

BB5#..20S,23S,24S

 1
95332-10018

BB5#

 1
77278E - HOSE, FUEL
95333-06020

BB5#

 1
95333-06020

BB5#

 1
95333-06030

BB5#..20S,24S,29S

 1
77279C - HOSE, FUEL
95333-06020

BB5#

 1
95333-06020

BB5#

 1
77285 - BRACKET, FUEL TUBE
77281-36010

BB5#,RZB5#,TRB53,XZB53

 1
77281-36010

BB5#,RZB5#

 1
Common parts
90467-15012
90480-01552
90949-01481
91651-60616
96132-51100
Linked diagrams
2202

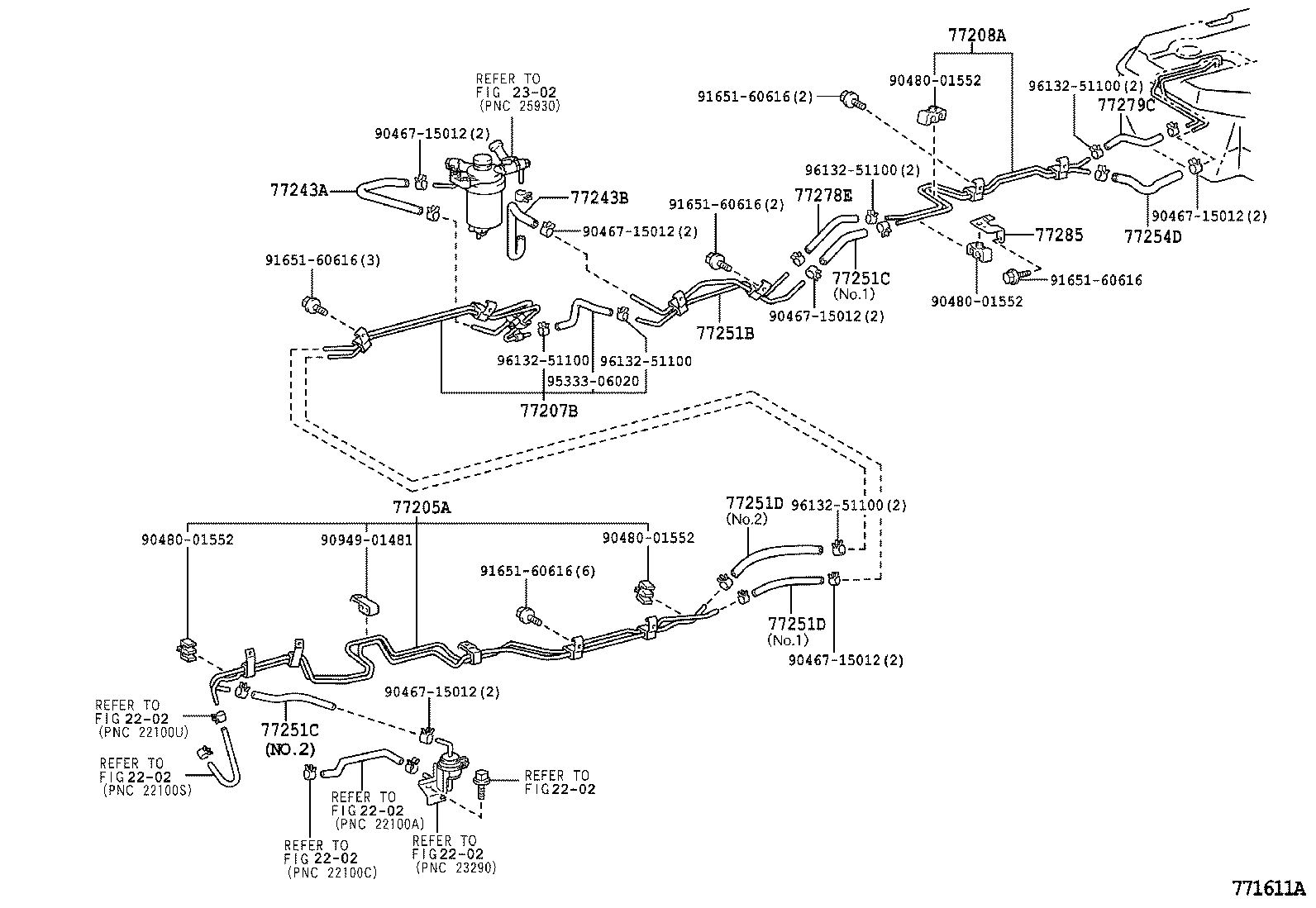

ILLUST NO. 2 OF 2(0407- )BB5#

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 2202 2202 2202 2202 2202 2302 77205A 77207B 77208A 77243A 77243B 77251B 77251C 77251C 77251D 77251D 77254D 77278E 77279C 77285 9046715012 9046715012 9046715012 9046715012 9046715012 9046715012 9048001552 9048001552 9048001552 9048001552 9094901481 9165160616 9165160616 9165160616 9165160616 9165160616 9533306020 9613251100 9613251100 9613251100 9613251100 9613251100
Part # Description Qty Price
77205A - TUBE SUB-ASSY, FUEL MAIN
77205-3B200

BB53

 1
77205-3B230

BB53

 1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-36250

BB5#

 1
77207-36220

BB5#

 1
77207-36270

BB5#

 1
77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4
77208-36240

BB5#

 1
77208-36240

BB5#

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
77259-36240

BB5#..20S,23S,24S

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77259-36250

BB5#..20S,23S,24S

 1
77251B - TUBE, FUEL MAIN
77207-36280

BB5#..20S,23S,24S

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95332-10018

BB5#

*H,L=180

 1
77259-36130

BB53

NO.2

 1
95332-10018

BB5#

*H,L=180,NO.1

 1
95332-10030

BB5#

*H,L=240,NO.1

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95332-10018

BB5#

*H,L=180

 1
77259-36130

BB53

NO.2

 1
95332-10018

BB5#

*H,L=180,NO.1

 1
95332-10030

BB5#

*H,L=240,NO.1

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-10030

BB5#..20S,23S,24S

*H,L=260,NO.2

 1
95333-06030

BB5#..20S,23S,24S

*H,L=220,NO.1

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-10030

BB5#..20S,23S,24S

*H,L=260,NO.2

 1
95333-06030

BB5#..20S,23S,24S

*H,L=220,NO.1

 1
77254D - HOSE, FUEL
95332-10018

BB5#..20S,23S,24S

 1
95332-10018

BB5#

 1
77278E - HOSE, FUEL
95333-06020

BB5#

 1
95333-06020

BB5#

 1
95333-06030

BB5#..20S,24S,29S

 1
77279C - HOSE, FUEL
95333-06020

BB5#

 1
95333-06020

BB5#

 1
77285 - BRACKET, FUEL TUBE
77281-36010

BB5#,RZB5#,TRB53,XZB53

 1
77281-36010

BB5#,RZB5#

 1
Common parts
90467-15012
90480-01552
90949-01481
91651-60616
95333-06020
96132-51100
Linked diagrams
2202
2302
