BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0012- )

Click highlighted areas on diagram

diagram 58285C 9033325001 9033325001 9095001348 9095001348 9095001348 9095006034 9095006034 9095006034 9095006034 9095006034
Part # Description Qty Price
58285C - COVER, REAR FLOOR HOLE
62429-36010

BB5#,RZB5#,TRB53,XZB53

 1
62429-36010

BB5#,RZB5#

 1
Common parts
90333-25001
90950-01348
90950-06034

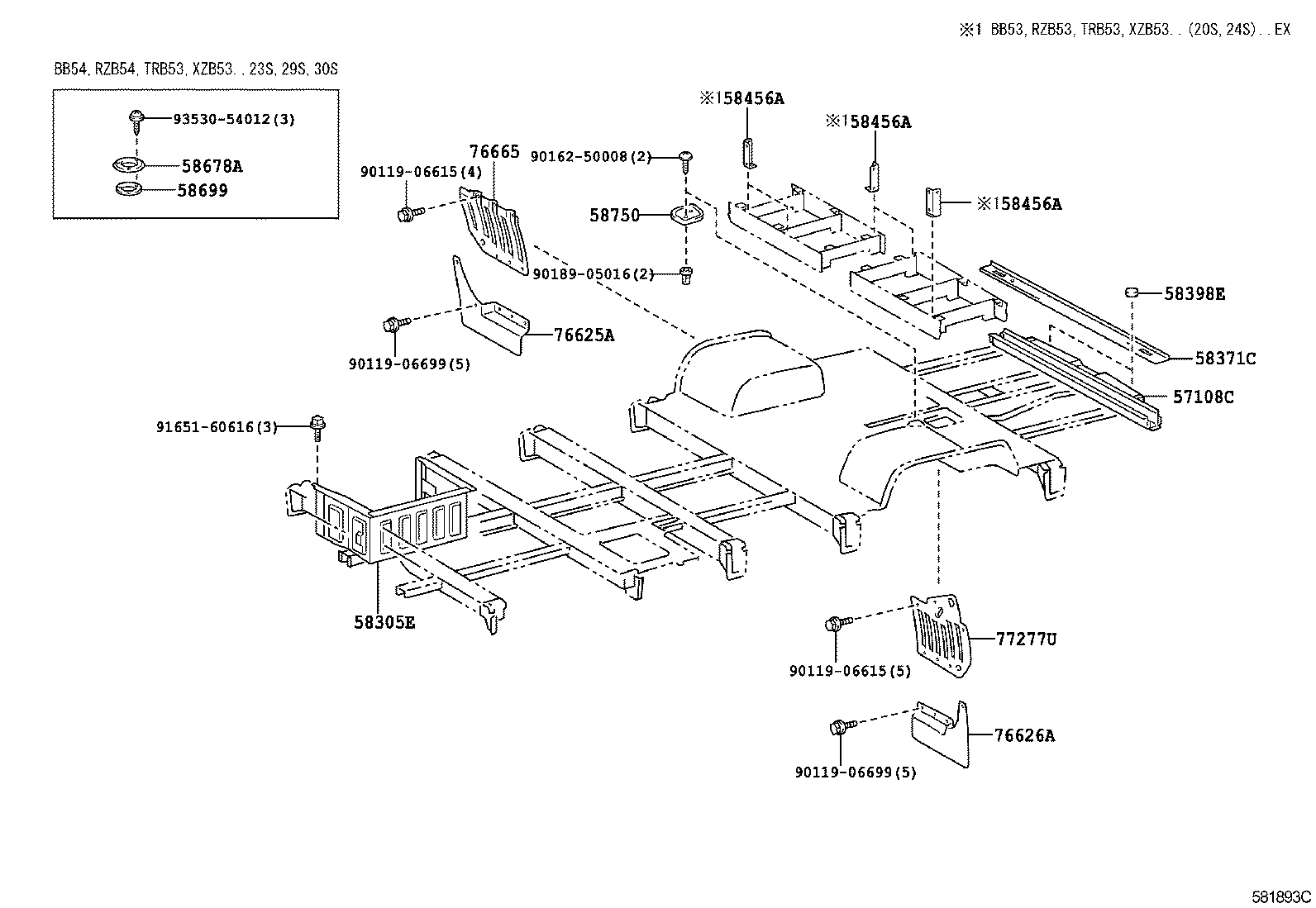

ILLUST NO. 1 OF 3(0310- )

Click highlighted areas on diagram

diagram 57108C 58305E 58371C 58398E 58456A 58456A 58456A 58678A 58699 58750 76625A 76626A 76665 77277U 9011906615 9011906615 9011906699 9011906699 9016250008 9018905016 9165160616 9353054012
Part # Description Qty Price
57108C - CROSSMEMBER SUB-ASSY, FLOOR, NO.8
57108-36030

BB5#,RZB5#

 1
57108-36030

BB5#,RZB5#,TRB53,XZB53..CBU

 1
58305E - PANEL SUB-ASSY, CENTER DOOR STEP
58305-36240

BB53,RZB53

 1
58371C - PANEL, BODY LOWER BACK, UPPER
58371-36010

BB5#,RZB5#

 1
58371-36010

BB5#,RZB5#,TRB53,XZB53

 1
58398E - COVER, FLOOR UNDER, NO.1
58398-36020

BB5#,RZB5#

 4
58398-36020

BB5#,RZB5#

 2
58398-36020

BB5#,RZB5#

 2
58398-36020

BB5#,RZB5#..20S,24S

 2
58456A - PANEL, REAR FLOOR BOARD, NO.2 A
58456-36010

BB53,RZB53

 5
58456-36010

BB53,RZB53..24S

 5
58456A - PANEL, REAR FLOOR BOARD, NO.2 A
58456-36010

BB53,RZB53

 5
58456-36010

BB53,RZB53..24S

 5
58456A - PANEL, REAR FLOOR BOARD, NO.2 A
58456-36010

BB53,RZB53

 5
58456-36010

BB53,RZB53..24S

 5
58750 - COVER ASSY, FUEL TANK INSPECTION HOLE
58750-36020E0

BB5#,RZB5#

GREIGE,TRIM4#

 1
76625A - MUDGUARD, REAR BODY, RH
76625-36030

BB5#,RZB5#

 1
76625-36030

BB5#,RZB5#,TRB53,XZB53

 1
76626A - MUDGUARD, REAR BODY, LH
76626-36030

BB5#,RZB5#

 1
76626-36030

BB5#,RZB5#,TRB53,XZB53

 1
76665 - BRACE, REAR MUDGUARD
76665-36010

BB5#,RZB5#

 1
76665-36020

BB5#,RZB5#,TRB53,XZB53

 1
76665-36010

BB5#,RZB5#

 1
77277U - PROTECTOR, FUEL TANK FILLER PIPE
77277-36010

BB5#,RZB5#

 1
77277-36010

BB5#,RZB5#

 1
77277-36020

BB5#,RZB5#,TRB53,XZB53

 1
Common parts
90119-06615
90119-06699
90162-50008
90189-05016
91651-60616
93530-54012

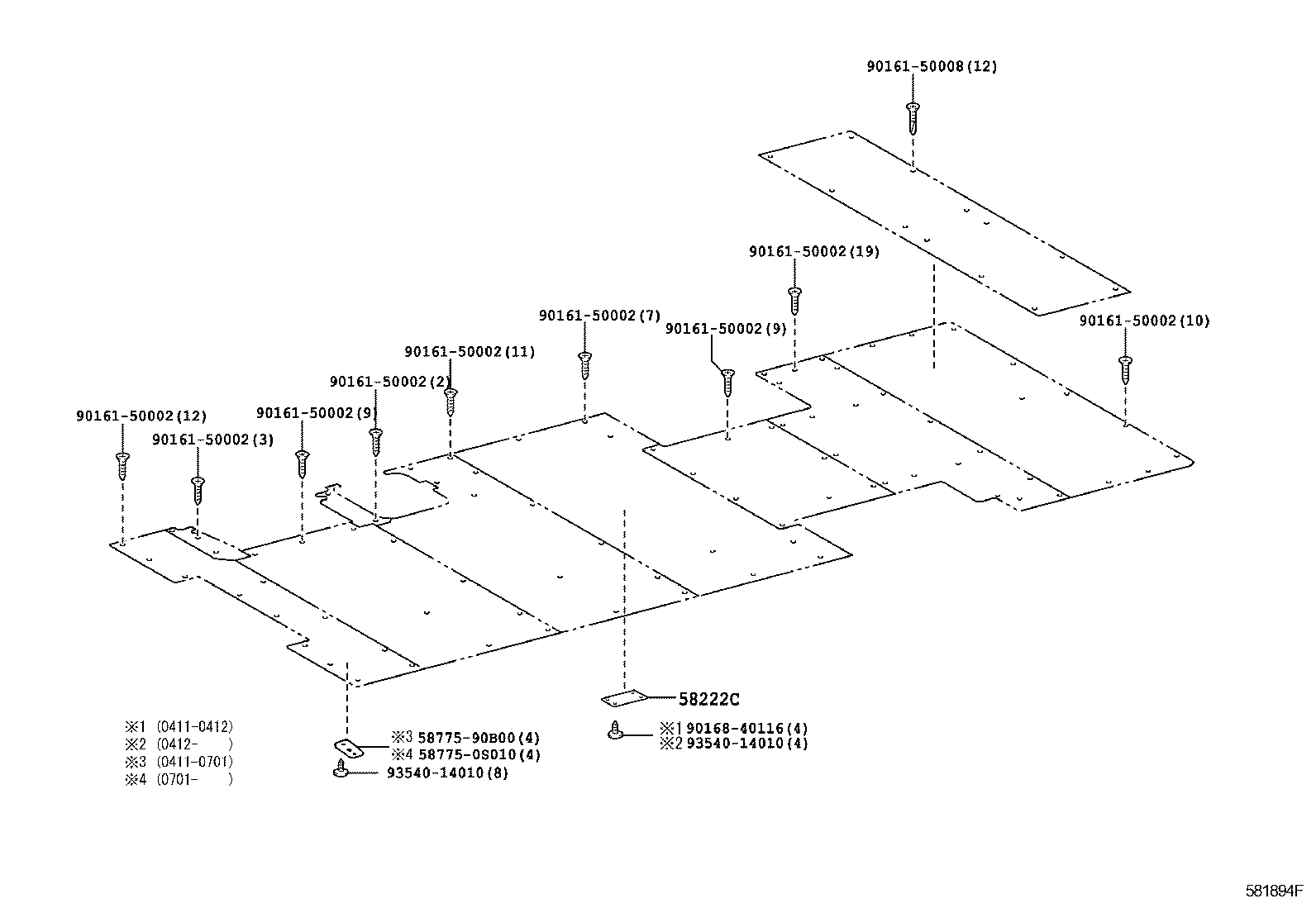

ILLUST NO. 2 OF 3(0310- )

Click highlighted areas on diagram

diagram 58222C 587750S010 5877590B00 9016150002 9016150002 9016150002 9016150002 9016150002 9016150002 9016150002 9016150002 9016150002 9016150008 9016840116 9354014010 9354014010
Part # Description Qty Price
Common parts
58775-0S010
58775-90B00
90161-50002
90161-50008
90168-40116
93540-14010
