BB53L-ZCMEW (2003)
Toyota Coaster (China)
Production
Oct 2003
-
Jan 2007
Engine
15BFT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )BB5#

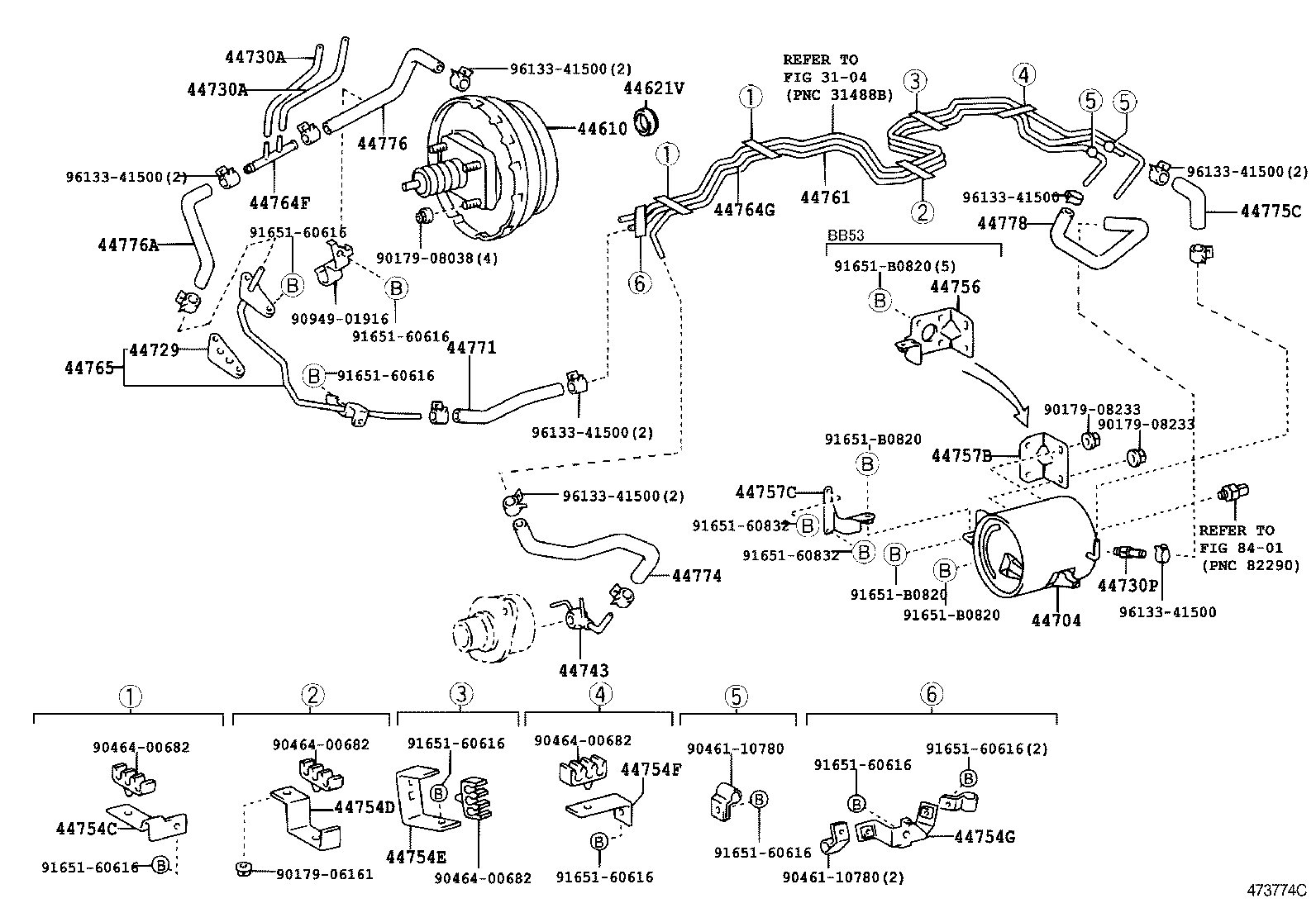

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36530 |
BB53,RZB53 |
1 | ||
| 44610-36630 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36290 |
BB5# |
1 | ||
| 44704-36270 |
BB5#..20S,23S,24S |
1 | ||
| 44704-36270 |
BB5# |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44729-36020 |
BB5#,RZB5# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90999-92002 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90999-92002 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BB5# |
1 | ||
| 44730-60050 |
BB5#..20S,23S,24S |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09181 |
BB5# |
1 | ||
| 90405-09181 |
BB5#..20S,23S,24S |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36090 |
BB5# |
2 | ||
| 44754-36090 |
BB5#..20S,23S,24S |
2 | ||
| 44754D - BRACKET, VACUUM TUBE, NO.2 | ||||
| 44754-36110 |
BB5#..20S,23S,24S |
1 | ||
| 44754-36110 |
BB5# |
1 | ||
| 44754E - BRACKET, VACUUM TUBE, NO.3 | ||||
| 44754-36170 |
BB5# |
1 | ||
| 44754-36170 |
BB5#..20S,23S,24S |
1 | ||
| 44754F - BRACKET, VACUUM TUBE, NO.4 | ||||
| 44754-36130 |
BB5#..20S,23S,24S |
1 | ||
| 44754-36130 |
BB5# |
1 | ||
| 44754G - BRACKET, VACUUM TUBE, NO.5 | ||||
| 44754-36140 |
BB5# |
1 | ||
| 44754-36140 |
BB5#..20S,23S,24S |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44757-36060 |
BB53 |
1 | ||
| 44757-36060 |
BB53 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36220 |
BB5# |
1 | ||
| 44761-36230 |
BB53 |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90414-10043 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-36580 |
BB5#..20S,23S,24S |
1 | ||
| 44764-36560 |
BB53 |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-36310 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 44765-36330 |
BB5# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36240 |
BB5#,RZB5# |
1 | ||
| 44771-36260 |
BB5# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36290 |
BB53 |
1 | ||
| 44774-36350 |
BB53 |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-36030 |
BB5#..20S,23S,24S |
1 | ||
| 44775-36030 |
BB5# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36140 |
BB5#,RZB5# |
1 | ||
| 44776-36100 |
BB5#,RZB5# |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-36150 |
BB5#,RZB5# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36100 |
BB5#..20S,23S,24S |
1 | ||
| 44778-36100 |
BB5# |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90461-10780 | ||||
| 90464-00682 | ||||
| 90949-01916 | ||||
| 91651-60616 | ||||
| 91651-60832 | ||||
| 91651-B0820 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3104 | ||||
| 8401 | ||||
