BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )BB53

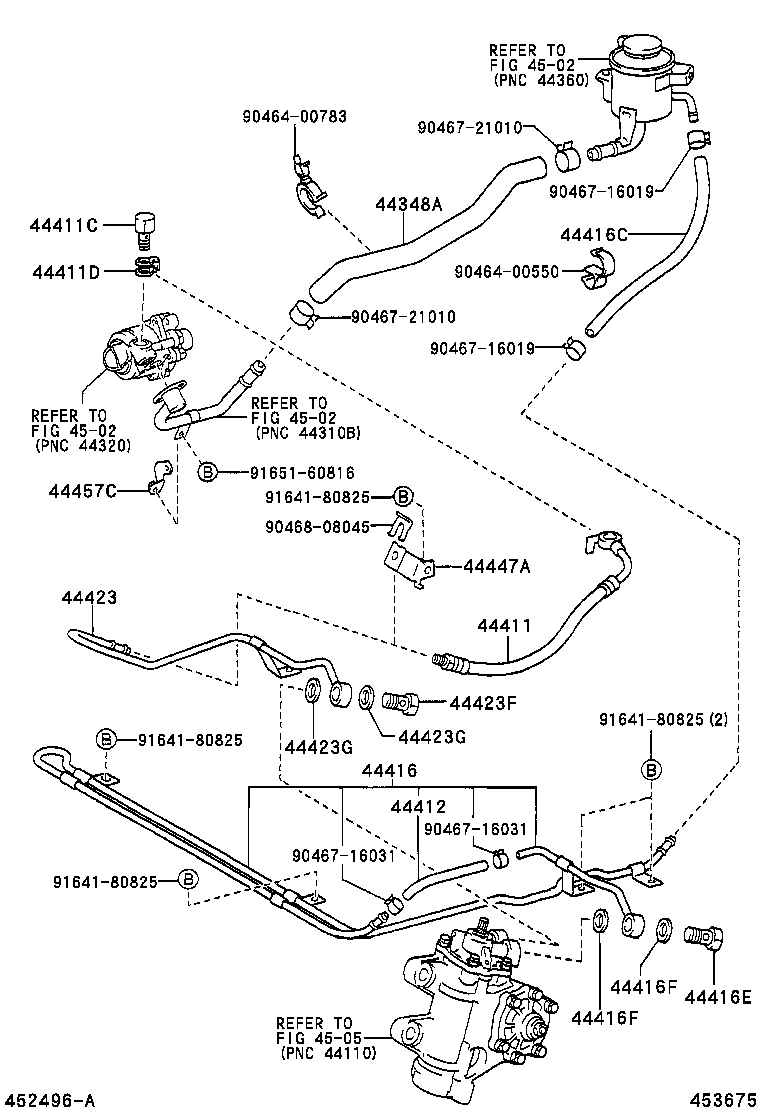

Click highlighted areas on diagram

diagram 44348A 44411 44411C 44411D 44412 44416 44416C 44416E 44416F 44416F 44423 44423F 44423G 44423G 44447A 44457C 4502 4502 4502 4505 9046400550 9046400783 9046716019 9046716019 9046716031 9046716031 9046721010 9046721010 9046808045 9164180825 9164180825 9164180825 9164180825 9165160816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36340

BB5#

 1
44348-37010

BB5#

 1
44348-37011

BB5#

 1
44411 - HOSE, PRESSURE FEED
44411-36371

BB53

 1
44411-36371

BB53

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024

BB5#

 1
90404-16024

BB5#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB5#,RZB5#

 2
44327-30030

BB5#,RZB5#,XZB53

 1
44412 - HOSE, RETURN
90445-18137

BB53,RZB53,TRB53,XZB53

 1
44428-36010

BB53,RZB54

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36390

BB53

 1
44416-36361

BB53,XZB53

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18129

BB53

 1
90445-18150

BB5#

 1
44412-36050

BB5#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB5#,RZB5#

 1
90401-14003

BB5#,RZB5#,TRB53,XZB53

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB5#,RZB5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB5#,RZB5#

 2
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36241

BB53

 1
44423-36241

BB53

 1
44423F - BOLT, UNION
90401-14003

BB5#,RZB5#

 1
90401-14003

BB5#,RZB5#,TRB53,XZB53

 1
44423G - GASKET, UNION BOLT
90430-14235

BB5#,RZB5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB5#,RZB5#

 2
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-36210

BB5#

 1
44447-36210

BB5#..20S,23S,24S

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-36040

BB5#

 1
44457-36040

BB5#..20S,23S,24S

 1
Common parts
90464-00550
90464-00783
90467-16019
90467-16031
90467-21010
90468-08045
91641-80825
91651-60816
Linked diagrams
4502
4505
