BB53L-ZCMEW (2003)
Toyota Coaster (China)
Production
Oct 2003
-
Jan 2007
Engine
15BFT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0012- )

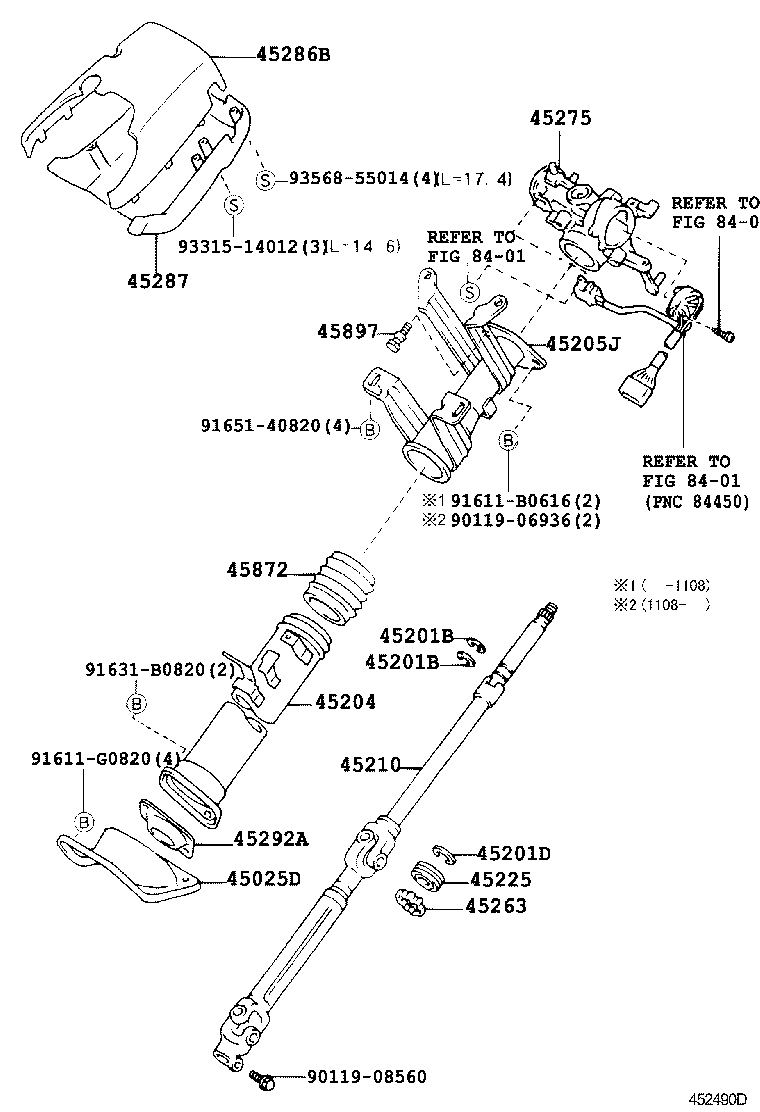

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-36160 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45025-36160 |
BB5#,RZB5# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
BB5#,RZB5#,TRB53,XZB53 T=1.20 |
2 | ||
| 90520-17042 |
BB5#,RZB5# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
BB5#,RZB5#,TRB53,XZB53 T=1.20 |
2 | ||
| 90520-17042 |
BB5#,RZB5# T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 96152-00300 |
BB5#,RZB5# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-36210 |
BB5#,RZB5# |
1 | ||
| 45204-36210 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-36210 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45205-36210 |
BB5#,RZB5# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-36110 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45210-36110 |
BB5#,RZB5# |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45225-26010 |
BB5#,RZB5# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45263-32010 |
BB5#,RZB5# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36230 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45307-36230 |
BB5#,RZB5# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-36860E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-36380E0 |
BB5#,RZB5# GREIGE,TRIM4# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-36060 |
BB5#,RZB5# |
1 | ||
| 45292-36070 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45292-36060 |
BB5#,RZB5# |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-36040 |
BB5#,RZB5# |
1 | ||
| 45872-36040 |
BB5#,RZB5# |
1 | ||
| 45872-36050 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
BB5#,RZB5# |
1 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 91611-B0616 | ||||
| 91611-G0820 | ||||
| 91631-B0820 | ||||
| 91651-40820 | ||||
| 93315-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
