BB53L-ZCMEW (2003)
Toyota Coaster (China)

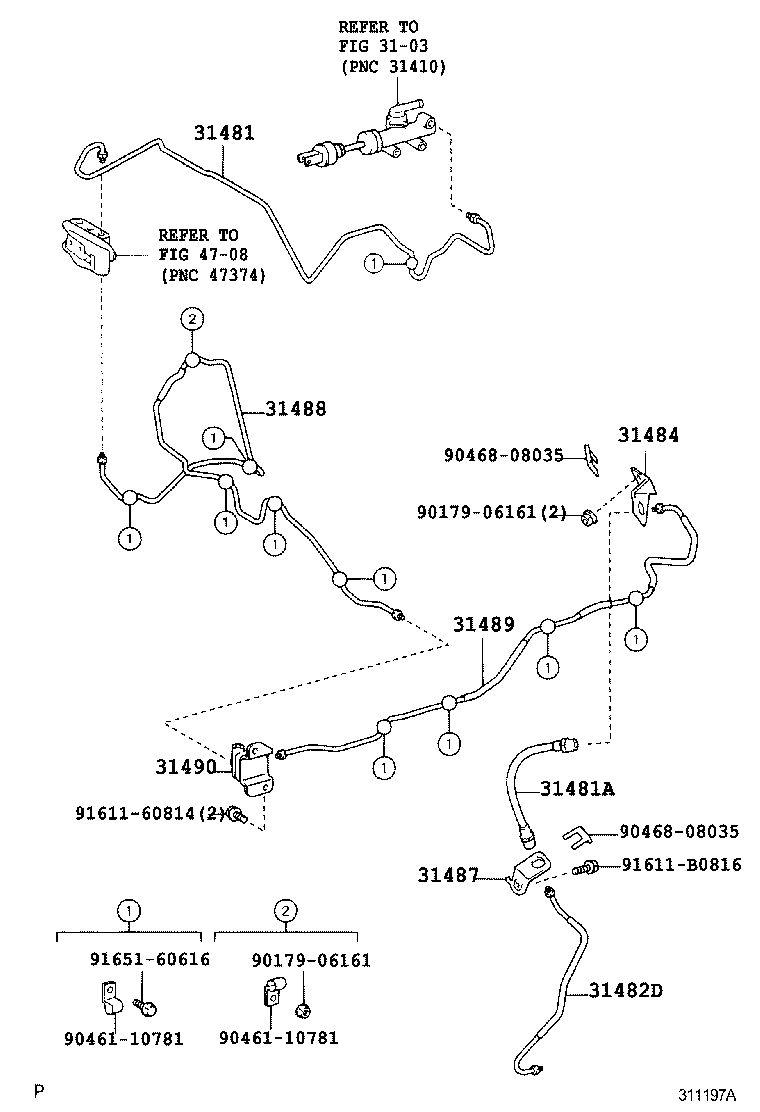

ILLUST NO. 2 OF 2(0310- )BB5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-36470 |
BB5#,RZB5# |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02C21 |
BB53,RZB54 |
1 | ||
| 90947-02C21 |
BB53,RZB54,XZB53 |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-36260 |
BB5# |
1 | ||
| 31482-36320 |
BB5#..20S,23S,24S |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-36230 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 31484-36230 |
BB5#,RZB5# |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36250 |
BB5# |
1 | ||
| 31487-36250 |
BB5# |
1 | ||
| 31488 - TUBE, CONNECTOR TO TUBE CONNECTOR | ||||
| 31488-36651 |
BB5# |
1 | ||
| 31488-36730 |
BB5# |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-36301 |
BB5# |
1 | ||
| 31489-36290 |
BB5# |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-36041 |
BB5# |
1 | ||
| 31490-36030 |
BB5#..20S,23S,24S |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 90468-08035 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 4708 | ||||

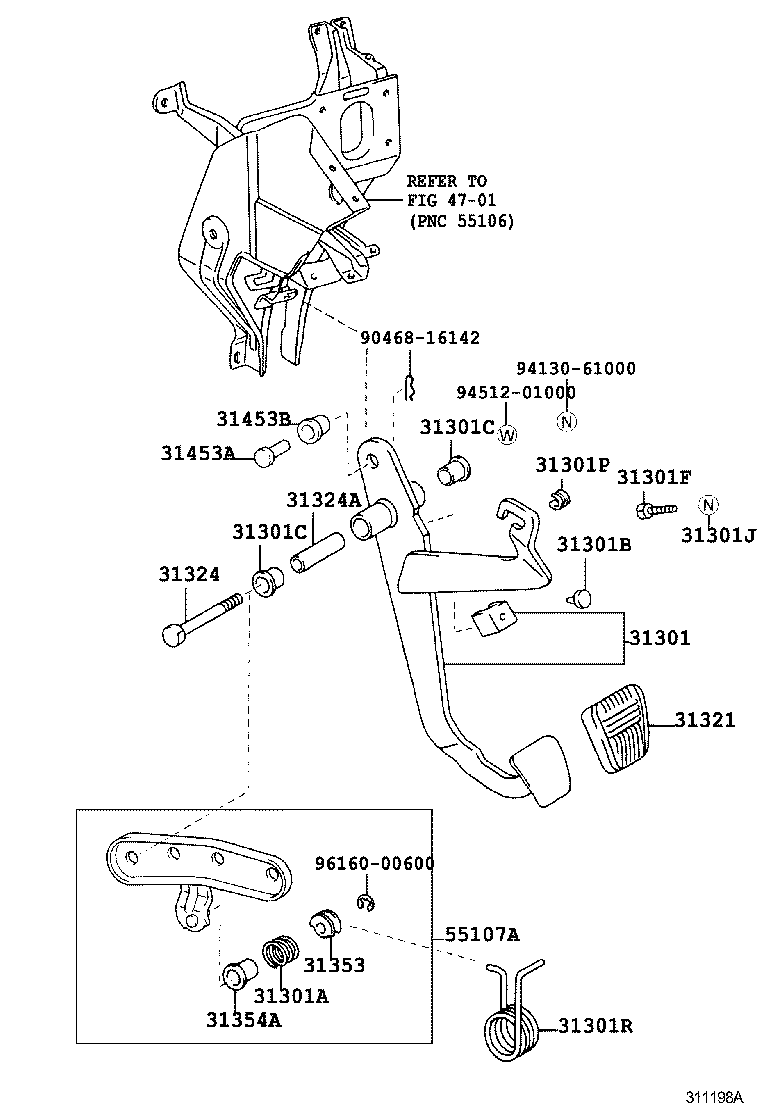

ILLUST NO. 1 OF 2(0310-0701)BB5# ; (0701- )XZB53
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-36230 |
BB5#,RZB5# |
1 | ||
| 31310-36090 |
BB5#,XZB53 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35013 |
BB5#,RZB5# |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 90541-06036 |
BB5#,RZB5# |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 90386-13007 |
BB5#,RZB5# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BB5#,RZB5#,TRB53,XZB53 |
2 | ||
| 90386-13007 |
BB5#,RZB5# |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
BB5#,RZB5# |
1 | ||
| 90101-10085 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
BB5#,RZB5# |
1 | ||
| 94130-61000 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
BB5#..20S,23S,24S |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03092 |
BB5#..20S,23S,24S |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 31321-14020 |
BB5#,RZB5# |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
BB5#,RZB5# |
1 | ||
| 91121-61070 |
BB5#,XZB53 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BB5#,RZB5# |
1 | ||
| 90387-10004 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BB5#,RZB5# L=23.5 |
1 | ||
| 90240-08006 |
BB5#,RZB5#,TRB53,XZB53 L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BB5#,RZB5#,TRB53,XZB53 |
1 | ||
| 90386-08002 |
BB5#,RZB5# |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-36010 |
BB5#,XZB53 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 4701 | ||||
