BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012- )15B#

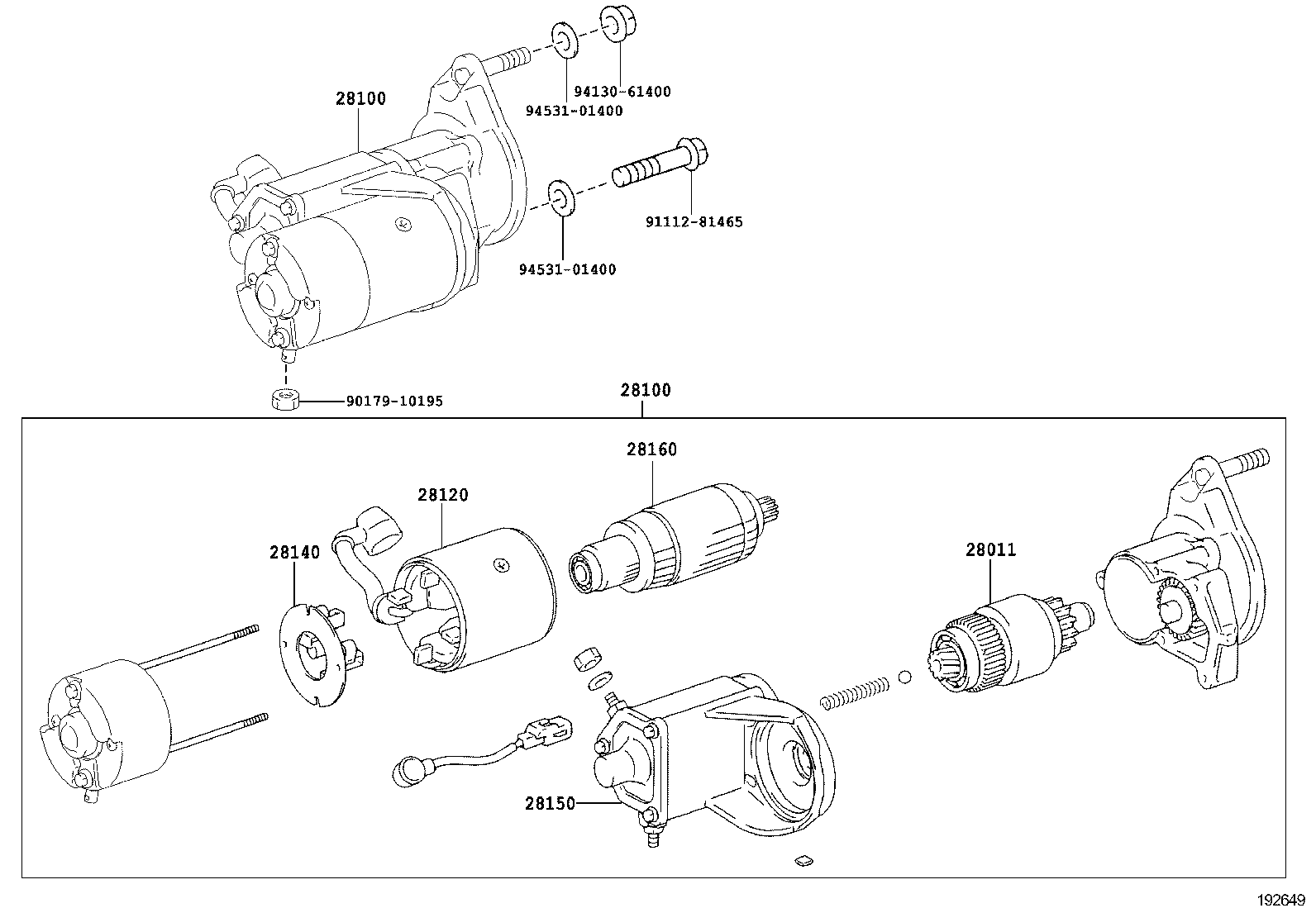

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28100 28120 28140 28150 28160 9017910195 9111281465 9413061400 9453101400 9453101400
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

15BFT..BB5#

 1
28100 - STARTER ASSY
28100-58040

15BF..BB5#

24V 4.5KW

 1
28100-58040

15BFT..BB5#

24V 4.5KW

 1
28100 - STARTER ASSY
28100-58040

15BF..BB5#

24V 4.5KW

 1
28100-58040

15BFT..BB5#

24V 4.5KW

 1
28120 - YOKE ASSY, STARTER
28120-56071

15BFT..BB5#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

15BFT..BB5#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-56290

15BFT..BB5#

 1
28160 - ARMATURE ASSY, STARTER
28160-77090

15BFT..BB5#

 1
Common parts
90179-10195
91112-81465
94130-61400
94531-01400
