BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0701)15BFT

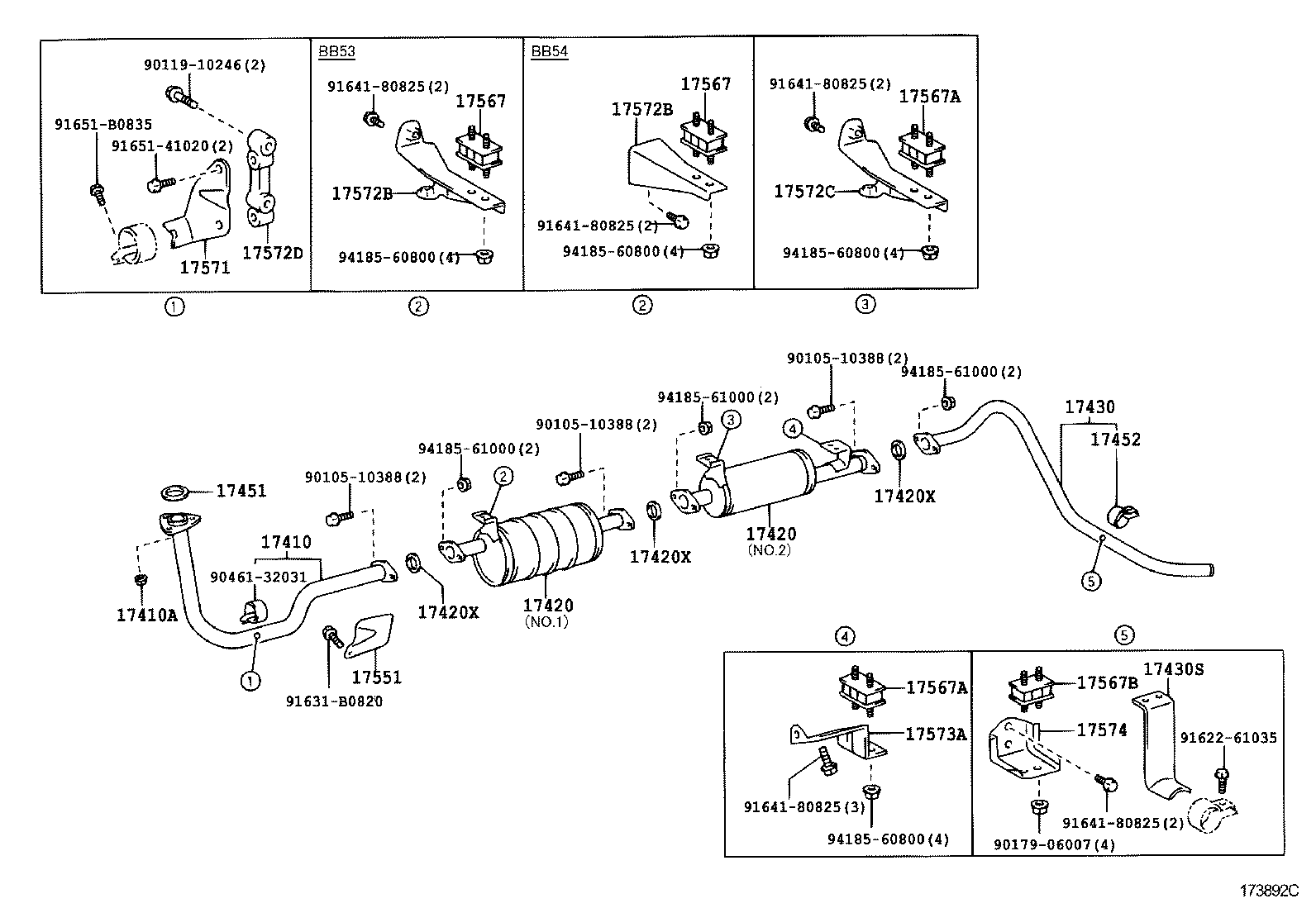

Click highlighted areas on diagram

diagram 17410 17410A 17420 17420 17420X 17420X 17420X 17430 17430S 17451 17452 17551 17567 17567 17567A 17567A 17567B 17571 17572B 17572B 17572C 17572D 17573A 17574 9010510388 9010510388 9010510388 9011910246 9017906007 9046132031 9162261035 91631B0820 9164180825 9164180825 9164180825 9164180825 9164180825 9165141020 91651B0835 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58320

15BF..BB53

 1
17410-58350

15BFT..BB53

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

15BF,3RZFE..BB5#,RZB5#

 3
90179-10070

15BFT,3RZFE..BB5#,RZB5#..20S,23S,24S

 3
17420 - PIPE ASSY, EXHAUST, CENTER
17420-5C130

15BF..BB5#

NO.1

 1
17420-5C140

15BF..BB5#

NO.2

 1
17420-5C200

15BFT..BB5#

NO.1

 1
17420-5C250

15BFT..BB5#

NO.2

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-5C130

15BF..BB5#

NO.1

 1
17420-5C140

15BF..BB5#

NO.2

 1
17420-5C200

15BFT..BB5#

NO.1

 1
17420-5C250

15BFT..BB5#

NO.2

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

15BF,3RZFE..BB5#,RZB5#

 1
90917-06054

15BFT..BB5#

 3
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

15BF,3RZFE..BB5#,RZB5#

 1
90917-06054

15BFT..BB5#

 3
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

15BF,3RZFE..BB5#,RZB5#

 1
90917-06054

15BFT..BB5#

 3
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58790

15BF,3RZFE..BB5#,RZB5#

 1
17430-58870

15BFT..BB5#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-75010

15BF,3RZFE..BB5#,RZB5#

 1
17561-17010

N04C,15BFT,2TRFE..BB5#,TRB53,XZB53

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

15BF,3RZFE..BB5#,RZB5#

CENTER

 1
90917-06059

15BF..BB5#

FRONT

 1
90917-06059

15BFT..BB5#

 1
90917-06062

15BF..BB5#

REAR

 1
17452 - CLAMP, EXHAUST PIPE
17452-75030

15BF,3RZFE..BB5#,RZB5#

 1
90461-32033

N04C,15BFT,2TRFE..BB5#,TRB53,XZB53

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-17011

15BF,3RZFE..BB5#,RZB5#

 1
17551-17011

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-58020

15BF,3RZFE..BB5#,RZB5#

NO.2

 2
17567-58020

15BF,3RZFE..BB5#,RZB5#

NO.1

 1
17567-58020

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-58020

15BF,3RZFE..BB5#,RZB5#

NO.2

 2
17567-58020

15BF,3RZFE..BB5#,RZB5#

NO.1

 1
17567-58020

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58020

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 2
17567-58030

15BF,3RZFE..BB5#,RZB5#

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-58020

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 2
17567-58030

15BF,3RZFE..BB5#,RZB5#

 1
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-58030

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-58301

15BF..BB5#

 1
17571-58301

15BFT..BB5#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75220

15BF,3RZFE..BB53,RZB53

NO.1

 1
17572-75230

15BF..BB5#

NO.2

 1
17572-75220

N04C,15BFT,3RZFE,2TRFE..BB53,RZB53,TRB53,XZB53

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75220

15BF,3RZFE..BB53,RZB53

NO.1

 1
17572-75230

15BF..BB5#

NO.2

 1
17572-75220

N04C,15BFT,3RZFE,2TRFE..BB53,RZB53,TRB53,XZB53

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17572-75220

N04C,15BFT..BB5#,XZB53

 1
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17579-73010

15BFT..BB5#..20S,23S,24S

 1
17579-73010

15BF..BB5#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-17010

15BF,3RZFE..BB5#,RZB5#

 1
17573-17010

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58170

N04C,15BFT,3RZFE,2TRFE..BB5#,RZB5#,TRB53,XZB53

 1
17574-58170

15BF,3RZFE..BB5#,RZB5#

 1
Common parts
90105-10388
90119-10246
90179-06007
90461-32031
91622-61035
91631-B0820
91641-80825
91651-41020
91651-B0835
94185-60800
94185-61000
