BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0012- )15B#

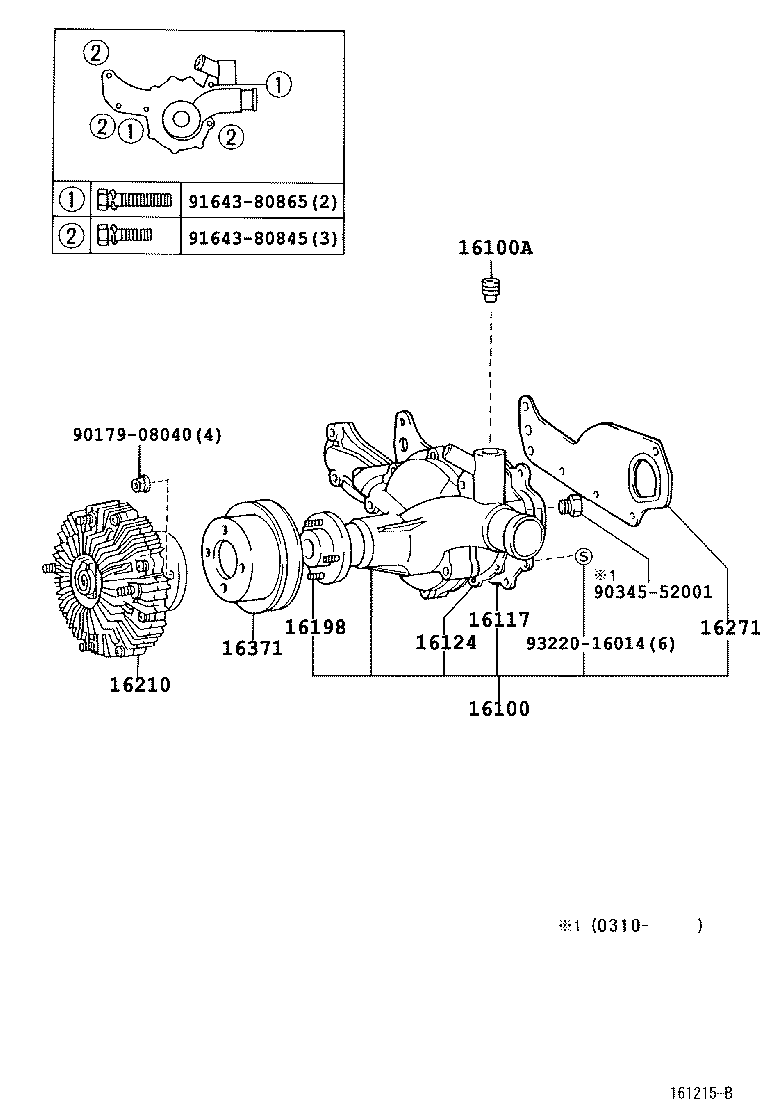

Click highlighted areas on diagram

diagram 16100 16100A 16117 16124 16198 16210 16271 16371 9017908040 9034552001 9164380845 9164380865 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59187

15BF..BB5#

 1
16100-59187

15BFT..BB5#

 1
16100A - PLUG, WATER PUMP
90345-54005

15BF..BB5#

 1
16117 - PLATE, WATER PUMP
16117-58010

15BFT..BB5#

 1
16117-58010

15BF..BB5#

 1
16124 - GASKET, WATER PUMP COVER
16124-58010

15BFT..BB5#

 1
16124-58010

15BF..BB5#

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-41170

15BFT..BB5#

 4
16198-41170

15BF..BB5#

 4
16210 - COUPLING ASSY, FLUID
16210-58041

15BF..BB5#

 1
16210-58041

15BFT..BB5#

 1
16271 - GASKET, WATER PUMP
16271-58010

15BFT..BB5#

 1
16271-58010

15BF..BB5#

 1
16371 - PULLEY, FAN
16371-58040

15BF..BB5#

 1
16371-58041

15BFT..BB5#

 1
Common parts
90179-08040
90345-52001
91643-80845
91643-80865
93220-16014
