BB53L-ZCMEW (2003)

Toyota Coaster (China)

Production Oct 2003 - Jan 2007
Engine 15BFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

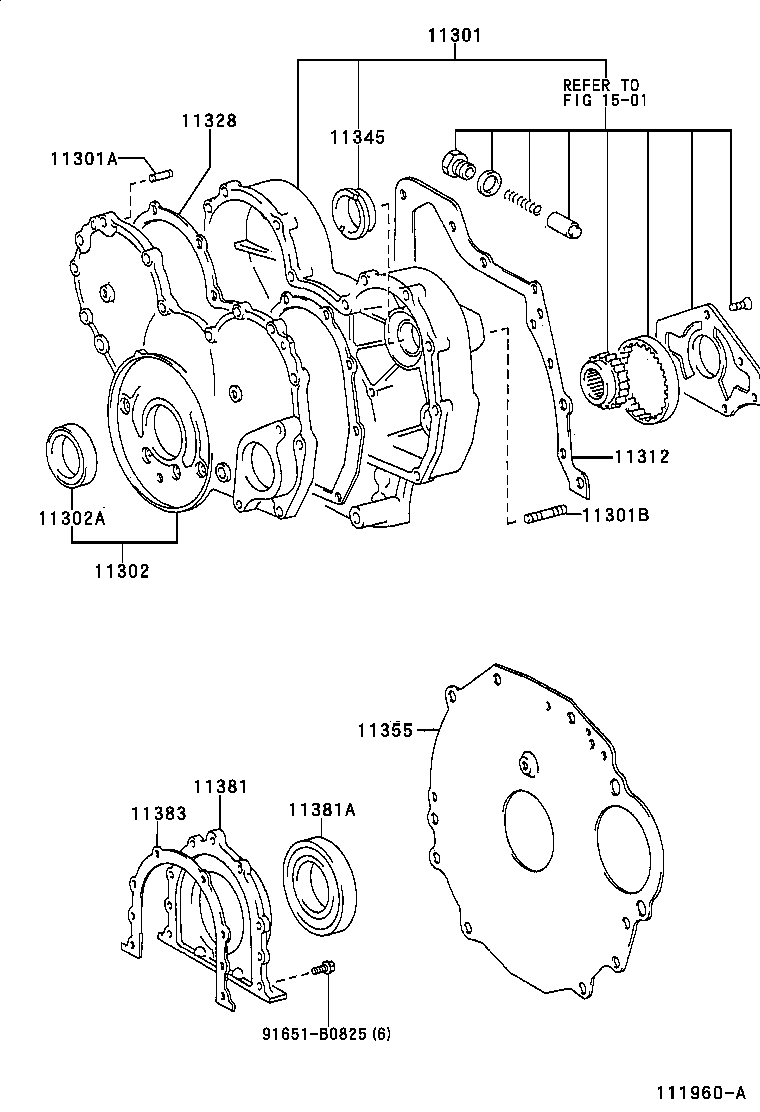

ILLUST NO. 1 OF 2(0012- )15B#

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 1501 91651B0825
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-58012

15BF..BB5#

 1
11301-58031

15BFT..BB5#

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

15BF..BB5#

L=18,OD=8

 2
90250-08120

15BFT..BB5#

L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-08169

15BF..BB5#

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-58031

15BFT..BB5#

 1
11302-58011

15BF..BB5#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50013

15BFT..BB5#

 1
90311-50013

15BF..BB5#

 1
11312 - GASKET, FRONT END PLATE
11312-56040

15BF..BB5#

 1
11312-56040

15BFT..BB5#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-58010

15BF..BB5#

 1
11328-58010

15BFT..BB5#

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

15BF..BB5#

 1
11355 - PLATE, REAR END
11355-58050

15BFT..BB5#

 1
11355-58050

15BF..BB5#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-58011

15BFT..BB5#

 1
11381-58011

15BF..BB5#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95011

15BF..BB5#

 1
90311-95011

15BFT..BB5#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56040

15BFT..BB5#

 1
11383-56040

15BF..BB5#

 1
Common parts
91651-B0825
Linked diagrams
1501

ILLUST NO. 2 OF 2(0012- )15B#

Click highlighted areas on diagram

diagram 9010508267 91511B0835 91511J0840 9151261060 9151261080 9151261085 91651B0825
Part # Description Qty Price
Common parts
90105-08267
91511-B0835
91511-J0840
91512-61060
91512-61080
91512-61085
91651-B0825
