Toyota Coaster XZB80 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
COASTER
XZB80R-ZETQY5 (2019)
8401 - SWITCH & RELAY & COMPUTER

XZB80R-ZETQY5 (2019)

Toyota Coaster

Production Aug 2019 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

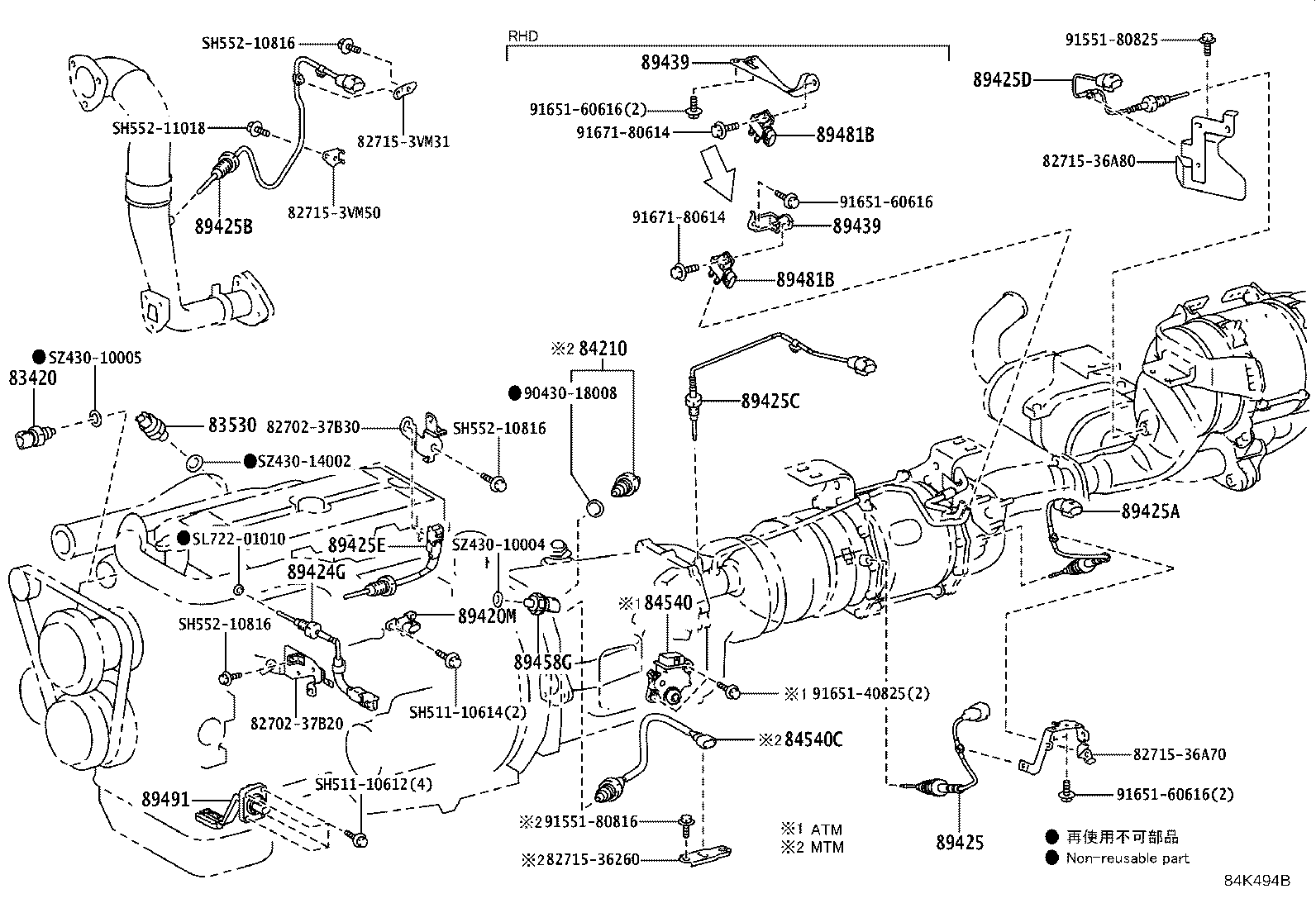

ILLUST NO. 1 OF11(1908- )XZB60,80 ; (1908- )XZB70..6FC..GEN; (1908- )XZB70..4FC,5F..ARL,GC

Click highlighted areas on diagram

ENGINE & TRANSMISSION 1/2 (EURO 6)

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
S8342-01250	XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-E0220	XZB60,70,80..01S,02S,17S	01/2017 - 09/2019	1
83530-E0250	XZB70..6FC..ARL;XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW)	09/2019 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-37050	XZB70,80..6FC	08/2019 - 12/2999	1
89420M - SENSOR ASSY, AIR PRESSURE
89421-E0050	XZB70,80..6FC	08/2019 - 12/2999	1
89424G - SENSOR, INLET AIR TEMPERATURE
89424-E0040	XZB70,80..6FC	08/2019 - 12/2999	1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-37200	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-36130	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3
89425-37380	XZB70,80..6FC	08/2019 - 12/2999	1
89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4
89425-36060	XZB70,80..6FC	08/2019 - 12/2999	1
89425D - SENSOR, EXHAUST GAS TEMPERATURE, NO.5
89425-37200	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89425E - SENSOR, EXHAUST GAS TEMPERATURE, NO.6
89425-37360	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89439 - BRACKET, SENSOR
89439-36140	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89439 - BRACKET, SENSOR
89439-36140	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89458G - SENSOR, FUEL PRESSURE, NO.2
89458-E0050	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89481B - SENSOR, DIFFERENTIAL PRESSURE
89481-E0021	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89481B - SENSOR, DIFFERENTIAL PRESSURE
89481-E0021	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89491 - SENSOR, ENGINE OIL LEVEL
S8346-01580	XZB70..6FC..ARL;XZB60,80..(5F,6FC)..GEN;XZB70..(5F,6FC)..(GCC,GEN,SA,TAIW)	01/2017 - 12/2999	1
Common parts
82702-37B20
82702-37B30
82715-36260
82715-36A70
82715-36A80
82715-3VM31
82715-3VM50
90430-18008
91551-80816
91551-80825
91651-40825
91651-60616
91671-80614
SH511-10612
SH511-10614
SH552-10816
SH552-11018
SL722-01010
SZ430-10004
SZ430-10005
SZ430-14002

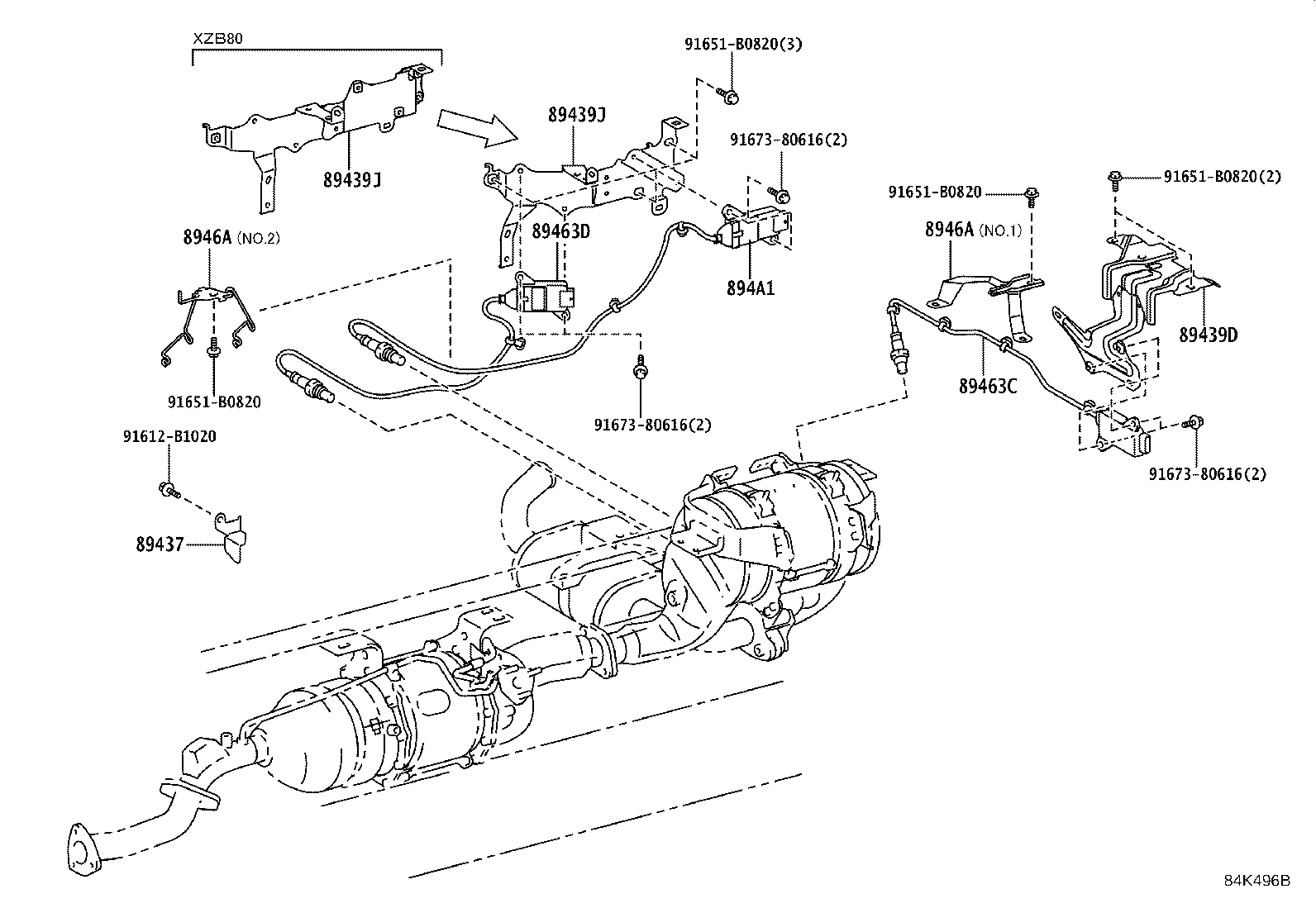

ILLUST NO. 2 OF11(1908- )XZB60,80 ; (1908- )XZB70..6FC..GEN; (1908- )XZB70..4FC,5F..ARL,GC

Click highlighted areas on diagram

ENGINE & TRANSMISSION 2/2 (EURO 6)

Part #	Description	Period	Qty
89437 - COVER, SENSOR
89279-36020	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89439D - BRACKET, SENSOR, NO.1
89439-36080	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89439J - BRACKET, SENSOR, NO.2
89439-36110	XZB80..6FC	08/2019 - 12/2999	1
89439J - BRACKET, SENSOR, NO.2
89439-36110	XZB80..6FC	08/2019 - 12/2999	1
89463C - SENSOR, NITROGEN OXIDES, NO.1
89460-36070	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
89463D - SENSOR, NITROGEN OXIDES, NO.2
89460-36080	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
8946A - BRACKET, EXHAUST SENSOR CLAMP
8946A-36040	XZB80..6FC NO.2	08/2019 - 12/2999	1
8946A-36010	XZB70,80..6FC..GEN NO.1	08/2019 - 12/2999	1
8946A - BRACKET, EXHAUST SENSOR CLAMP
8946A-36040	XZB80..6FC NO.2	08/2019 - 12/2999	1
8946A-36010	XZB70,80..6FC..GEN NO.1	08/2019 - 12/2999	1
894A1 - SENSOR, PARTICULATE MATTER
894A1-36050	XZB70,80..6FC..GEN	08/2019 - 12/2999	1
Common parts
91612-B1020
91651-B0820
91673-80616

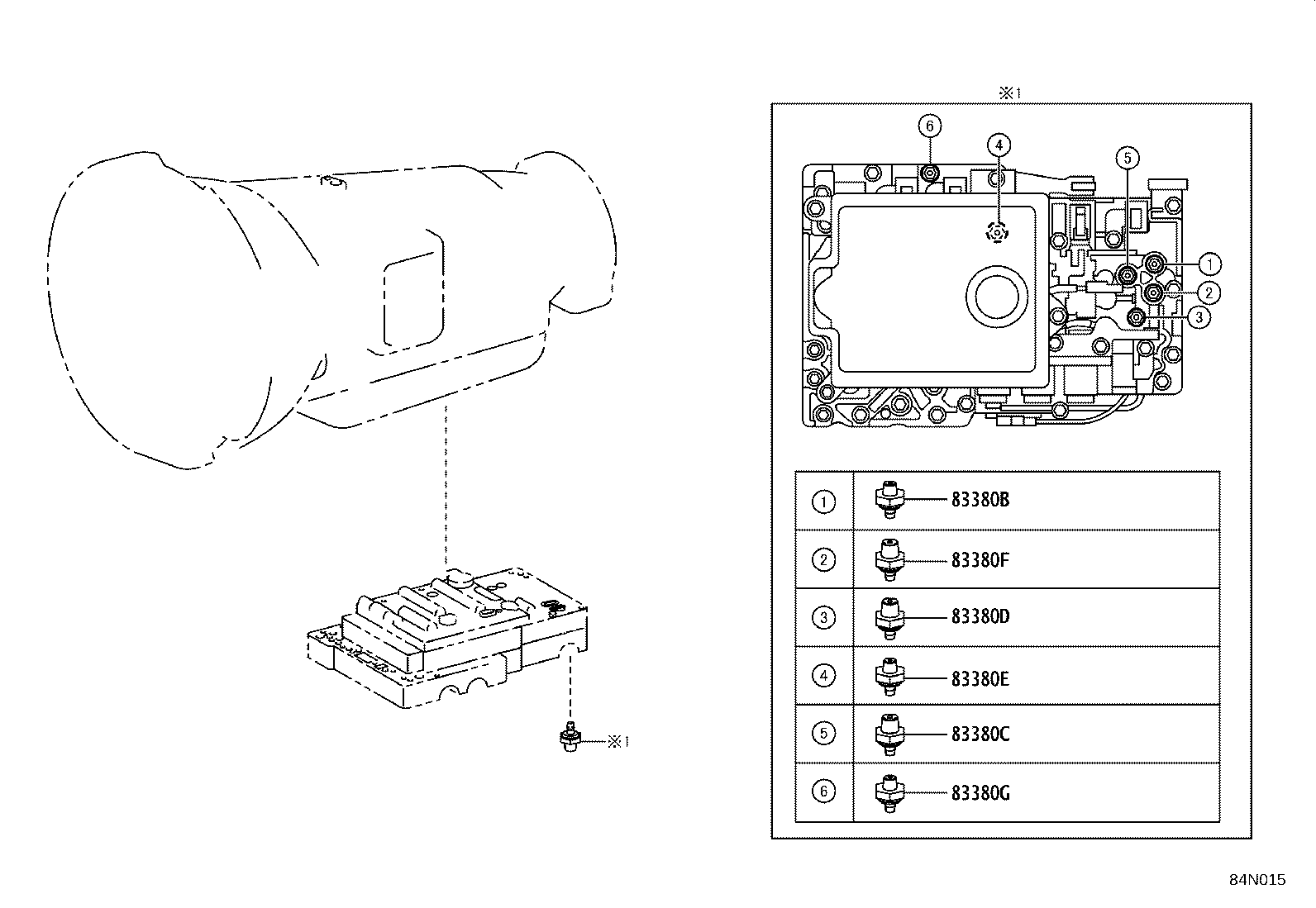

ILLUST NO. 3 OF11(1908- )6FC

Click highlighted areas on diagram

TRANSMISSION VALVE BODY

Part #	Description	Period	Qty
83380B - SWITCH ASSY, PRESSURE, NO.1
83380-37050	XZB70,80..6FC	08/2019 - 12/2999	1
83380C - SWITCH ASSY, PRESSURE, NO.2
83380-37050	XZB70,80..6FC	08/2019 - 12/2999	1
83380D - SWITCH ASSY, PRESSURE, NO.3
83380-37040	XZB70,80..6FC	08/2019 - 12/2999	1
83380E - SWITCH ASSY, PRESSURE, NO.6
83380-37040	XZB70,80..6FC	08/2019 - 12/2999	1
83380F - SWITCH ASSY, PRESSURE, NO.7
83380-37050	XZB70,80..6FC	08/2019 - 12/2999	1
83380G - SWITCH ASSY, PRESSURE, NO.8
83380-37040	XZB70,80..6FC	08/2019 - 12/2999	1
