XZB80R-ZETQY5 (2019)
Toyota Coaster

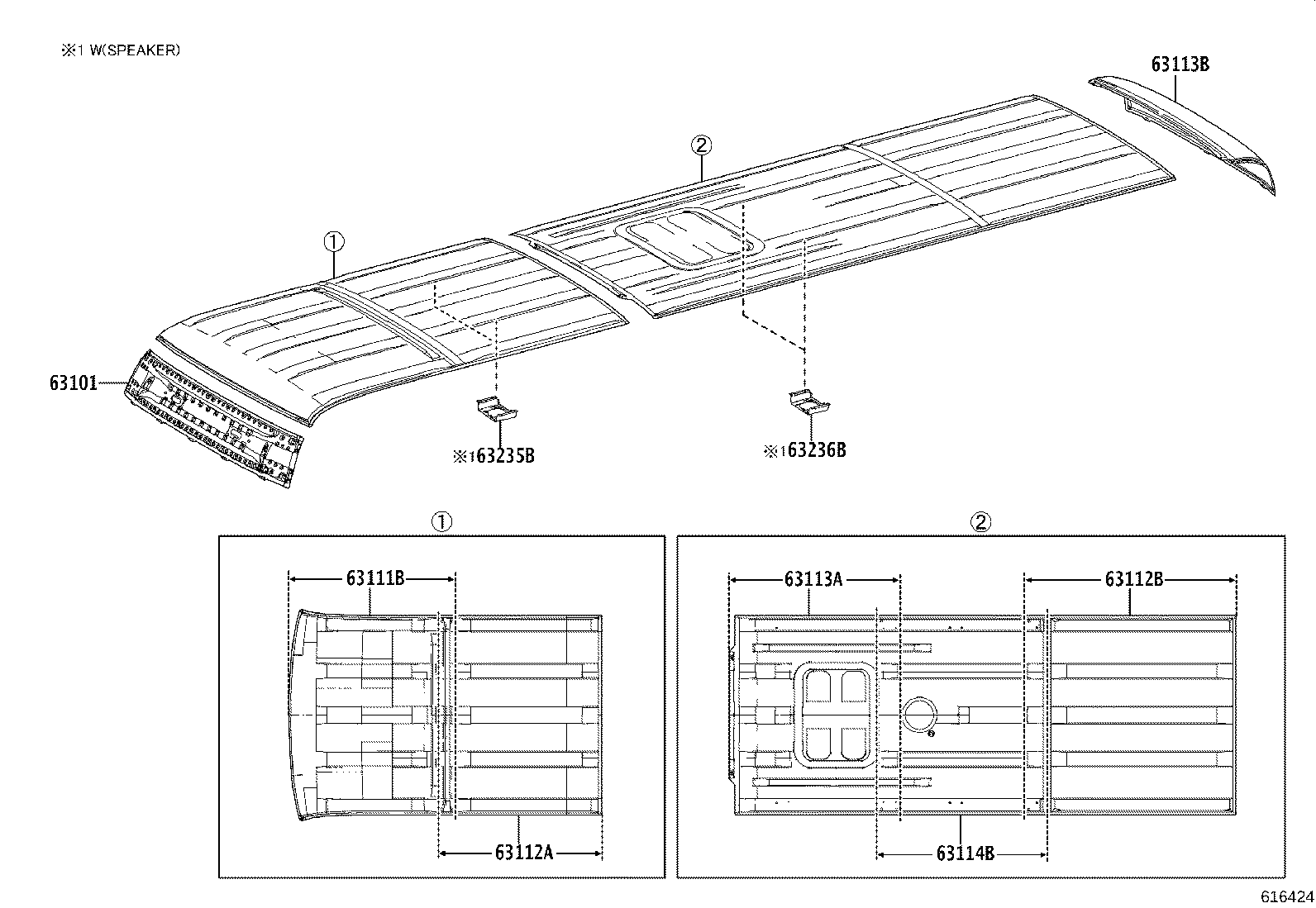

ILLUST NO. 1 OF 5(1908- )XZB80
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63116-36100 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63117-36130 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63112B - PANEL, ROOF, REAR | ||||
| 63112-36210 |
XZB80..5F,6FC |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63118-36110 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63113B - PANEL, ROOF, REAR | ||||
| 63113-36220 |
XZB70..(02S,19S,20S,25S)..(5F,6FC);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) |
1 | ||
| 63113-36230 |
XZB70..(02S,19S,20S,25S)..(5F,6FC);BZB60,HZB70,TRB70,XZB60,80..(01S,17S,19S,25S)..(5F,6FC) HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63119-36140 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63236-36030 |
XZB70..TAIW;XZB70..6FC..ARL;XZB70..(5F,6FC)..EX;XZB70,80..RHD..(01S,22S,23S,29S)..(5F,6FC)..(GEN,SA) |
2 | ||
| 63236B - BRACKET, ROOM SPEAKER | ||||
| 63236-36030 |
XZB70..TAIW;XZB70..6FC..ARL;XZB70..(5F,6FC)..EX;XZB70,80..RHD..(01S,22S,23S,29S)..(5F,6FC)..(GEN,SA) |
2 | ||

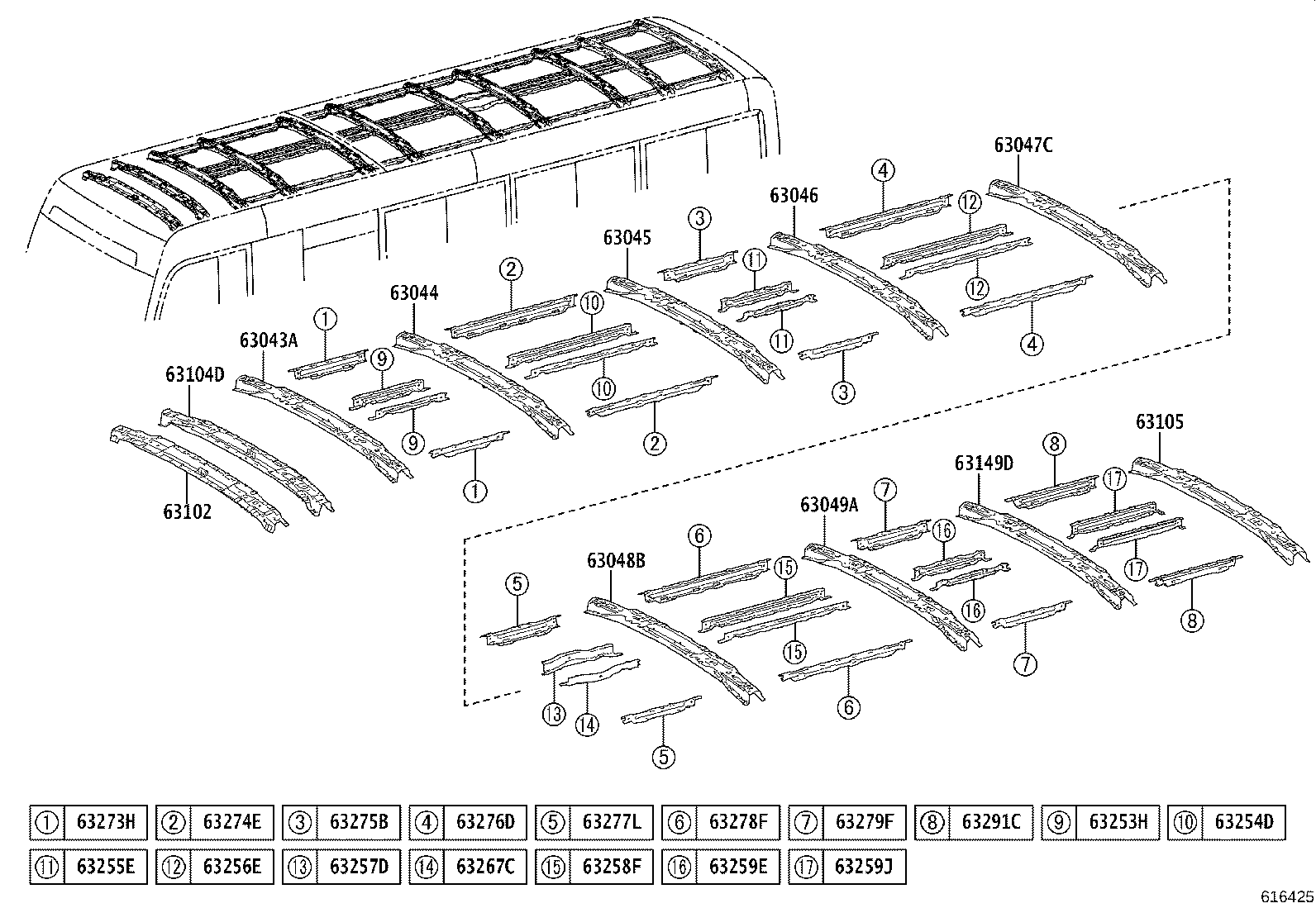

ILLUST NO. 2 OF 5(1908- )XZB80
STRENGTH & REINFORCEMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63043A - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.1 | ||||
| 63044-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63044 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 A | ||||
| 63044-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,TAIW) |
1 | ||
| 63045 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63044-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN) |
1 | ||
| 63046 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A | ||||
| 63044-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN) |
1 | ||
| 63047C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5 | ||||
| 63044-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN) |
1 | ||
| 63048B - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63044-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN) |
1 | ||
| 63049A - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7 | ||||
| 63044-36060 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN) |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63104-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63043-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63103-36040 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN) |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63044-36060 |
XZB80..5F,6FC |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-36020 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63255E - STRENGTH, ROOF PANEL, CENTER NO.5 | ||||
| 63255-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63257-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63259E - STRENGTH, ROOF PANEL, CENTER NO.9 | ||||
| 63255-36030 |
XZB80..5F,6FC |
2 | ||
| 63259J - STRENGTH, ROOF PANEL, CENTER NO.10 | ||||
| 63259-36020 |
XZB80..5F,6FC |
2 | ||
| 63267C - STRENGTH, ROOF PANEL, CENTER NO.7 LH | ||||
| 63259-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-36050 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63274E - STRENGTH, ROOF PANEL, NO.4 | ||||
| 63274-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63276D - STRENGTH, ROOF PANEL, NO.6 | ||||
| 63274-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63277L - STRENGTH, ROOF PANEL, NO.7 | ||||
| 63275-36010 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63278F - STRENGTH, ROOF PANEL, NO.8 | ||||
| 63274-36030 |
XZB70..6FC..ARL;HZB70,TRB70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 63279F - STRENGTH, ROOF PANEL, NO.9 | ||||
| 63275-36010 |
XZB80..5F,6FC |
2 | ||
| 63291C - STRENGTH, ROOF PANEL, NO.10 | ||||
| 63279-36080 |
XZB80..5F,6FC |
2 | ||
