XZB80R-ZEPQY5 (2019)
Toyota Coaster

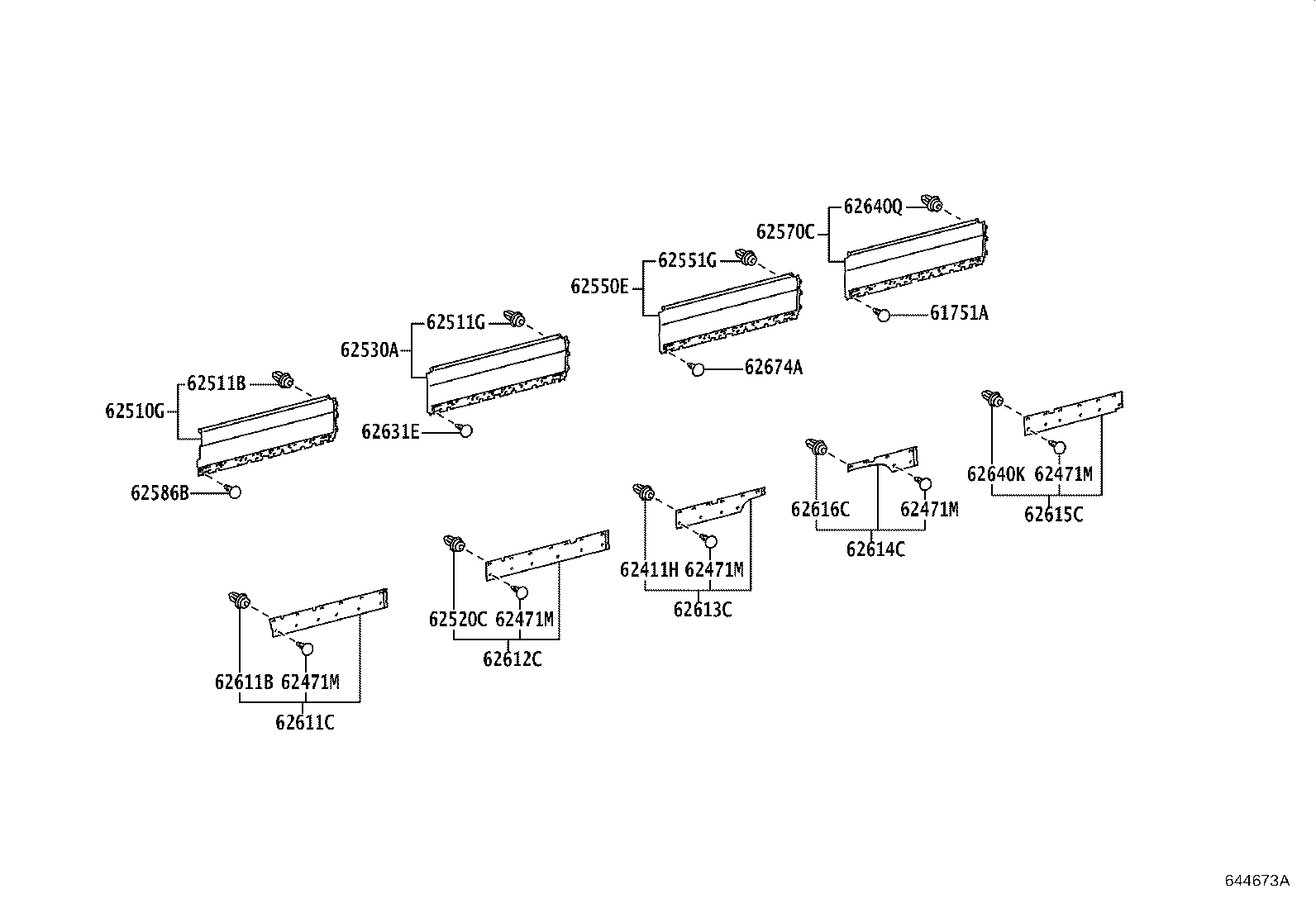

ILLUST NO. 3 OF 5(1908- )XZB80
SIDE GARNISH & TRIM RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB80..4FC LT.GRAY,TRIM1# |
8 | ||
| 62411H - CLIP | ||||
| 63395-12150 |
XZB80..4FC |
18 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62550-36290B0 |
XZB70,80..4FC..EX GRAY,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
7 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
7 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 63395-12150 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
13 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62550-36430B0 |
XZB70,80..4FC..EX LT.GRAY,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36410B0 |
XZB80..4FC LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
14 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62560-36490B0 |
XZB80..4FC LT.GRAY,TRIM1#,LH |
1 | ||
| 62550-36500B0 |
XZB80..4FC LT.GRAY,TRIM1#,RH |
1 | ||
| 62586B - RETAINER, QUARTER TRIM, NO.2 | ||||
| 67771-26230B6 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD LT.GRAY,TRIM1# |
4 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 63395-12150 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
6 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36070B0 |
XZB70,80..4FC;XZB70..5F..ARL MD.GRAY,TRIM1# |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36A50B1 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD MD.GRAY,TRIM1# |
1 | ||
| 62613C - BOARD, SIDE TRIM NO.3, RH | ||||
| 62613-36290B0 |
XZB80..4FC MD.GRAY,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36440B0 |
XZB80..4FC MD.GRAY,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-36850B0 |
XZB80..4FC MD.GRAY,TRIM1# |
1 | ||
| 62616C - CLIP | ||||
| 63395-12150 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
8 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 67771-26230B6 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD LT.GRAY,TRIM1# |
4 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 63395-12150 |
XZB80..4FC |
14 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB80..4FC |
14 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD LT.GRAY,TRIM1# |
8 | ||

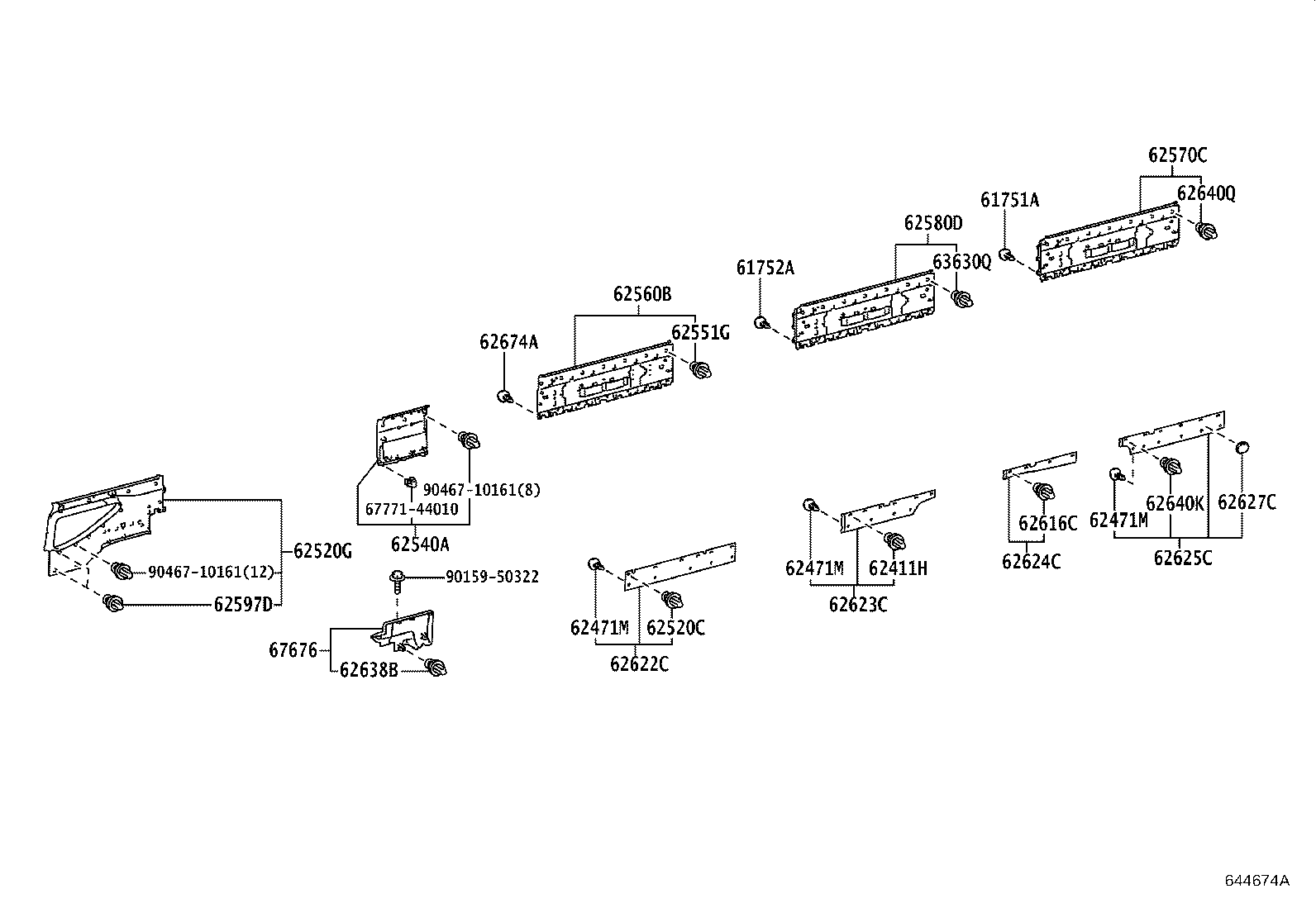

ILLUST NO. 4 OF 5(1908- )XZB80
SIDE GARNISH & TRIM LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61751A - RETAINER, QUARTER TRIM, RH | ||||
| 67771-26230B6 |
XZB80..4FC LT.GRAY,TRIM1# |
8 | ||
| 61752A - RETAINER, QUARTER TRIM, LH | ||||
| 67771-26230B6 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD LT.GRAY,TRIM1# |
4 | ||
| 62411H - CLIP | ||||
| 63395-12150 |
XZB80..4FC |
18 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62471M - CLIP | ||||
| 90467-08104B4 |
XZB80..4FC MD.GRAY,TRIM1# |
45 | ||
| 62520C - CLIP, QUARTER TRIM BOARD, NO.1 | ||||
| 63395-12150 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
13 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36850B0 |
XZB70,80..4FC..EX LT.GRAY,TRIM1# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62540-36460B0 |
XZB70,80..4FC..EX LT.GRAY,TRIM1# |
1 | ||
| 62551G - CLIP | ||||
| 90467-10161 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
14 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36270B0 |
XZB70,80..4FC..EX GRAY,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62560-36490B0 |
XZB80..4FC LT.GRAY,TRIM1#,LH |
1 | ||
| 62550-36500B0 |
XZB80..4FC LT.GRAY,TRIM1#,RH |
1 | ||
| 62580D - TRIM ASSY, SIDE NO.4 LH | ||||
| 62550-36480B0 |
XZB80..4FC LT.GRAY,TRIM1# |
1 | ||
| 62597D - CLIP | ||||
| 75867-12040 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
2 | ||
| 62616C - CLIP | ||||
| 63395-12150 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
8 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36810B1 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD MD.GRAY,TRIM1# |
1 | ||
| 62623C - BOARD, SIDE TRIM NO.3, LH | ||||
| 62623-36740B0 |
XZB80..4FC MD.GRAY,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36530B0 |
XZB80..4FC MD.GRAY,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-36C40B0 |
XZB80..4FC MD.GRAY,TRIM1# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 64718-36010B1 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD MD.GRAY,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
3 | ||
| 62640K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 63395-12150 |
XZB80..4FC |
14 | ||
| 62640Q - CLIP (FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10161 |
XZB80..4FC |
14 | ||
| 62674A - RETAINER, QUARTER TRIM SET | ||||
| 67771-26230B6 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD LT.GRAY,TRIM1# |
8 | ||
| 63630Q - CLIP | ||||
| 90467-10161 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD |
7 | ||
| 67676 - COVER, SIDE TRIM BOARD, FRONT LH | ||||
| 67676-36100B0 |
XZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-44010 | ||||
| 90159-50322 | ||||
| 90467-10161 | ||||
