XZB70R-ZGMSY (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

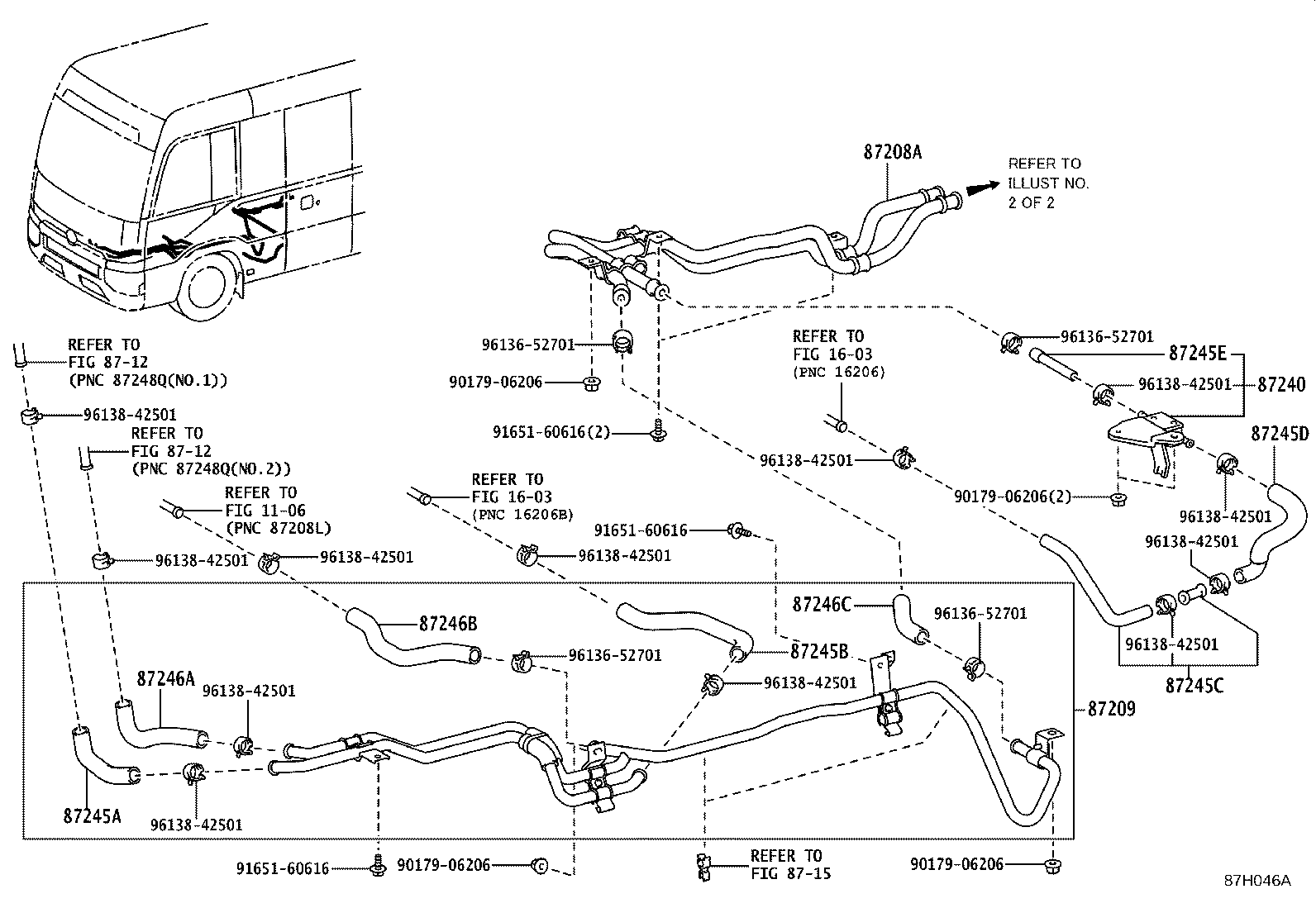

ILLUST NO. 1 OF 2(1801-1908)RHD..29S

Click highlighted areas on diagram

FRONT

diagram 1106 1603 1603 8712 8712 8715 87208A 87209 87240 87245A 87245B 87245C 87245D 87245E 87246A 87246B 87246C 9017906206 9017906206 9017906206 9017906206 9165160616 9165160616 9165160616 9613652701 9613652701 9613652701 9613652701 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36F20

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36F00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87208-36E80

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87209 - HOSE SUB-ASSY, WATER
87209-36K60

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87209-36J00

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87240 - VALVE ASSY, HEATER WATER
87240-36120

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3C360

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87245-3C500

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245B - HOSE, HEATER WATER, INLET B
87245-36A30

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245-36E00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36U10

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245-36272

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-36M90

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B621

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87209-36A80

XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245D - HOSE, HEATER WATER, INLET D
87245-36A60

XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36T60

XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36263

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3C410

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3C370

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87245-3C490

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-36E10

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B330

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245-3B481

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C380

HZB60,70..RHD;XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
Common parts
90179-06206
91651-60616
96136-52701
96138-42501
Linked diagrams
1106
1603
8712
8715

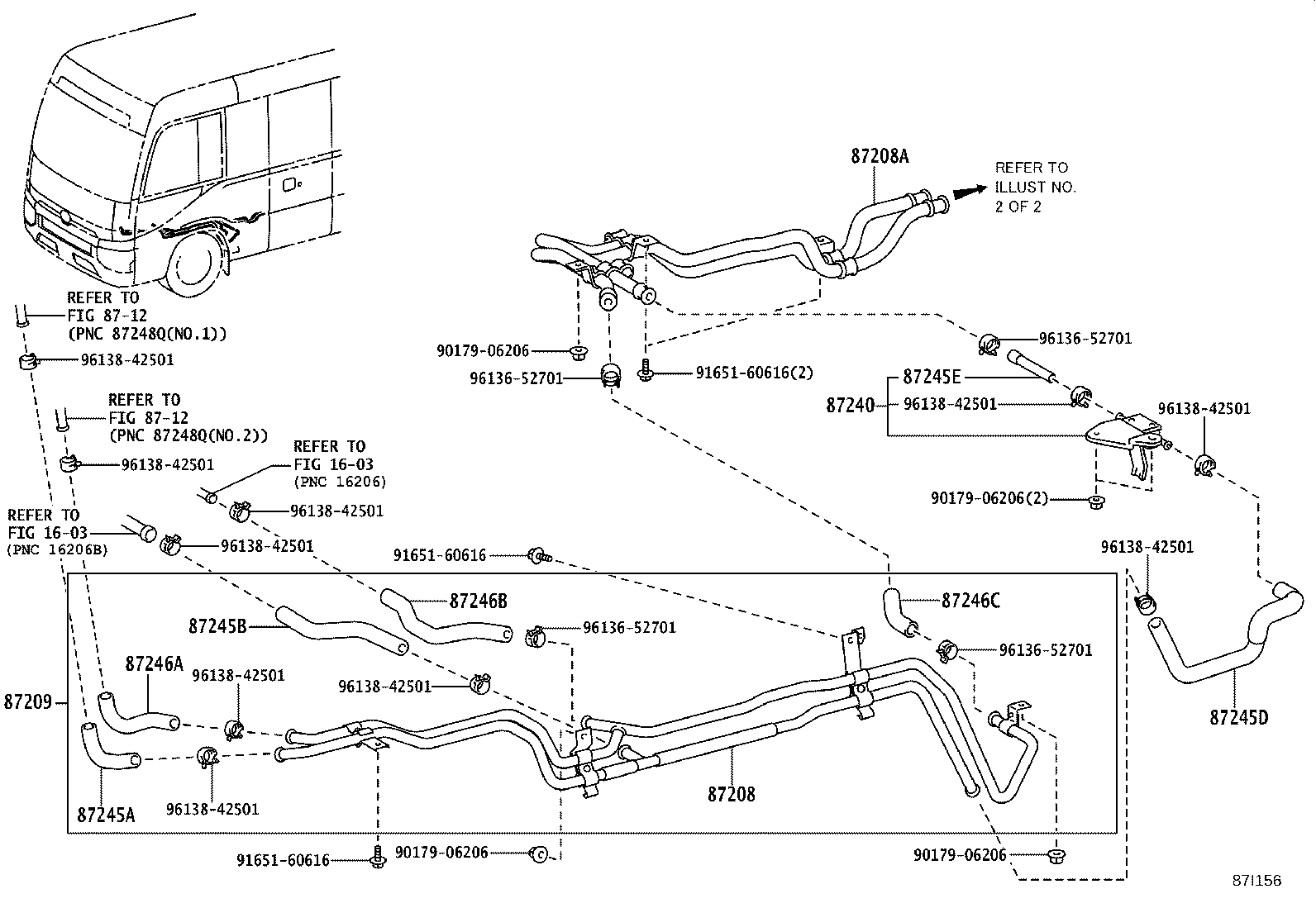

ILLUST NO. 1 OF 2(1908- )RHD..29S

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712 8712 87208 87208A 87209 87240 87245A 87245B 87245D 87245E 87246A 87246B 87246C 9017906206 9017906206 9017906206 9017906206 9165160616 9165160616 9165160616 9613652701 9613652701 9613652701 9613652701 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36372

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36K30

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87208-36K60

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36F20

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87208-36F00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87208-36E80

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87209 - HOSE SUB-ASSY, WATER
87209-36K60

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87209-36J00

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87240 - VALVE ASSY, HEATER WATER
87240-36120

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3C360

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87245-3C500

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245B - HOSE, HEATER WATER, INLET B
87245-36A30

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245-36E00

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36U10

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245-36272

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245D - HOSE, HEATER WATER, INLET D
87245-36A60

XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36T60

XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87245-36263

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3C410

HZB60,70,TRB60,70,XZB70..(23S,24S,25S,26S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3C370

HZB60,70..RHD

FRONT HEATER-MANUAL 120W

 1
87245-3C490

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-36E10

TRB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87245-3B330

XZB70..RHD..29S

FRONT HEATER-MANUAL 120W

 1
87245-3B481

HZB60,70..GEN

FRONT HEATER-MANUAL 120W

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3C380

HZB60,70..RHD;XZB70..(23S,25S,29S,30S)..GEN

FRONT HEATER-MANUAL 120W

 1
Common parts
90179-06206
91651-60616
96136-52701
96138-42501
Linked diagrams
1603
8712
