XZB70R-ZGMSY (2018)

Toyota Coaster

Production Jan 2018 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )XZB70,80..RHD..01S,22S,29S..5F,6FC..GEN ; (2101- )6FC..ARL ; (2101-

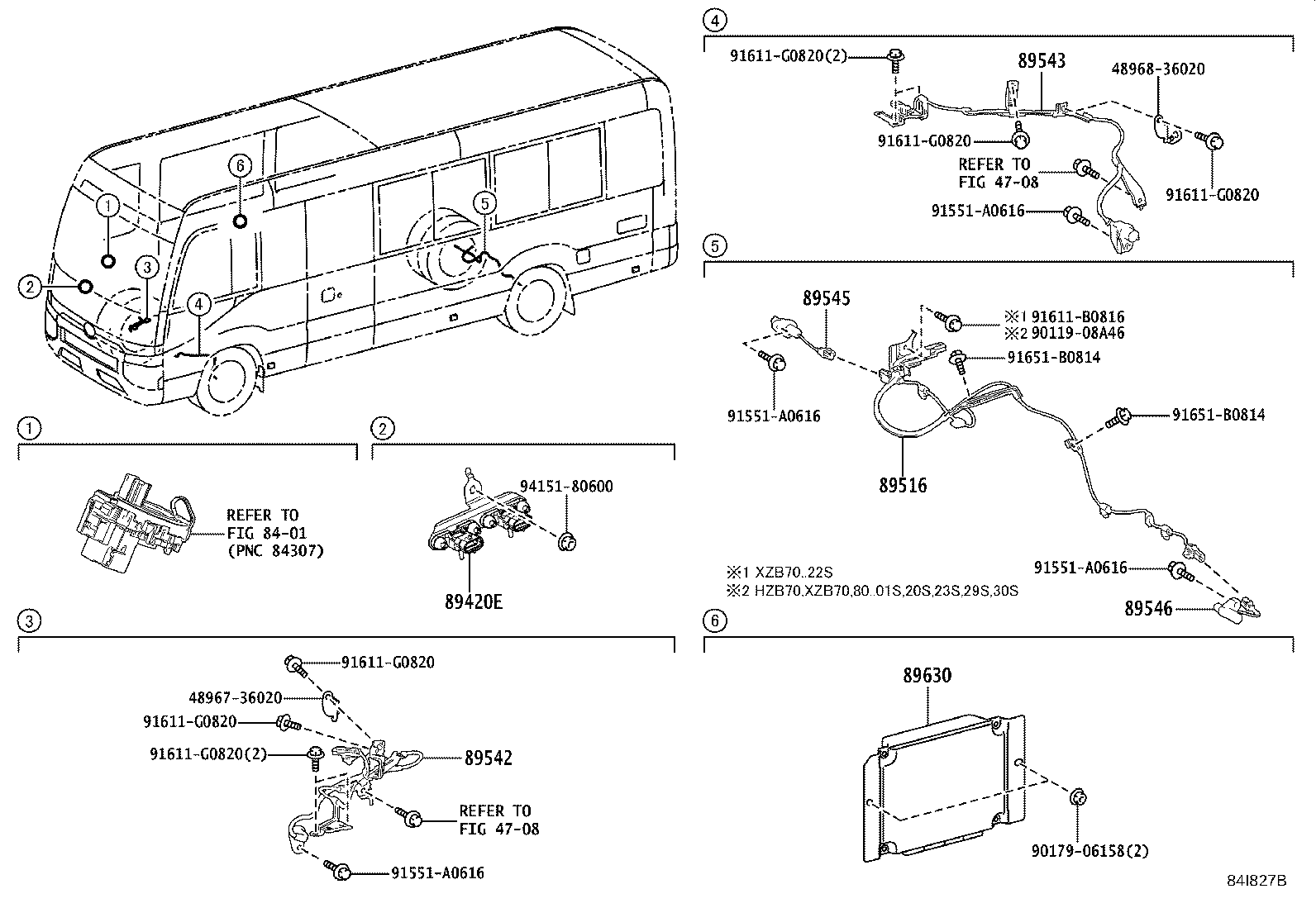

Click highlighted areas on diagram

W(VSC)

diagram 4708 4708 4896736020 4896836020 8401 89420E 89516 89542 89543 89545 89546 89630 9011908A46 9017906158 91551A0616 91551A0616 91551A0616 91551A0616 91611B0816 91611G0820 91611G0820 91611G0820 91611G0820 91611G0820 91611G0820 91651B0814 91651B0814 9415180600
Part # Description Qty Price
89420E - SENSOR ASSY, VACUUM
89420-36060

XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-36080

XZB70,80..6FC..GEN;XZB70..RHD..(23S,29S)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-36070

XZB70..GCC;XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
89542-36080

TRB60,70..GEN

ABS-WITH(ABS & VSC)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-36021

BZB60,70

 1
89543-36070

XZB70..GCC;XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
89543-36080

TRB60,70..GEN

ABS-WITH(ABS & VSC)

 1
89545 - SENSOR, SPEED, REAR RH
89545-36010

XZB70..RHD..(22S,29S)..GEN;TRB60,70,XZB60,70..GCC,TAIW

 1
89545-36020

XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
89546 - SENSOR, SPEED, REAR LH
89546-36010

XZB70..RHD..(22S,29S)..GEN;TRB60,70,XZB60,70..GCC,TAIW

 1
89546-36020

XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA)

 1
Common parts
48967-36020
48968-36020
90119-08A46
90179-06158
91551-A0616
91611-B0816
91611-G0820
91651-B0814
94151-80600
Linked diagrams
4708
8401
