XZB70R-ZGMSY (2018)
Toyota Coaster

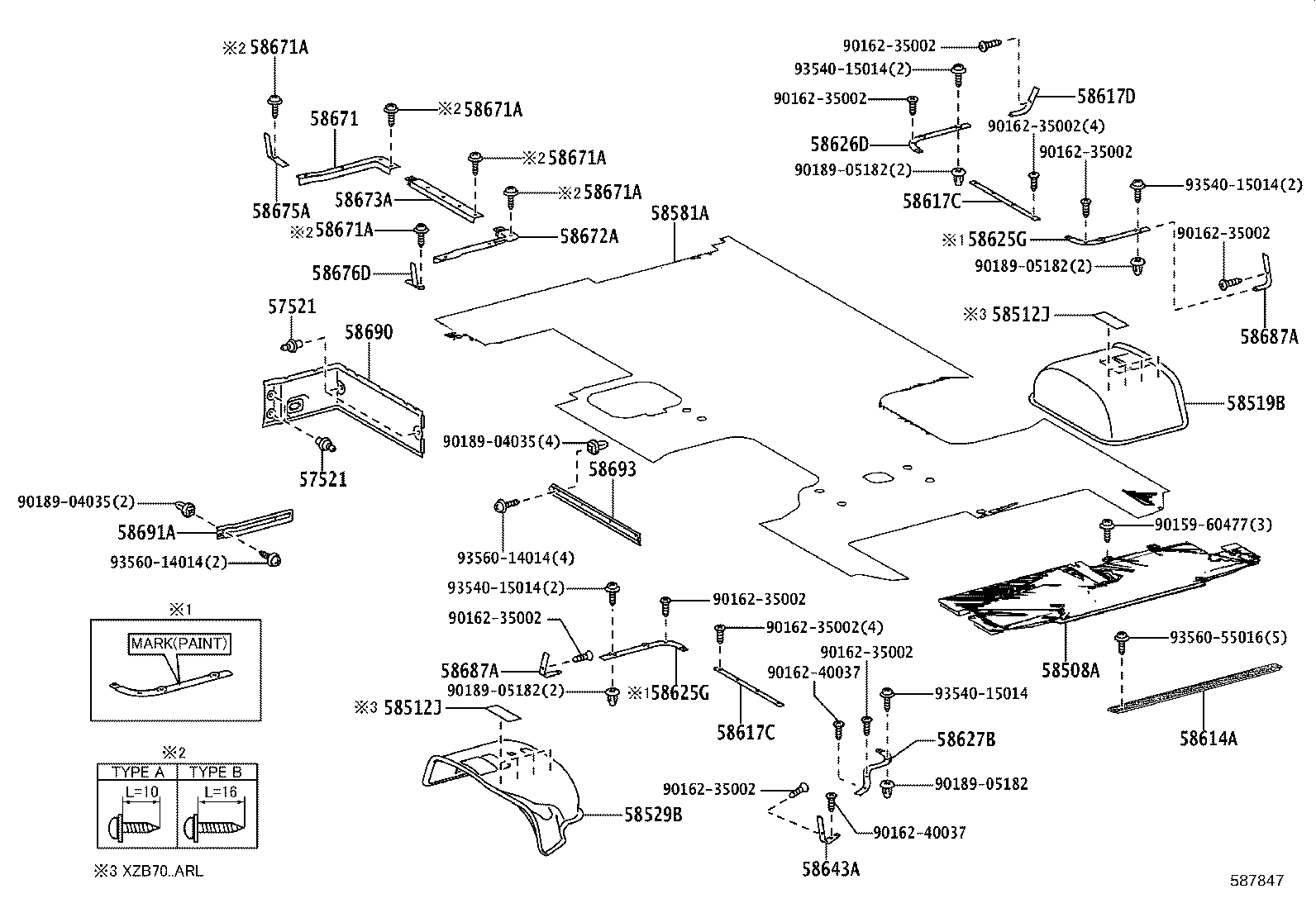

ILLUST NO. 2 OF 2(2101- )RHD
PAPUA NEW GUINEA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58581A - MAT, REAR FLOOR | ||||
| 58581-3JB80B0 |
XZB70..RHD..29S FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
1 | ||
| 58581-3JB90B0 |
XZB70..RHD..29S CENTER DOOR-FOLDING(AUTO)&FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
1 | ||
| 58581-3JC10B0 |
XZB70..RHD..29S CENTER DOOR-FOLDING(AUTO),MD.GRAY,TRIM1# |
1 | ||
| 58581-3JC00B0 |
XZB70..RHD..29S MD.GRAY,TRIM1# |
1 | ||
| 58581-V4780B0 |
XZB70..RHD..29S CENTER DOOR-FOLDING(AUTO)&FRONT HEATER-MANUAL 120W&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),MD.GRAY,TRIM1# |
1 | ||
| 58581-V4790B0 |
XZB70..RHD..29S REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),MD.GRAY,TRIM1# |
1 | ||
| 58581-V4800B0 |
XZB70..RHD..29S CENTER DOOR-FOLDING(AUTO)&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),MD.GRAY,TRIM1# |
1 | ||
| 58581-V4770B0 |
XZB70..RHD..29S FRONT HEATER-MANUAL 120W&REAR SEAT-WITH(BACK BOARD & NO.8 SEAT) & *45&REAR SEAT BELT-WITH(3-POINT TYPE),MD.GRAY,TRIM1# |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-36040B0 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58617C - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58617-36070 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
2 | ||
| 58617D - PLATE, REAR WHEEL HOUSE MAT | ||||
| 58615-36030 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36050 |
HZB70,TRB60,70,XZB70..LHD..(02S,19S,20S,23S);BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
2 | ||
| 58625G - PLATE, REAR WHEEL HOUSE MAT, NO.1 | ||||
| 58625-36050 |
HZB70,TRB60,70,XZB70..LHD..(02S,19S,20S,23S);BZB60,HZB60,70,XZB60,70,80..RHD..(5F,6FC)..(GEN,SA) |
2 | ||
| 58626D - PLATE, REAR FLOOR MAT, NO.2 | ||||
| 58626-36090 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58627B - PLATE, REAR WHEEL HOUSE MAT, LH | ||||
| 58627-36060 |
XZB60..GEN;HZB60,70..LHD;XZB70..LHD..29S;BZB60,TRB60,70,XZB80..5F,6FC;XZB70..(02S,19S,20S,23S,25S,30S)..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) |
1 | ||
| 58627-36080 |
XZB70..6FC..ARL;XZB70..(5F,6FC)..EX;HZB60,70,XZB70..RHD..(22S,23S,26S,29S,30S)..(GEN,SA) |
1 | ||
| 58643A - PLATE, MAT SET, NO.2 A | ||||
| 58624-36060 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 58671 - PLATE, CENTER DOOR STEP MAT, FRONT | ||||
| 58671-36090B0 |
XZB70..6FC..STD..ARL;BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN MD.GRAY,TRIM1# |
1 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN TYPE B:REFER ILLUST. |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN TYPE B:REFER ILLUST. |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN TYPE B:REFER ILLUST. |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN TYPE B:REFER ILLUST. |
13 | ||
| 58671A - SCREW(FOR MAT SET PLATE) | ||||
| 93560-55016 |
BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN TYPE B:REFER ILLUST. |
13 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-36070B0 |
XZB70..6FC..STD..ARL;BZB60,HZB60,70,XZB60,70..RHD..(5F,6FC)..(DX,STD)..GEN MD.GRAY,TRIM1# |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-36050B0 |
XZB60..GEN;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58675A - PLATE, CENTER DOOR PILLAR MAT, FRONT | ||||
| 58675-36060B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58676D - PLATE, CENTER DOOR PILLAR MAT, REAR | ||||
| 58676-36060B0 |
XZB60..GEN;XZB70..6FC..STD..ARL;BZB60,HZB60,70,TRB60,70,XZB70..(5F,6FC)..(DX,STD)..(GCC,GEN,TAIW) MD.GRAY,TRIM1# |
1 | ||
| 58687A - PLATE, MAT SET, NO.7 | ||||
| 58615-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) RH |
1 | ||
| 58615-36040 |
XZB60..GEN;BZB60,70,HZB60,70,TRB60,70,XZB70,80 |
2 | ||
| 58615-36040 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LH |
1 | ||
| 58687A - PLATE, MAT SET, NO.7 | ||||
| 58615-V4010 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) RH |
1 | ||
| 58615-36040 |
XZB60..GEN;BZB60,70,HZB60,70,TRB60,70,XZB70,80 |
2 | ||
| 58615-36040 |
XZB70..6FC..ARL;HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) LH |
1 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90162-35002 | ||||
| 90162-40037 | ||||
| 90189-04035 | ||||
| 90189-05182 | ||||
| 93540-15014 | ||||
| 93560-14014 | ||||
| 93560-55016 | ||||
