XZB70R-ZGMSY (2018)
Toyota Coaster

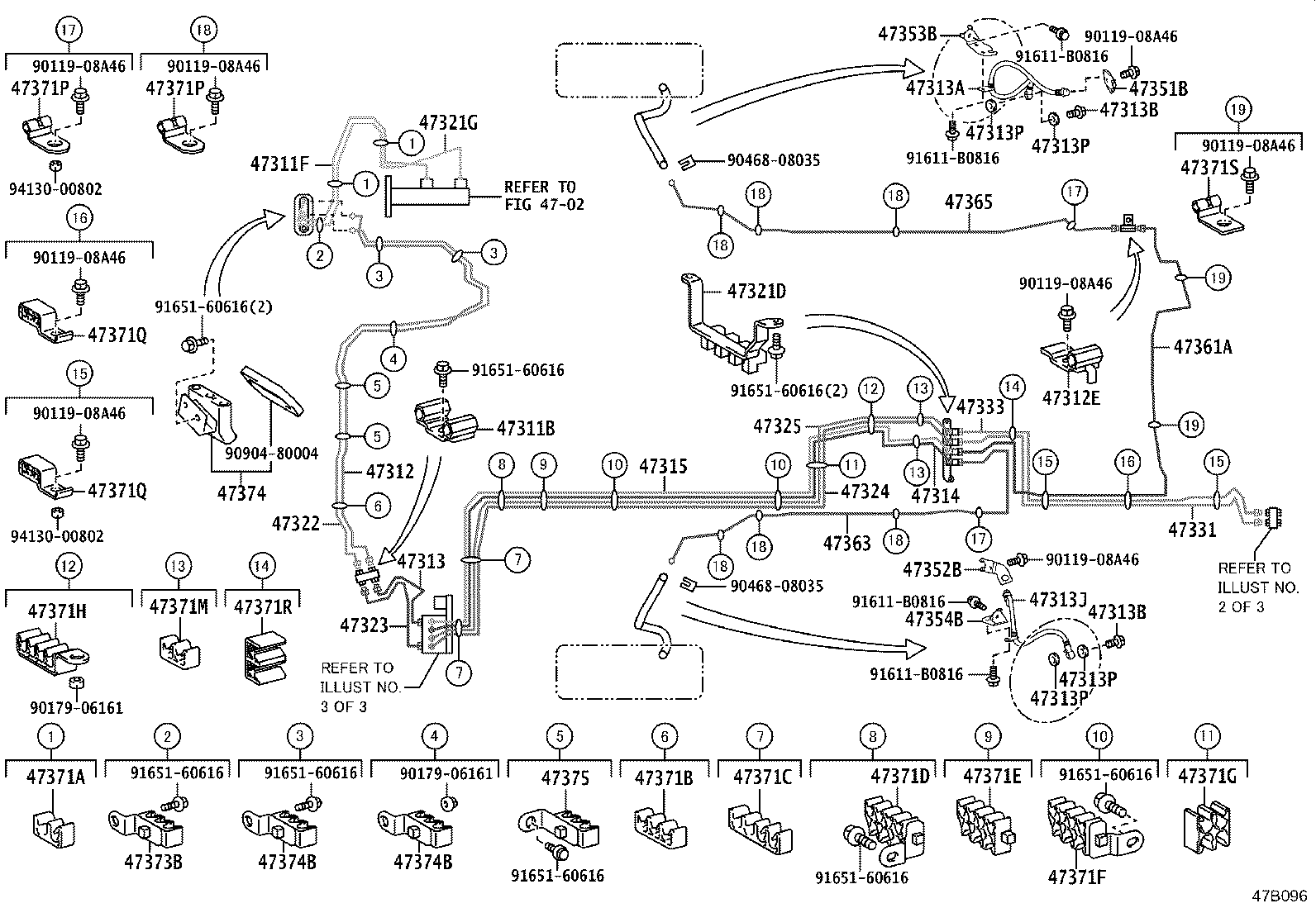

ILLUST NO. 1 OF 4(1801-1908)RHD..22S,29S..GEN
FRONT BRAKE TUBE(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 90412-12068 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311-36542 |
HZB60,70..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47312-36360 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10311 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 90413-10317 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47313-V4020 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36450 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47314-36420 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36380 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47315-36350 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47315-36390 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47315-36300 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10310 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321-36362 |
HZB60,70..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47322-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47322-V4040 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36110 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36390 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47324-36400 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36710 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47325-36720 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36300 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36310 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47331-36330 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36140 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333-36190 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47351-36211 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47351-36241 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47352-36201 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47352-36231 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-36120 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36110 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36120 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-36140 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47365-36130 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47365-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00920 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E53 |
XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47371-28020 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D13 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-01540 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04071 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D60 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01E52 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-04072 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-07022 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00876 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-04073 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 90464-00903 |
HZB60,70,TRB60,70..GEN |
3 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47371-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01536 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47371-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01536 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371R - CLAMP, BRAKE TUBE, NO.16 | ||||
| 90480-01620 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 90949-01D59 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 90949-01536 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90461-08639 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 90949-04068 |
BZB60,HZB60,70,XZB60..RHD |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36110 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 47307-36120 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00904 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-04066 |
XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00904 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-04066 |
XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90480-01619 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-04067 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 4702 | ||||

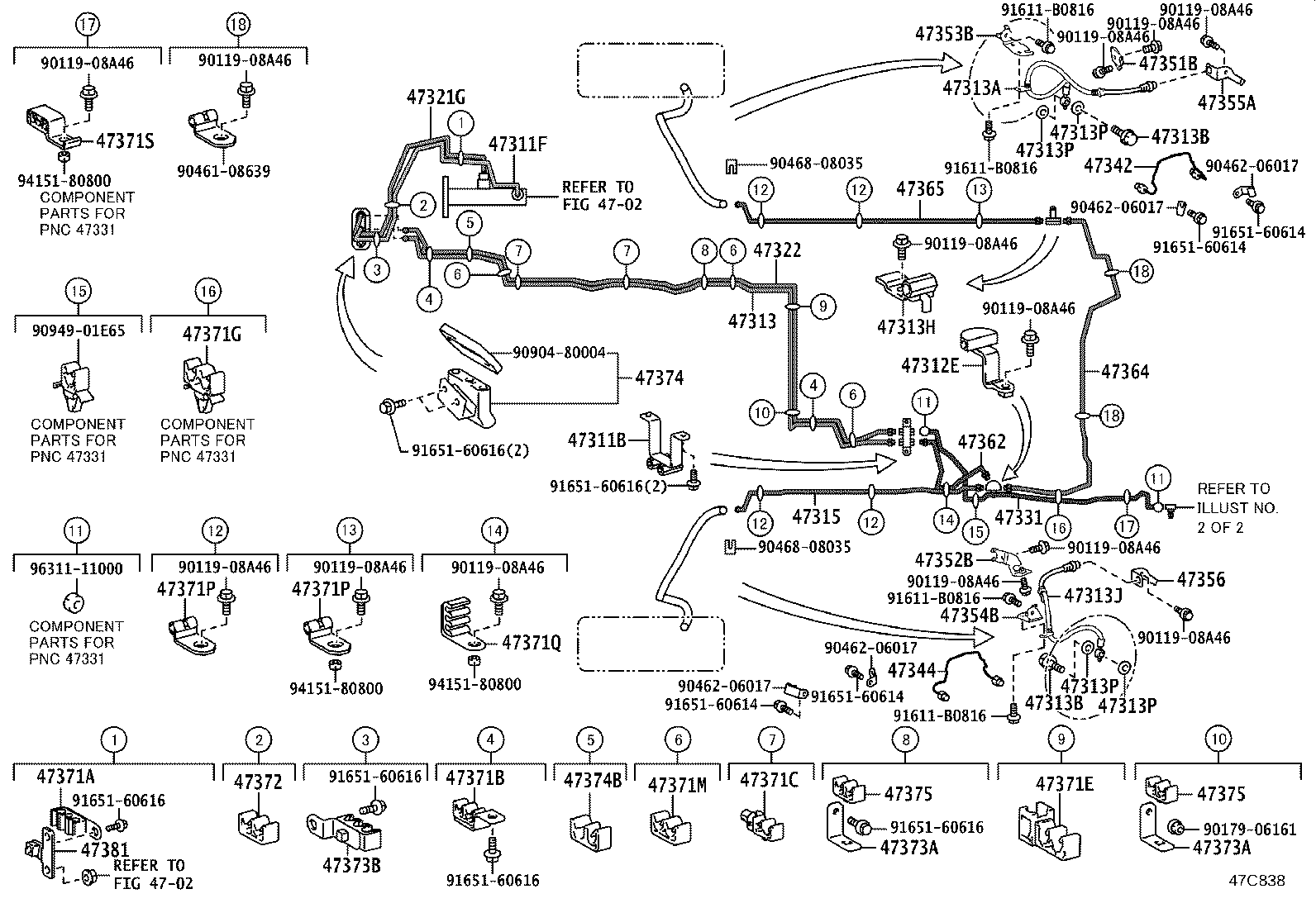

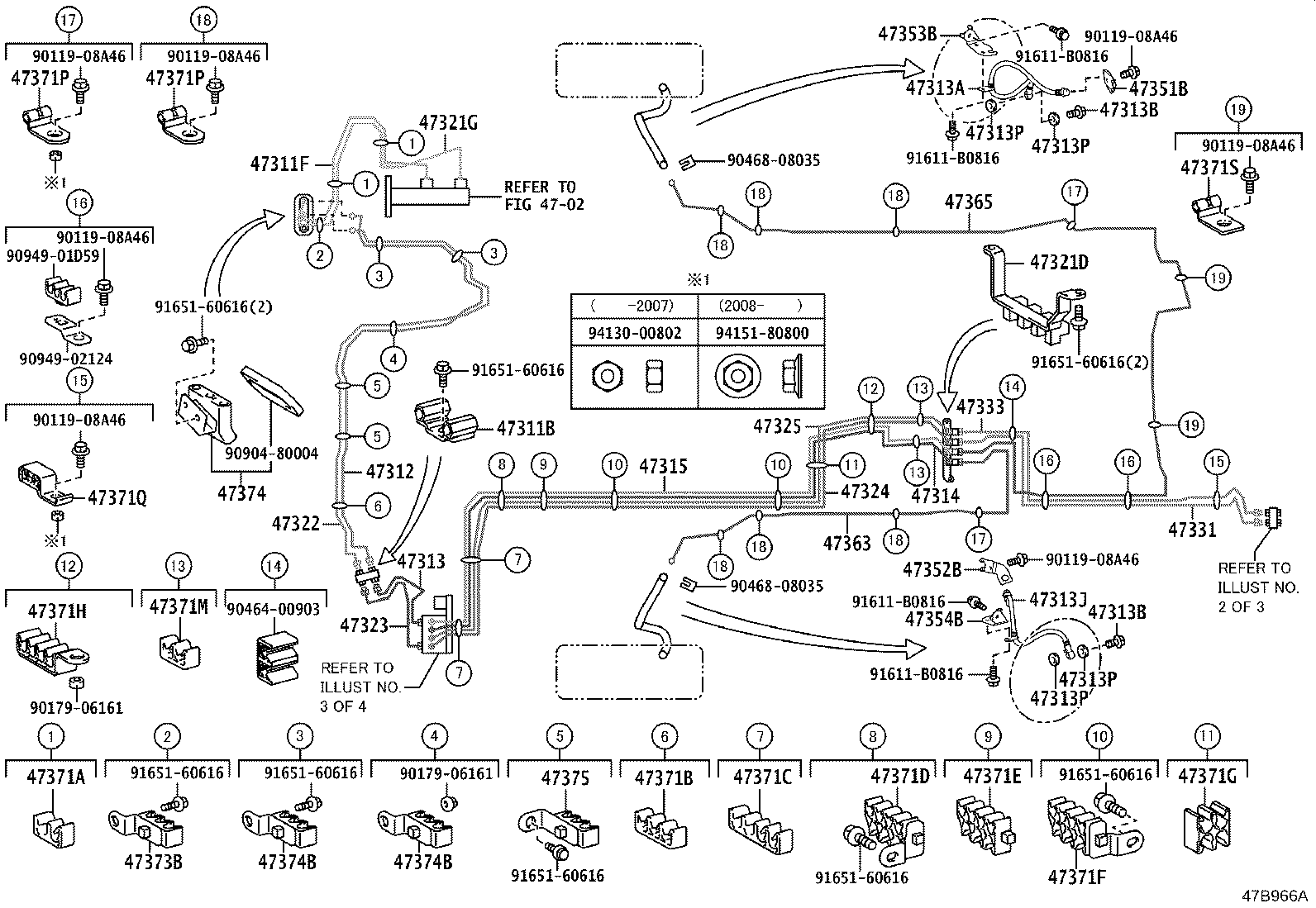

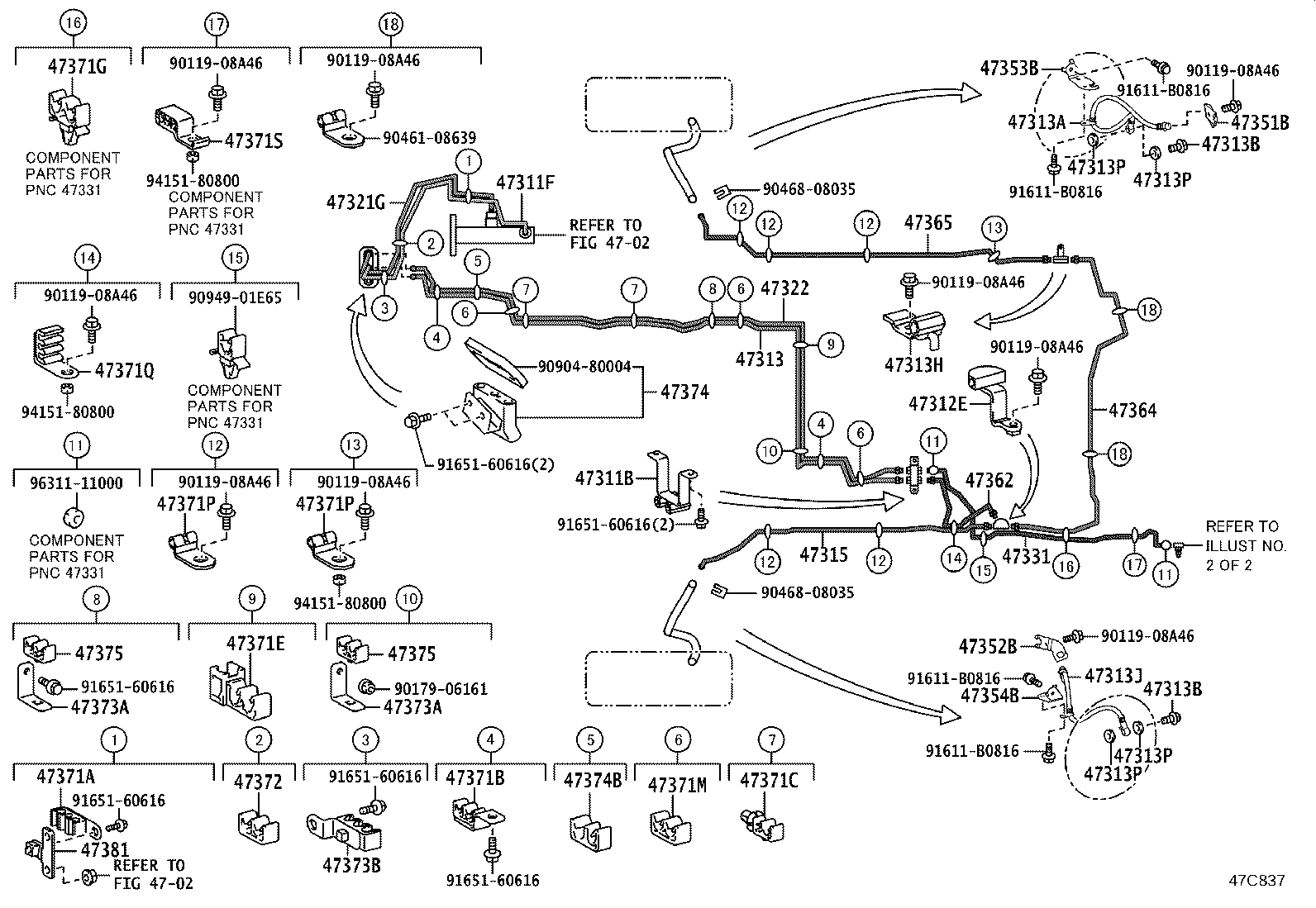

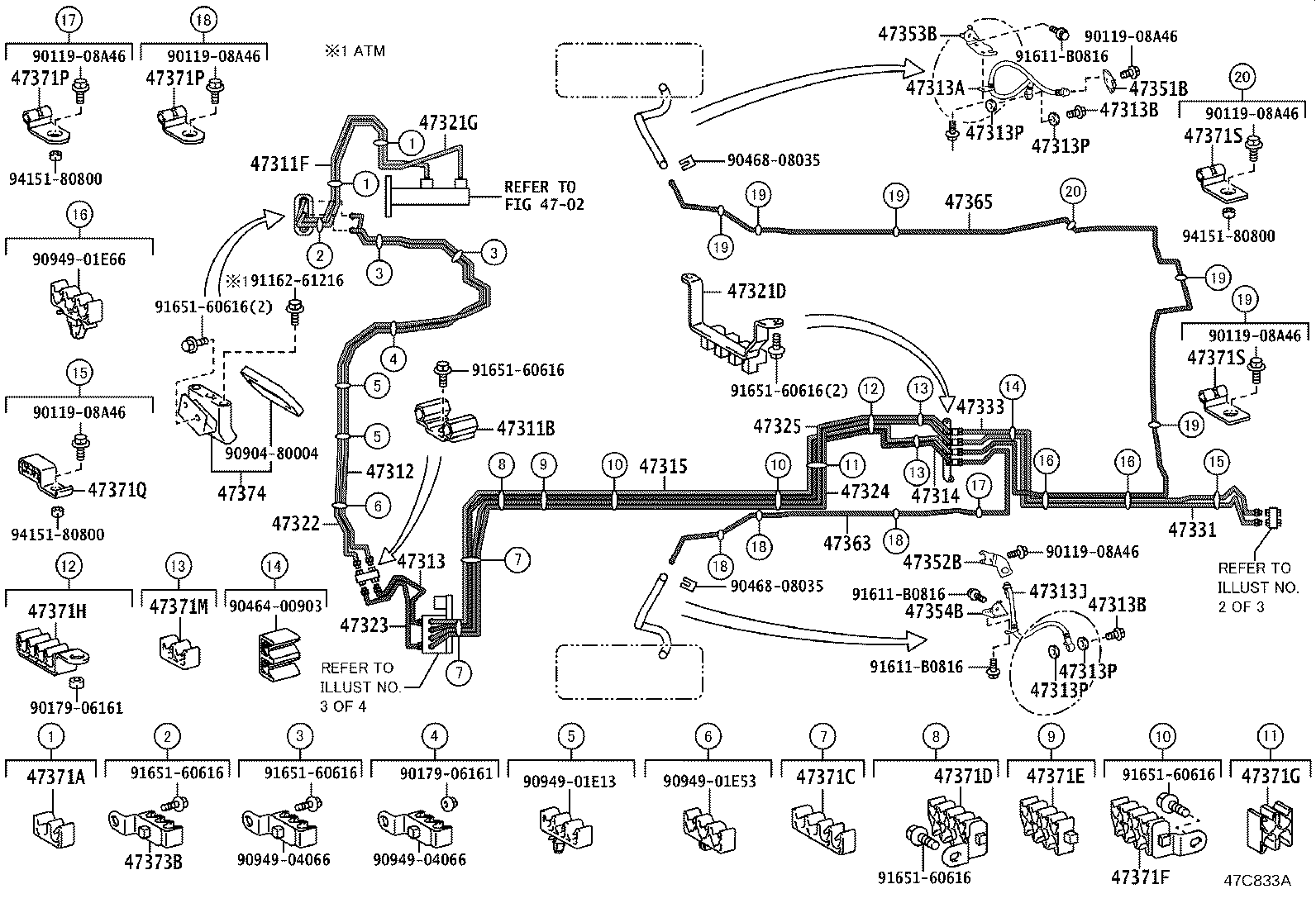

ILLUST NO. 1 OF 4(1908- )XZB70,80..RHD..01S,22S,29S..GEN
FRONT BRAKE TUBE(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 90412-12068 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311-36542 |
HZB60,70..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47312-36360 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47313-V4020 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36450 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47314-36420 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36380 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47315-36350 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47315-36390 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47315-36300 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10310 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321-36362 |
HZB60,70..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47322-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47322-V4040 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36110 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36390 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47324-36400 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36710 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47325-36720 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36300 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36310 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47331-36330 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36140 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333-36190 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47351-36211 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47351-36241 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47352-36201 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47352-36231 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36110 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36120 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-36140 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47365-36130 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47365-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00920 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E53 |
XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47371-28020 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D13 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-01540 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04071 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D60 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01E52 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-04072 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-07022 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00876 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-04073 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 90464-00903 |
HZB60,70,TRB60,70..GEN |
3 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47371-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01536 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 90949-01536 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90461-08639 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 90949-04068 |
BZB60,HZB60,70,XZB60..RHD |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36110 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 47307-36120 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00904 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-04066 |
XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00904 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-04066 |
XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90480-01619 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-04067 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90464-00903 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 90949-01D59 | ||||
| 90949-02124 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 1 OF 4(2101- )6FC..ARL ; (2101- )RHD..22S,23S,29S..GEN,SA
FRONT BRAKE TUBE(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 90412-12068 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311-36542 |
HZB60,70..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47312-36360 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47313-V4020 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36450 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47314-36420 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36380 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47315-36350 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47315-36390 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47315-36300 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10310 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321-36362 |
HZB60,70..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47322-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47322-V4040 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36110 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36400 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47324-36390 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36710 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47325-36720 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36300 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36310 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47331-36330 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-36140 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333-36190 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47333-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47351-36211 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47351-36241 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47352-36201 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47352-36231 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-36110 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36120 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-36140 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47365-36130 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47365-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00920 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D13 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-01540 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04071 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D60 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01E52 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-04072 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-07022 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00876 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-04073 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 90464-00903 |
HZB60,70,TRB60,70..GEN |
3 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47371-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01536 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 90949-01536 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90461-08639 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
6 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 90949-01536 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90461-08639 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 90949-04068 |
BZB60,HZB60,70,XZB60..RHD |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36110 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 47307-36120 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90464-00903 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 90949-01E13 | ||||
| 90949-01E53 | ||||
| 90949-01E66 | ||||
| 90949-04066 | ||||
| 91162-61216 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 1 OF 2(2101- )HZB60,70..RHD
FR BRAKE TUBE(DISC BRAKE),W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 90412-12068 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311-36542 |
HZB60,70..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10311 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 90413-10317 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47313-V4020 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90412-10311 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36380 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47315-36350 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47315-36390 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47315-36300 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321-36362 |
HZB60,70..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47322-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47322-V4040 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36300 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36310 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47331-36330 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47351-36211 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47351-36241 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47352-36201 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47352-36231 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-36070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-36170 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47364-36150 |
BZB60,70 |
1 | ||
| 47364-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36120 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-36140 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47365-36130 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47365-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00920 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E53 |
XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47371-28020 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D13 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-01540 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D60 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01E52 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-07022 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00876 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 90464-00903 |
HZB60,70,TRB60,70..GEN |
3 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47371-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01536 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 90949-01536 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90461-08639 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00903 |
HZB60,70..RHD |
1 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 47381-36160 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 47381-36160 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 90949-04068 |
BZB60,HZB60,70,XZB60..RHD |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36110 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 47307-36120 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00904 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-04066 |
XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90480-01619 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-04067 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90480-01619 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-04067 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-08639 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 90949-01E65 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 94151-80800 | ||||
| 96311-11000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 1 OF 2(2101- )HZB60,70..RHD
FR BRAKE TUBE(DRUM BRAKE),W/O(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12083 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 90412-12068 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-36610 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47311-36542 |
HZB60,70..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10311 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 90413-10317 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36420 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47313-V4020 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10023 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
2 | ||
| 90401-10023 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
2 | ||
| 90401-10015 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90412-10311 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H77 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 90947-02H77 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 90947-02H83 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36380 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47315-36350 |
TRB60,70..GEN ABS-WITH(ABS & VSC) |
1 | ||
| 47315-36390 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47315-36300 |
XZB70..6FC..ARL;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-36430 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47321-36362 |
HZB60,70..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36520 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47322-V4010 |
XZB70..6FC..ARL;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
1 | ||
| 47322-V4040 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36300 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47331-36310 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47331-36330 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47331-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36091 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36091 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-36211 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47351-36211 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47351-36241 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-36201 |
XZB70..6FC..ARL;HZB70,XZB70..GCC,TAIW;XZB60,70..RHD..(5F,6FC)..(GEN,SA);BZB60,TRB60,70,XZB80..(01S,17S,19S,20S,23S,24S,30S)..(5F,6FC) |
1 | ||
| 47352-36201 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47352-36231 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36260 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36150 |
XZB60..GEN;XZB70..6FC..ARL;BZB60,HZB60,70,TRB60,70,XZB70,80..(5F,6FC)..(GCC,GEN,SA,TAIW) |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47351-36250 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47352-36240 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-36070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-36170 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47364-36150 |
BZB60,70 |
1 | ||
| 47364-V4020 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 47365 - TUBE, FRONT BRAKE, NO.14 | ||||
| 47365-36120 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-36140 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
1 | ||
| 47365-36130 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47365-V4010 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
1 | ||
| 47365-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04070 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00920 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E53 |
XZB70..RHD..(22S,29S)..GEN |
1 | ||
| 47371-28020 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D13 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-01540 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D60 |
HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01E52 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-07022 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90464-00876 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90464-00903 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
2 | ||
| 90464-00903 |
HZB60,70,TRB60,70..GEN |
3 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN |
5 | ||
| 90461-06112 |
XZB70..6FC..ARL;HZB70,TRB60,70,XZB70..GCC,TAIW;XZB70,80..RHD..(5F,6FC)..(GEN,SA) |
4 | ||
| 90461-06112 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
8 | ||
| 90461-06112 |
XZB70..LHD..GEN;HZB60,70,TRB60..GEN FRONT WHEEL BRAKE-DISC(ROTOR = 296MM) |
6 | ||
| 47371Q - CLAMP, BRAKE TUBE, NO.15 | ||||
| 90949-01536 |
TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47371-36060 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-01536 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90461-08639 |
XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 90949-01536 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90461-08639 |
XZB70..6FC..ARL;XZB70..GCC,TAIW;XZB70..RHD..(5F,6FC)..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC) |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00903 |
HZB60,70..RHD |
1 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 47381-36160 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 47373A - BRACKET, TUBE CLAMP | ||||
| 47381-36160 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04066 |
XZB70,80..6FC;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 90949-04068 |
BZB60,HZB60,70,XZB60..RHD |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47307-36110 |
XZB70..LHD..GEN;BZB60,HZB60,70,TRB60,70,XZB60..GEN |
1 | ||
| 47307-36120 |
XZB70,80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,23S,29S)..(GEN,SA) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00904 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| 90949-04066 |
XZB70..RHD..(22S,29S)..GEN |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90480-01619 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-04067 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90480-01619 |
HZB60,70,TRB60,70..GEN |
2 | ||
| 90949-04067 |
XZB80..6FC;XZB70..RHD..(22S,29S)..GEN |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36120 |
XZB70..LHD..GEN;HZB60,70,TRB60,70..GEN |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90461-08639 | ||||
| 90462-06017 | ||||
| 90468-08035 | ||||
| 90904-80004 | ||||
| 90949-01E65 | ||||
| 91611-B0816 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 94151-80800 | ||||
| 96311-11000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
